Description

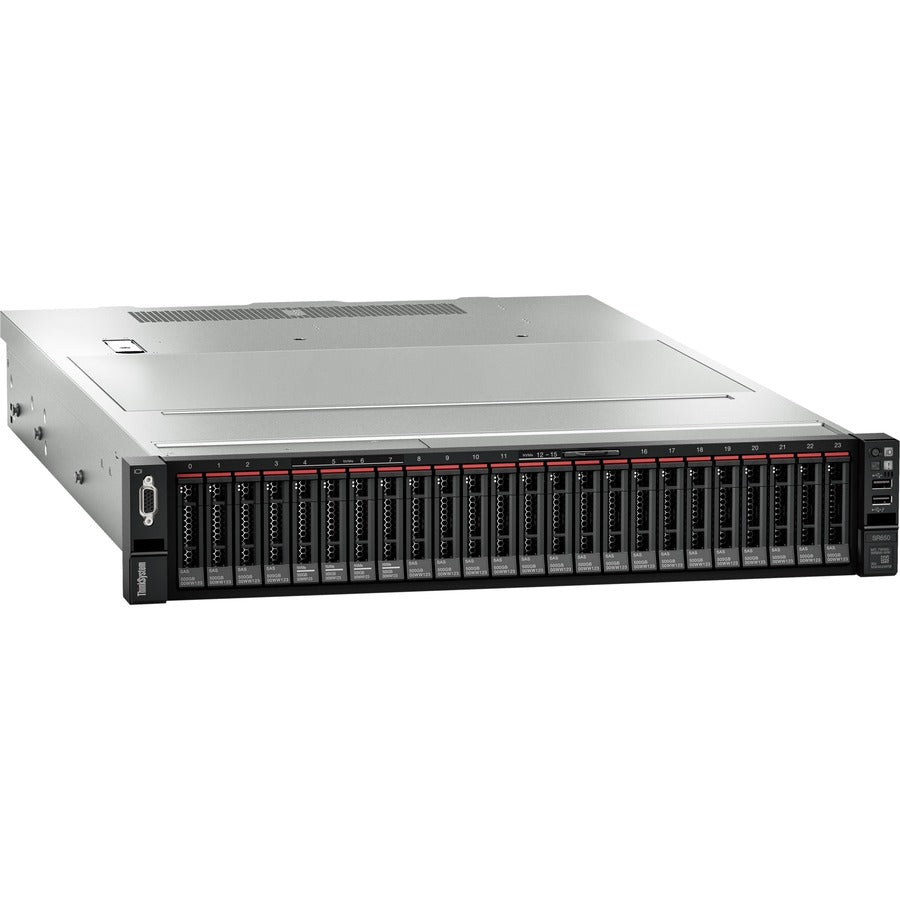

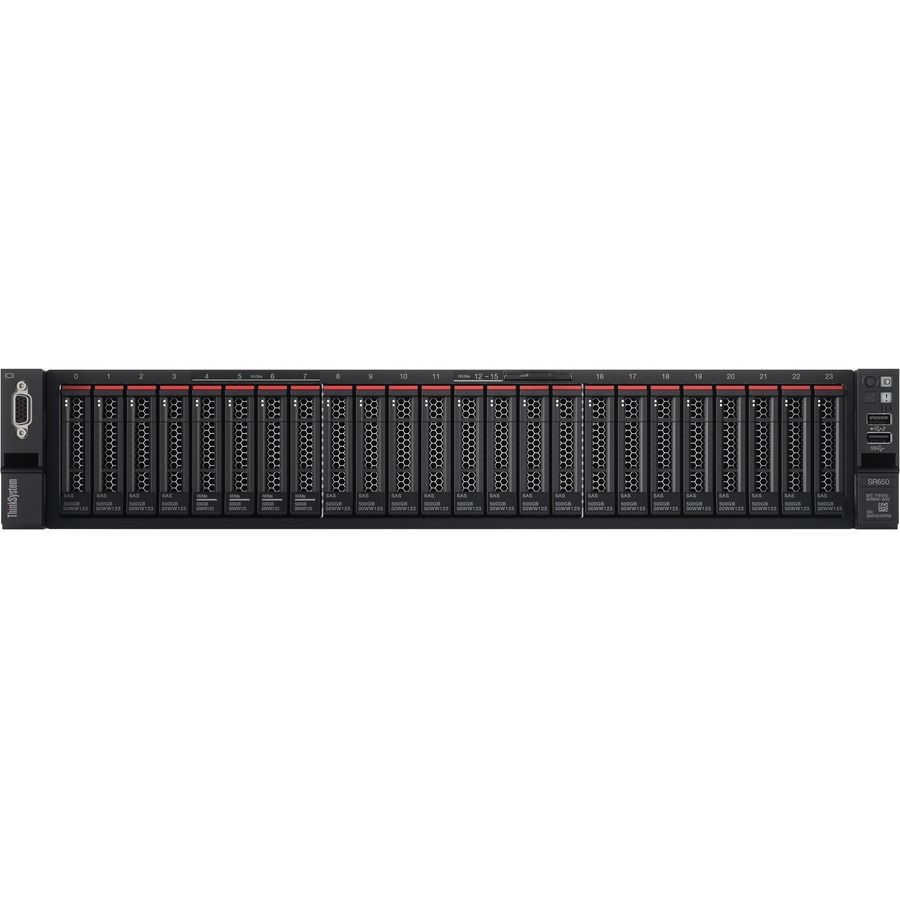

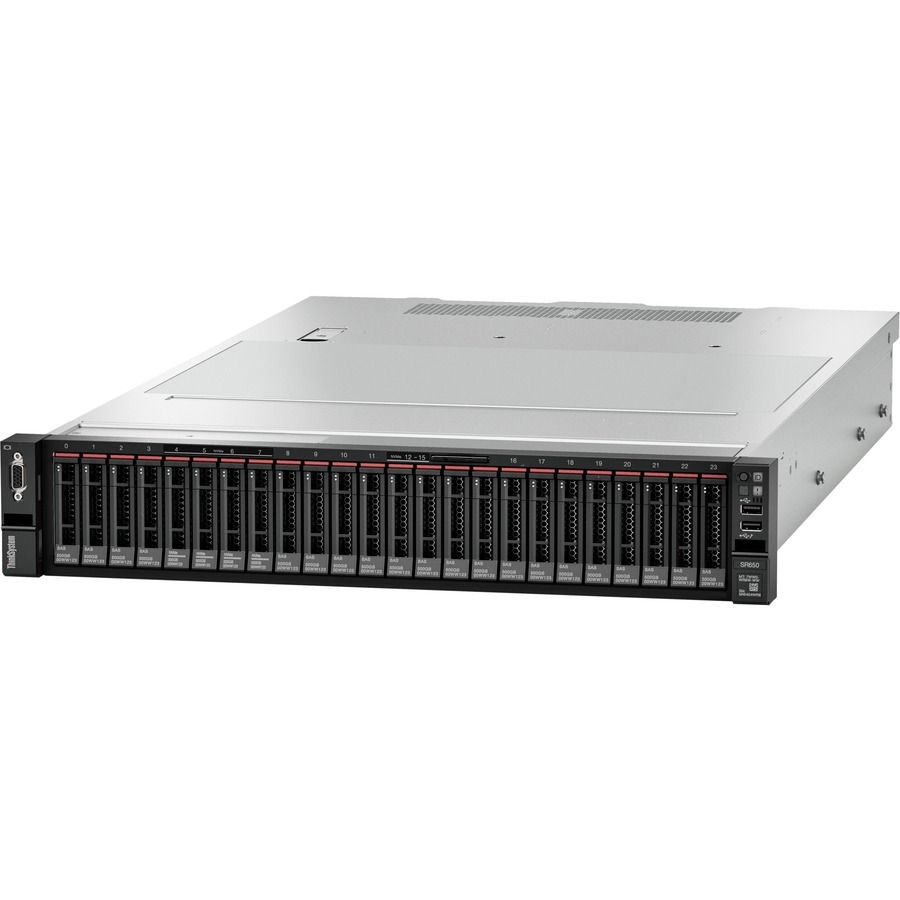

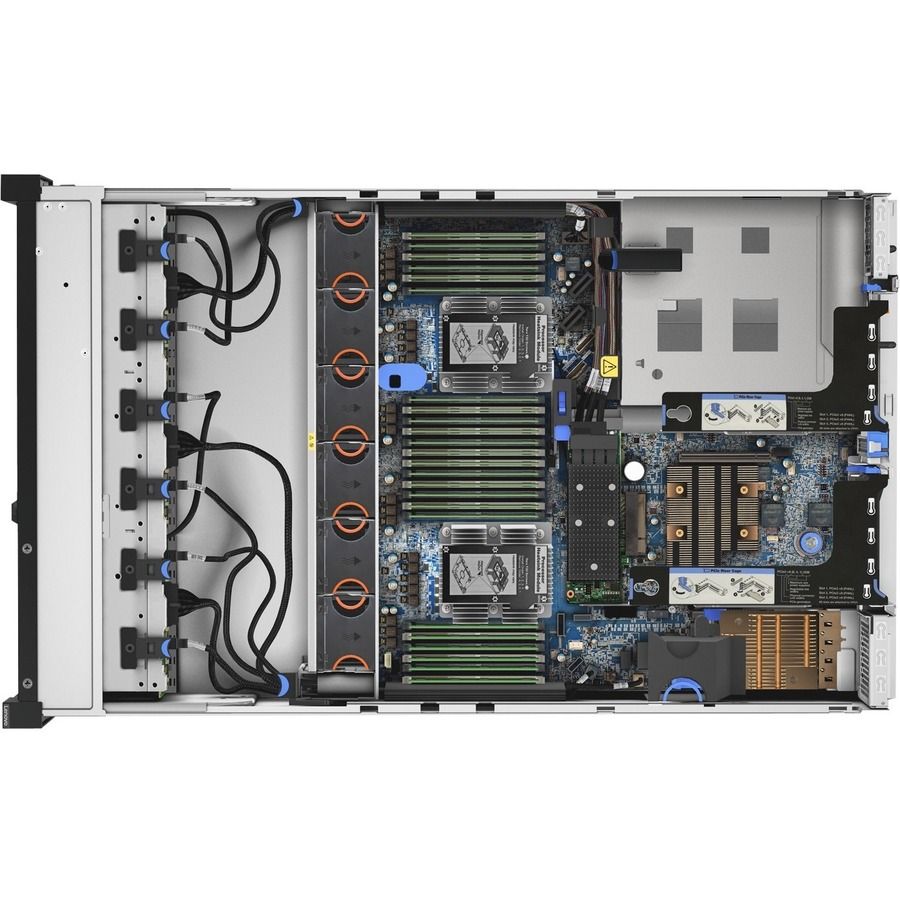

The Lenovo ThinkSystem SR650 7X06A0PNNA is a high-performance 2-socket 2U rack server engineered to deliver exceptional reliability, scalability, and flexibility for modern IT workloads. Powered by dual Intel Xeon Silver 4214 12-core processors and equipped with 192 GB of TruDDR4 ECC memory, this server is ideal for demanding enterprise applications such as virtualization, database management, cloud computing, and business analytics.
With 6.50 TB of enterprise-grade SSD storage and support for advanced RAID levels (0, 1, 5, 6, 10, 50, 60), the SR650 ensures lightning-fast data access and robust data protection. It also features 12 LFF drive bays, dual 750 W hot-swappable redundant power supplies, and a Gigabit Ethernet interface for seamless network integration. With flexible OS support, including major Windows Server and Linux distributions, and built-in management through Lenovo XClarity Controller (XCC), the ThinkSystem SR650 provides the scalability and security to power mission-critical workloads with confidence.
| Specification | Details |
|---|---|
| Manufacturer | Lenovo Group Limited |
| Part Number | 7X06A0PNNA |
| Product Line | ThinkSystem |
| Product Series | SR650 |
| Form Factor | 2U Rack Server |
| Processor Type | 2 x Intel Xeon Silver 4214 |
| Processor Cores | 12 cores per CPU (24 cores total) |
| Processor Speed | 2.20 GHz |
| Cache | 16.5 MB |
| Chipset | Intel C624 |
| Memory Capacity | 192 GB TruDDR4 ECC |
| Maximum Memory Supported | 3 TB |
| Memory Slots (Total/Used) | 24 / 6 |
| Memory Speed | 2.93 GHz |
| Intel Optane Ready | Yes |
| Storage | 6.50 TB SSD (2 x 3.2 TB, 2 x 128 GB) |
| Storage Interface | 12Gb/s SAS |
| Controller | 930-16i 8GB SAS Controller |
| RAID Support | 0, 1, 5, 6, 10, 50, 60 |
| Drive Bays | 12 x LFF |
| Expansion Slots | 5 (3 x PCIe x8, 2 x PCIe x16) |
| Graphics | G200e, 16 MB |
| Network Interface | Gigabit Ethernet |
| Ports | 4 x USB (1 x USB 2.0, 3 x USB 3.0), 4 x RJ-45, VGA |
| Remote Management | Lenovo XClarity Controller (XCC) |
| Supported Operating Systems | Windows Server 2016/2022, RHEL 7.6–8.5, SUSE 12 SP4–15 SP3 |
| Power Supply | 2 x 750 W Hot-Swappable, Redundant |
| Input Voltage | 120 V AC / 230 V AC |
| Security Features | TPM, SED Support, Secure Firmware, Admin & Power-on Passwords |
| Energy Efficiency | ENERGY STAR 3.0, RoHS Compliant |
| Dimensions (H x W x D) | 3.4" x 17.5" x 30.1" |
| Weight | 70.55 lbs |
| Included Accessories | Slide Rail Kit, C13 Power Cord |
| Warranty | 3-Year Limited Warranty |
