Description

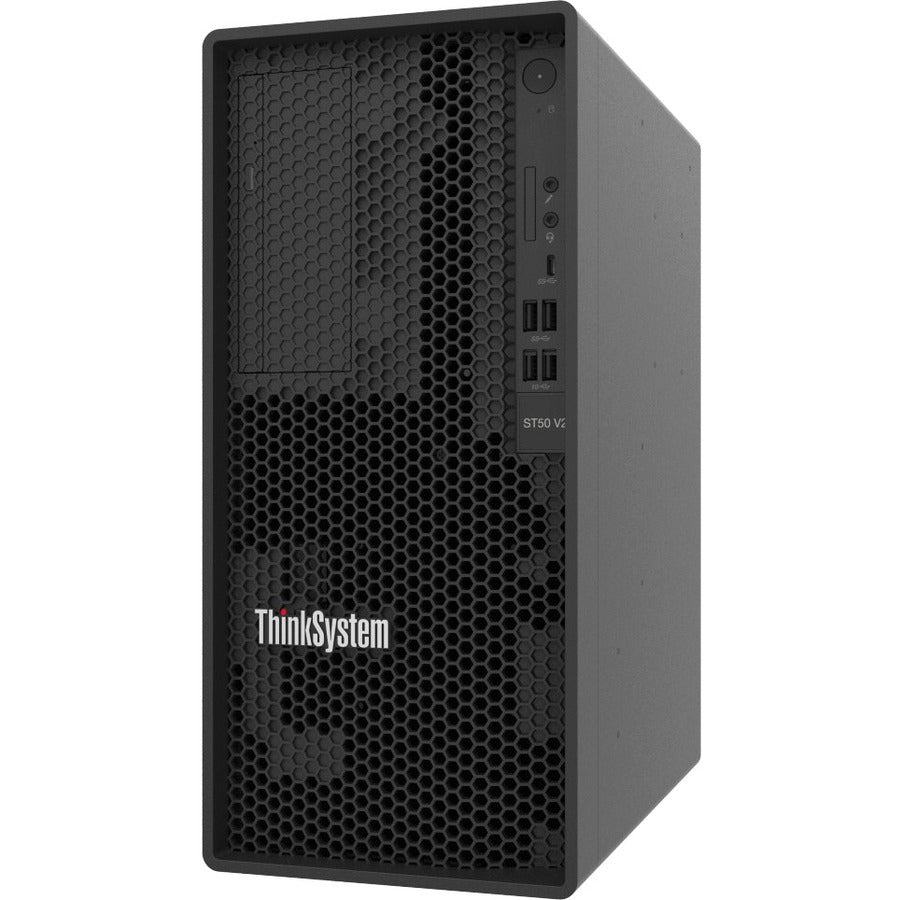

The Lenovo ThinkSystem ST50 V2 7D8JA00YNA is a compact, entry-level single-socket tower server designed to deliver enterprise-grade reliability and performance for small businesses, home offices, retail, educational institutions, and branch deployments. Powered by a 4-core Intel Xeon E-2324G 3.10 GHz processor, this server delivers dependable performance for a variety of workloads while maintaining low noise levels suitable for office environments.
It comes equipped with 16 GB of DDR4 ECC memory to ensure data integrity and prevent system crashes, and supports up to 128 GB for future scalability. The onboard SATA storage controller supports flexible HDD or SSD configurations, enabling a balance between capacity and performance. The ST50 V2 also offers expansion capabilities with three PCIe slots, including a Gen4 x16 slot, and built-in Intel Active Management Technology (AMT) 15.0 for efficient remote management.
With features such as TPM 2.0 security, tool-less maintenance, 80 PLUS Gold or Platinum power supply options, and quiet operation, the ThinkSystem ST50 V2 is the ideal solution for growing businesses seeking reliable, manageable, and energy-efficient server infrastructure.
| Specification | Details |
|---|---|
| Product Model | Lenovo ThinkSystem ST50 V2 7D8JA00YNA |
| Form Factor | Tower (rack-mountable with optional kit) |
| Processor | 1 x Intel Xeon E-2324G (4 cores, 3.10 GHz) |
| Memory Installed | 16 GB DDR4 ECC UDIMM |
| Maximum Memory | Up to 128 GB DDR4 ECC UDIMM (4 DIMM slots) |
| Chipset | Intel C256 ("Tiger Lake") |
| Storage Controller | Onboard 6Gb SATA controller supporting AHCI or Intel RSTe RAID (0/1/5) |
| Drive Bays | Up to 3 non-hot-swap bays (2 x 3.5", 1 x 2.5"), optional 1 x NVMe M.2 boot drive |
| Maximum Internal Storage | Up to 16 TB HDD or 1.92 TB SSD (3.5"), 960 GB SSD (2.5") |
| Expansion Slots | 3 x PCIe (1 x Gen4 x16, 1 x Gen3 x4, 1 x Gen3 x1) |
| Network Interface | 1 x Gigabit Ethernet (Intel I219-LM) |
| Front Ports | 1 x USB 3.2 Gen 2 Type-C, 2 x USB 3.2 Gen 2, 2 x USB 3.2 Gen 1, Mic & Headset ports |
| Rear Ports | 4 x USB 3.2 Gen 1, 2 x DisplayPort, 1 x Serial, 1 x RJ-45 LAN, 1 x Audio line-out |
| Graphics | Integrated Intel Graphics (with supported CPUs), dual DisplayPort outputs |
| Cooling | 2 system fans + CPU and PSU fans, ASHRAE A2 compliant |
| Power Supply | 1 x Fixed 300W (80 PLUS Gold) or 500W (80 PLUS Platinum) PSU |
| Security | TPM 2.0, chassis intrusion switch (optional), padlock loop, Kensington lock slot |
| Manageability | Intel AMT 15.0, Lenovo XClarity Provisioning Manager Lite |
| Operating Systems Supported | Microsoft Windows Server, Red Hat Enterprise Linux, VMware ESXi |
| Warranty | 3-Year CRU and Onsite Limited Warranty (NBD) |
| Dimensions (W x H x D) | 170 mm x 376 mm x 316 mm |
| Weight | Up to 9.4 kg |
