Description

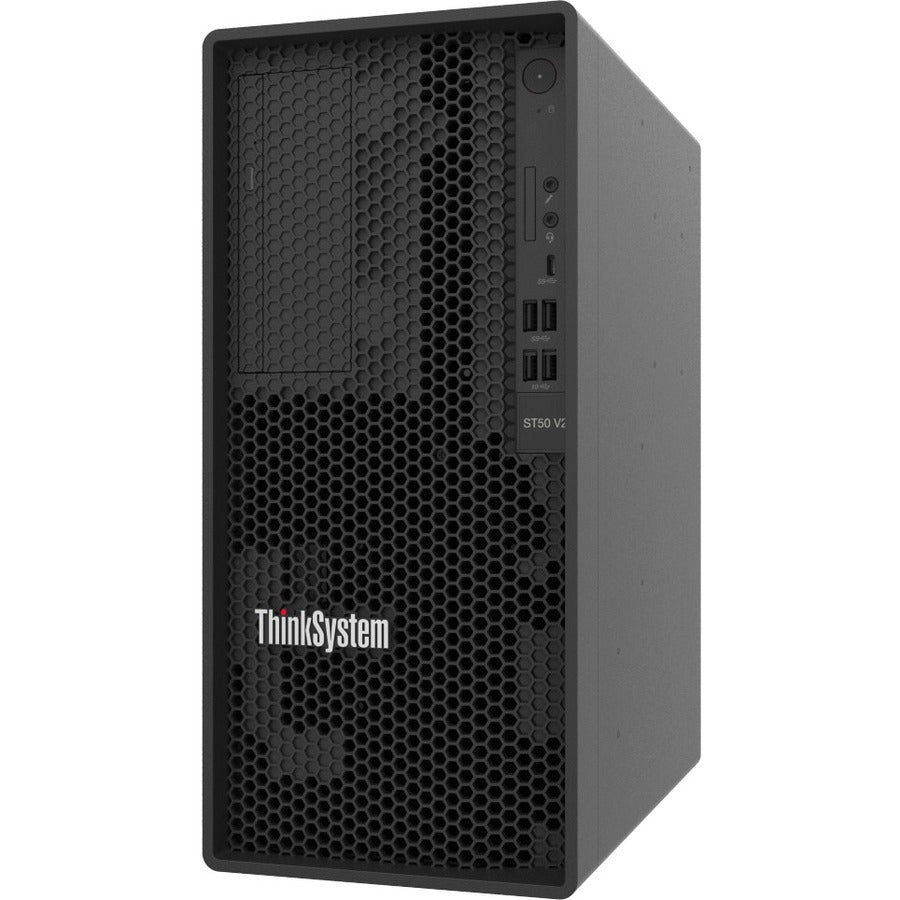

The Lenovo ThinkSystem ST50 V2 7D8JA010NA is an entry-level, single-socket tower server designed to deliver enterprise-class reliability and performance for small businesses, branch offices, educational institutions, and retail environments. Powered by an Intel Xeon E-2324G quad-core processor with a 3.10 GHz base clock, it delivers powerful computing performance for everyday business workloads. Equipped with 16 GB of DDR4 ECC memory, it ensures data integrity and smooth multitasking under demanding applications.
The ST50 V2 offers versatile storage capabilities with support for up to three non-hot-swap drive bays, including 2x 3.5-inch HDD/SSD and 1x 2.5-inch SSD, as well as an M.2 NVMe boot drive option for faster OS deployment. The integrated SATA controller supports RAID for enhanced data protection, while Intel Active Management Technology (AMT) 15.0 and Lenovo XClarity Provisioning Manager Lite simplify remote management and system provisioning. With a compact, quiet design and enterprise-class features such as ECC memory, onboard RAID, TPM 2.0 security, and advanced cooling, the ST50 V2 is a cost-effective, energy-efficient server ideal for SMB deployments.
| Specification | Details |
|---|---|
| Brand | Lenovo |
| Product Model | ThinkSystem ST50 V2 |
| SKU / Part Number | 7D8JA010NA |
| Form Factor | Tower (can be rack-mounted with optional kit) |
| Processor | 1 x Intel Xeon E-2324G (4 cores, 3.10 GHz) |
| Processor Architecture | Rocket Lake-E |
| Memory Installed | 16 GB DDR4 ECC UDIMM |
| Maximum Memory | Up to 128 GB (4 DIMM slots) |
| Memory Speed | 3200 MHz |
| Memory Protection | ECC (Error-Correcting Code) |
| Drive Bays | Up to 3x non-hot-swap (2x 3.5-inch + 1x 2.5-inch) |
| Supported Storage | HDDs, SSDs, and 1x M.2 NVMe boot drive |
| Storage Controller | Onboard SATA (RAID 0, 1, 5) |
| Expansion Slots | 1x PCIe 4.0 x16, 1x PCIe 3.0 x4, 1x PCIe 3.0 x1 |
| Network Interface | 1 x Gigabit Ethernet (Intel I219-LM) |
| Front I/O Ports | 1x USB-C 3.2 Gen2, 2x USB 3.2 Gen2, 2x USB 3.2 Gen1, Audio ports |
| Rear I/O Ports | 4x USB 3.2 Gen1, 2x DisplayPort, 1x Serial, 1x Gigabit Ethernet, Audio line-out |
| Graphics | Integrated Intel UHD Graphics (processor dependent) |
| Cooling | 2x system fans + CPU fan |
| Power Supply | 1x Fixed 300W 80 PLUS Gold PSU |
| Security Features | TPM 2.0, power-on & admin passwords, optional chassis intrusion switch, padlock loop |
| Manageability | Intel AMT 15.0, Lenovo XClarity Provisioning Manager Lite |
| Operating System Support | Windows Server, Red Hat Enterprise Linux, VMware ESXi |
| Dimensions (W x H x D) | 170 x 376 x 316 mm (6.7 x 14.8 x 12.4 in) |
| Weight | Max. 9.4 kg (20.7 lbs) |
| Warranty | 3-Year CRU and onsite limited warranty with NBD support |
