Description

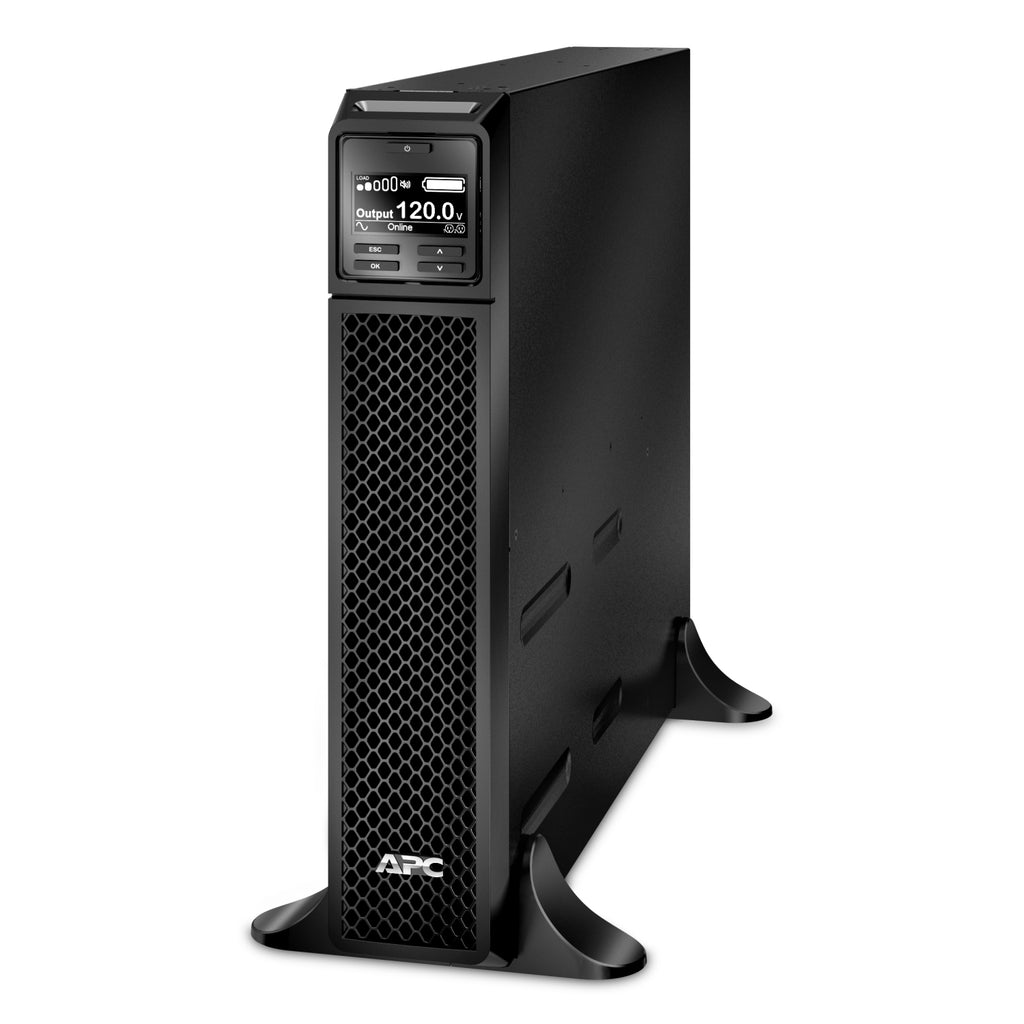

The APC Smart-UPS On-Line SRT1000XLA delivers premium, double-conversion on-line power protection for critical IT and network infrastructure. Designed for high-density applications, it ensures clean and consistent power with 1000VA/900W output capacity and six NEMA 5-15R outlets. Featuring scalable runtime, this UPS supports external battery packs and provides exceptional reliability for servers, storage, and network devices. Equipped with a SmartSlot, USB and serial communication ports, and ENERGY STAR® V2.0 certification, it offers advanced monitoring, energy efficiency, and extended runtime capabilities. Built with a robust lead-acid battery system and optimized for long-term performance, it’s an ideal choice for safeguarding essential business operations against power interruptions.
| Category | Specification |
|---|---|
| Model / SKU | SRT1000XLA |
| Product Type | Uninterruptible Power Supply (UPS) |
| Topology | Double-Conversion Online |
| Form Factor | Tower |
| Input Voltage | 120V AC (1 Phase) |
| Output Voltage | 120V AC (1 Phase) |
| Power Capacity | 1000 VA / 900 W |
| Input Connection | NEMA 5-15P |

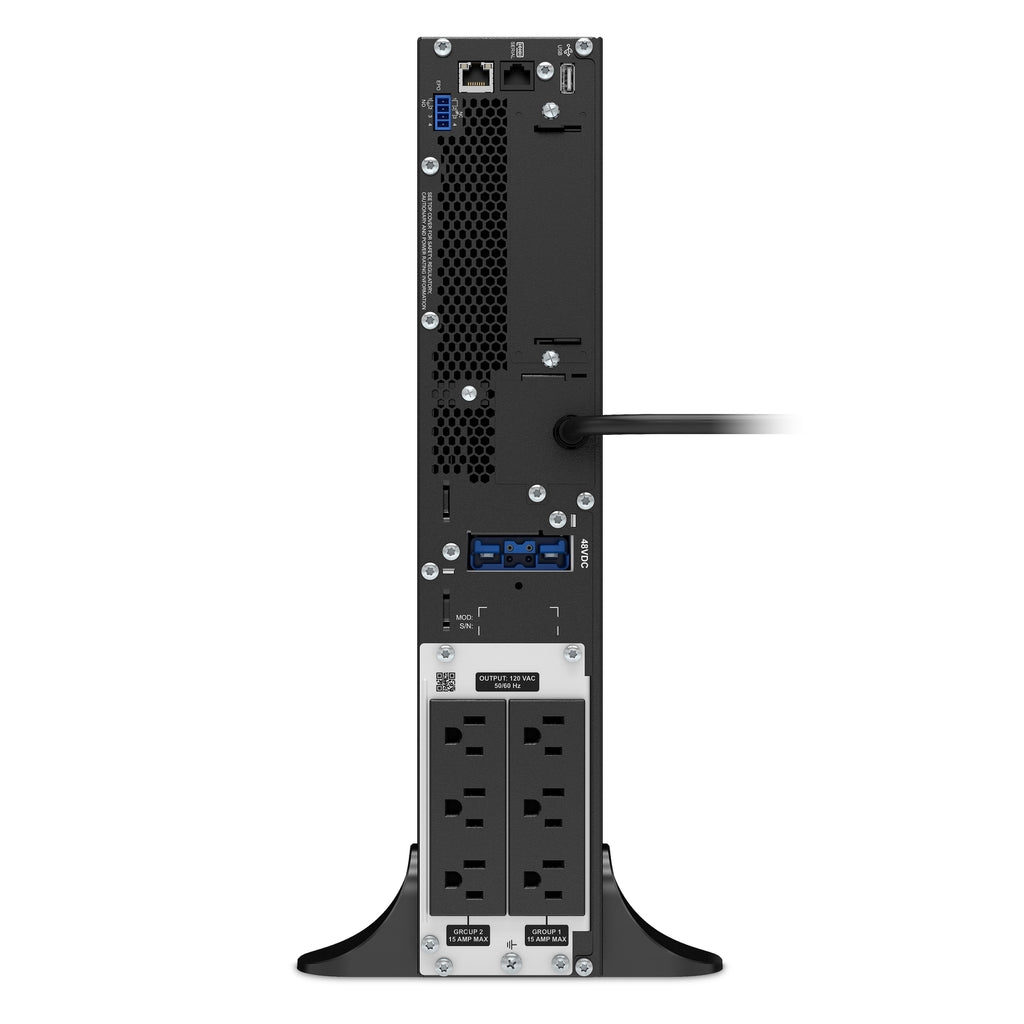

| Output Connections | 6 × NEMA 5-15R |
| Cable Length | 1.8 m (5.9 ft) |
| Battery Type | Lead-Acid (Internal) |
| Battery Voltage | 48V DC |
| Typical Recharge Time | 3 hours |
| Battery Life | 3–5 years |
| Replacement Battery | APCRBC155 |
| Extendable Runtime | Yes (External Battery Modules Supported) |
| Bypass Type | Built-in Automatic Bypass |
| Waveform | Pure Sine Wave |
| Output Frequency | 50/60 Hz ±3 Hz (Sync to mains) |
| Harmonic Distortion | < 2% |
| Crest Factor | 3:1 |
| Energy Efficiency | ENERGY STAR® V2.0 Certified |
| Communications | USB, Serial Port, SmartSlot |
| Alarms | Audible and visual (prioritized by severity) |
| Surge Protection | 432 Joules |
| Noise Level | 50 dBA |
| Operating Temperature | 0–40°C (32–104°F) |
| Humidity Range | 0–95% Non-condensing |
| Altitude (Operating) | Up to 10,000 ft |

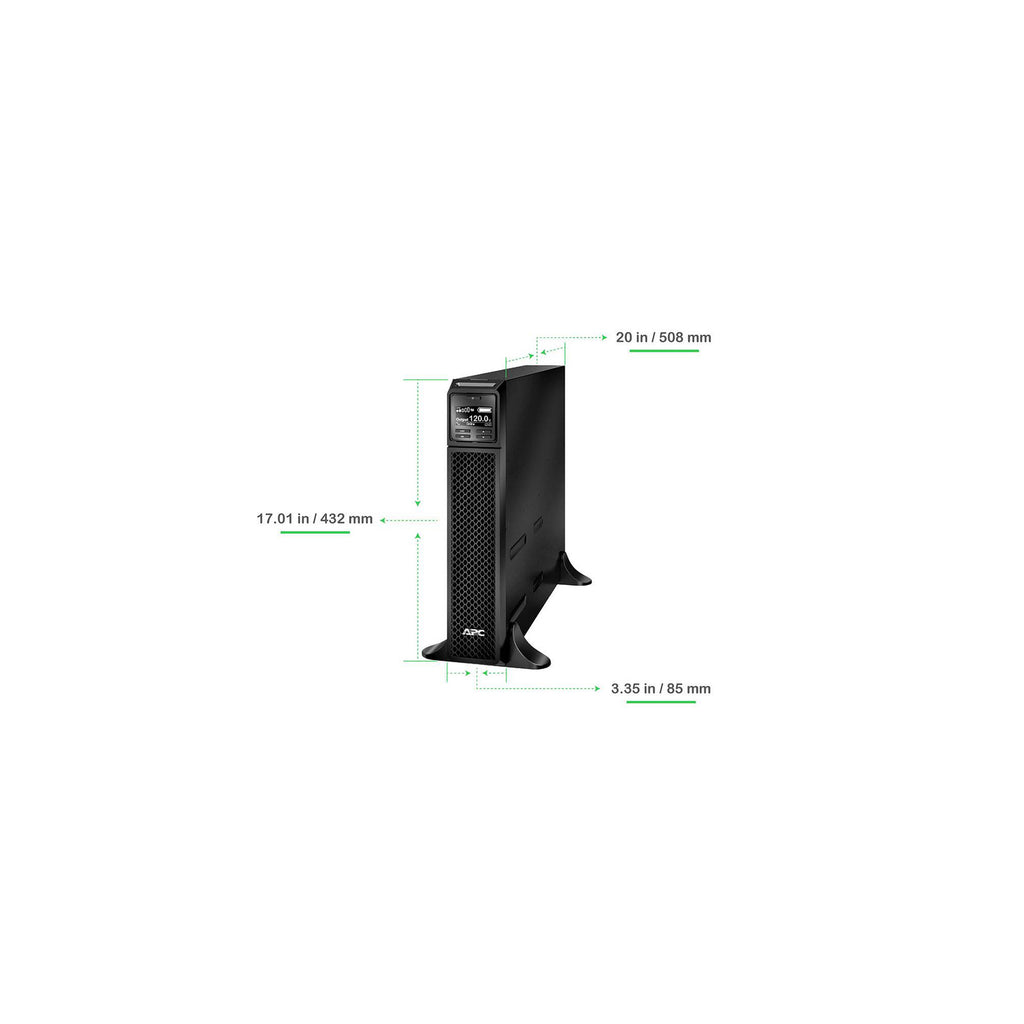

| Dimensions (H × W × D) | 432 × 85 × 508 mm (17.0 × 3.3 × 20 in) |
| Net Weight | 22 kg (48.5 lb) |
| Package Weight | 32.6 kg (71.8 lb) |
| Environmental Compliance | ENERGY STAR®, RoHS, REACh, WEEE |
| Warranty | 3 Years UPS / 2 Years Battery |
