Description

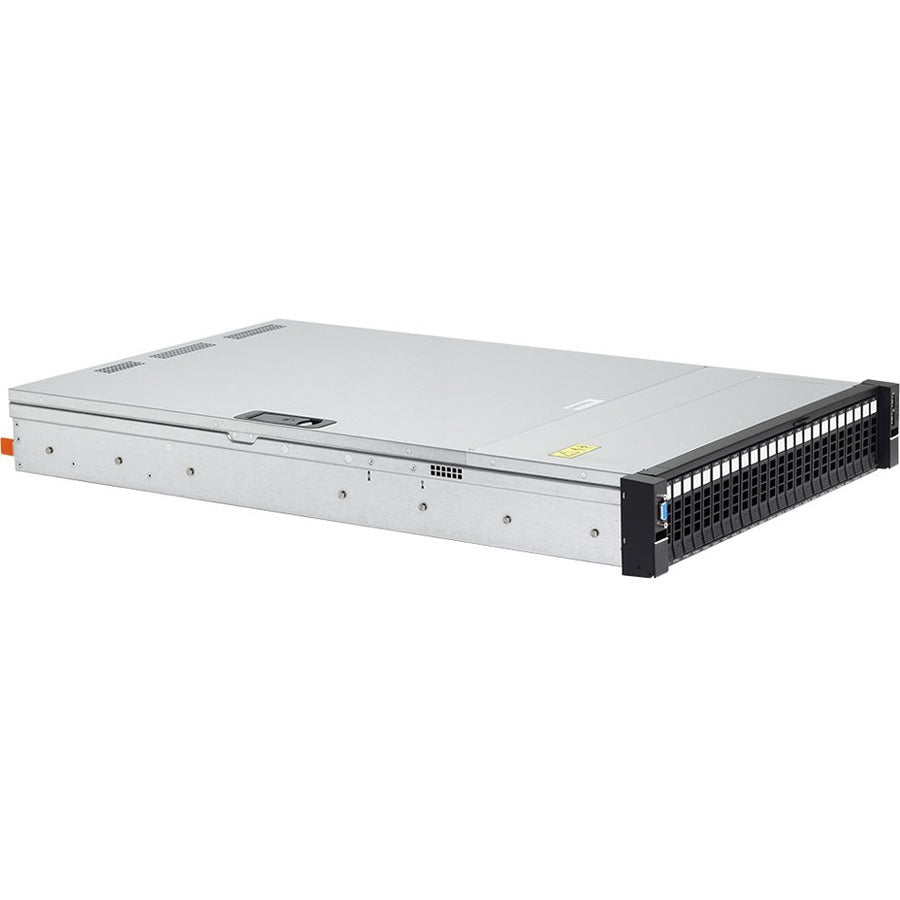

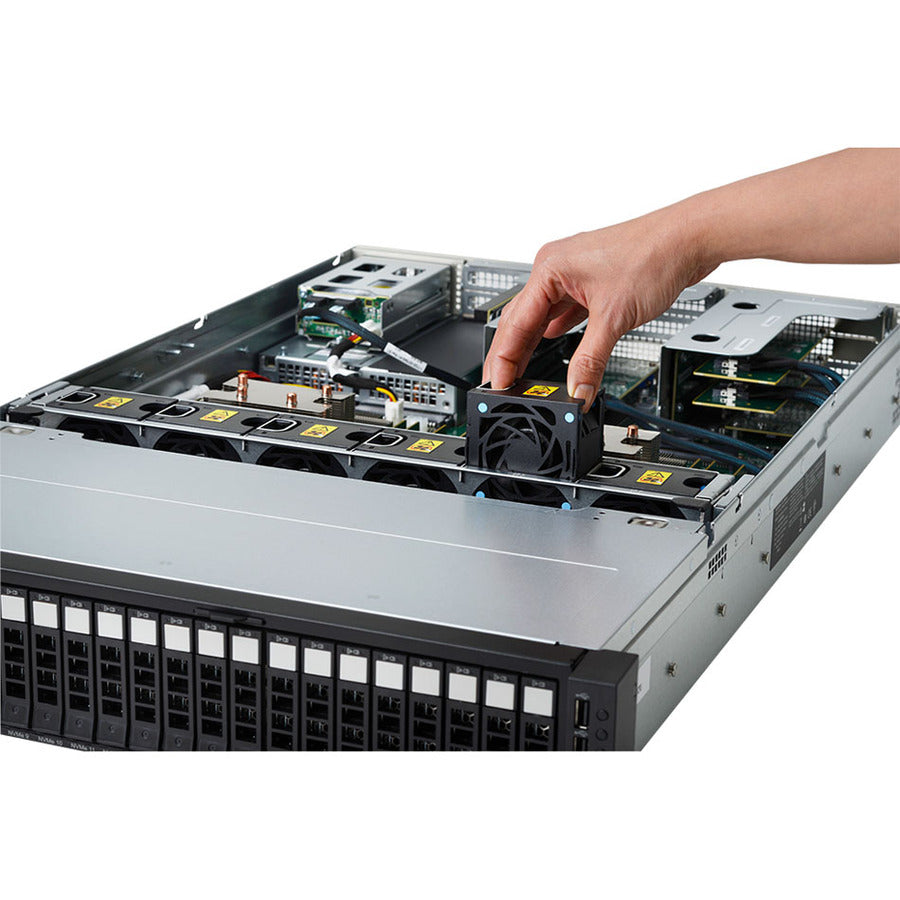

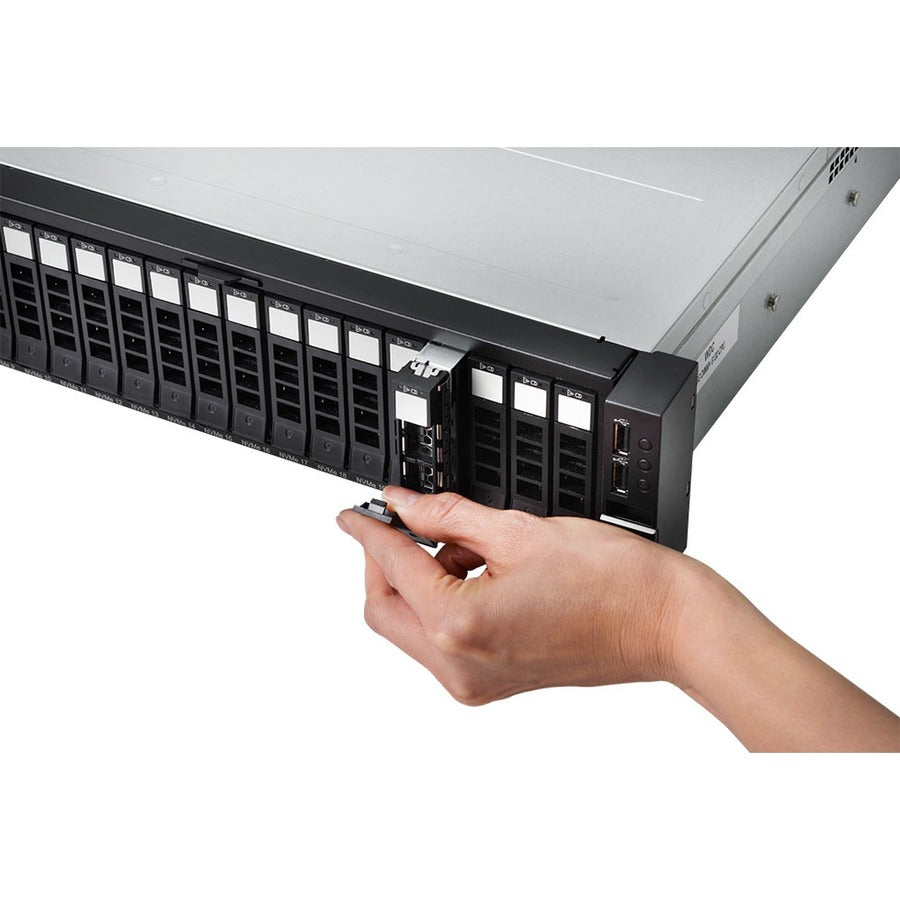

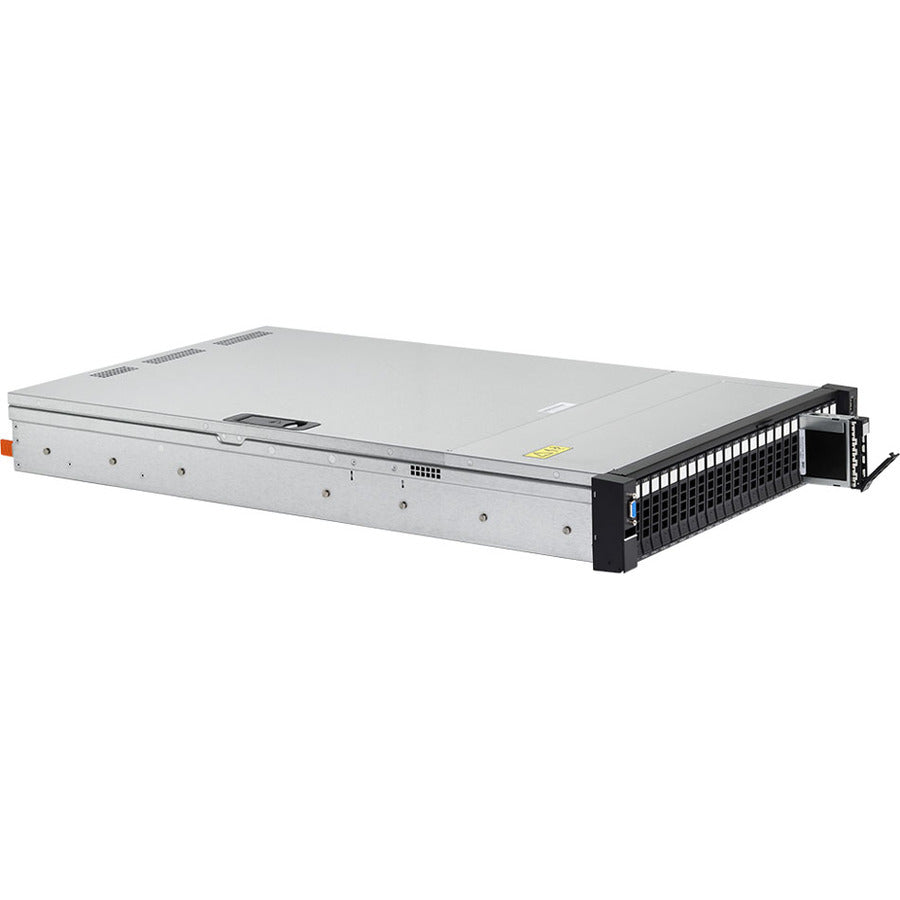

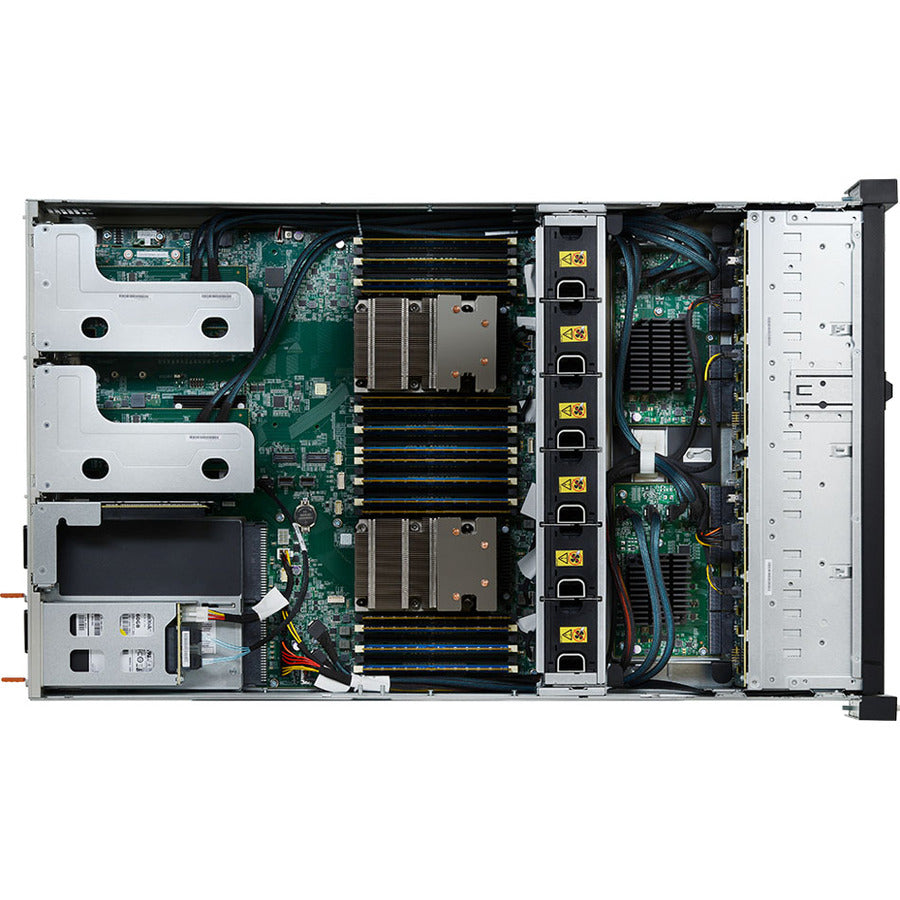

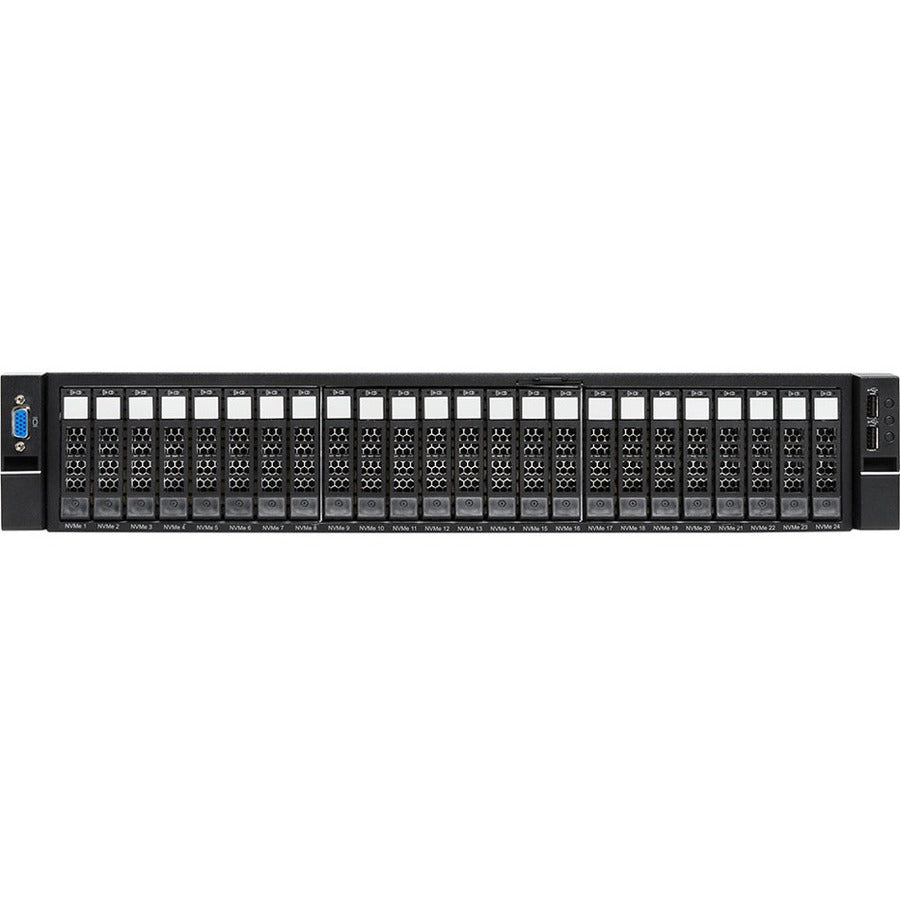

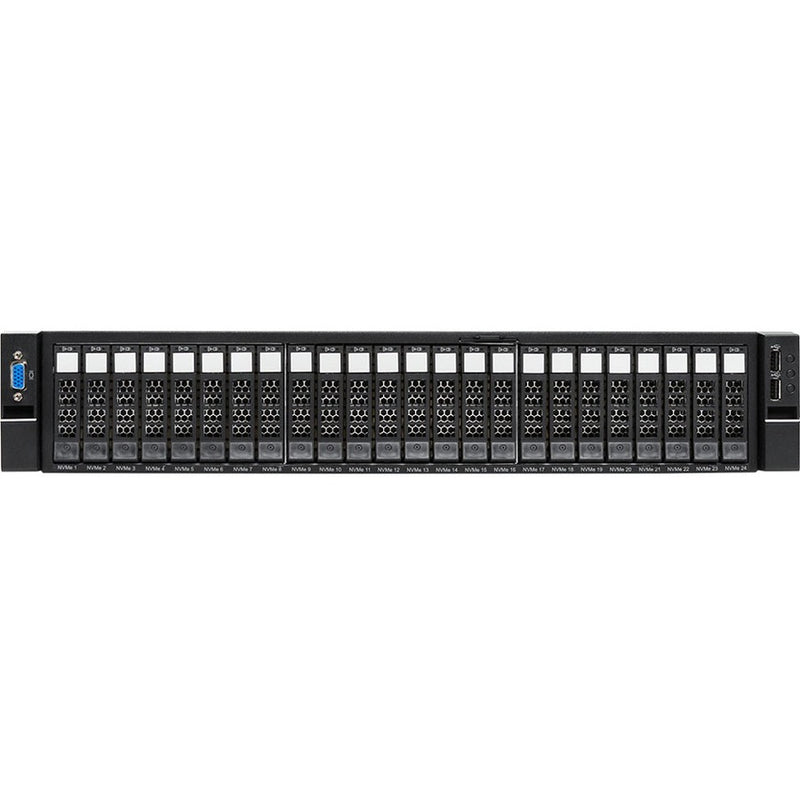

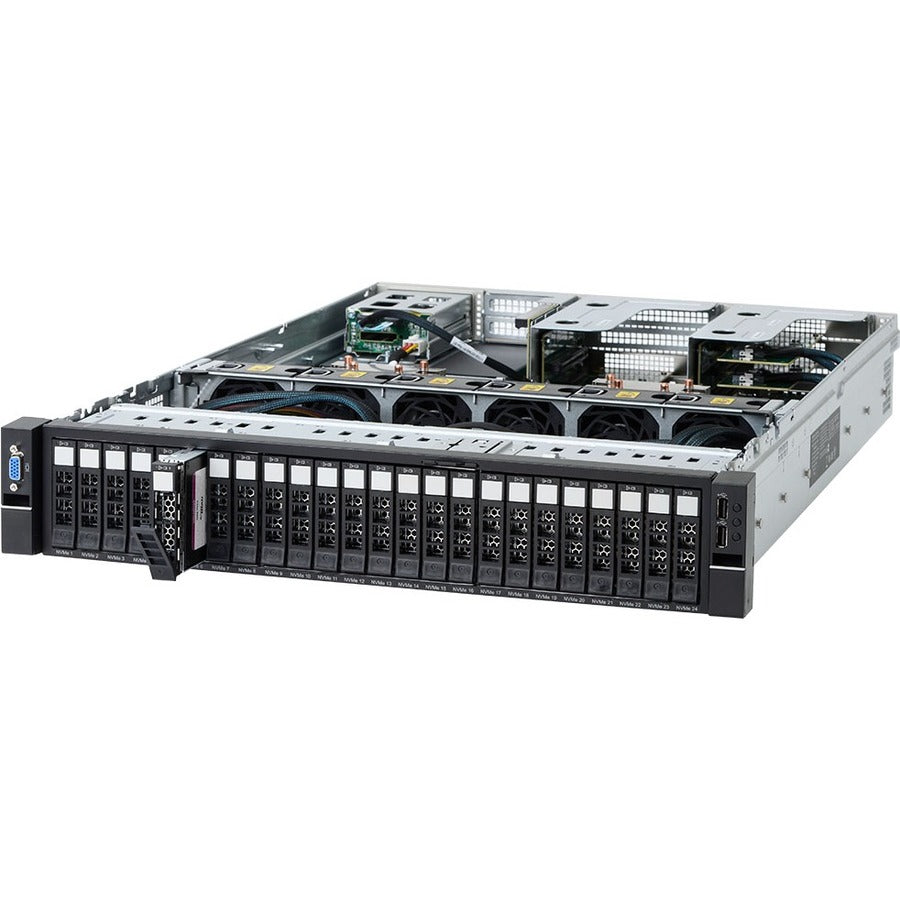

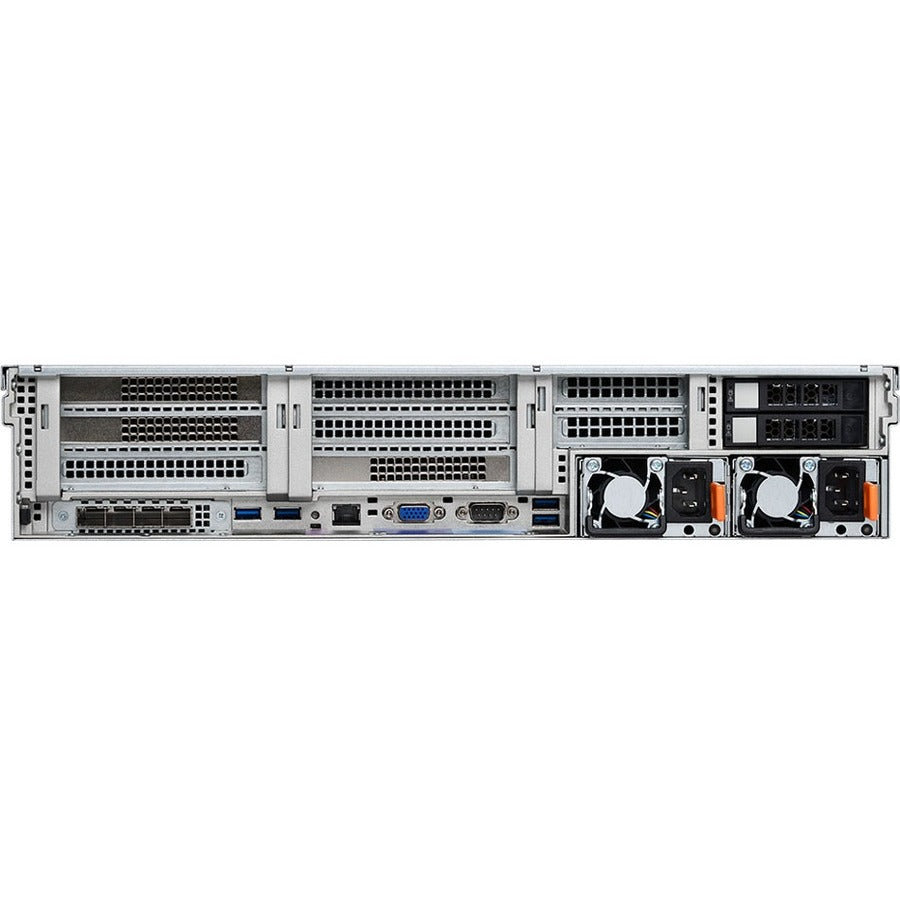

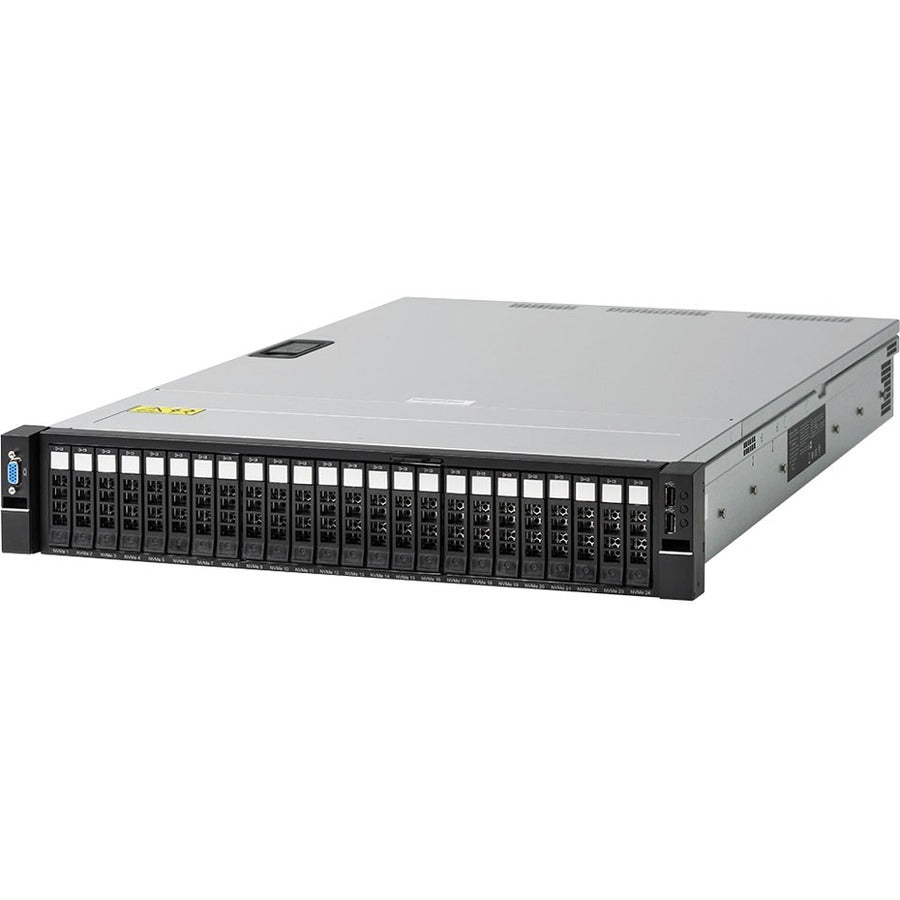

The HGST Ultrastar Serv24 NVMe Storage Server is a high-performance, enterprise-grade solution engineered for modern software-defined storage (SDS) infrastructures. Powered by the Intel Xeon Gold 5120 14-core processor and equipped with 256GB DDR4 RAM, this 2U rackmount server supports 24 NVMe SSDs with a total installed capacity of 92.16TB and a supported capacity up to 184TB. Designed for fast data processing and consistent throughput, it’s ideal for file servers, cloud deployments, and big data environments requiring low latency and high bandwidth. Featuring 10 Gigabit Ethernet, dual redundant power supplies, and robust NVMe integration, the Serv24 accelerates data to the speed of flash.
| Category | Details |
|---|---|
| Manufacturer | Western Digital Corporation |
| Brand Name | HGST |
| Product Line | Ultrastar Serv24 |
| Model | SS2U24PUR-1016 |
| Part Number | 1ES1020 |
| Processor | Intel Xeon Gold 5120, 14-Core, 2.20 GHz |
| Memory | 256 GB DDR4 SDRAM |
| Drive Bays | 24 x NVMe SSD bays |
| Installed SSDs | 24 |
| Installed SSD Capacity | 92.16 TB |
| Maximum SSD Capacity | 184 TB |
| Boot Drives | 2 |
| Controller | NVMe Controller |
| Expansion Slots | 3 (PCIe 3.0 x16, x8) |
| Networking | 2 x 10 Gigabit Ethernet, RJ-45 |
| Ports | 2 x USB, 2 x USB 3.0, VGA |
| Remote Management | IPMI 2.0 |
| Form Factor | 2U Rack-mountable |
| Dimensions (HxWxD) | 3.4" x 17.6" x 29.9" |
| Weight | 54.90 lbs |
| Power Supply | 2 x 1200W, Redundant |
| Warranty | 5-Year Limited Warranty |
| Condition | New and Factory Fresh |
