Description
The Edgecore AS7816-64X is a powerful 2RU open network switch designed for top-of-rack (TOR) or spine deployments in high-performance data centers. Featuring 64 × QSFP28 ports, each supporting 100 GbE or 40 GbE, and breakout support for 25 GbE and 10 GbE, the AS7816-64X delivers non-blocking line-rate performance powered by the Broadcom StrataXGS Tomahawk II ASIC.
Driven by an Intel Xeon D-1518 quad-core CPU, the switch ensures robust control-plane performance and supports open-network environments with the Open Network Install Environment (ONIE) for flexible NOS deployment — compatible with SONiC, Open Network Linux, Cumulus Linux, Cisco IOS-XR, and SnapRoute CN-NOS.

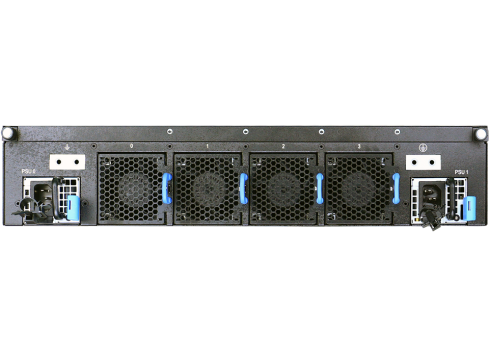

Designed for enterprise-grade reliability, it includes hot-swappable dual 850 W AC power supplies, 3+1 redundant fan modules, and power-to-port airflow for efficient thermal management. Fully compliant with RoHS-6 and TAA, the AS7816-64X ensures performance, flexibility, and long-term investment protection for scalable data-center fabric architectures.
| Category | Specification |
|---|---|
| Model | Edgecore AS7816-64X |
| Manufacturer Part Number (Mfr P/N) | 7816-64X-O-AC-B-US |
| Form Factor | 2 RU rack-mountable |
| Switch Silicon | Broadcom StrataXGS Tomahawk II (BCM56970) |
| CPU | Intel Xeon D-1518 (Quad-Core 2.4 GHz) |
| Memory | 16 GB DDR4 ECC (2 × 8 GB SO-DIMM 2133 MHz) |
| Storage | 32 GB M.2 SSD + 8 MB × 2 SPI Flash |
| Switching Capacity | 12.8 Tbps (full duplex) |
| Forwarding Rate | 9.5 bpps |
| Packet Buffer | 42 MB integrated |

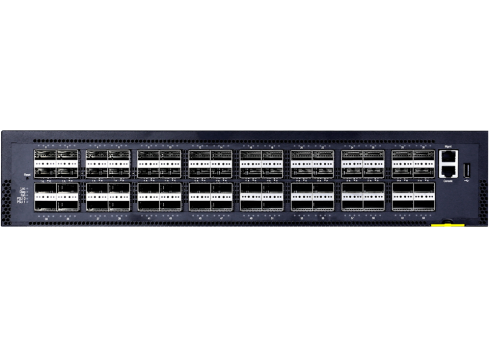

| Ports | 64 × QSFP28 (100 GbE / 40 GbE / 4×25 GbE / 4×10 GbE) |
| Management Ports | 1 × RJ-45 Console, 1 × RJ-45 Mgmt (1 GbE), 1 × USB Type-A |
| Airflow | Power-to-Port (Back-to-Front) |
| Power Supply Units (PSU) | Dual 850 W AC PSUs (hot-swappable, load-sharing, redundant) |
| Cooling | 3 + 1 redundant hot-swappable fan modules |
| Dimensions (W×D×H) | 43.8 × 58.0 × 8.8 cm (17.2 × 22.8 × 3.5 in) |
| Weight | 14.1 kg (31.1 lb) |
| Operating Temperature | 0 °C ~ 50 °C (32 °F ~ 122 °F) |
| Humidity | 5 % ~ 95 % (non-condensing) |
| Software Environment | ONIE installer; supports Open Network Linux, SONiC, Cumulus Linux, Cisco IOS-XR, SnapRoute CN-NOS |
| Compliance / Safety | CE, FCC Class A, VCCI Class A, UL, CB, RoHS-6, TAA Compliant |
| Warranty | Standard 3-Year Limited Hardware Warranty (region-specific) |
