Description

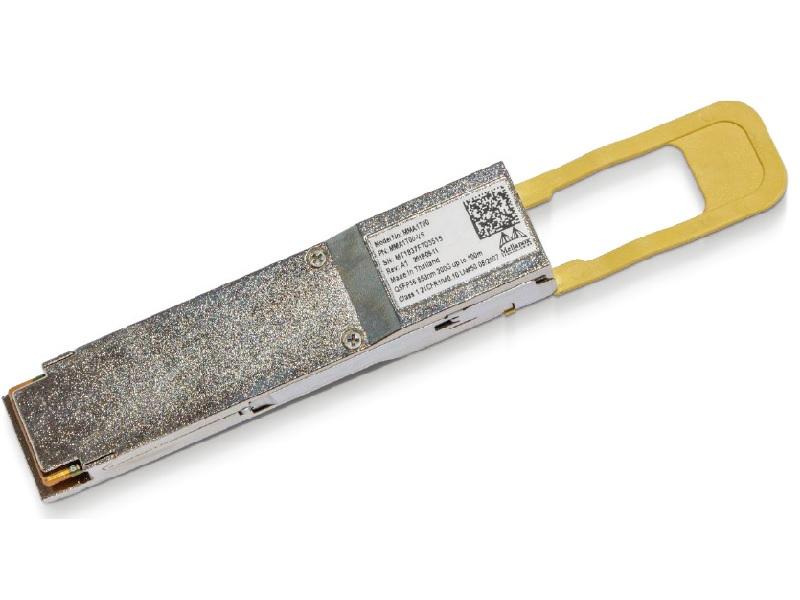

The NVIDIA Mellanox MMA1T00-VS is a 4-channel pluggable QSFP56 optical transceiver for 200Gb/s Ethernet. It runs over 4-lane parallel multimode fiber at a nominal 850nm wavelength. Reach is up to 100m on OM4 and 70m on OM3 at 200Gb/s. Each channel signals at up to 26.5625 GBd using 50Gb/s PAM4 modulation, and the optical interface uses a standard MPO-12 UPC connector.
The module complies with IEEE 802.3 200GAUI-4 and 200GBASE-SR4 and with the QSFP56 MSA. Digital diagnostic monitoring reports supply voltage, temperature, laser bias current, and transmit and receive optical power, with warning and alarm thresholds. It is hot-pluggable, Class 1 laser safe, and RoHS compliant.
Technical Specifications:
| Specification | Details |
|---|---|
| Brand | NVIDIA Mellanox |
| MPN | MMA1T00-VS |
| Product Type | QSFP56 Optical Transceiver |
| Protocol | 200GbE (IEEE 802.3 200GAUI-4 / 200GBASE-SR4) |
| Data Rate | Up to 200Gb/s |
| Modulation | 4x 50Gb/s PAM4 |
| Signaling Rate per Channel | Up to 26.5625 GBd |
| Wavelength | 850nm |
| Fiber Type | Multimode, 4-lane parallel |
| Reach | Up to 100m (OM4), 70m (OM3) |
| Optical Connector | MPO-12 UPC male receptacle |
| Electrical Interface | SFF-8665 compliant QSFP56 |
| Management | SFF-8636 compliant IΒ²C, DDM |
| Power Class | QSFP56 Class 5 |
| Power Dissipation | 4.5W typical, 5.0W max |
| Supply Voltage | 3.135β3.465V (3.3V typical) |
| Operating Case Temperature | 0Β°C to 70Β°C |
| Storage Temperature | -40Β°C to 85Β°C |
| Operating Humidity | 5% to 85% |
| Bit Error Rate | Better than 1E-15 with Mellanox systems |
| Laser Safety | Class 1 |
| Hot Pluggable | Yes |
| Compliance | RoHS |
| Warranty | 1-year limited hardware warranty |
