Description

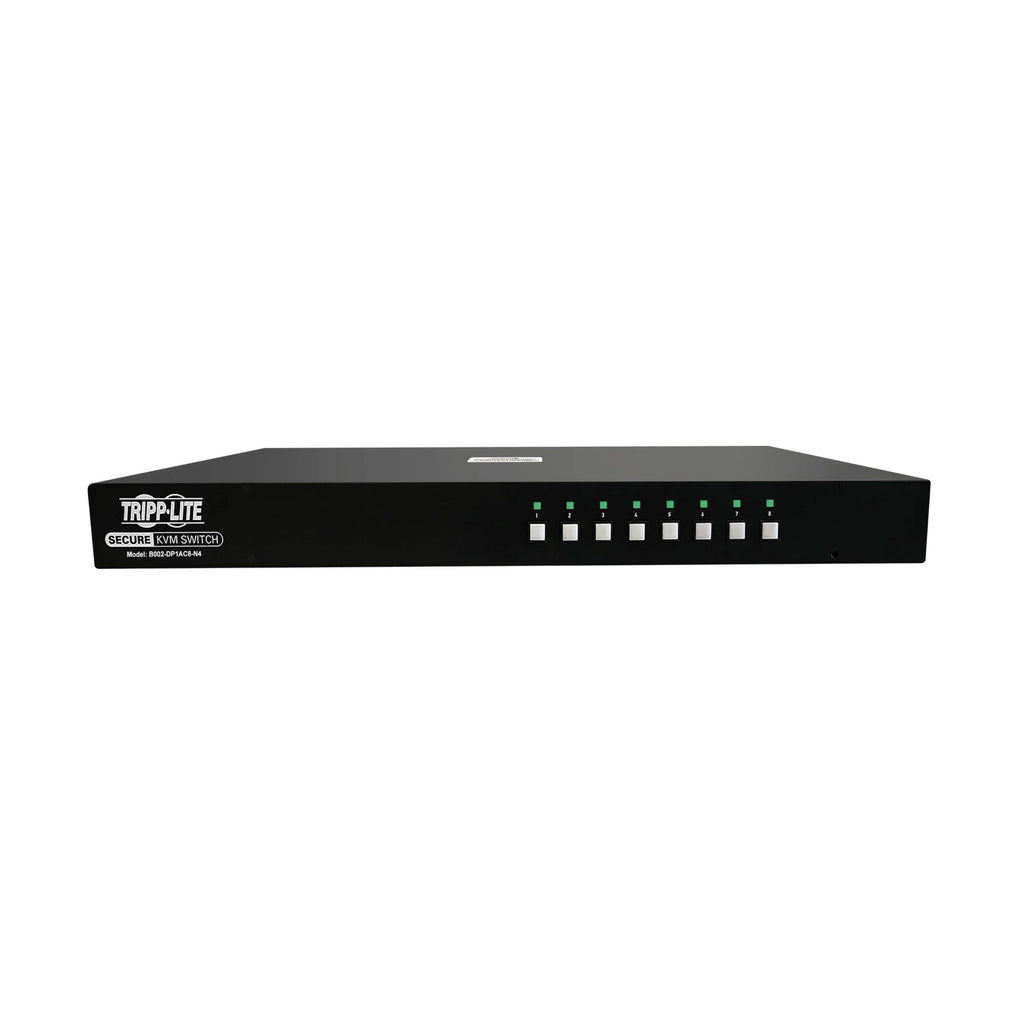

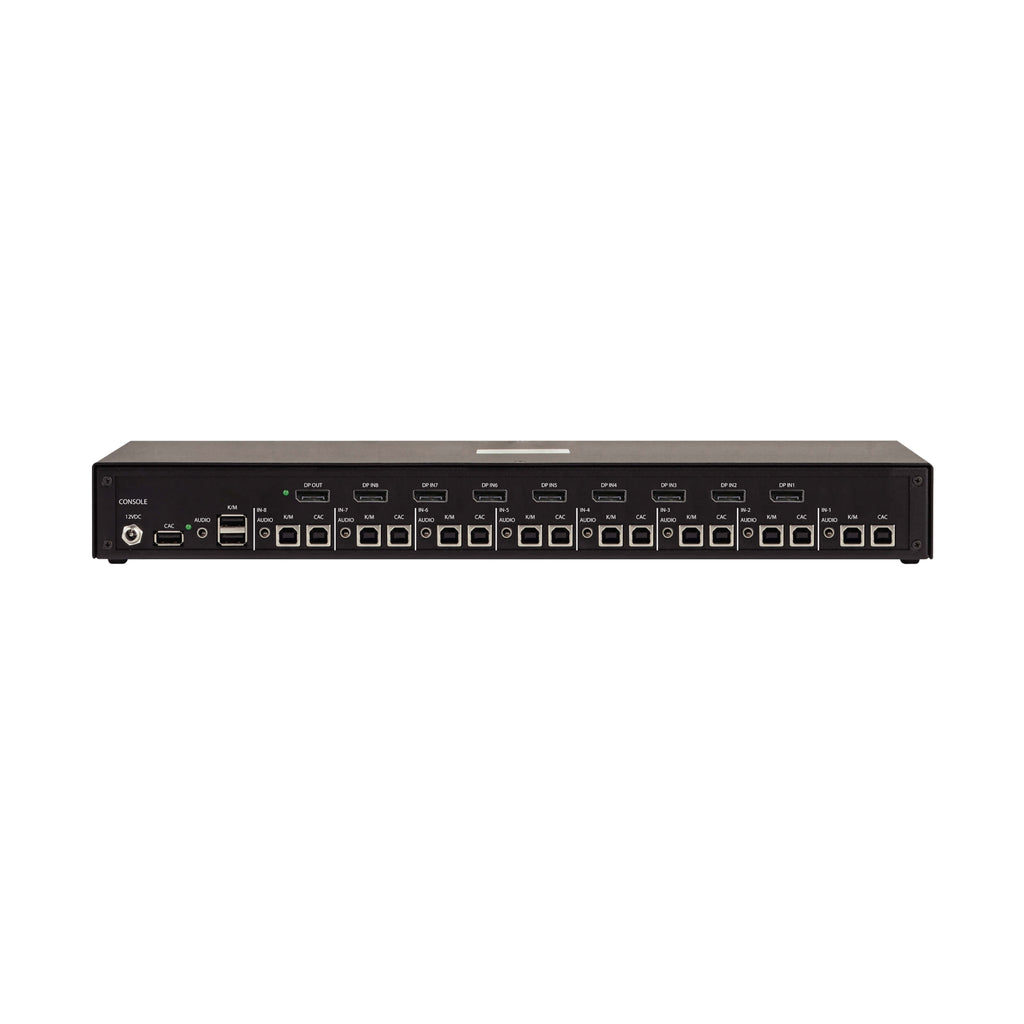

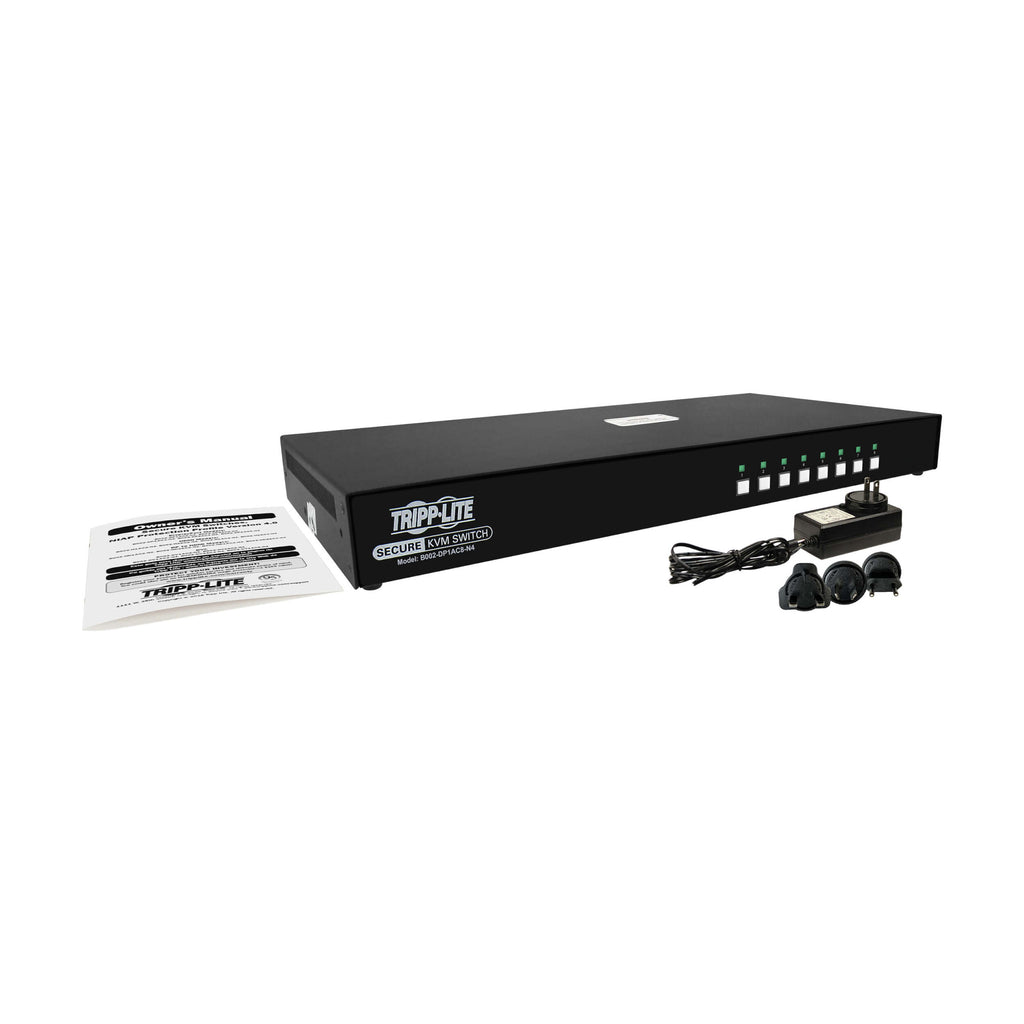

The Tripp Lite B002-DP1AC8-N4 Secure KVM Switch is purpose-built for environments where data integrity and system isolation are mission-critical. Designed for government, military, financial, healthcare, and other high-security applications, this NIAP PP4.0-certified switch enables secure control of up to eight isolated computers from a single DisplayPort console without risk of data leakage.
Each port operates as a fully isolated channel, preventing unauthorized data transfer between connected systems, even across different security classifications. Advanced protections such as firmware integrity safeguards, automatic keyboard buffer clearing, and restricted push-button switching eliminate common vulnerabilities found in standard KVM solutions.
Supporting Ultra HD 4K resolution at 30 Hz, the switch ensures clear and reliable video output for precision work. The integrated Common Access Card (CAC) port enables secure authentication using smart cards, biometric readers, and other credential devices. With anti-tamper protection, USB device filtering, and secure peripheral emulation, this KVM delivers uncompromising security and operational efficiency.
TAA compliance makes it suitable for federal procurement, while its rugged metal housing and enterprise-grade design ensure long-term reliability in demanding environments.
| Specification | Details |
|---|---|
| Product Type | Secure KVM Switch |
| Number of Ports | 8-Port |
| User Support | Single User (Single Head) |
| Video Interface | DisplayPort 1.2 |
| Max Resolution | 3840 x 2160 (4K) @ 30 Hz |
| Color Depth | 36-bit Deep Color |
| Chroma Subsampling | 4:4:4 |
| USB Support | USB 1.1 and USB 2.0 (up to 480 Mbps) |
| CAC Support | Supports smart cards, biometric and authentication devices |
| Audio Support | 3.5 mm stereo audio |
| Security Certification | NIAP Common Criteria Protection Profile v4.0 |
| Data Isolation | Fully isolated channels per port |
| Switching Method | Front-panel push buttons only (no OSD or hotkeys) |
| Anti-Tamper Protection | Internal switches disable unit if opened |
| Peripheral Filtering | Supports keyboard and mouse only (blocks unauthorized USB devices) |
| EDID Management | Secure EDID learning and video emulation |
| Power Supply | External AC adapter (100–240V input, 12V 3A output) |
| Frequency | 50/60 Hz |
| Construction | Heavy-duty metal enclosure |
| Color | Black |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Humidity | 0–80% non-condensing |
| Compliance | NIAP PP4.0, TAA, RoHS, CE, FCC, UKCA |
| Warranty | 3-Year Limited Warranty |
