Description

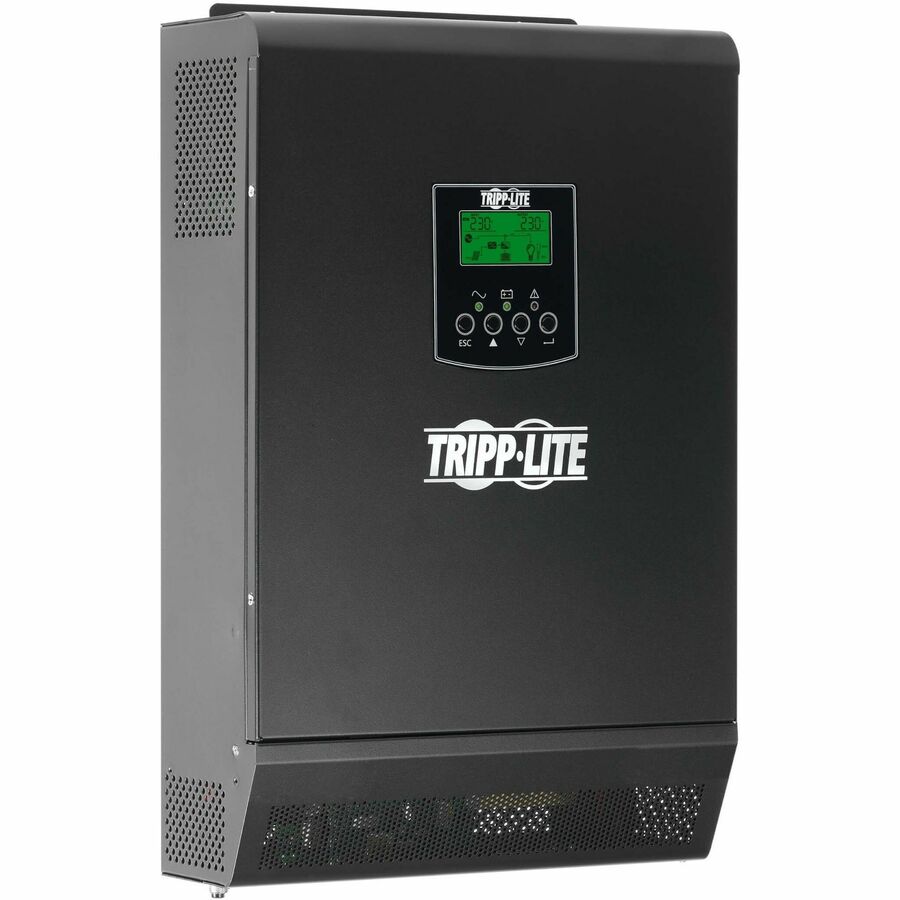

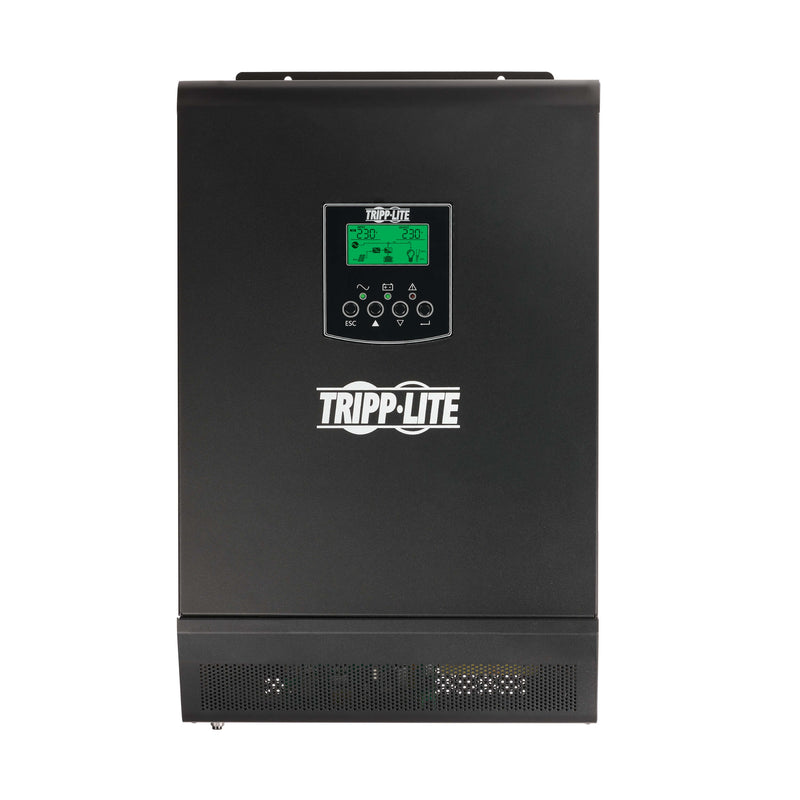

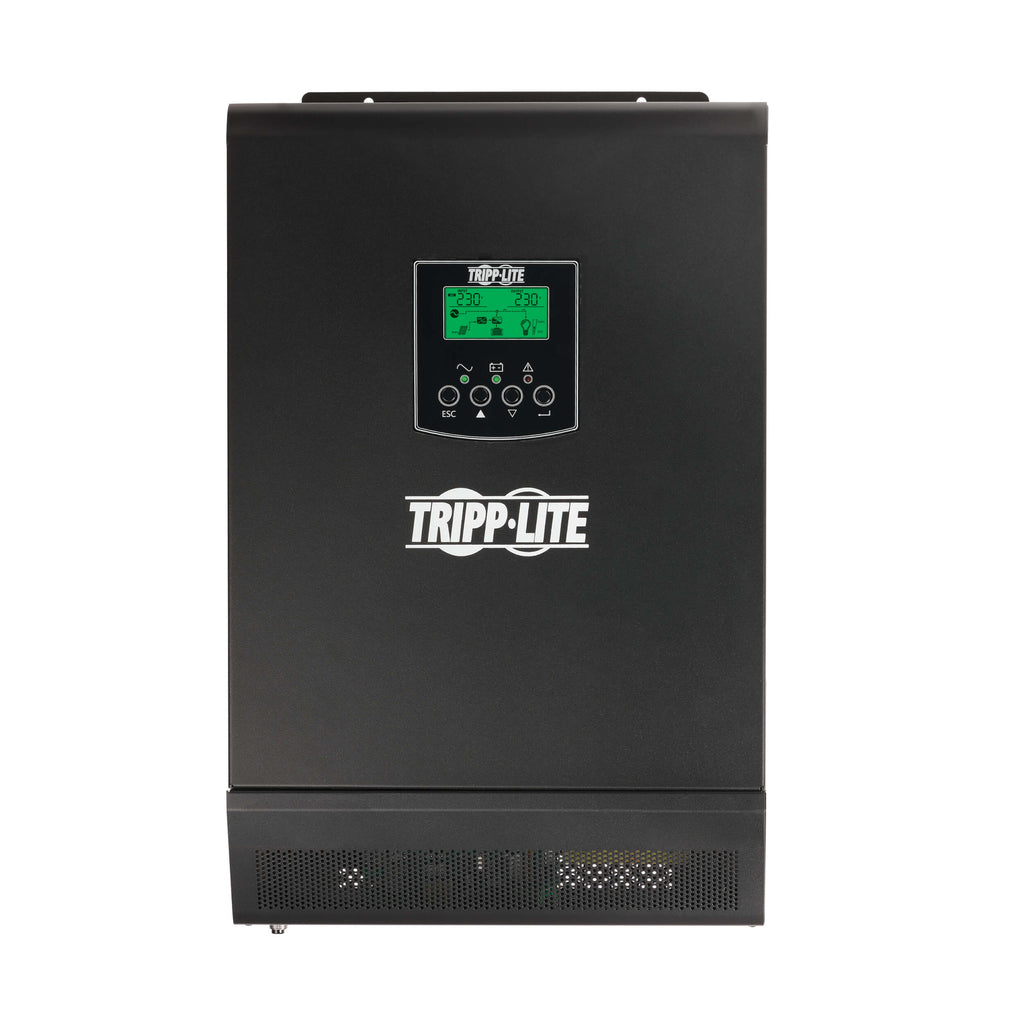

The Eaton Tripp Lite APSWX4KP48VMPPT is a high-performance 3200W pure sine wave solar inverter/charger designed for both grid-tied and off-grid energy applications. Operating at 48VDC with a 230V AC output, it includes a 90A MPPT solar charge controller for optimal solar energy harvesting, and supports automatic source switching between utility, solar, and battery power. With parallel operation capability for up to 9 units, it's ideal for residential, commercial, or remote installations. The unit's rugged steel enclosure, LCD status display, and hardwired input/output terminals ensure reliable, long-lasting performance in challenging environments.
| Feature | Details |
|---|---|
| Model Number | APSWX4KP48VMPPT |
| Power Output (Continuous / Peak) | 3200W / 6400W |
| DC Input Voltage | 48VDC |
| AC Output Voltage | 220V / 230V / 240V (Pure Sine Wave) |
| Input Sources | Solar, Utility (Grid), Battery |
| Charge Controller | 90A MPPT (120–450VDC PV Input, 5000W max panel config) |

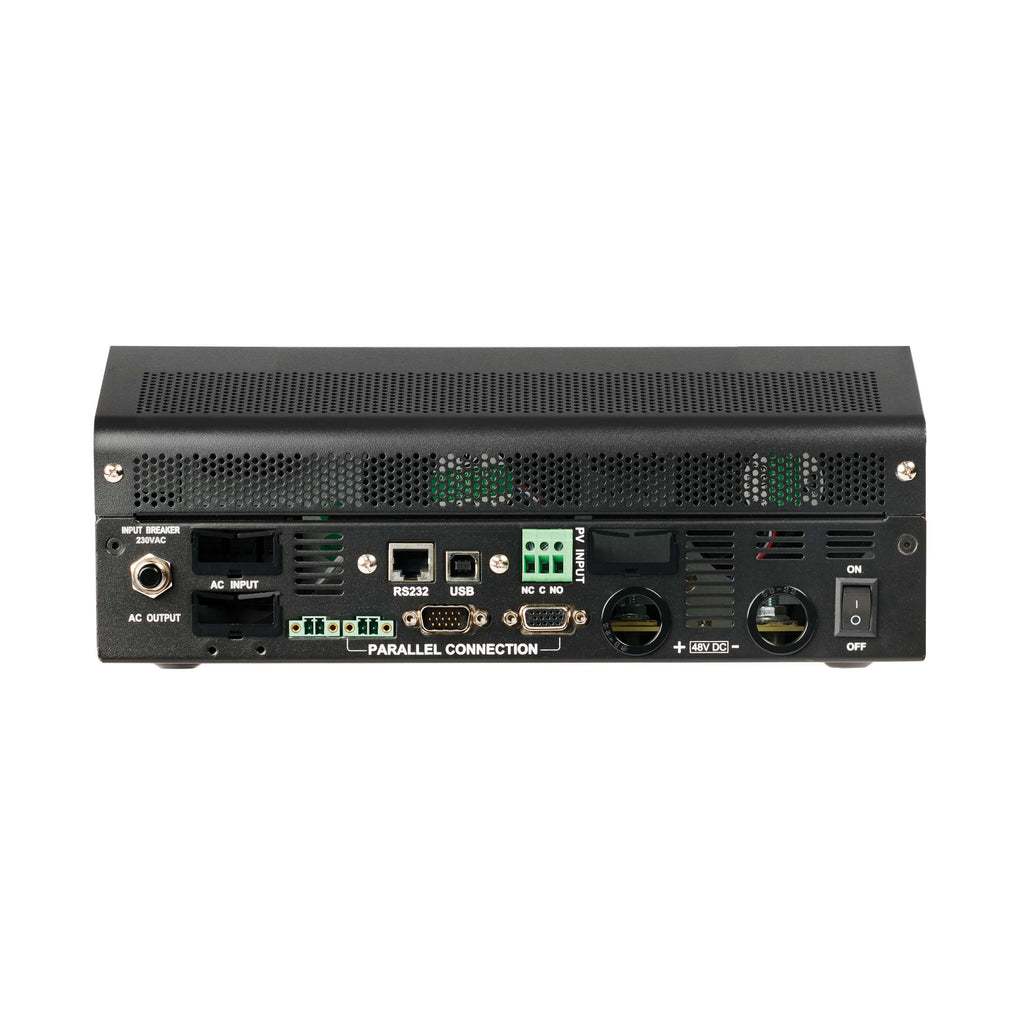

| AC Input / Output Type | Hardwire (Terminal Strip with Wire Retention Plate) |
| Parallel Capability | Up to 9 units (Single-Phase: 28.8kW, 3-Phase: 9.6kW) |
| Transfer Time | 10 ms (Line to Battery Mode) |
| Battery Compatibility | Wet-cell, Gel-cell, AGM, SLA, LiFePO4 (w/ BMS) |
| Battery Charger Modes | AC: 60A, Solar: 90A, Combined Max: 90A |

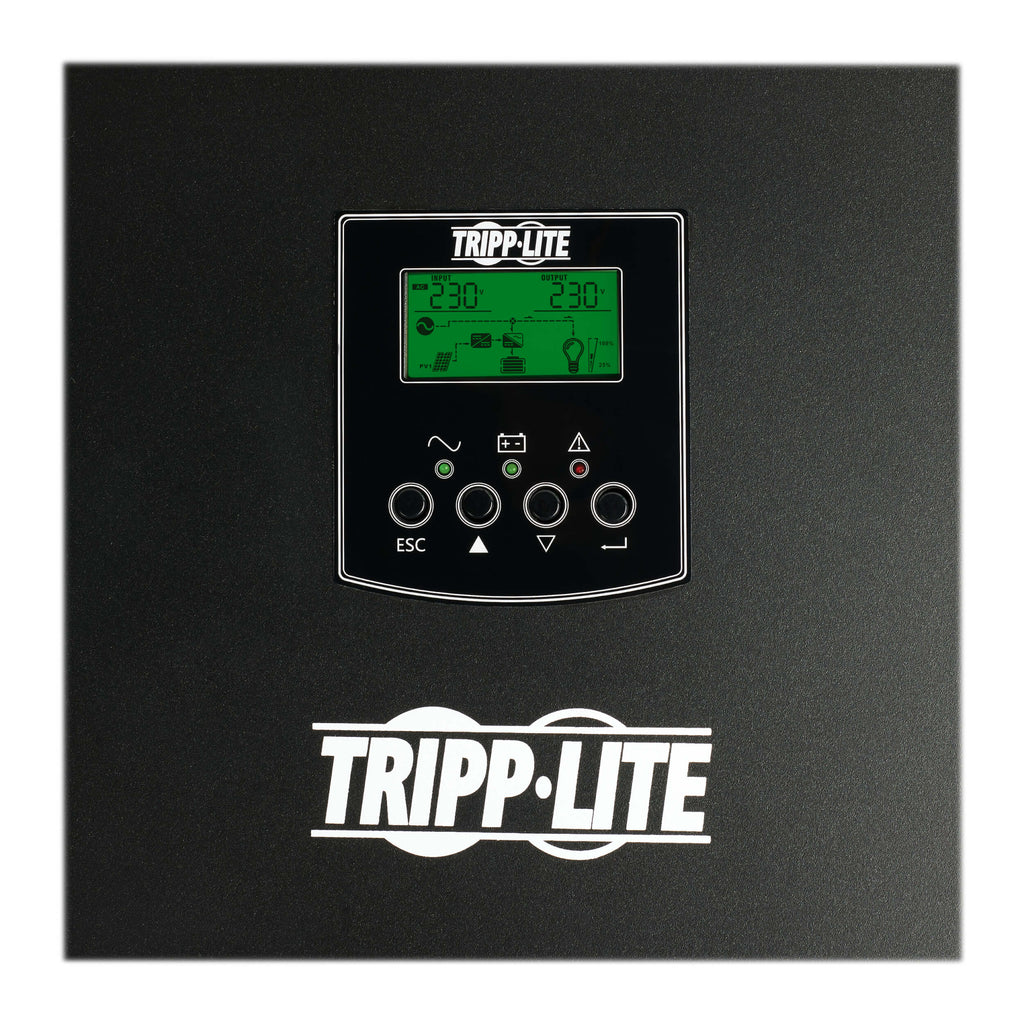

| Display & Interface | Multifunction LCD, LED indicators, 5-button control |
| Cooling | Thermally controlled fan system |
| Material & Mounting | Metal housing with wall-mount brackets |
| Certifications | CE, UKCA, RoHS, REACH, EN 61000, IEC 62109-1/-2 |
| Dimensions (in/cm) | 18.46 x 11.61 x 4.73 in / 46.88 x 29.5 x 12.02 cm |
| Weight (lbs/kg) | 21.10 lbs / 9.57 kg |
| Operating Temperature | 0° to 50°C |
| Relative Humidity | 0–95% non-condensing |
| Warranty | 2-Year Limited International Warranty |
