Description

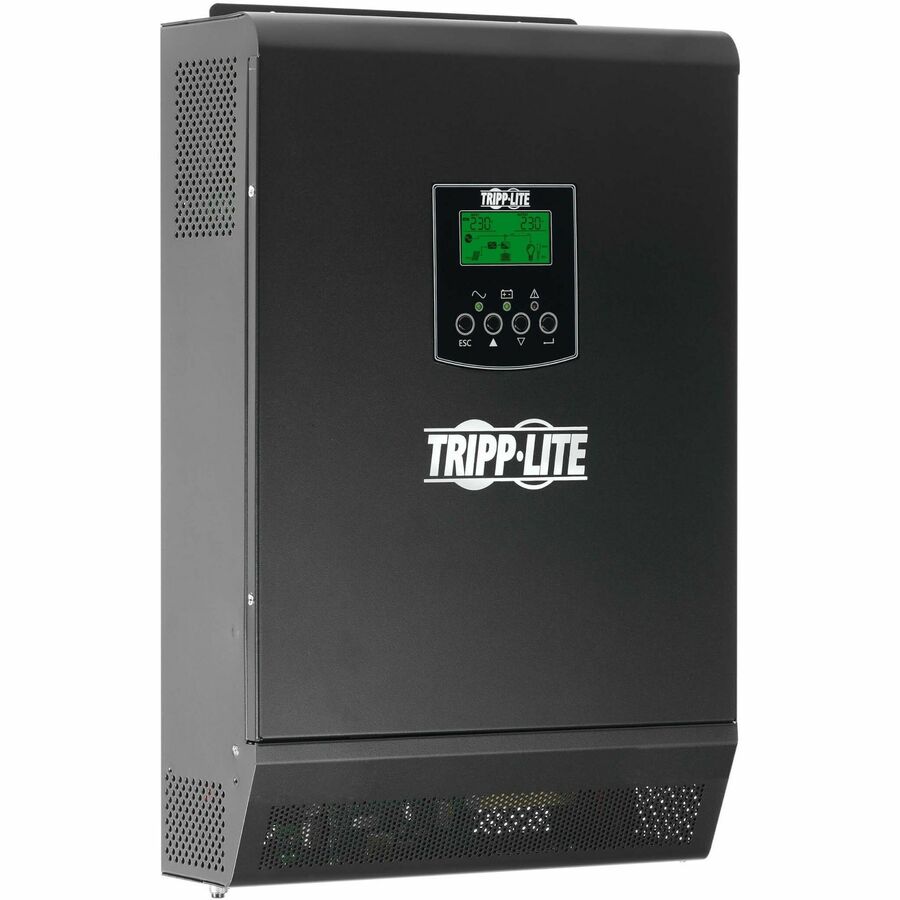

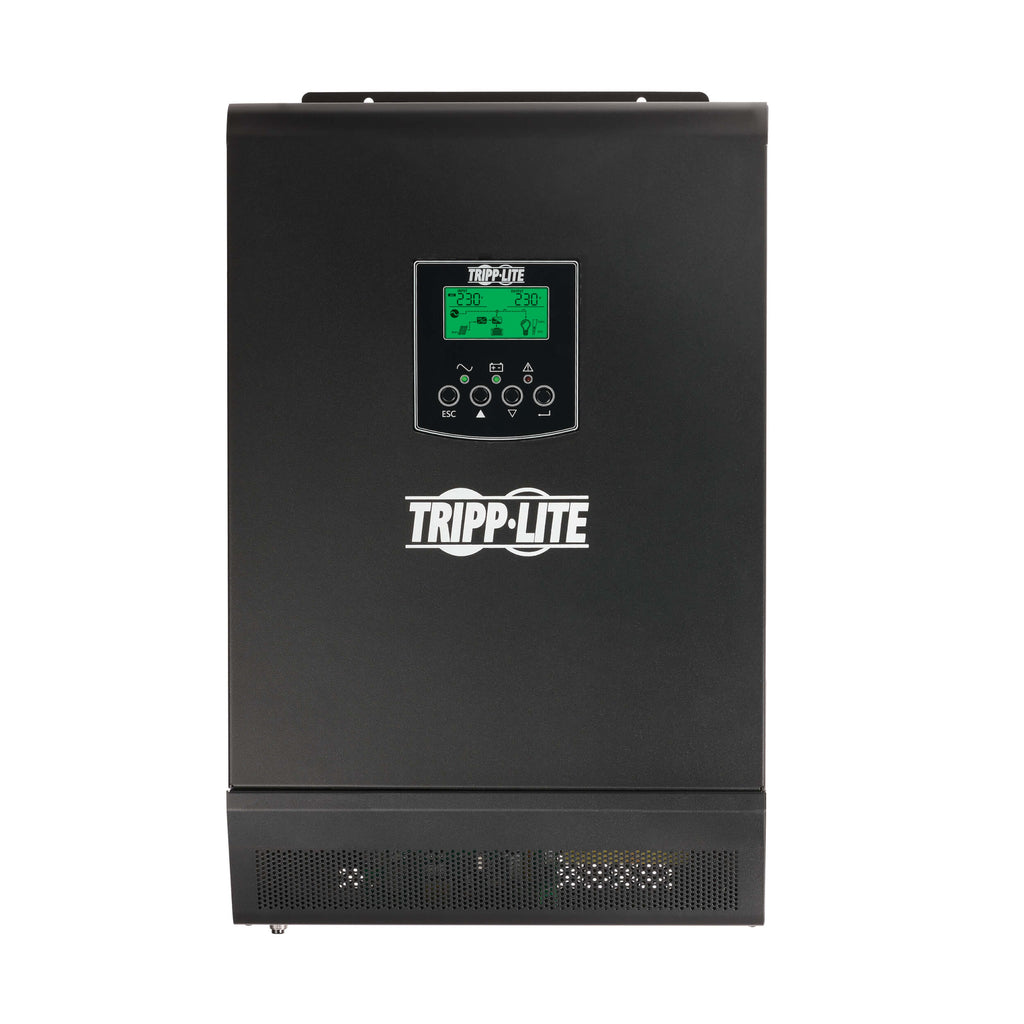

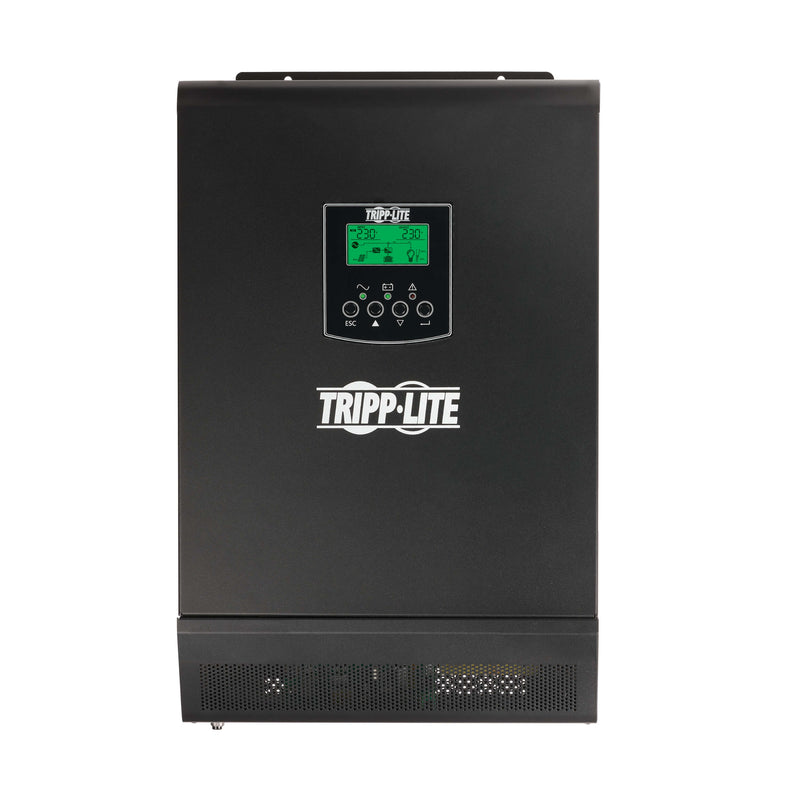

The Eaton Tripp Lite APSWX6KP48VMPPT is a robust 5500W pure sine wave hybrid inverter/charger designed for grid-tied and off-grid solar power applications. It features a built-in 90A MPPT solar charge controller that optimizes power harvesting from PV arrays, and supports both single-phase and 3-phase parallel stacking for large-scale installations up to 49.5kW. Ideal for homes, remote locations, and commercial sites, the inverter ensures stable 230V AC output from solar, utility, or battery power.
With hardwire AC/DC connections and support for lithium, wet-cell, or AGM batteries, it functions as an efficient power management system, standalone AC source, or extended-run UPS. Enhanced safety includes five-way fault protection, front LCD monitoring, and wired remote control. Certified to CE, UKCA, and IEC standards, the APSWX6KP48VMPPT is built with a rugged steel housing for durability in harsh environments.
| Feature | Details |
|---|---|
| Model | APSWX6KP48VMPPT |
| Output Power (Continuous) | 5500W (11000W Peak) |
| Input Voltage Range (PV) | 120–450VDC (Max 450V Open Circuit) |
| AC Input Voltage | 220V / 230V / 240V AC |
| DC Input Voltage | 48VDC |
| AC Output Voltage | 220V / 230V / 240V Pure Sine Wave |
| Output Frequency | 50/60 Hz (±0.5 Hz in battery mode) |
| Max Solar Charging Current | 90A MPPT |
| AC Charger Current | 60A |
| Total Hybrid Charge Capacity | Up to 90A |

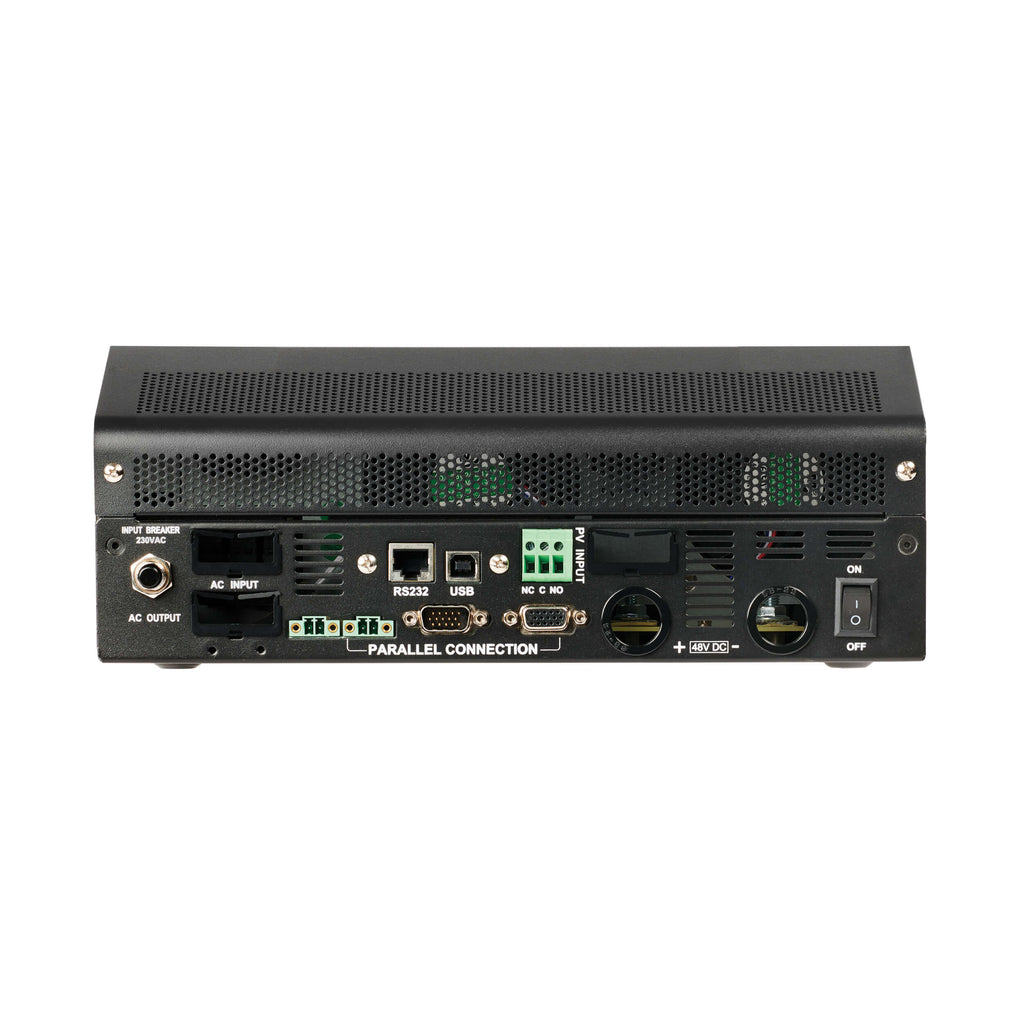

| Input Connection | Hardwire (AC/DC), Bolt-Down Terminals (Battery), PV Terminal Strip |
| Output Connection | Hardwire Terminal |
| Parallel Capability | Up to 9 Units (49.5kW single-phase / 16.5kW 3-phase) |
| Transfer Time | 10 ms (line to battery) |
| Battery Type Compatibility | Wet-cell, Gel, AGM, SLA, Lithium (BMS-integrated) |
| Cooling Method | Thermally-Controlled Fan |
| Display | Multifunction LCD with LED Indicators |
| Remote Control | Included (up to 10m distance) |
| Dimensions (HWD) | 18.46 x 11.61 x 4.73 in (46.88 x 29.50 x 12.02 cm) |
| Weight | 22.5 lbs (10.21 kg) |
| Certifications | CE, UKCA, RoHS, REACH, EN/IEC 62109 |
| Warranty | 2-Year Limited Warranty |
