Description
The Tripp Lite B119-4X4-4K6-VW is a versatile 4x4 HDMI matrix switch and video wall controller designed for professional AV environments requiring flexible, high-performance 4K video distribution. It supports two operational modes—seamless 4x4 matrix switching or multi-layout video wall configurations—making it ideal for control rooms, digital signage, command centers, and collaboration spaces.
Supporting Ultra HD resolutions up to 4K at 60Hz with HDR and full 4:4:4 chroma sampling, this unit delivers crisp, vibrant visuals with exceptional color accuracy. Multi-resolution output allows each connected display to operate at its maximum supported resolution, even when mixing 4K and 1080p displays.

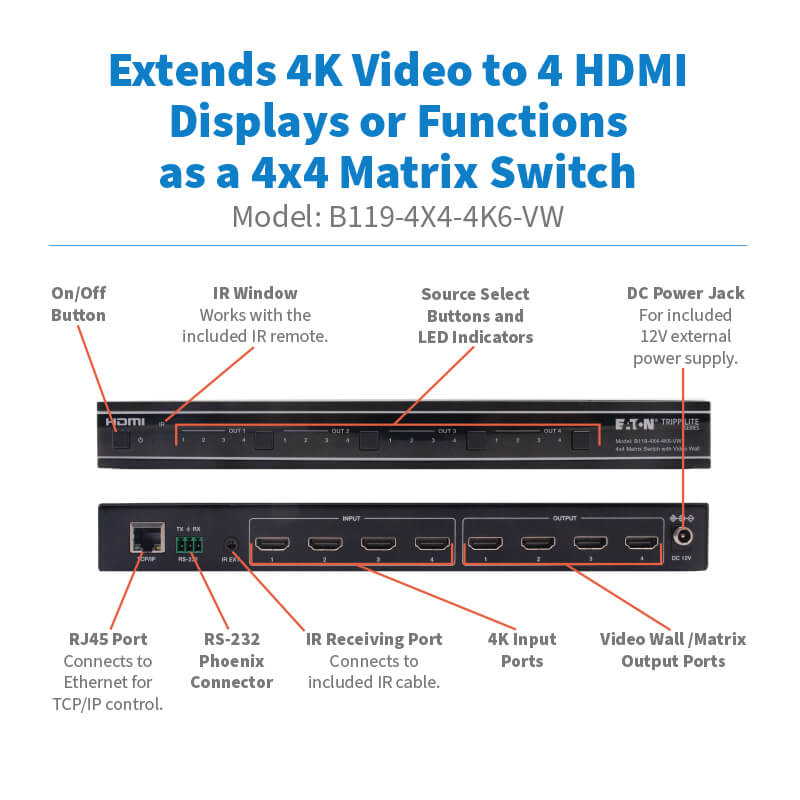

Control is simple and flexible via front-panel buttons, IR remote, RS-232, TCP/IP, or an intuitive web-based GUI. Built for plug-and-play deployment, the all-metal enclosure includes mounting hardware for surface or rack-adjacent installation, making it a reliable solution for demanding AV installations.
| Category | Specification |
|---|---|
| Product Type | HDMI Matrix Switch / Video Wall Controller |
| Input / Output | 4 × HDMI In / 4 × HDMI Out |
| Maximum Resolution | 3840 × 2160 (4K @ 60Hz) |
| HDR Support | Yes |
| Chroma Subsampling | 4:4:4, 4:2:2, 4:2:0 |
| Bandwidth | 18 Gbps |
| HDCP Support | HDCP 2.2 |
| Audio Support | LPCM, Dolby Digital/Plus/EX, Dolby TrueHD, DTS, DTS-HD |
| Video Wall Modes | 2x2, 1x2, 2x1, 1x3, 1x4, 3x1, 4x1 |
| Control Methods | Front Panel, IR Remote, RS-232, TCP/IP, Web GUI |
| Multi-Resolution Output | Yes |
| Power Supply | External AC Adapter (100–240V input, 12V output) |
| Power Consumption | 19.56 W |
| Construction | Metal enclosure |

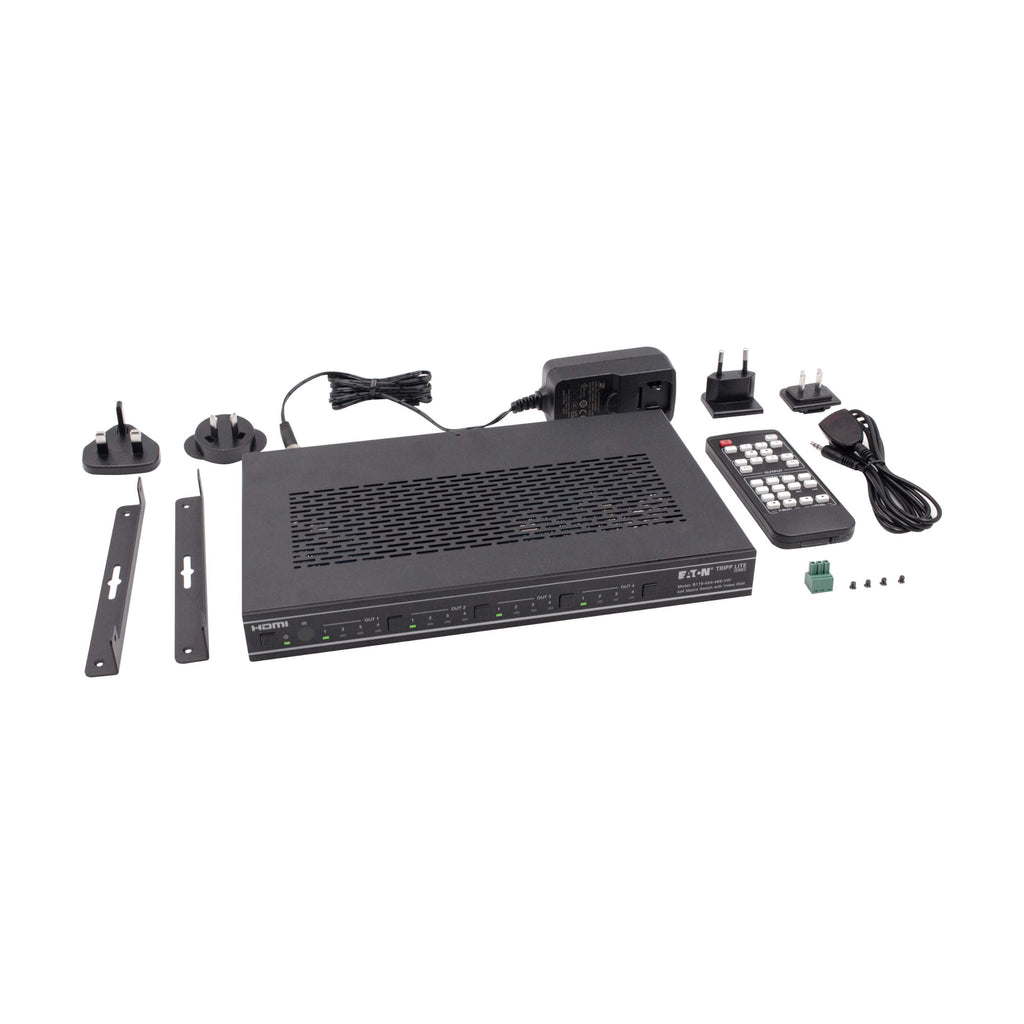

| Mounting | Surface mount brackets included |
| Color | Black |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Compliance | CE, FCC, RoHS, UKCA, WEEE |
| Warranty | 3-Year Limited Warranty |
Payment & Security
Your payment information is processed securely, and we do not store credit card details or access your credit card information.
Return Policy (Short Summary)
We offer a 30-day return window for most unopened, factory-sealed items.
Returns must be authorized before shipping back and must include all original packaging and accessories. Opened or used items are not returnable unless defective.
Some products—such as custom orders, special-order items, audio gear, software, and LED video walls—are non-returnable. Non-defective returns may be subject to a 20–30% restocking fee, and customers are responsible for return shipping costs.
For damaged or incorrect items, please contact us immediately.
