Description

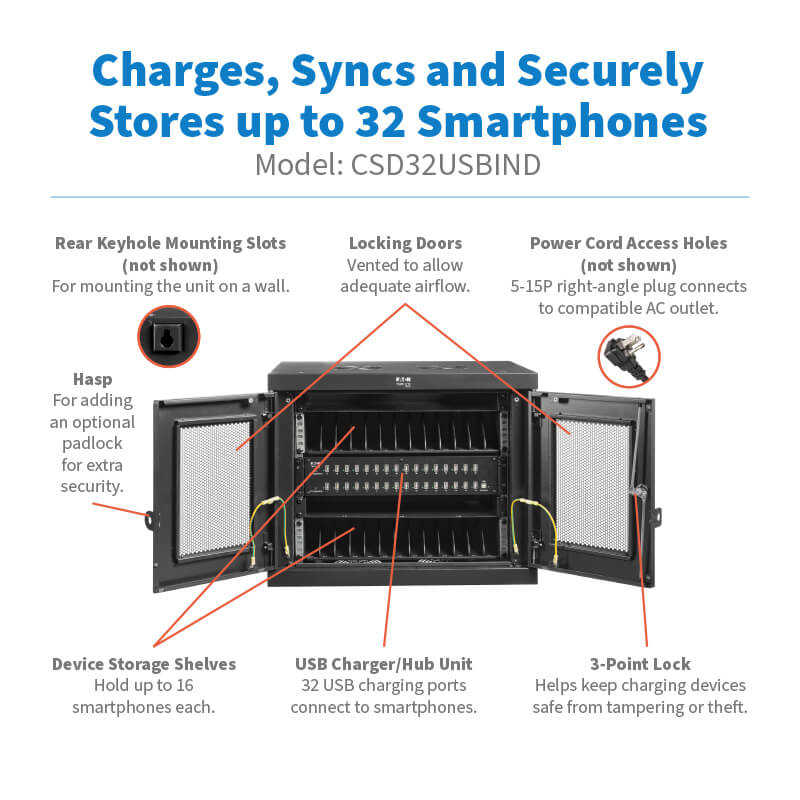

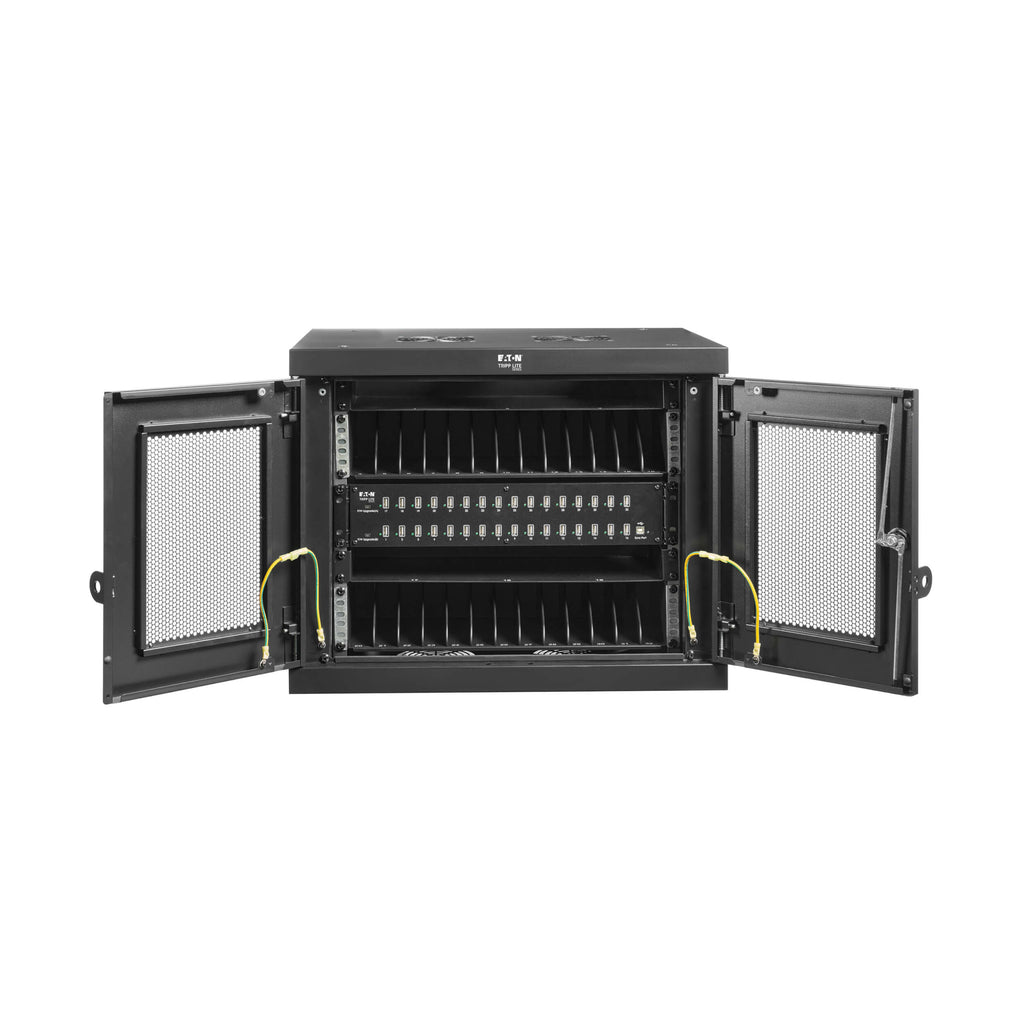

The Eaton Tripp Lite CSD32USBIND is a heavy-duty, industrial-grade charging and syncing station designed to organize, power, and protect up to 32 Zebra smartphones or industrial handheld devices simultaneously. Equipped with 32 USB-A ports (2.4A each), it provides rapid charging while supporting simultaneous data syncing via a USB uplink to a host computer. Built with a locking steel enclosure and three-point locking mechanism, this secure cabinet ensures devices are protected from theft and tampering in demanding environments such as warehouses, factories, and construction sites.
Its flow-through ventilation, scratch-resistant coated shelves, and firmware upgrade ports make it ideal for long-term operational reliability. The unit supports both wired and wireless syncing, includes numbered device slots, and features a 10-ft. right-angle NEMA 5-15P plug for flexible installation. Whether mounted on a wall, secured on a desktop, or stacked for scalability, the CSD32USBIND provides durable, space-efficient, and dependable charging for industrial and enterprise deployments.
| Category | Details |
|---|---|
| Model Number | CSD32USBIND |
| Brand | Eaton Tripp Lite |
| Product Type | Industrial Multi-Device Charging & Sync Station |
| Device Capacity | 32 smartphones or handhelds |

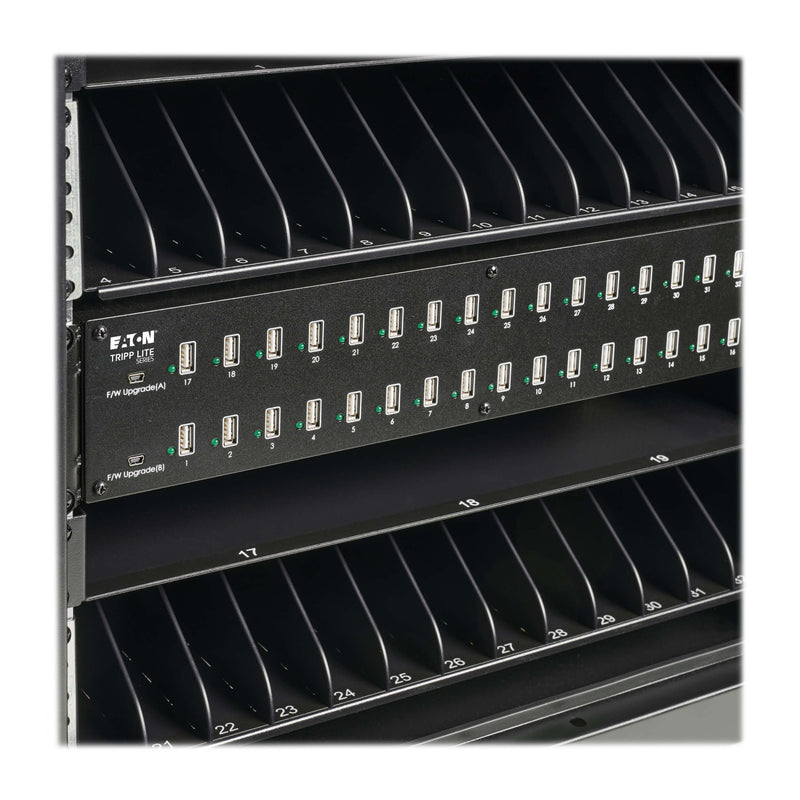

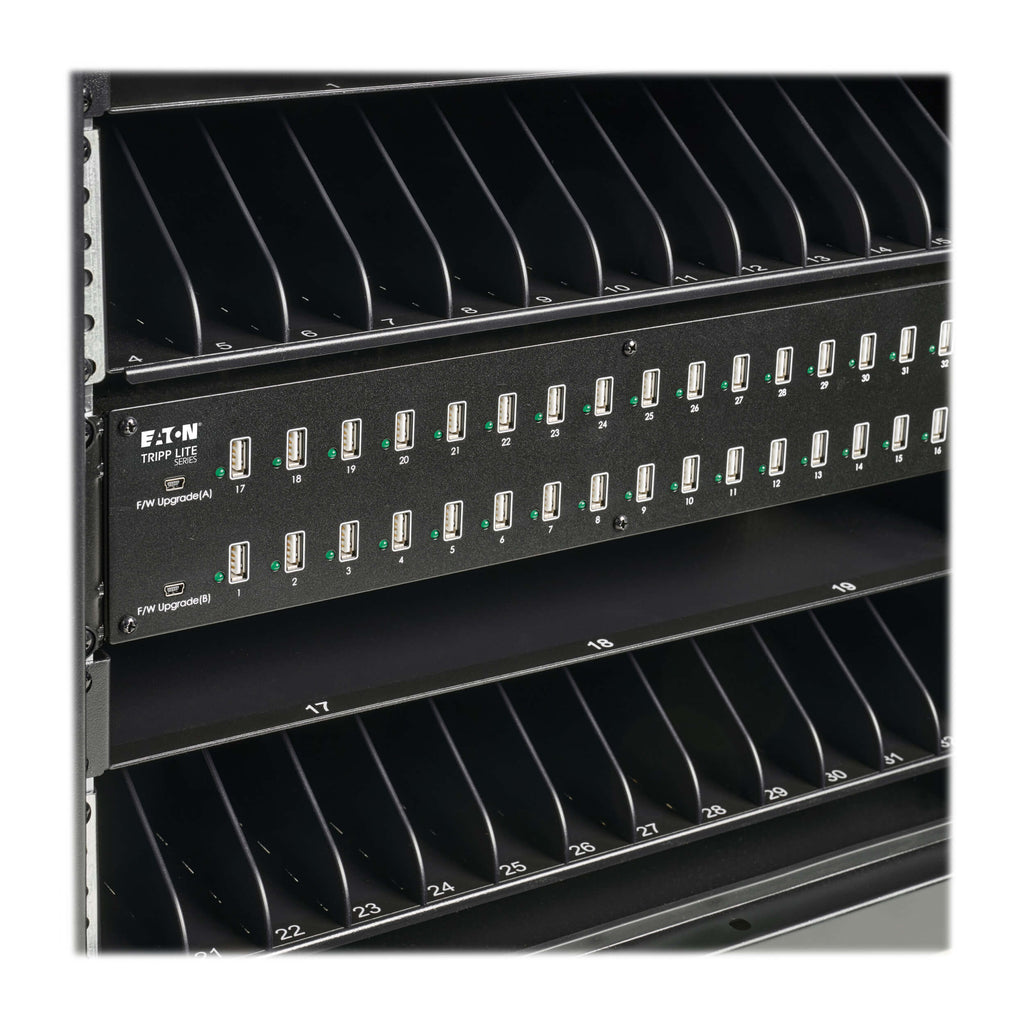

| Charging Ports | 32 × USB-A (2.4A each) |
| Charging Method | USB charging and wired/wireless syncing |
| Charging Amps per Port | Up to 2.4A (1.5A during wired syncing) |
| Overcharge Protection | Yes |
| Uplink Port | USB (to host computer for syncing) |
| Voltage Compatibility | 110–120V AC, 50/60 Hz |

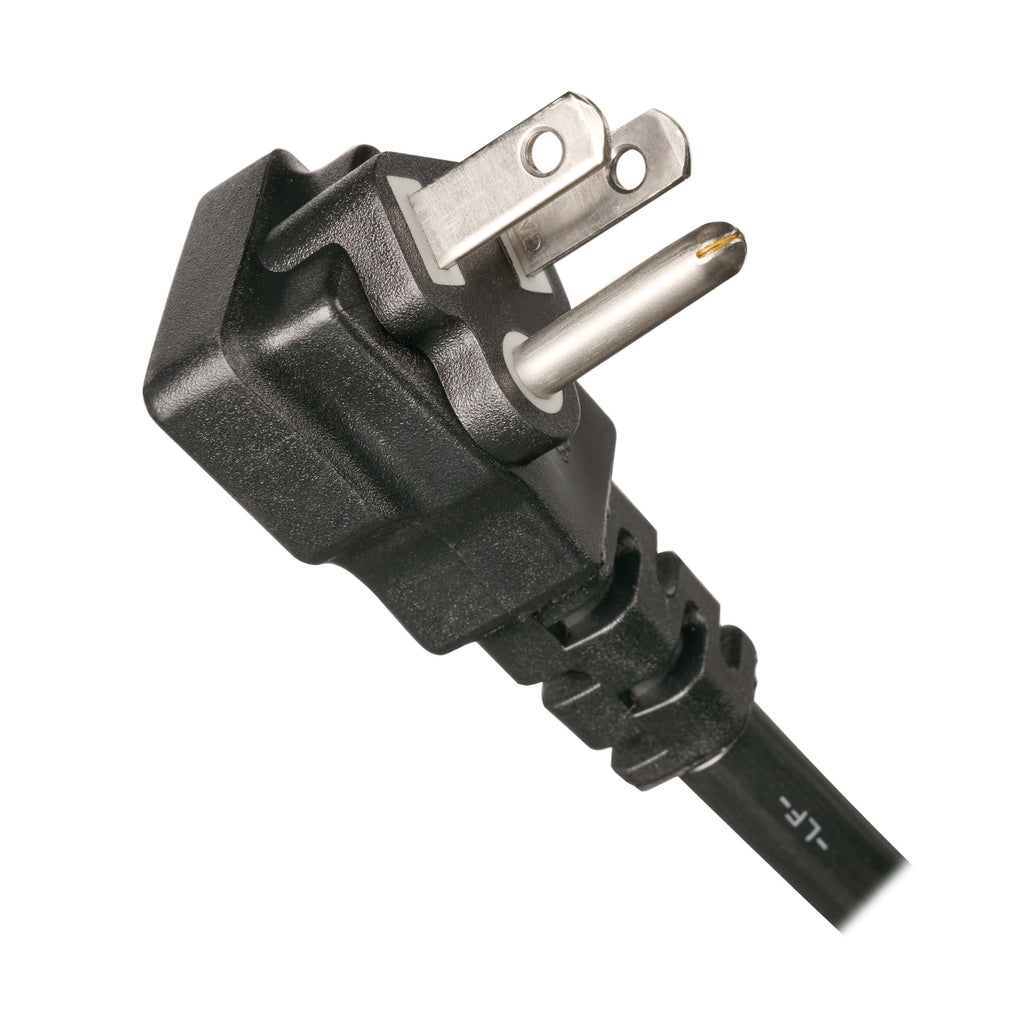

| Input Plug Type | NEMA 5-15P, right-angle |
| Input Cord Length | 10 ft. (3.05 m) |
| Power Consumption | 112 W |

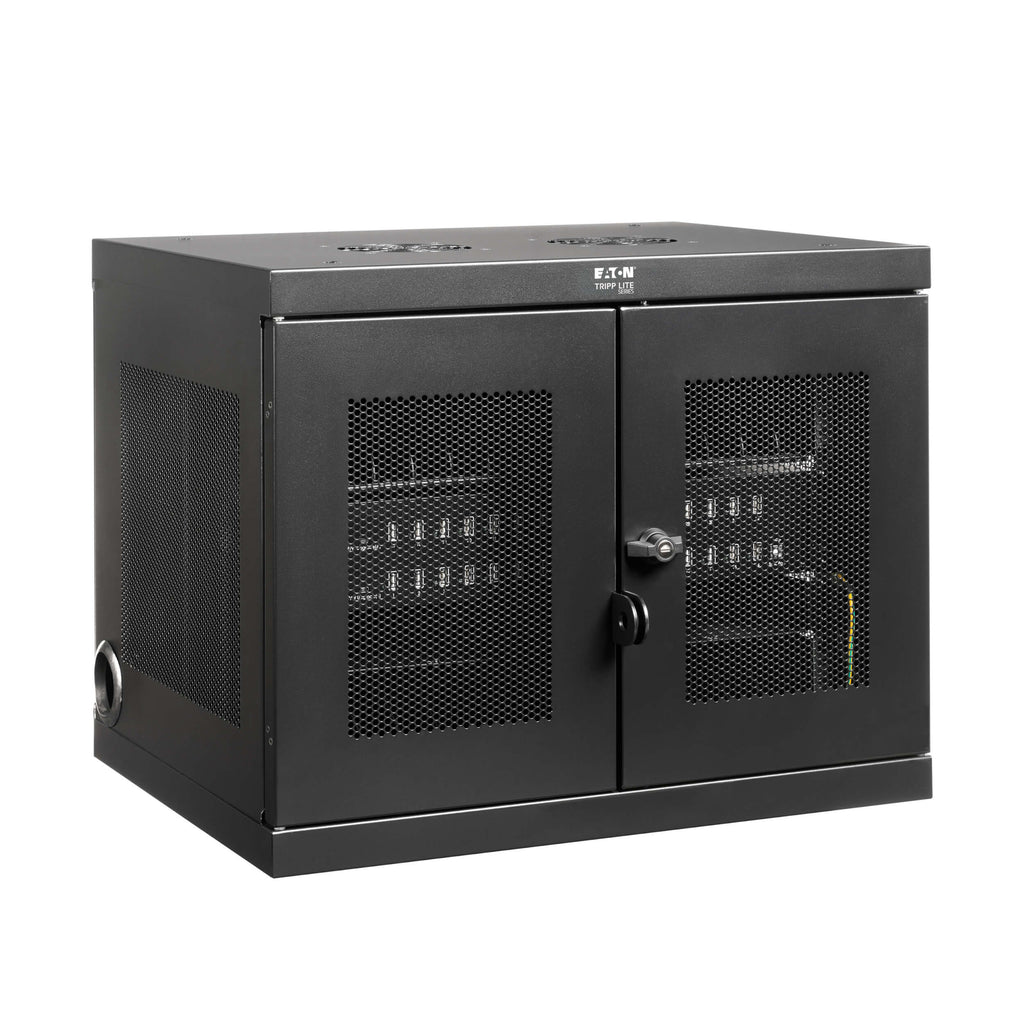

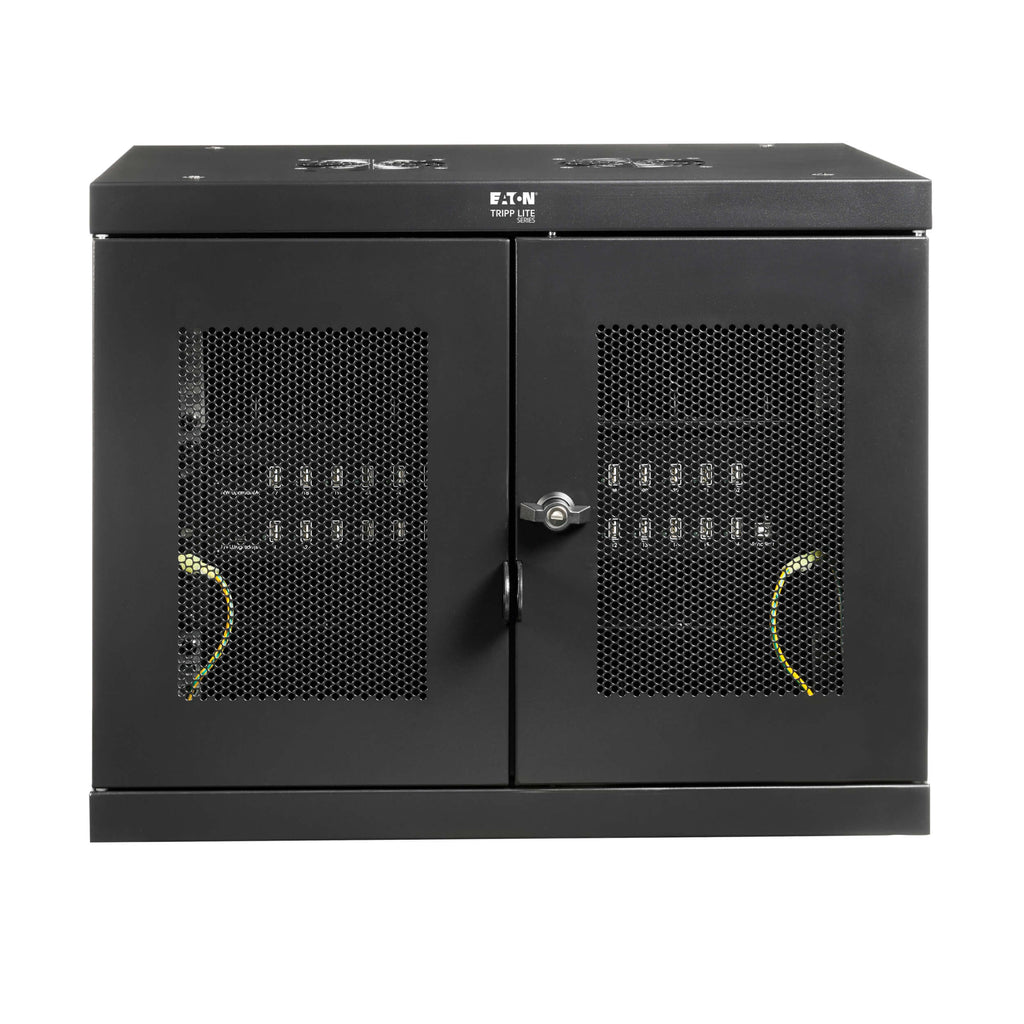

| Construction | Steel enclosure, black powder-coated finish |
| Lock Type | Three-point key lock with optional padlock hasp |
| Ventilation | Flow-through ventilation with fan mount option |
| Slot Dimensions (H×W×D) | 3.67 × 1.0 × 7.0 in |
| Unit Dimensions (H×W×D) | 18.56 × 23.63 × 18.19 in |
| Shipping Weight | 77.29 lb (35.06 kg) |
| Environmental Operating Range | 32°–86°F (0°–30°C), 5–95% RH non-condensing |
| Certifications | UL 60950-1, FCC Part 15 Class B (USA) |
| Warranty | 2-Year Limited Warranty |
| Included Accessories | 10-ft. AC cord, (2) keys, padlock hasp, owner’s manual |
