Description

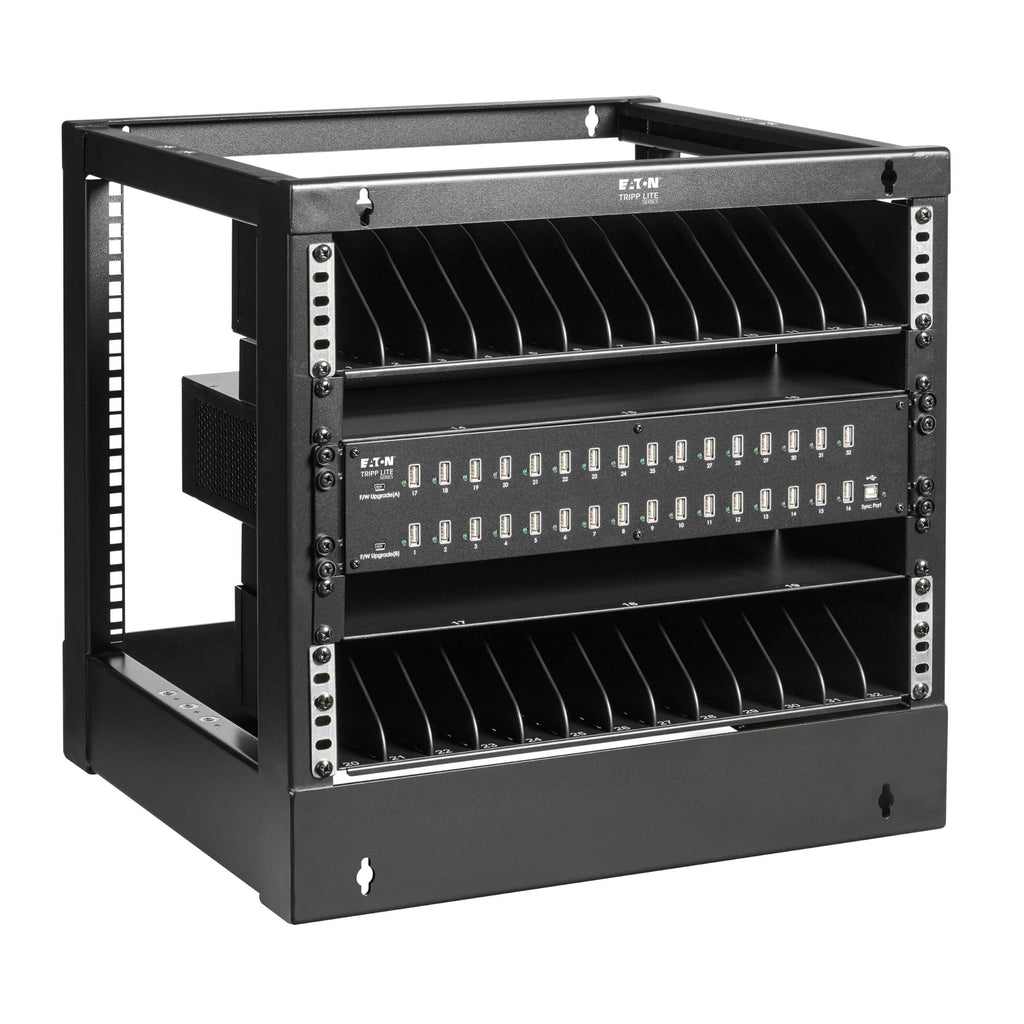

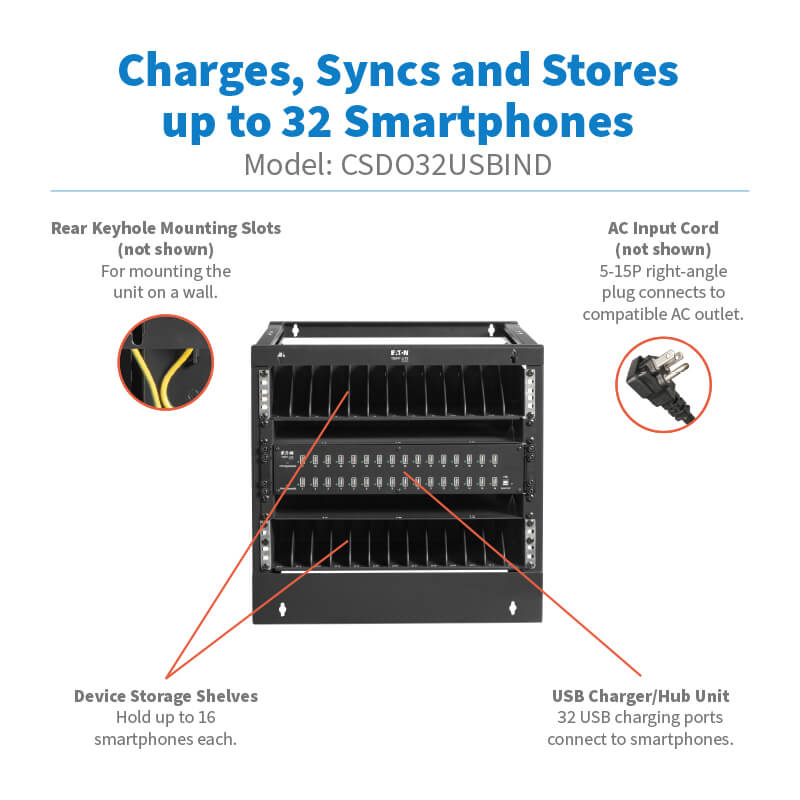

The Eaton Tripp Lite CSDO32USBIND is an industrial-grade open-frame USB charging and syncing station designed to power, organize, and secure up to 32 Zebra devices, handhelds, or smartphones. Each port delivers up to 2.4A for fast, efficient charging, while the integrated USB uplink enables data syncing, firmware updates, and device configuration management — all within a durable steel enclosure ideal for warehouses, factories, healthcare, and commercial environments.
Two large shelves and individually numbered slots ensure optimal device organization, while safety features such as overcharge and overcurrent protection, built-in circuit breaker, and ventilated design provide reliable operation in demanding conditions. Wall-mount or desktop installation is supported for flexible deployment.
| Category | Details |
|---|---|
| Model Number | CSDO32USBIND |
| Product Type | Multi-Device USB Charging & Sync Station |
| Device Capacity | 32 devices |
| Compatible Devices | Zebra handhelds, industrial mobile devices, smartphones (up to 7 x 3.65 x 1 in) |
| Charging Port Type | 32 × USB-A (female) |
| Charging Output per Port | 2.4A |
| Total Power Consumption | 112 W |
| Charging Method | USB charging with wired/wireless syncing |
| Sync Capabilities | USB uplink for data backup and configuration (supports simultaneous charge/sync up to 1.5A) |
| Input Voltage | 110–120V AC, 50/60 Hz |

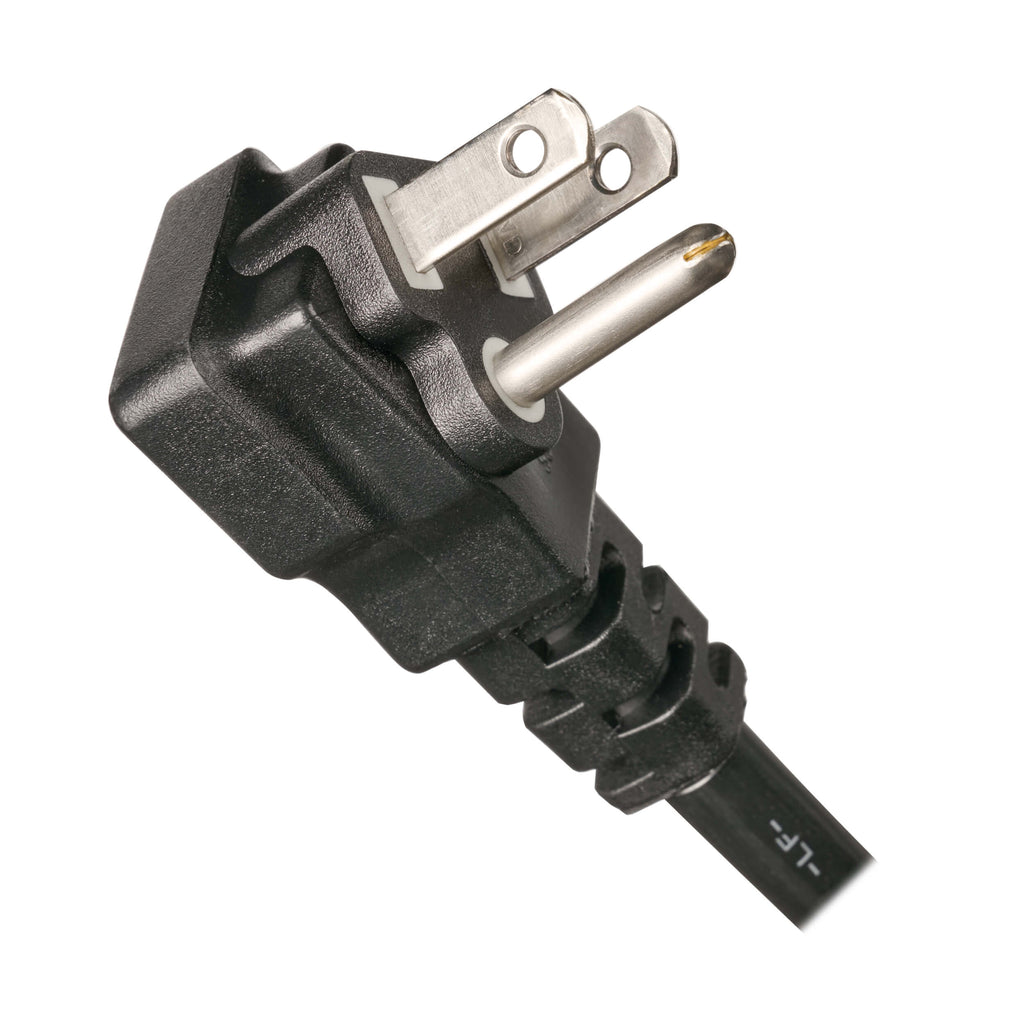

| Input Plug Type | NEMA 5-15P, right-angle |
| Input Cord Length | 10 ft (3.05 m) |
| Enclosure Material | Steel, black powder-coated |
| Mounting Options | Wall-mount or desktop |
| Slot Dimensions (H×W×D) | 3.67 × 1.0 × 7.0 in |
| Unit Dimensions (H×W×D) | 18.56 × 23.63 × 18.19 in |
| Shipping Dimensions (H×W×D) | 21.26 × 21.26 × 26.38 in |
| Shipping Weight | 67 lb (30.39 kg) |
| Operating Temperature | 32°–86°F (0°–30°C) |
| Storage Temperature | 5°–122°F (-15°–50°C) |
| Humidity Range | 5%–95% RH (non-condensing) |
| Safety Features | Built-in circuit breaker, overcharge/overcurrent protection, EMI/RFI noise filtering, lockable door |
| Certifications | UL 60950-1, FCC Part 15 Class B (USA) |
| Warranty | 2-year limited warranty |
| Color | Black |
