Description

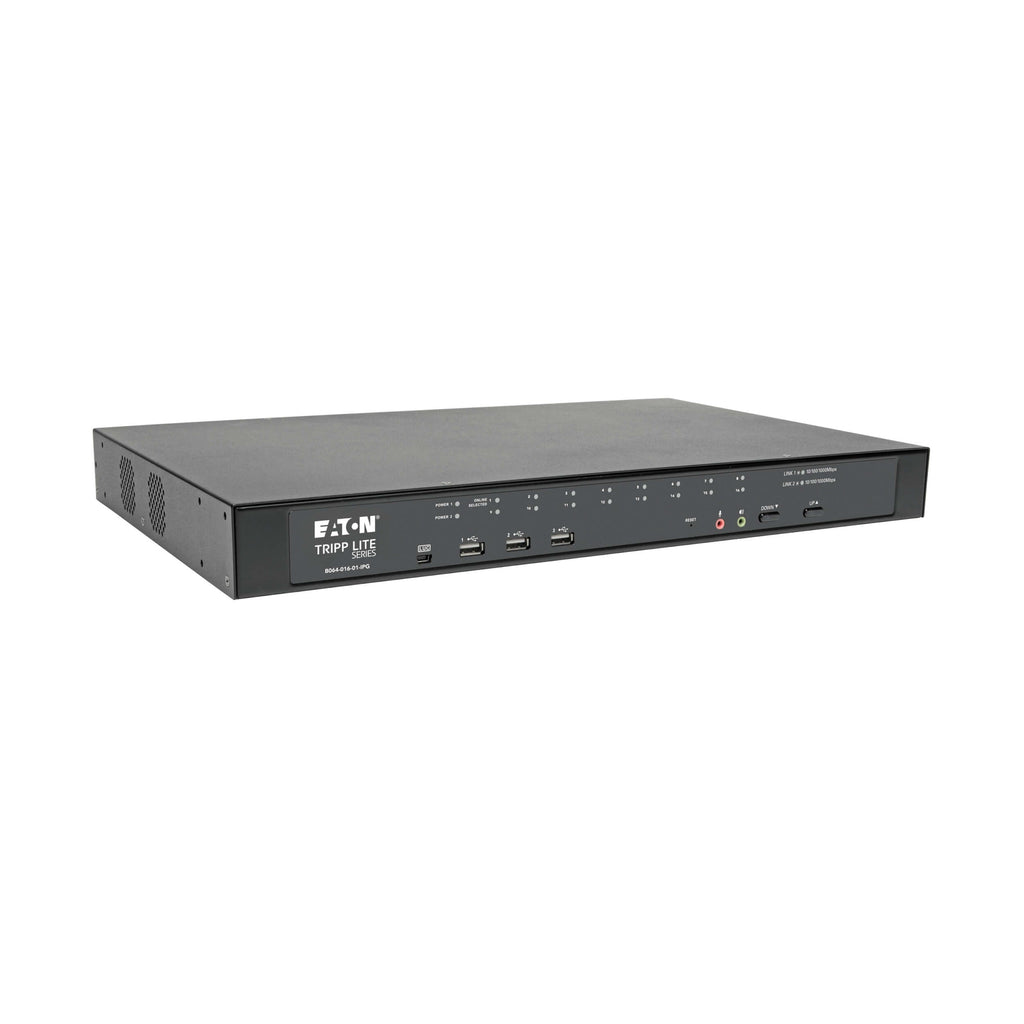

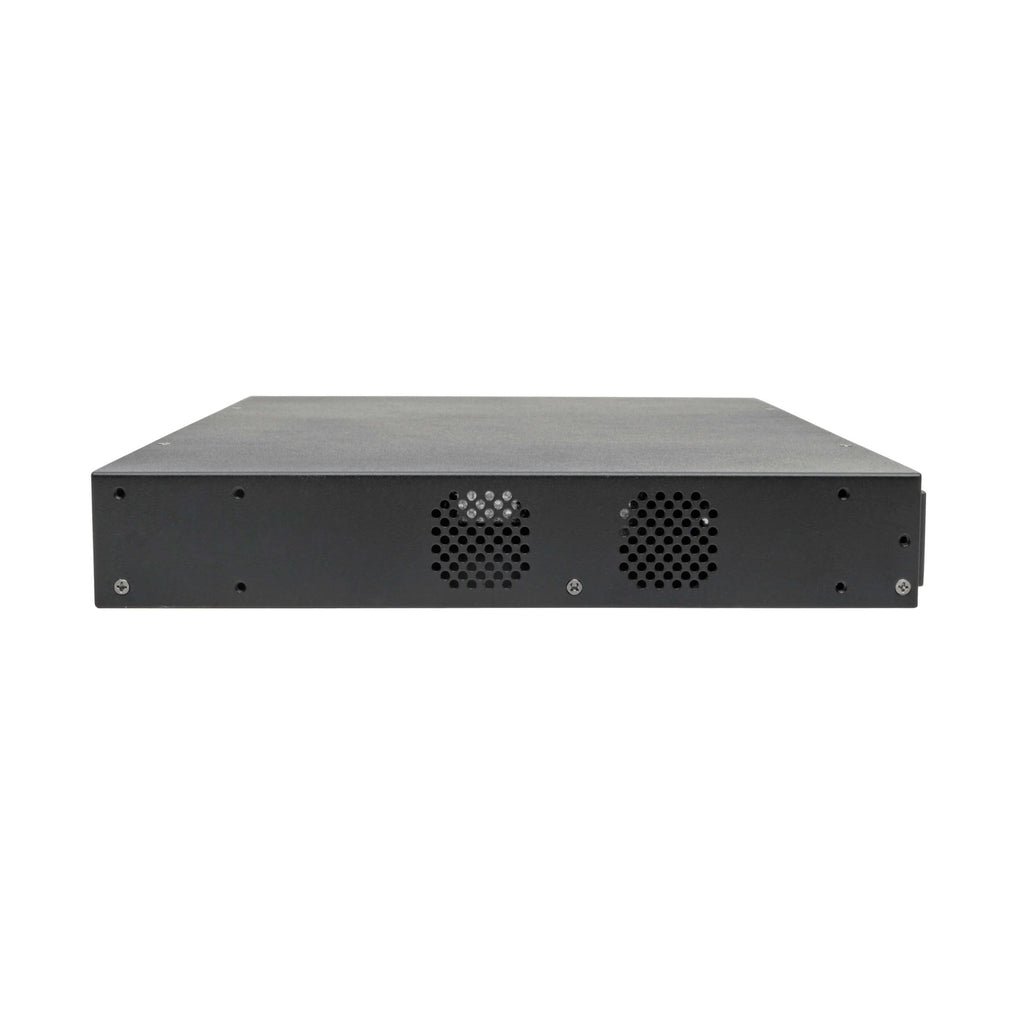

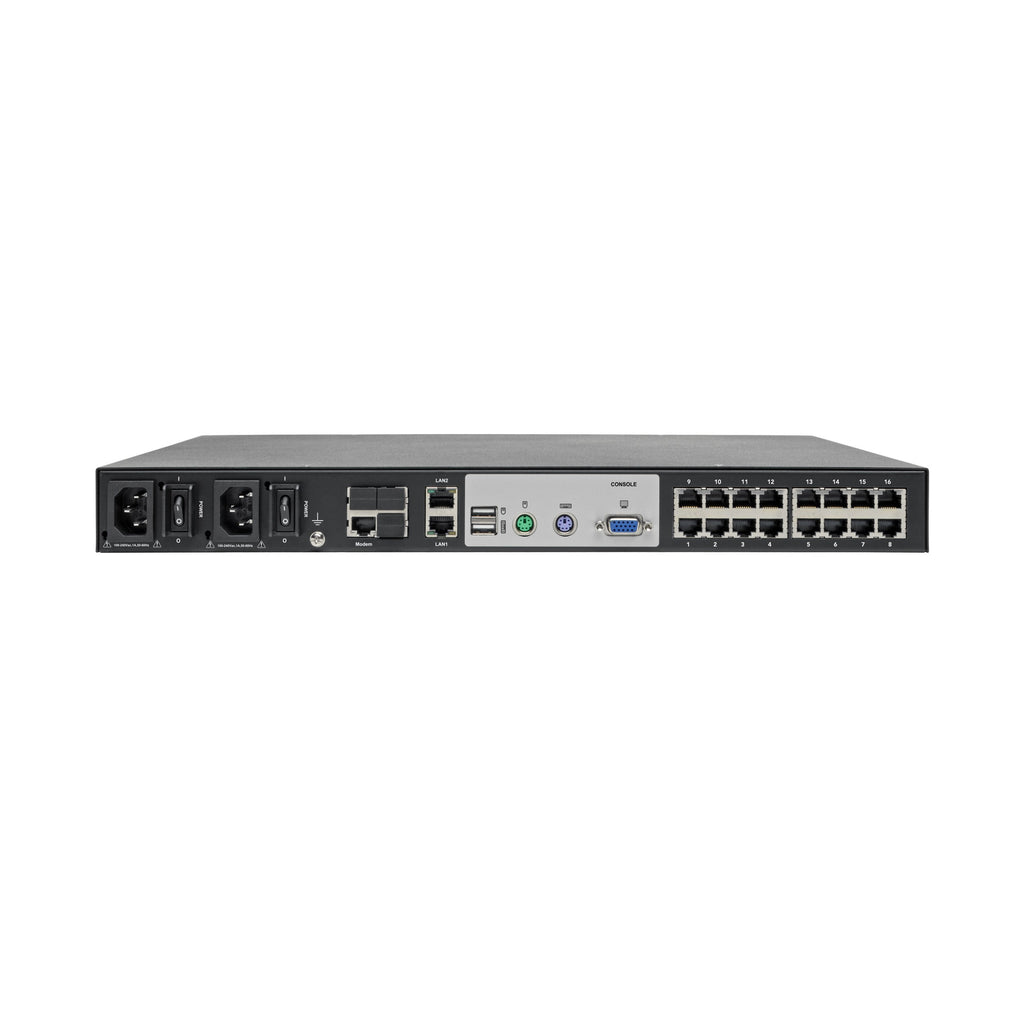

The Eaton NetDirector B064-016-01-IPG 16-Port Cat5 KVM over IP Switch provides secure, centralized BIOS-level control of up to 16 computers or servers—including blade servers—from a single monitor, USB keyboard, and mouse. Designed for enterprise-grade environments, it enables one local and one remote user to manage connected systems simultaneously, offering unparalleled reliability and flexibility.
With dual redundant power supplies, Virtual Media support, and IPv4/IPv6 compatibility, this 1U rack-mountable switch ensures 24/7 operational uptime and seamless access for remote administration. The integrated Laptop USB Console (LUC) port simplifies direct laptop connection for on-site management, while its multi-language OSD supports resolutions up to 1920 x 1200 @ 60 Hz.
Engineered for security and efficiency, the B064-016-01-IPG offers triple-level password protection, RADIUS/LDAP/Active Directory authentication, and advanced encryption (AES, SSL, RSA). Its energy-efficient fan control system optimizes cooling performance, extending component lifespan. Perfect for data centers, manufacturing lines, and IT environments requiring mission-critical uptime, this TAA-compliant KVM switch is a dependable solution for remote infrastructure control.
| Category | Specification |
|---|---|
| Brand | Eaton |
| Product Line | NetDirector |
| Model | B064-016-01-IPG |
| Type | 16-Port Cat5 KVM over IP Switch with Virtual Media |
| Rack Height | 1U |
| Control Users | 1 Local + 1 Remote |
| Maximum Connected Systems | 16 computers/servers |
| Video Resolution | Up to 1920 x 1200 @ 60 Hz |
| Video Interface | VGA (HD15) |
| Console Interfaces | PS/2 and USB keyboard/mouse |
| Network Interface | 1 Gbps Ethernet (IPv4/IPv6) |
| Authentication | LDAP, LDAPS, RADIUS, Active Directory |
| Encryption | 256-bit AES, 128-bit SSL, 1024-bit RSA |
| Virtual Media Support | Yes (DVD/CD, Flash, Remote Drives) |
| Laptop USB Console (LUC) | Yes |
| Power Input | Dual IEC-320-C14 inlets |
| Input Voltage | 100–240V AC, 50/60Hz, 1A |
| Power Redundancy | Dual redundant power supplies |
| Operating Temperature | 0°–40°C (32°–104°F) |
| Relative Humidity | 0–80% (non-condensing) |
| Construction | Metal, rack-mountable |
| Unit Dimensions (H x W x D) | 1.72 x 17.66 x 10.42 in |
| Unit Weight | 7.75 lbs (3.52 kg) |
| Compliance | RoHS, REACH, FCC, TAA |
| Warranty | 3-year limited warranty |
| Included Accessories | Power cords, RJ45-to-DB9 adapter, grounding wire, rack-mount hardware, Quick Start Guide |
