Description

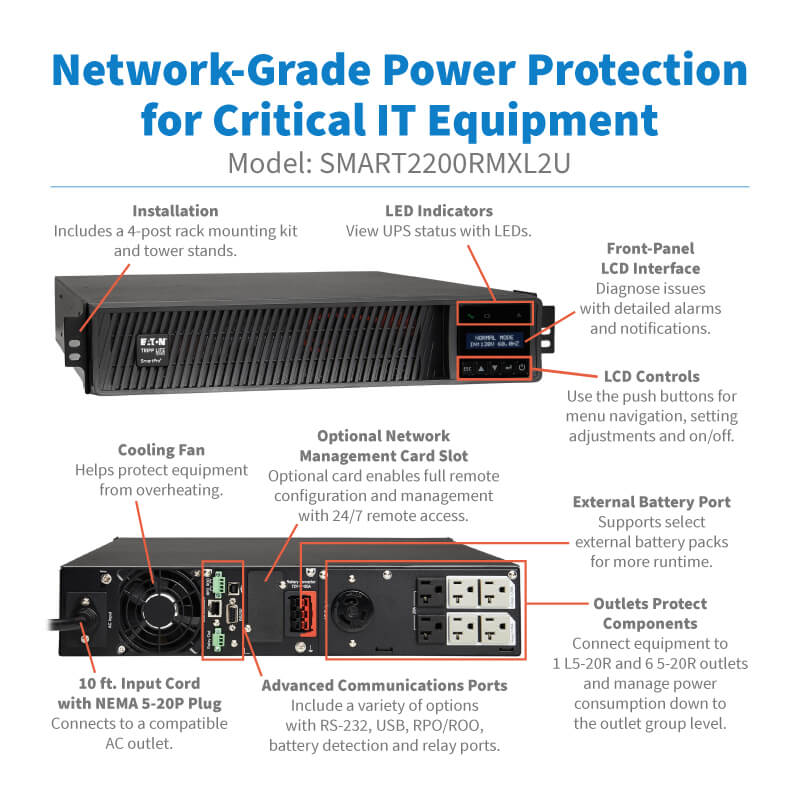

The Eaton Tripp Lite SMART2200RMXL2U is a high-performance 1950VA/1950W line-interactive UPS engineered to protect critical servers, network devices, and telecommunications systems from blackouts, surges, and line noise. Featuring pure sine wave output, Automatic Voltage Regulation (AVR), and hot-swappable VRLA batteries, it ensures continuous, clean power delivery and zero-interruption transitions during outages.
This ENERGY STAR® 2.0 certified UPS supports expandable runtime with up to four optional BP72VRM2U battery packs, maximizing uptime during extended power failures. A two-line LCD panel provides real-time power data, while USB, DB9, and dry-contact relay ports enable advanced monitoring. With optional WEBCARDLXE integration, users gain full remote network management, load shedding control, and environmental monitoring. Designed for rack or tower mounting, it’s the ideal choice for enterprise, data center, and distributed IT environments requiring reliable 24/7 protection.
| Specification | Details |
|---|---|
| Model Number | SMART2200RMXL2U |
| UPS Type | Line-Interactive |

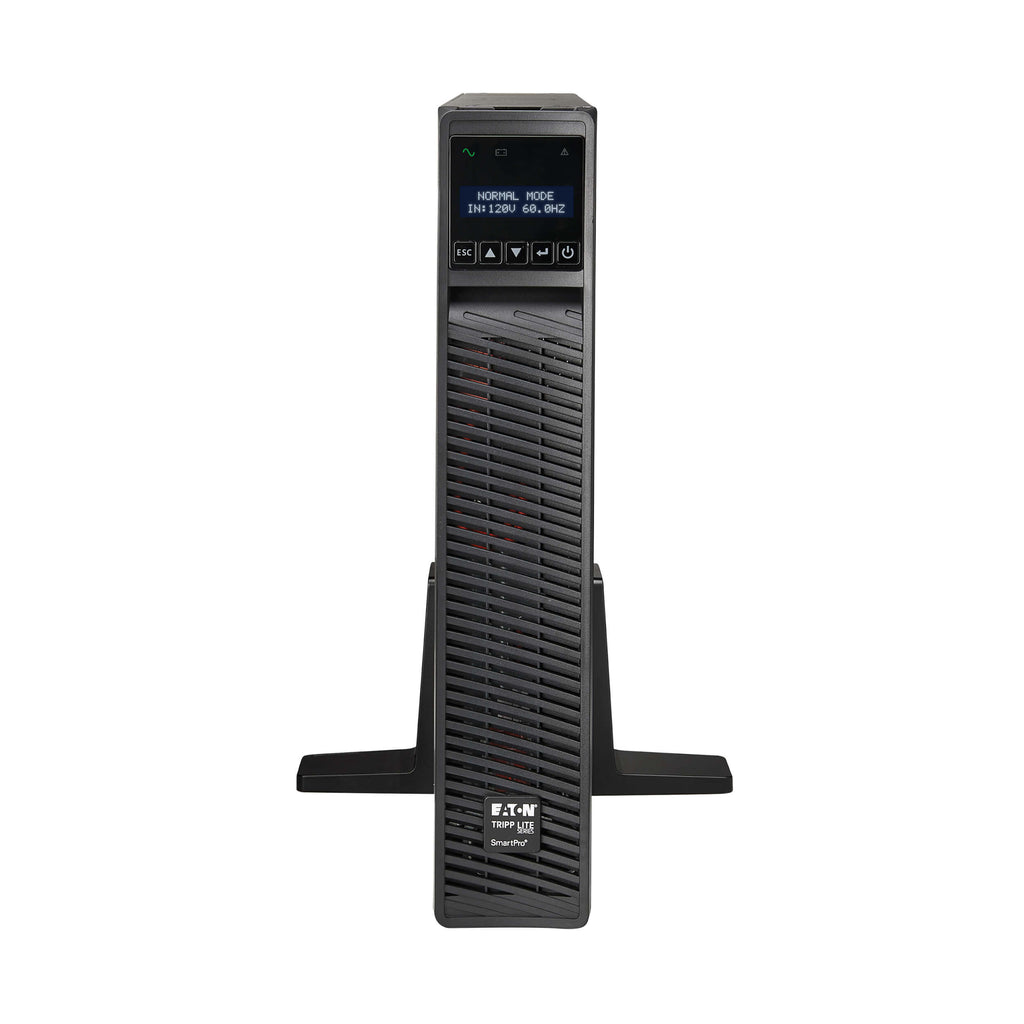

| Form Factor | 2U Rackmount / Tower |
| Capacity | 1950VA / 1950W (1.95kW) |
| Power Factor | 1.0 (Unity) |
| Input Voltage | 120V AC, Single-Phase |

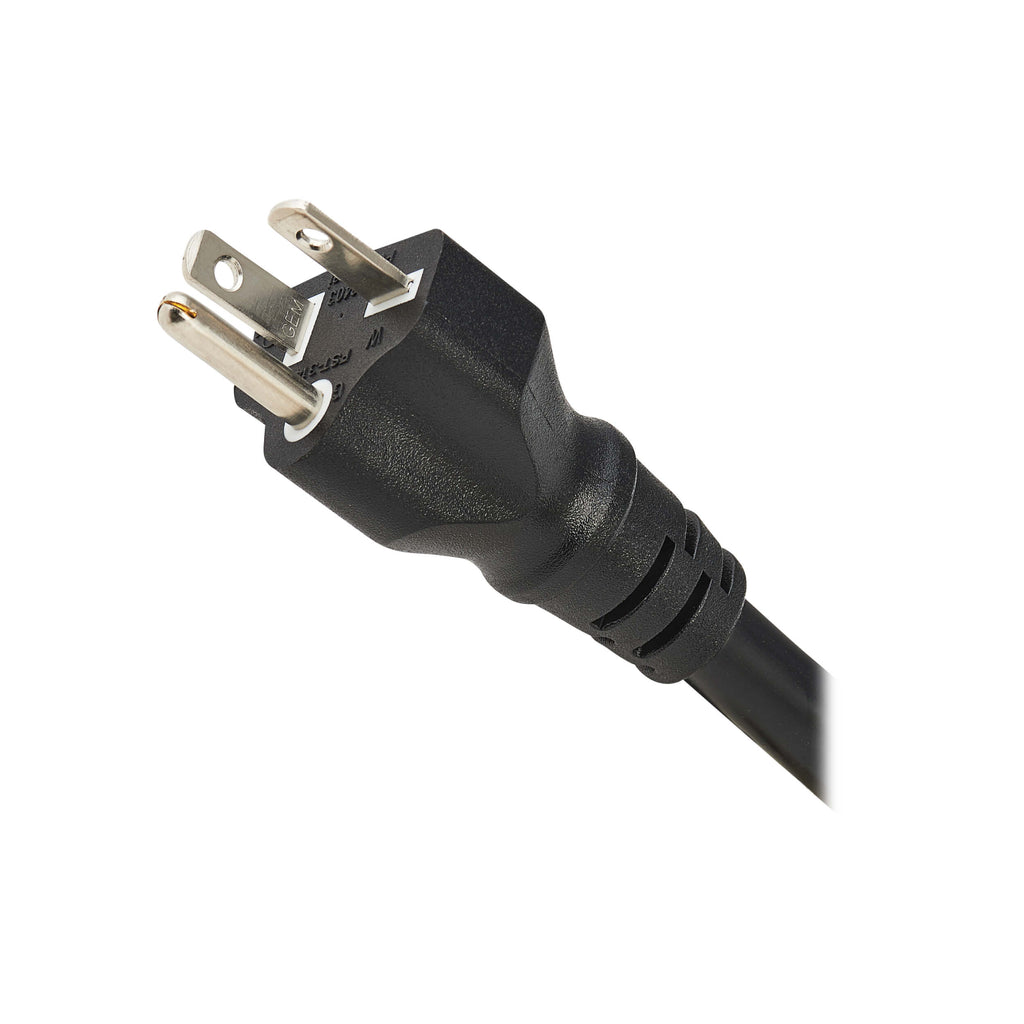

| Input Plug Type | NEMA 5-20P |
| Input Cord Length | 10 ft (3.1 m) |
| Output Voltage | 100V / 110V / 120V / 125V |
| Output Waveform | Pure Sine Wave |
| Output Receptacles | (6) 5-20R, (1) L5-20R |
| Load Banks | 2 Independently Switchable |
| Voltage Regulation | AVR maintains 120V nominal (80–151V input range) |
| Battery Type | Valve-Regulated Lead Acid (VRLA) |
| Battery Runtime | 4 min (Full Load), 12 min (Half Load) |
| Expandable Runtime | Yes, up to 4 × BP72VRM2U |
| Recharge Time | < 4.5 hours (10% to 90%) |
| Hot-Swappable Batteries | Yes |

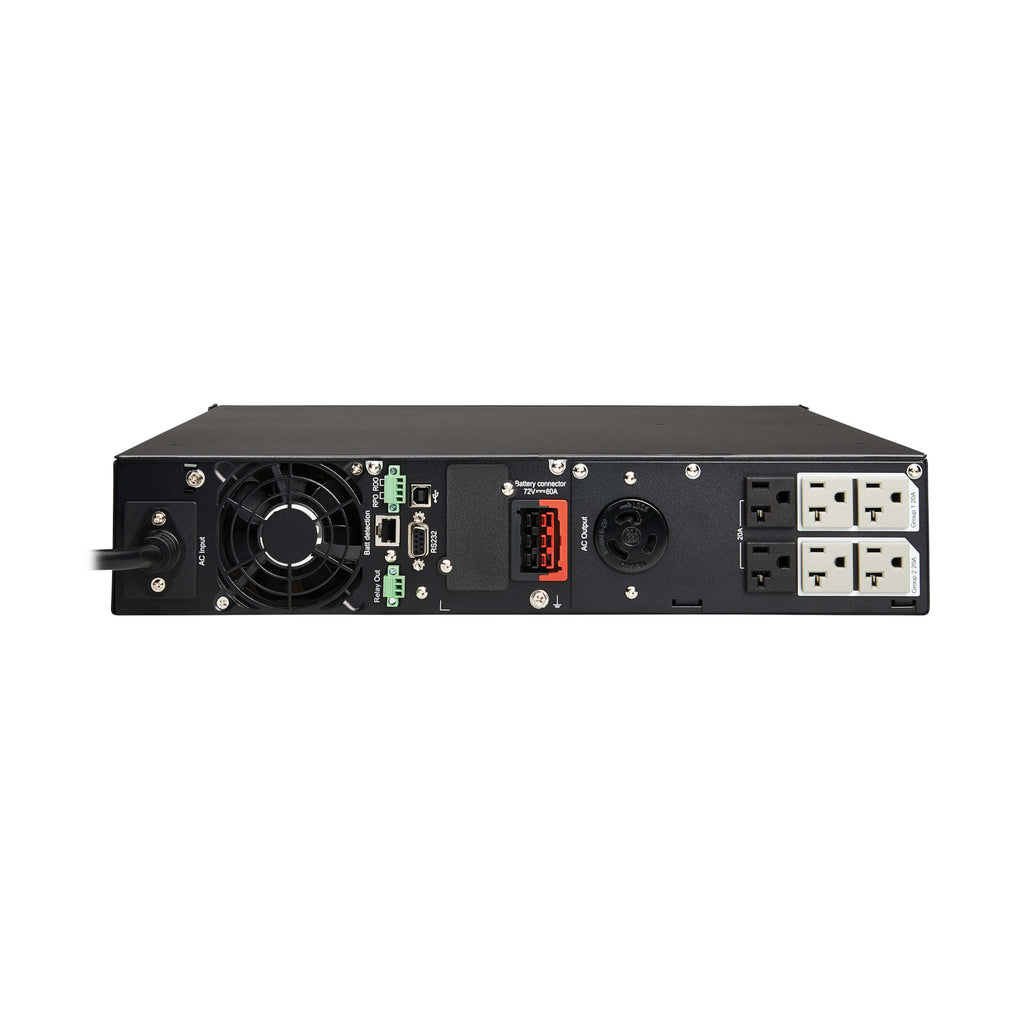

| Communications Ports | USB, DB9, Dry-Contact, SNMP Slot |
| Optional Network Card | WEBCARDLXE (not compatible with WEBCARDLX) |

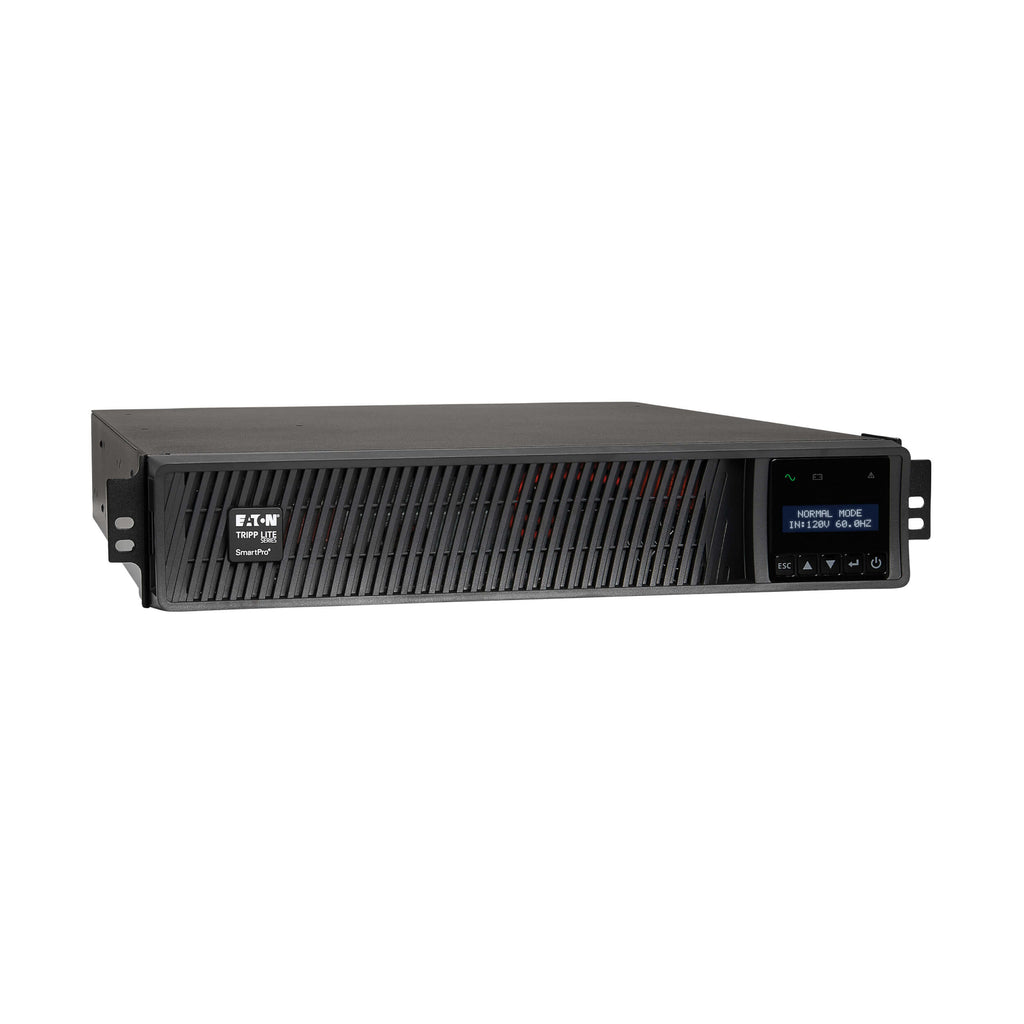

| LCD Display | 2-line rotatable LCD for UPS and power status |
| Efficiency (AC Mode) | 96% |
| Surge Protection | 380 Joules |
| Noise Level | ≤45 dBA |
| Dimensions (H × W × D) | 3.4 × 17.0 × 23.7 in (86 × 437 × 602 mm) |
| Weight | 65.3 lb (29.6 kg) |
| Operating Temperature | 0°–40°C (32°–104°F) |
| Certifications | ENERGY STAR 2.0, UL 1778, CSA, NOM, CE, FCC Class B |
| Warranty | 2 Years (3 Years with Registration) |
| Connected Equipment Insurance | $250,000 (U.S., Canada & Puerto Rico) |
