Description

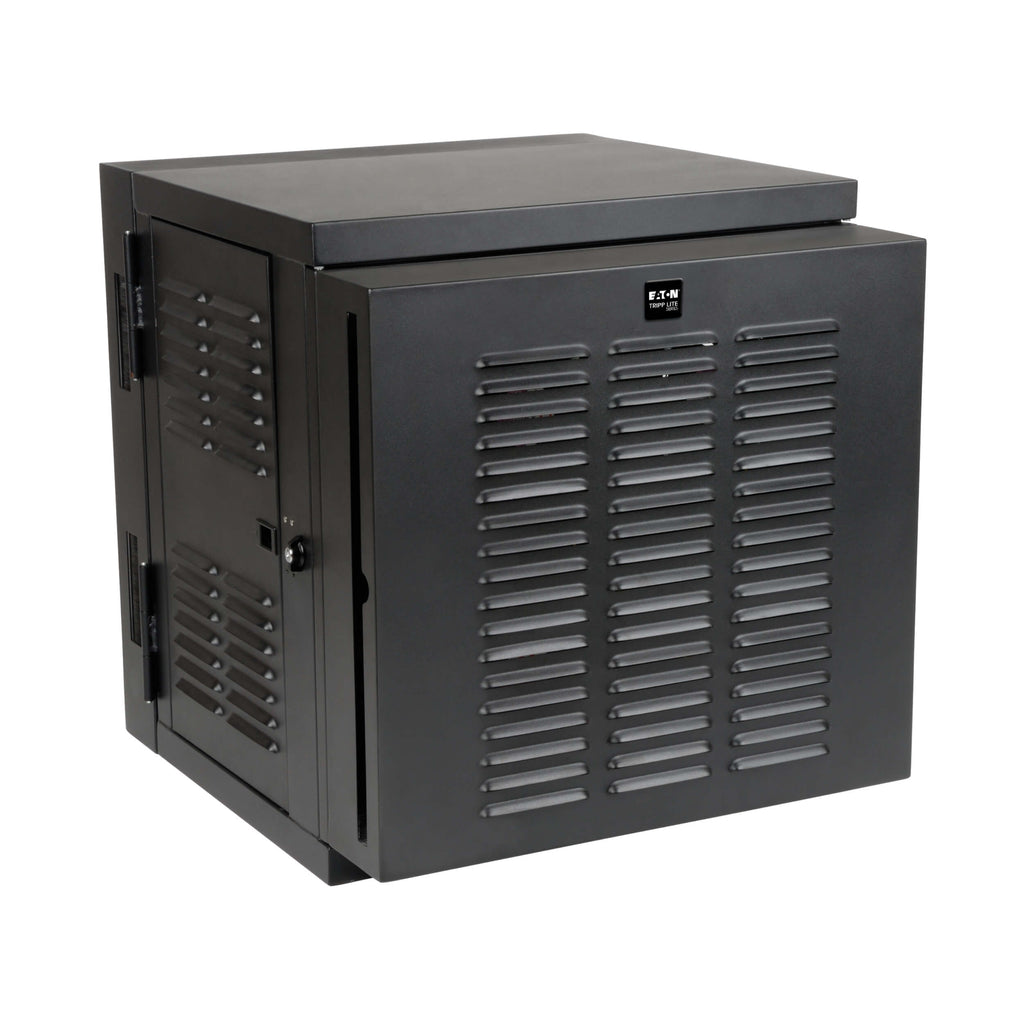

The Tripp Lite SmartRack SRW12USNEMA is a rugged 12U wall-mount rack enclosure engineered for harsh, dirty, and industrial environments where floor space is limited. Designed to securely house standard 19-inch rack equipment, this enclosure protects sensitive networking and IT hardware from dust, dirt, oil, drips, and splashes commonly found in factories, warehouses, utility plants, and construction sites.

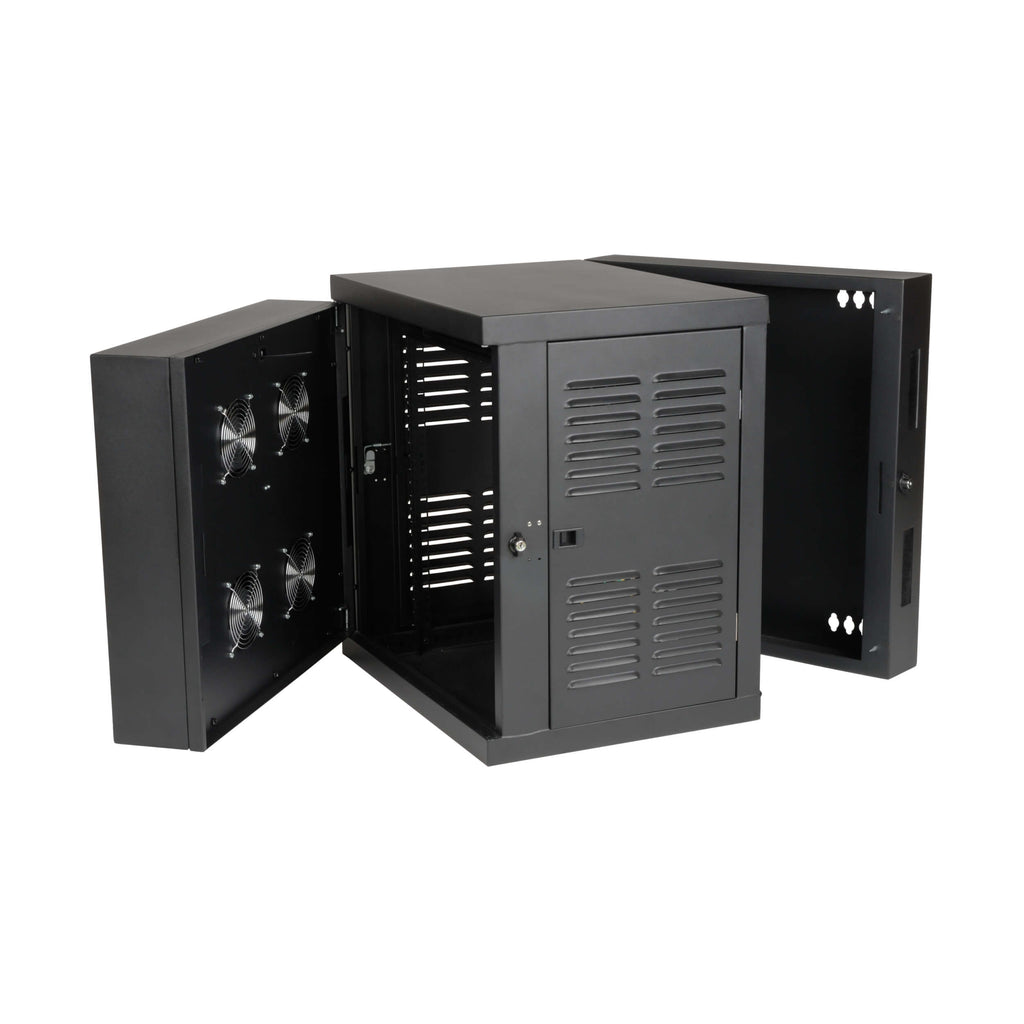

Built from heavy-duty steel with a durable black powder-coat finish, the cabinet supports up to 200 lb of equipment. Integrated filtration, sealing gaskets, and louvered ventilation work together with four high-performance intake fans to maintain airflow while keeping contaminants out. The hinged, swing-away design allows easy rear access for installation and maintenance, while locking doors and panels help prevent tampering or theft.
With adjustable mounting rails supporting equipment up to 20.5 inches deep, the SRW12USNEMA is ideal for switches, patch panels, and other shallow-depth rack devices that require reliable protection in demanding environments.
| Specification | Details |
|---|---|
| Rack Height | 12U |
| Rack Width | 19 in (EIA-standard) |
| Rack Depth Type | Switch-Depth / Shallow |
| Maximum Device Depth | 20.5 in (521 mm) |
| Minimum Device Depth | 3 in (76 mm) |
| Factory Preset Depth | 10.42 in (265 mm) |
| Maximum Load Capacity | 200 lb (90.7 kg) |
| Mount Type | Wall-Mount |

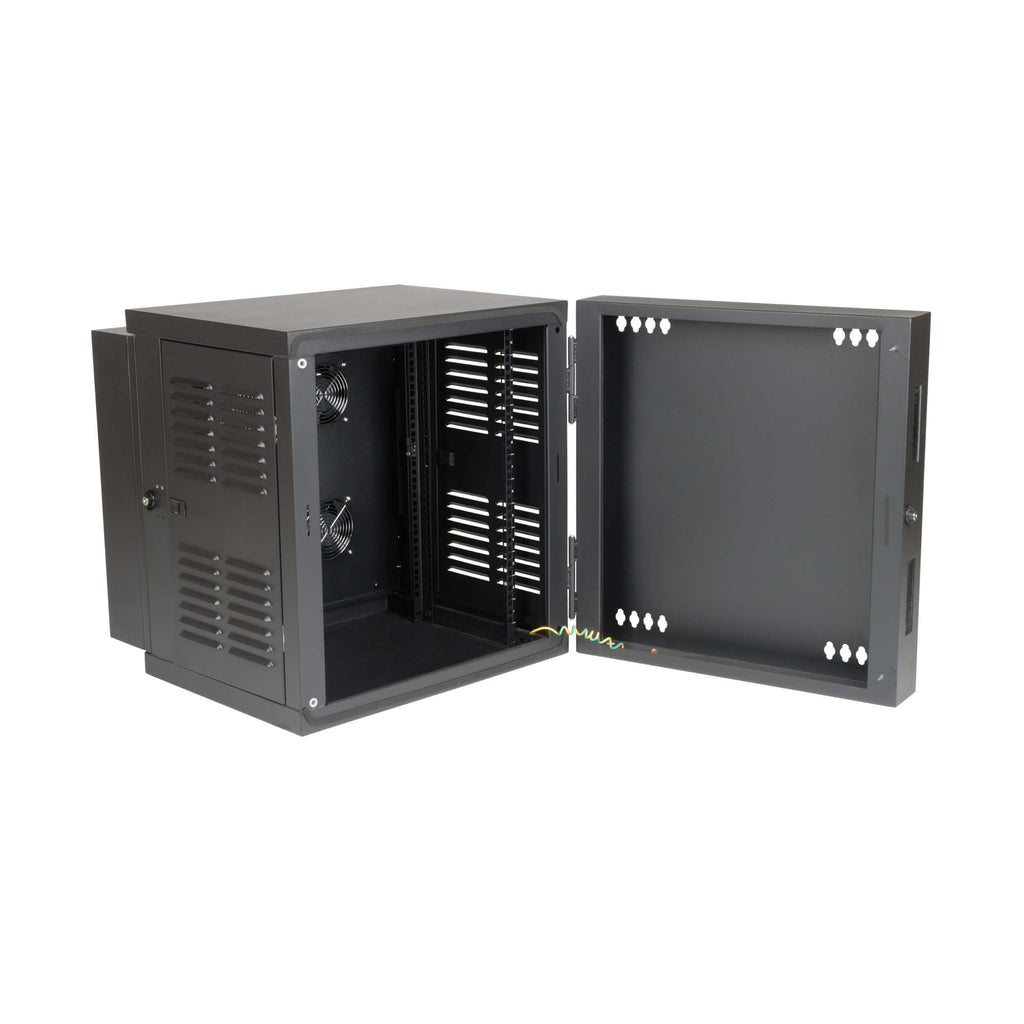

| Cabinet Access | Hinged, swing-away rear access |
| Door Configuration | Reversible (left or right opening) |

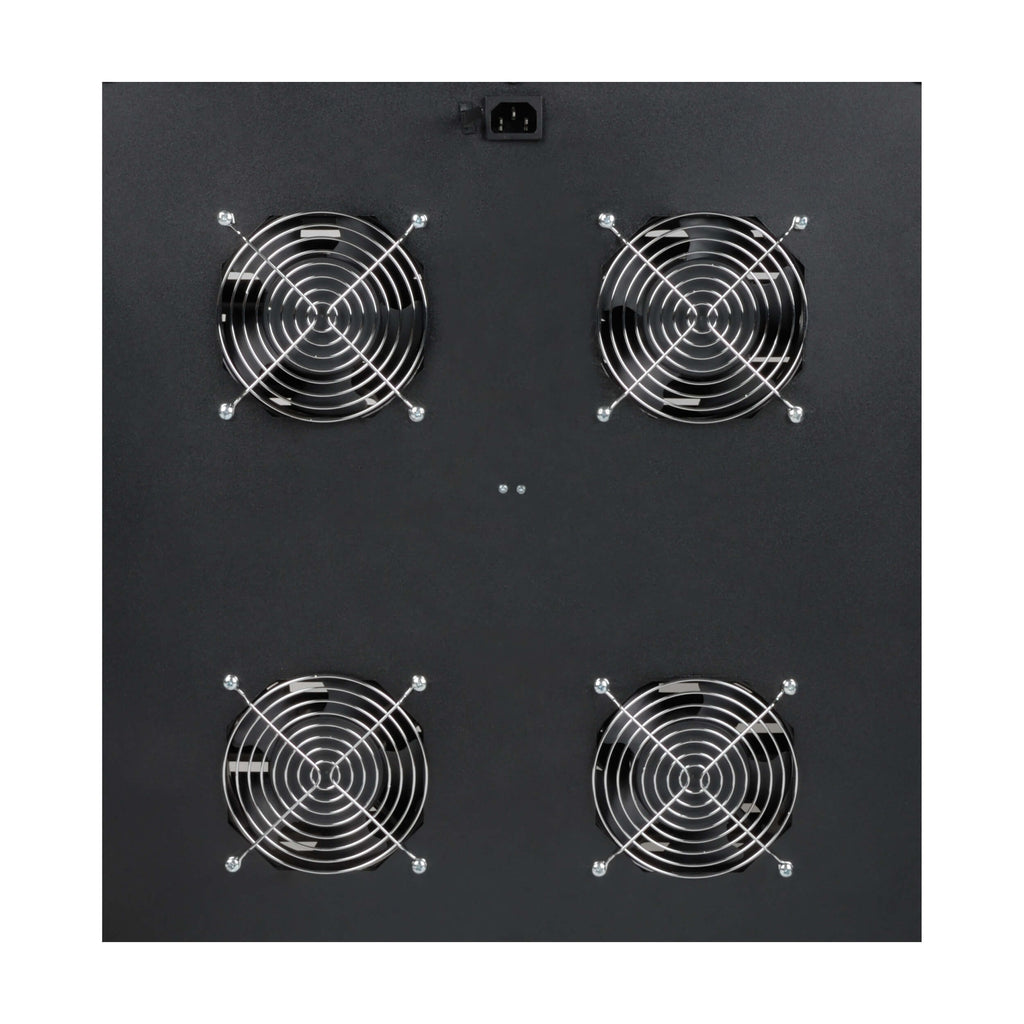

| Cooling | 4 built-in high-performance intake fans |

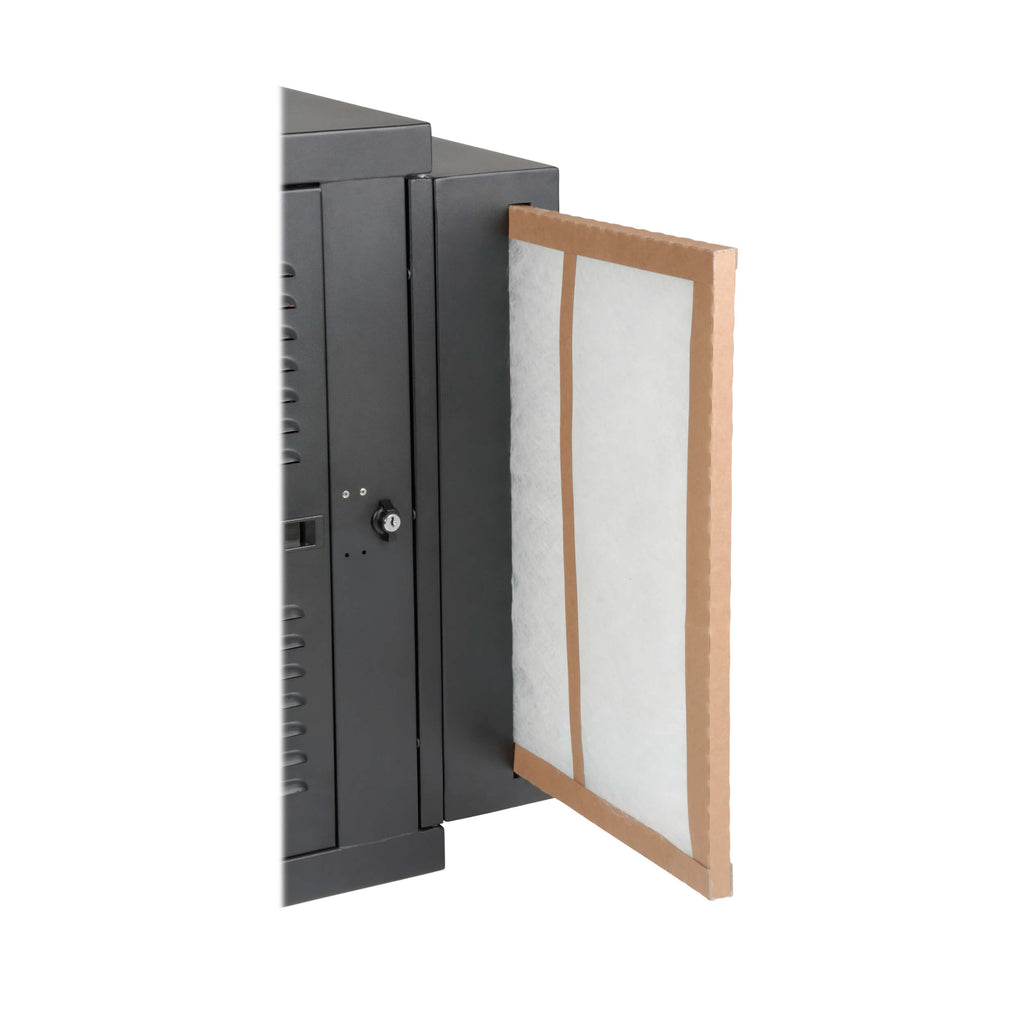

| Filtration | Built-in, replaceable air filter |
| Protection Features | Sealed gaskets, brush-strip cable ports, louvered vents |
| Security | Locking front door and side panels |
| Material | Heavy-duty steel |
| Finish | Black powder-coated |
| Power Input | 120V AC, 50/60 Hz |
| Plug Type | NEMA 5-15P |
| Power Cord Length | 6 ft (1.83 m) |
| Mounting Rails | 4 adjustable vertical rails |
| Compliance | RoHS, EIA/ECA-310-E |
| Typical Applications | Industrial IT, networking, utilities, warehouses |
