Description
The Tripp Lite SmartRack SRW18USDPG is an 18U UPS-depth wall-mount rack enclosure designed to securely house 19-inch rack equipment in environments with limited floor space. Ideal for network closets, classrooms, retail locations, and back offices, this enclosure provides professional-grade security, ventilation, and accessibility for IT and AV infrastructure.

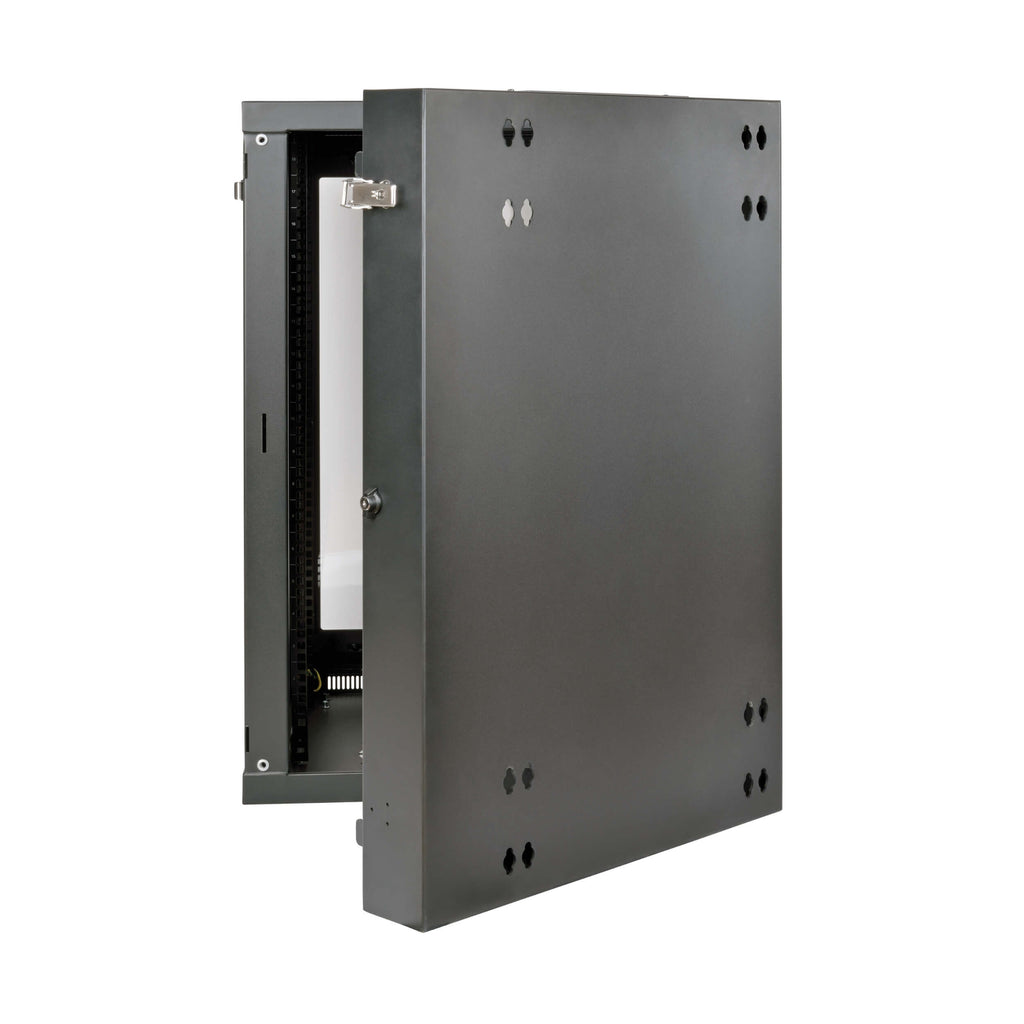

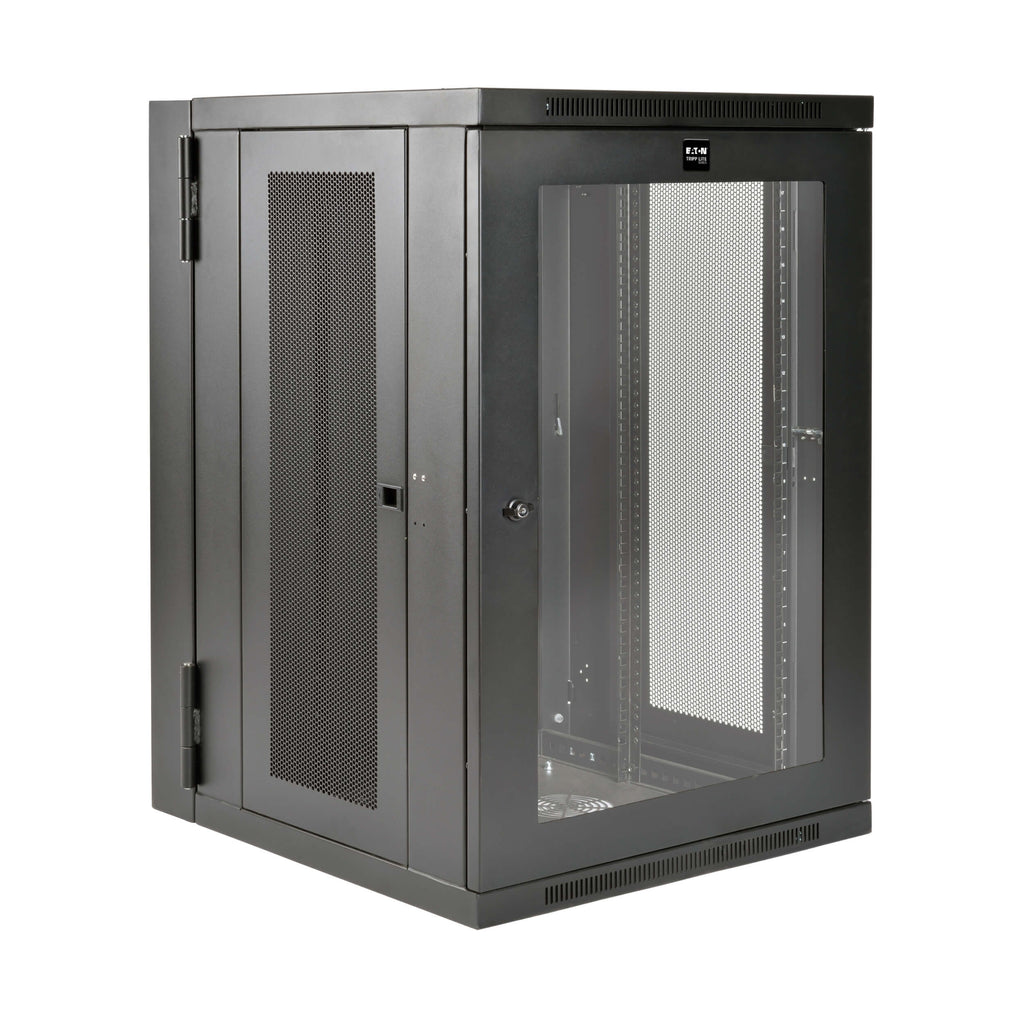

Constructed from heavy-duty steel with a durable black powder-coat finish, the enclosure supports up to 250 lb of equipment. A hinged design allows the cabinet to swing away from the wall for convenient rear access during installation and maintenance. The locking front door features a shatter-resistant clear acrylic window, enabling visual monitoring of equipment without opening the enclosure.
Vented top, bottom, and side panels promote consistent airflow to help maintain optimal operating temperatures. Adjustable vertical mounting rails accommodate equipment up to 24.5 inches deep, including UPS systems, network switches, and battery packs. The cabinet ships fully assembled and supports optional caster installation for mobile deployments.
| Specification | Details |
|---|---|
| Manufacturer | Tripp Lite by Eaton |
| Model Number | SRW18USDPG |
| Rack Height | 18U |
| Rack Type | Wall-Mount, Half-Height Enclosure |
| Rack Width | 19 in (EIA Standard) |
| Maximum Device Depth | 24.5 in (62.23 cm) |
| Minimum Device Depth | 3 in (7.62 cm) |
| Load Capacity | 250 lb (113 kg) |
| Enclosure Material | Heavy-Duty Steel |
| Color | Black |
| Front Door | Locking, Clear Acrylic Window |
| Cabinet Access | Hinged swing-away design |
| Ventilation | Vented top, bottom, and side panels |
| Mounting Rails | 4 adjustable vertical rails |
| Rail Adjustment | 7/8 in increments |
| Mounting Hardware | Square-hole and 12-24 threaded |
| Cable Management | Top and bottom cable entry ports |
| Reversible Door | Yes (left or right opening) |
| Wall Stud Spacing | 16 in |
| PCI DSS Support | Yes (physical security compliant) |
| Assembly | Ships fully assembled |
| Optional Accessories | Caster kit (sold separately) |
| Warranty | 5-Year Limited |
