Description

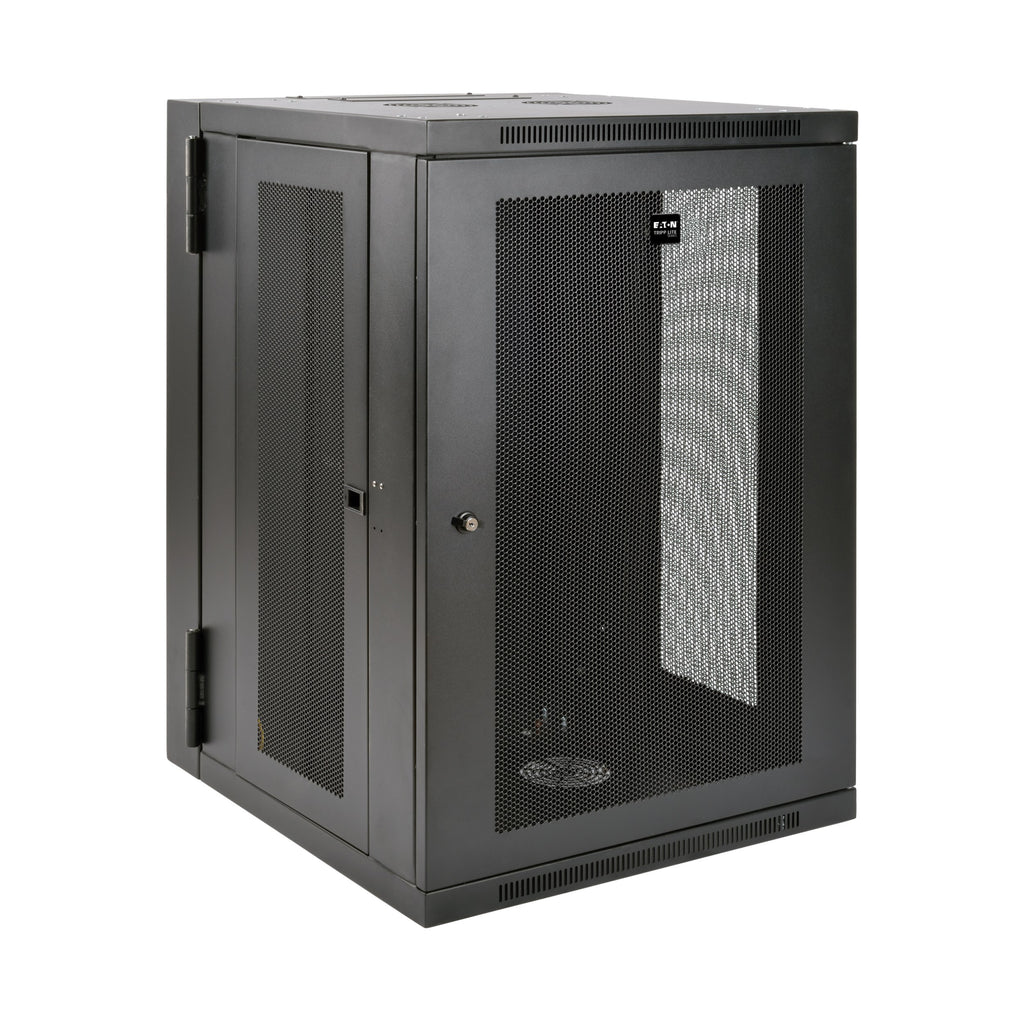

The Tripp Lite SmartRack SRW18USDP is an 18U UPS-depth wall-mount rack enclosure designed to securely house 19-inch EIA-standard rack equipment in space-constrained environments. Ideal for network closets, retail locations, classrooms, and back offices, this half-height enclosure keeps critical IT infrastructure organized, protected, and off the floor.

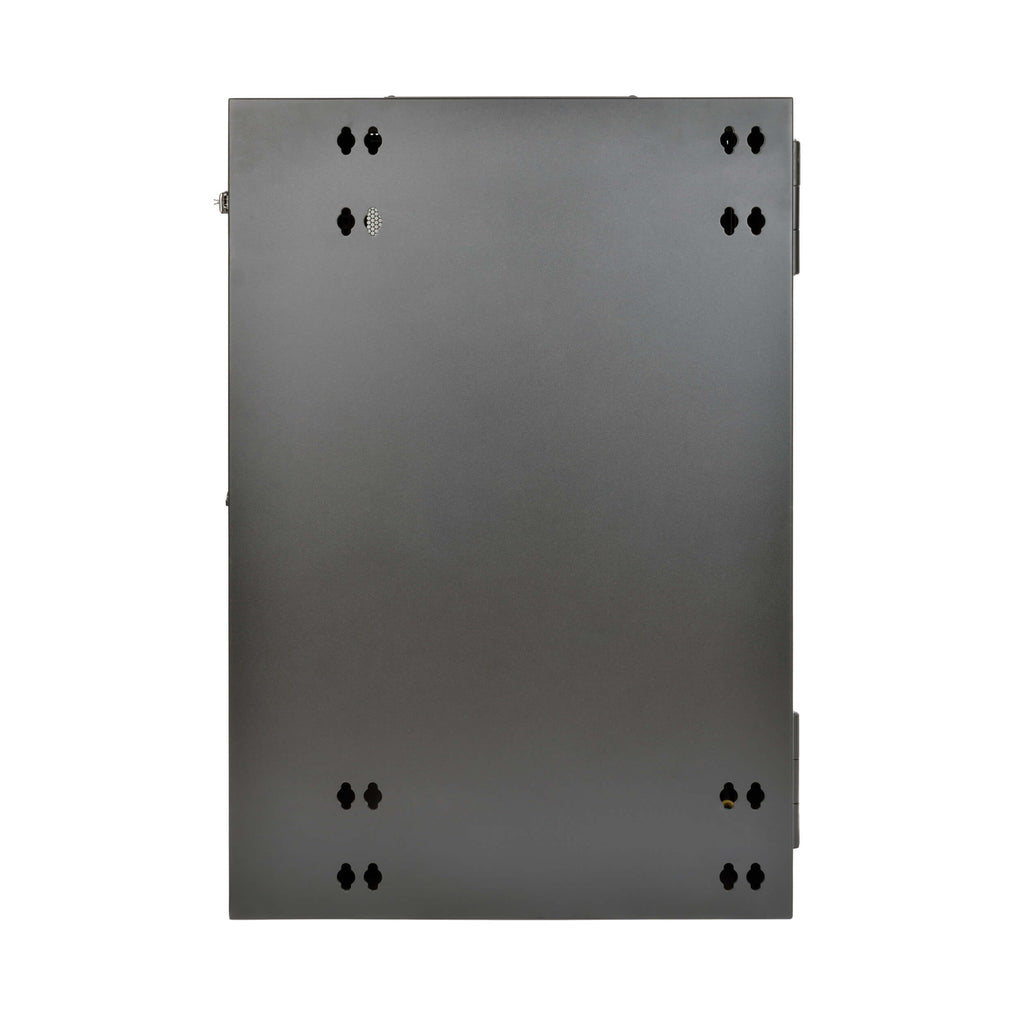

Constructed from heavy-duty steel with a durable black powder-coated finish, the SRW18USDP supports up to 250 lb (113 kg) of equipment, including deeper devices such as UPS systems, battery packs, switches, and cabling up to 24.5 inches deep. The cabinet features a hinged swing-away design, allowing full rear access to equipment for simplified installation and maintenance without removing the enclosure from the wall.

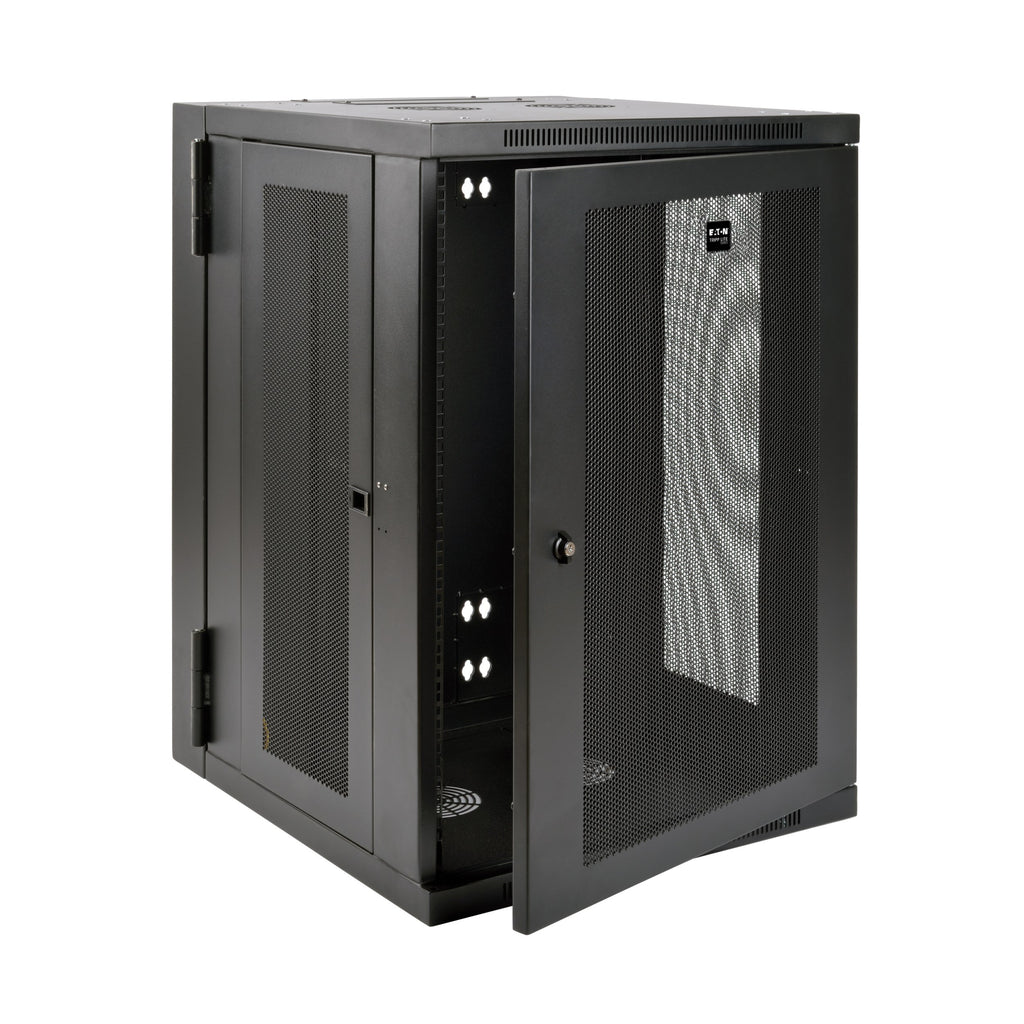

Locking front door and side panels help prevent unauthorized access, while vented panels on the front, sides, top, and bottom promote efficient airflow to keep equipment cool. Adjustable vertical mounting rails, numbered rack spaces, and top/bottom cable access ports ensure fast, clean installations. The enclosure ships fully assembled and can be wall-mounted or paired with an optional caster kit for mobile applications.
| Specification | Details |
|---|---|
| Brand | Tripp Lite SmartRack |
| Model Number | SRW18USDP |
| Rack Height | 18U |
| Rack Type | Wall-Mount, Half-Height Enclosure |
| Rack Width | 19 in (EIA-Standard) |
| Maximum Load Capacity | 250 lb (113 kg) |
| Maximum Equipment Depth | 24.5 in (622 mm) |
| Minimum Equipment Depth | 3 in (76 mm) |
| Enclosure Depth Type | UPS-Depth |
| Construction | Heavy-Duty Steel |
| Finish | Black Powder Coat |
| Mounting Rails | 4 Adjustable Vertical Rails |
| Rail Adjustment | 7/8 in Increments |
| Access Design | Hinged Swing-Away Cabinet |
| Door Configuration | Reversible (Left or Right Opening) |
| Security | Locking Front Door and Side Panels |
| Ventilation | Vented Front, Sides, Top, and Bottom |
| Cable Management | Top and Bottom Cable Access Ports |
| Installation | Ships Fully Assembled |
| Mounting Options | Wall-Mount (Caster Kit Optional) |
| Compliance | EIA-310-E, RoHS, UKCA |
| Warranty | 5-Year Limited Warranty |
