Description

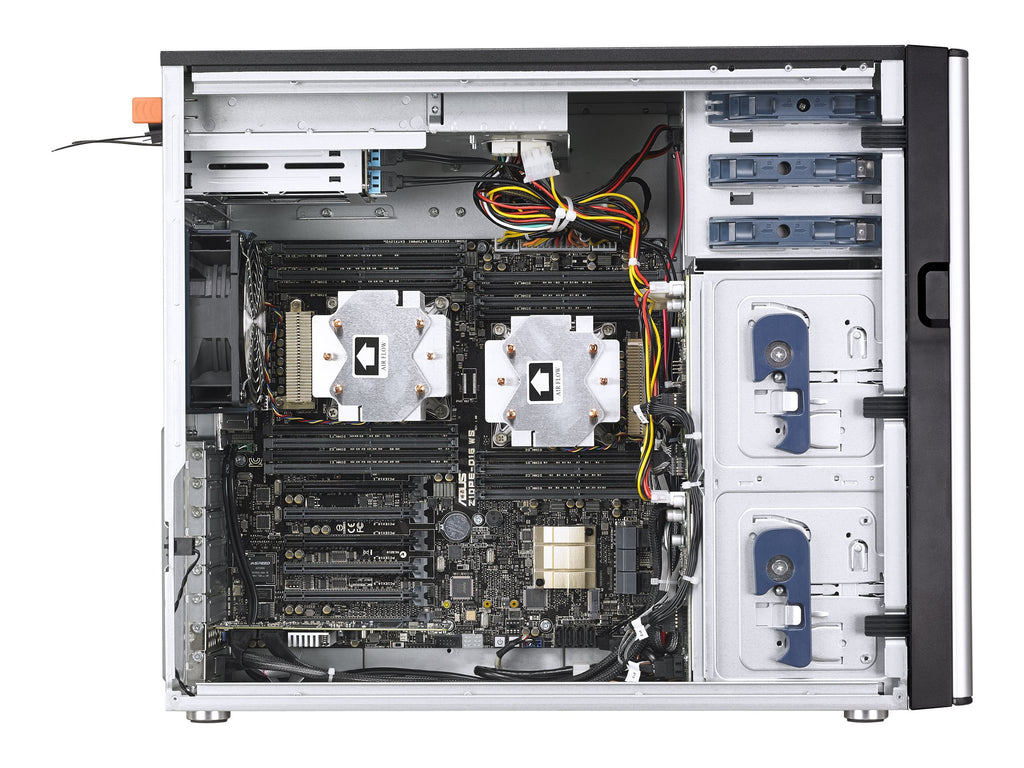

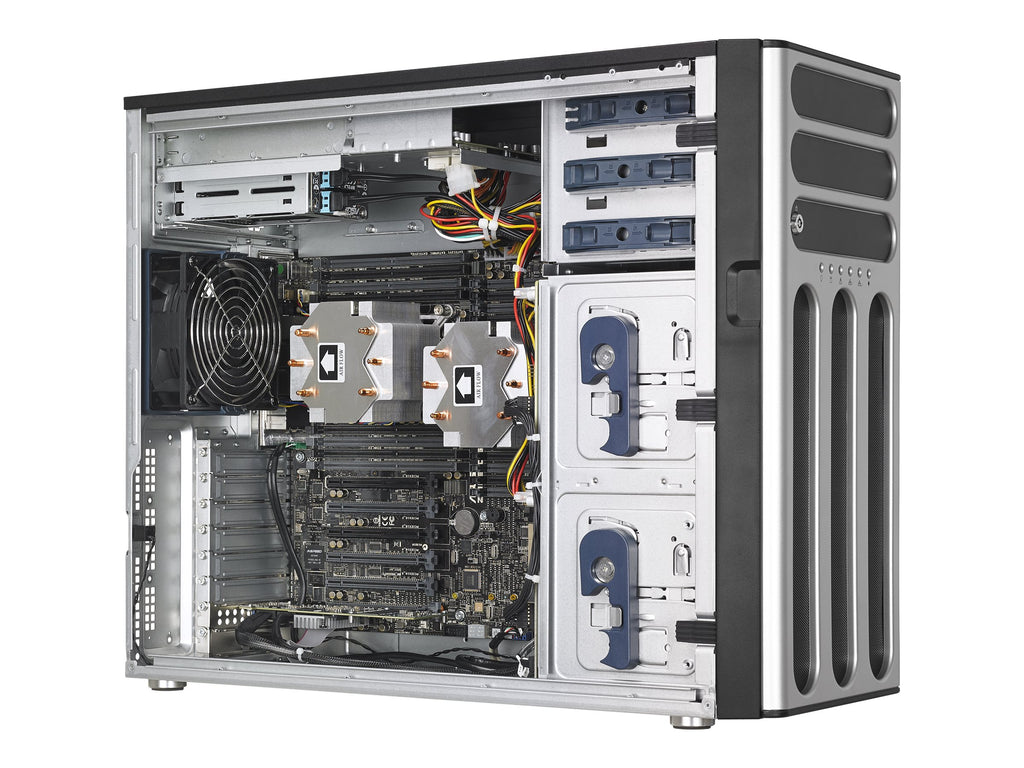

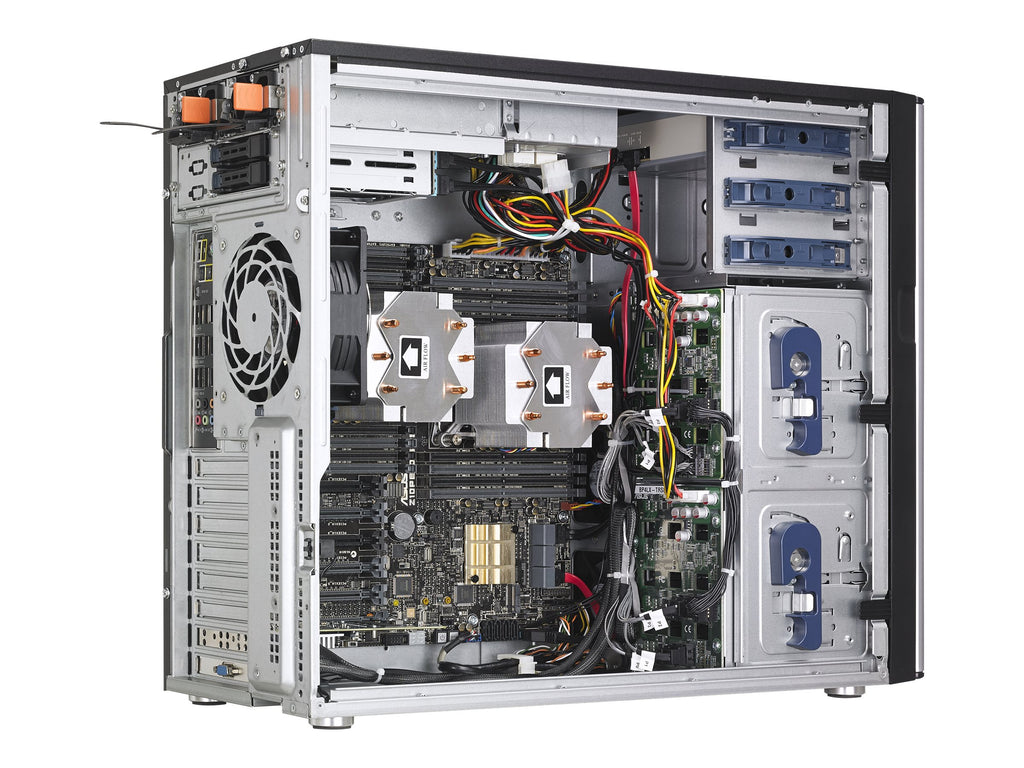

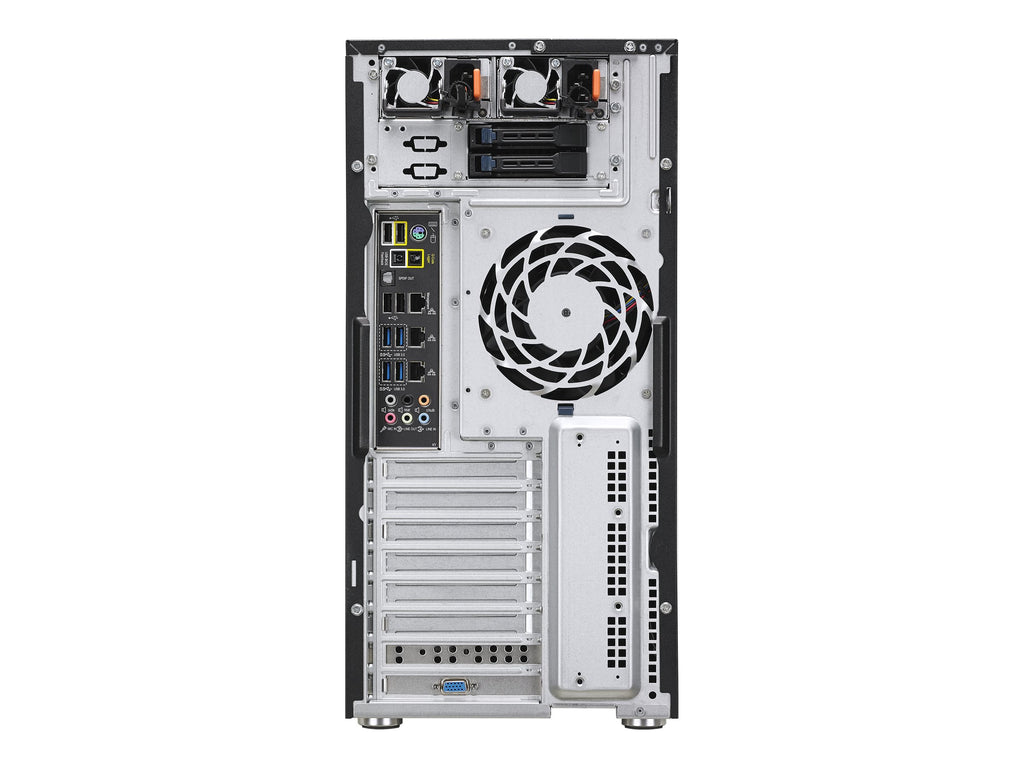

The ASUS TS700-E8-RS8 is a powerful and versatile 5U tower server designed for high-performance computing and business-critical workloads. Built on the Intel® C612 chipset, it supports up to two Intel Xeon® processors (LGA2011-v3) and up to 1TB of DDR4 ECC memory for reliable, scalable performance. Its flexible 8 hot-swap 3.5" SATA bays and RAID 0/1/5/10 support deliver robust data storage options, while dual Intel Gigabit Ethernet ports and ASPEED AST2400 graphics ensure smooth management and remote control.
With dual 800W 80 PLUS Gold redundant power supplies, IPMI 2.0 remote management, and quiet tower design, the TS700-E8-RS8 provides enterprise-grade efficiency and dependability, whether deployed in small business data centers, high-performance workstations, or departmental servers.
| Category | Specification |
|---|---|
| Product Type | Tower Server (5U) |
| Processor Support | Dual-socket (2-way) Intel Xeon® E5-2600 v3/v4 series |
| Chipset | Intel® C612 |
| CPU Socket | LGA2011-v3 |
| Installed CPU | None (user configurable) |
| Memory Type | DDR4 ECC Registered / LRDIMM / NVDIMM |
| Memory Slots | 16 DIMM (288-pin) |
| Max Memory Capacity | Up to 1TB |
| Storage Bays | 8 × 3.5" hot-swap SATA bays, 3 × external 5.25" bays |
| Storage Interface | SATA 6Gb/s |
| RAID Support | RAID 0, 1, 5, 10 |
| Networking | 2 × Intel® I210-AT Gigabit Ethernet |
| Remote Management | IPMI 2.0 with KVM over IP |
| Graphics | Integrated ASPEED AST2400 |
| Video Output | 1 × VGA |
| Expansion Slots | 4 × PCIe 3.0 x16 (full-length), 1 × PCIe 3.0 x16 (x8 mode), 1 × PCIe 3.0 x16 half-length (x8 mode) |
| USB Ports | 6 × USB 2.0, 4 × USB 3.0 |
| Audio | Integrated 7.1-channel High Definition Audio |
| Power Supply | 2 × 800W 80 PLUS Gold redundant (1+1) |
| Voltage | AC 120/230V, 47–63Hz |
| Cooling | Front-to-rear airflow with multiple fan modules |
| Operating Temperature | 10°C – 35°C |
| Dimensions (W × H × D) | 21.75 × 44.5 × 54.5 cm |
| Weight | 18.7 kg |
| Color | Black / Silver |
| Compliant Standards | High Definition Audio, RoHS |
| Included Accessories | 2 × CPU Heatsinks |
| UNSPSC Code | 43211501 |
