Description
The Crestron TSS-1070-B-S-LB KIT is a complete enterprise-grade room scheduling solution designed to streamline meeting space management with a modern, professional appearance. Featuring a 10.1-inch high-resolution touch screen paired with an integrated room availability light bar, this system delivers clear, real-time room status visibility while enabling seamless scheduling across multiple platforms.
Built for reliability and simplicity, the system installs quickly using a single Ethernet connection with PoE or PoE+ power and requires no control system or custom programming. The native scheduling interface integrates directly with widely used platforms such as Microsoft Exchange, Office 365, Google Calendar, and other enterprise scheduling tools, ensuring effortless deployment in corporate, education, and government environments.

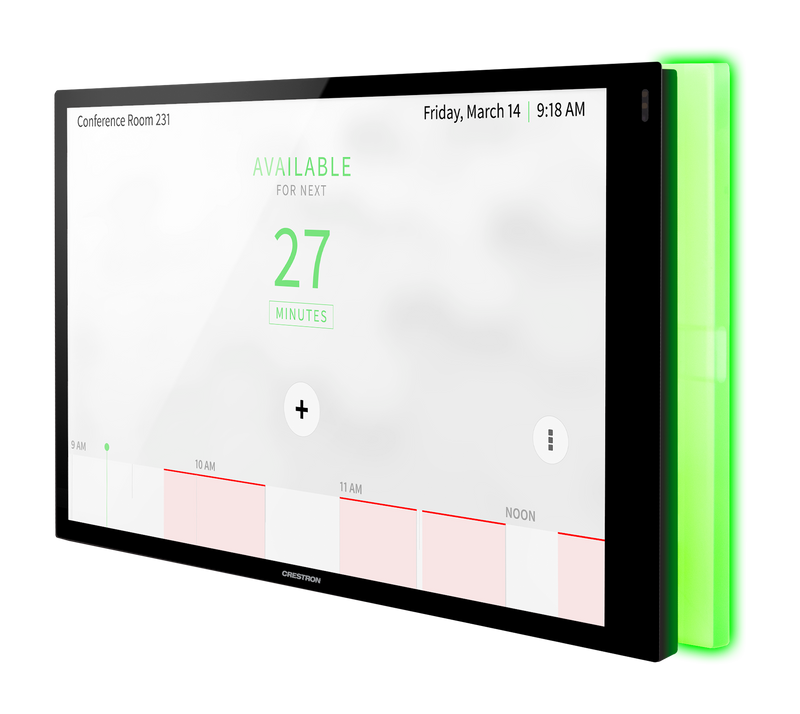

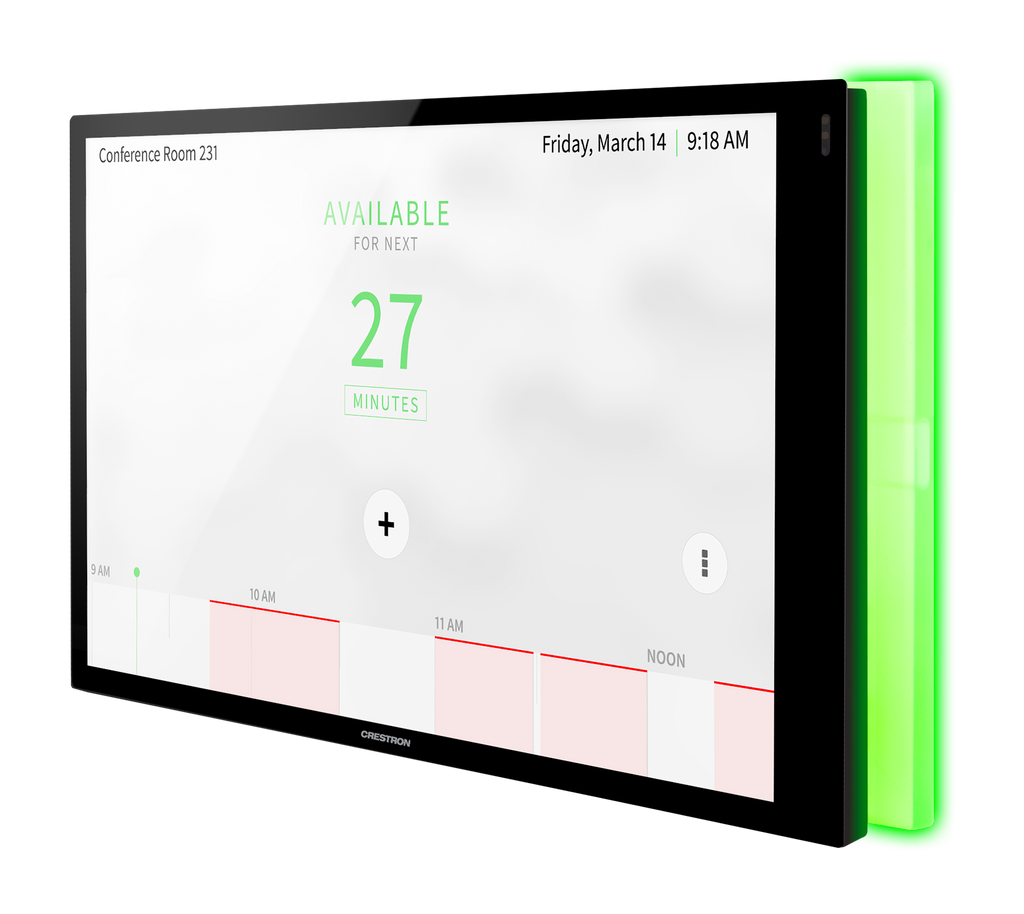

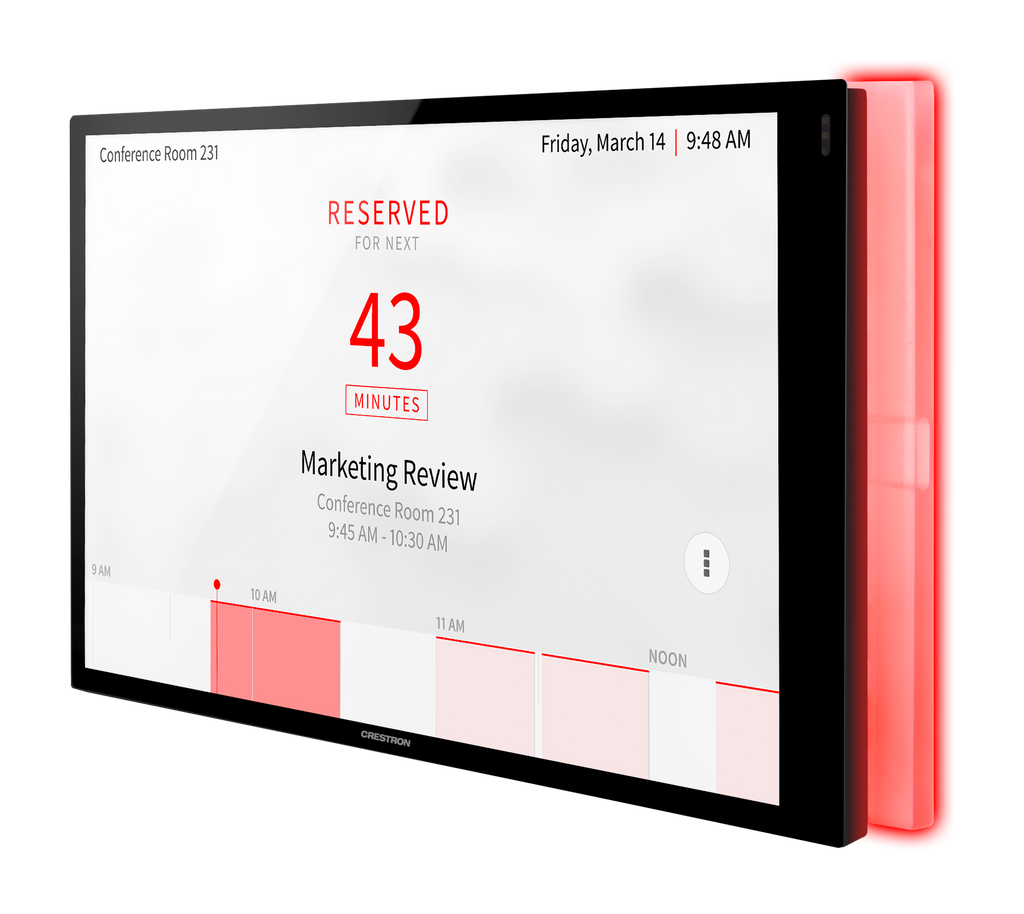

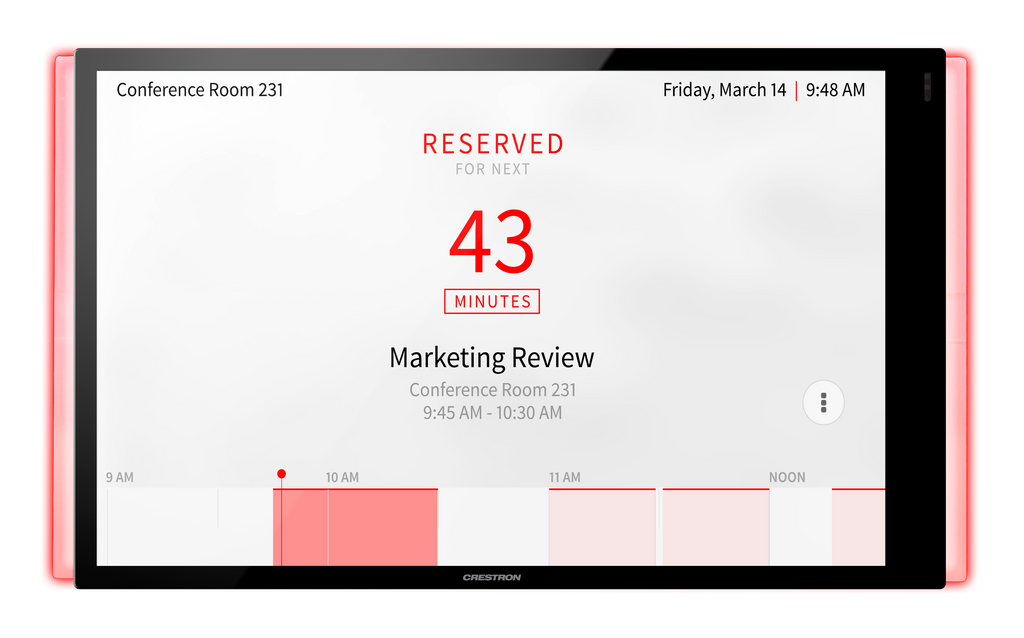

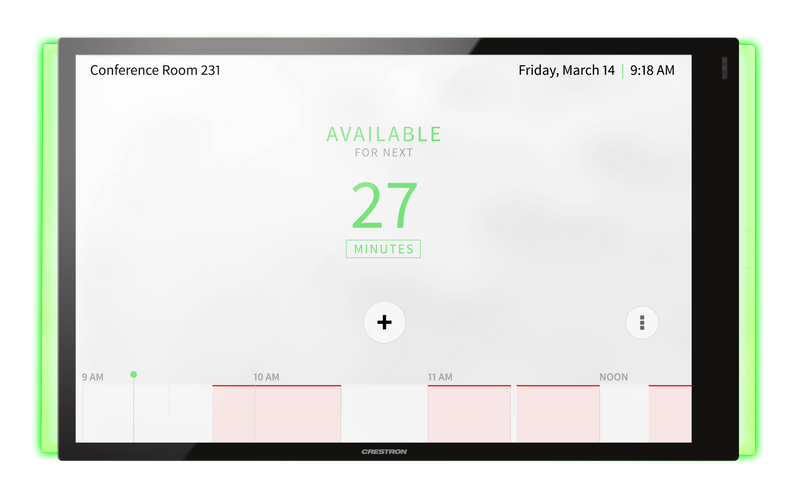

The included light bar enhances visibility with a 180-degree status indicator, instantly signaling room availability with customizable color feedback. With enterprise-grade security, cloud-based management, and flexible mounting options, the TSS-1070-B-S-LB KIT provides a scalable and secure solution for modern workplace scheduling needs.
| Category | Specification |
|---|---|
| Model | TSS-1070-B-S-LB KIT |
| Display Size | 10.1 in. (257 mm) |
| Resolution | 1920 x 1200 (WUXGA) |
| Display Type | TFT active matrix LCD with LED backlight |
| Brightness | 400 nits |
| Contrast Ratio | 1000:1 |
| Touch Technology | Projected capacitive, 5-point multitouch |
| Aspect Ratio | 16:10 |
| Viewing Angle | ±80° horizontal, ±80° vertical |
| Light Bar | Included TSW-1070-LB series, 180° visibility, multi-color status indication |
| Scheduling Platforms | Crestron Fusion, Microsoft Exchange, Office 365, Google Calendar, G Suite, CollegeNET 25Live, Ad Astra |
| Third-Party App Support | Supported via firmware updates |
| Network Connectivity | Ethernet 100 Mbps, Wi-Fi 802.11 a/b/g/n/ac |
| Security | TLS, SSL, 802.1X, SSH, SFTP, Active Directory authentication |
| Bluetooth | Built-in Bluetooth beacon for proximity detection |
| USB Ports | (2) USB 2.0 Type-A host ports |
| Power Requirements | PoE (802.3af) or PoE+ (802.3at Type 2) |
| Power Consumption | 15W to 30W depending on configuration |
| Audio | Built-in speakers for alerts and feedback |
| Mounting Options | Wall mount over standard electrical boxes, lectern mount, optional accessories available |
| Operating Temperature | 41° to 104°F (5° to 40°C) |
| Humidity | 10% to 90% RH (non-condensing) |
| Dimensions (H x W x D) | 5.87 x 10.18 x 2.28 in. |
| Weight | 1.61 lb (730 g) |
| Construction | Plastic housing with edge-to-edge glass, black smooth finish |
| Compliance | CE, FCC Part 15 Class B, IC |
