Description

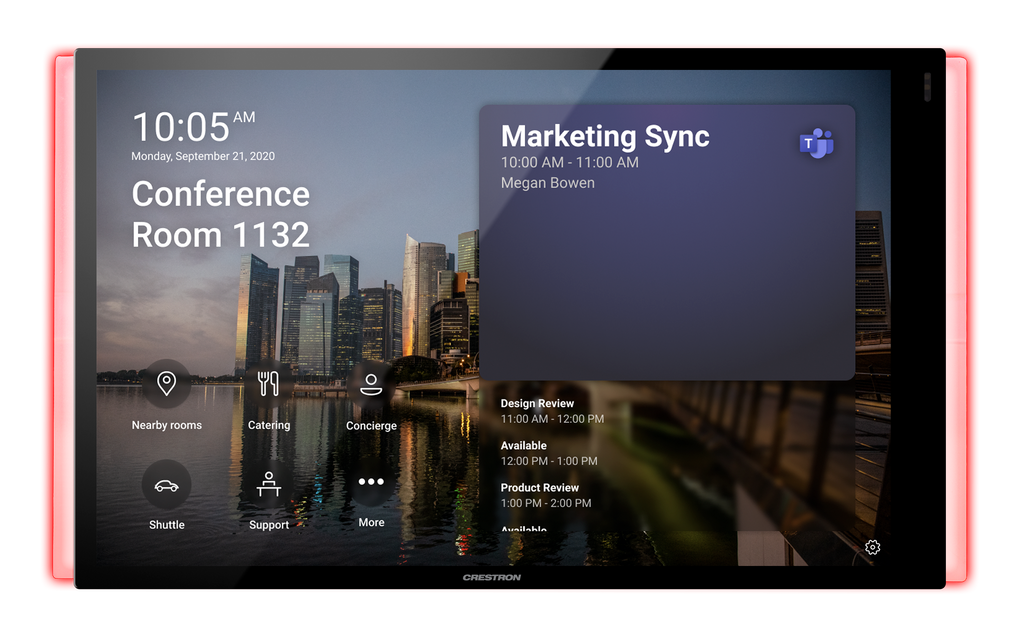

The Crestron TSS-1070-T-B-S-LB is a purpose-built 10.1-inch room scheduling touch screen designed for seamless integration with Microsoft Teams Panels. Engineered for modern workplaces, it delivers a clean, intuitive interface that enables users to view availability, book rooms instantly, and manage meeting spaces with ease.
This all-in-one solution includes a TSW-1070-LB series room availability light bar, providing a clear visual indication of room status with bright, customizable colors visible from multiple angles. Designed for enterprise environments, the system offers fast deployment with web-based configuration, cloud-based management, and no requirement for a dedicated control system or programming.
With robust wired and wireless connectivity, enterprise-grade security, and PoE+ support, the TSS-1070-T-B-S-LB ensures reliable, scalable performance across corporate, education, and commercial environments. Its sleek black smooth finish and flexible mounting options make it ideal for professional installations.
| Category | Specification |
|---|---|
| Display Size | 10.1 in. (257 mm) |
| Display Type | TFT active matrix color LCD |
| Resolution | 1920 x 1200 (WUXGA) |
| Aspect Ratio | 16:10 |
| Brightness | 400 nits |
| Contrast Ratio | 1000:1 |
| Touch Technology | Projected capacitive, 5-point multitouch |
| Included Accessory | TSW-1070-LB light bar (room availability indicator) |
| Scheduling Platform | Native Microsoft Teams Panels support |
| Supported Languages | Chinese (Simplified/Traditional), Danish, Dutch, English (US/UK), French, German, Hebrew, Italian, Japanese, Korean, Norwegian, Portuguese (BR/PT), Russian, Spanish, Swedish |
| Ethernet | 100 Mbps, auto switching, TCP/IP, DHCP, HTTPS, SNMP, IPv4/IPv6 |
| Wireless Connectivity | Wi-Fi 802.11a/b/g/n/ac (2.4 GHz & 5 GHz) |
| Bluetooth | Integrated proximity beacon |
| USB Ports | 2 x USB 2.0 Type-A |
| Audio | Built-in speakers for alerts and feedback |
| Power | PoE+ (IEEE 802.3at Type 2) |
| Power Consumption | 15 W typical; up to 30 W depending on configuration |
| Security | 802.1X, TLS, SSL, SSH, Active Directory authentication |
| Mounting Options | Wall mount over standard electrical boxes; lectern and surface mounting supported |
| Dimensions | 5.87" H x 10.18" W x 2.28" D |
| Weight | 1.61 lb (730 g) |
| Operating Temperature | 41° to 104°F (5° to 40°C) |
| Humidity | 10% to 90% RH (non-condensing) |
| Construction | Plastic housing with edge-to-edge glass, black smooth finish |
| Compliance | CE, FCC Part 15 Class B |
