Description

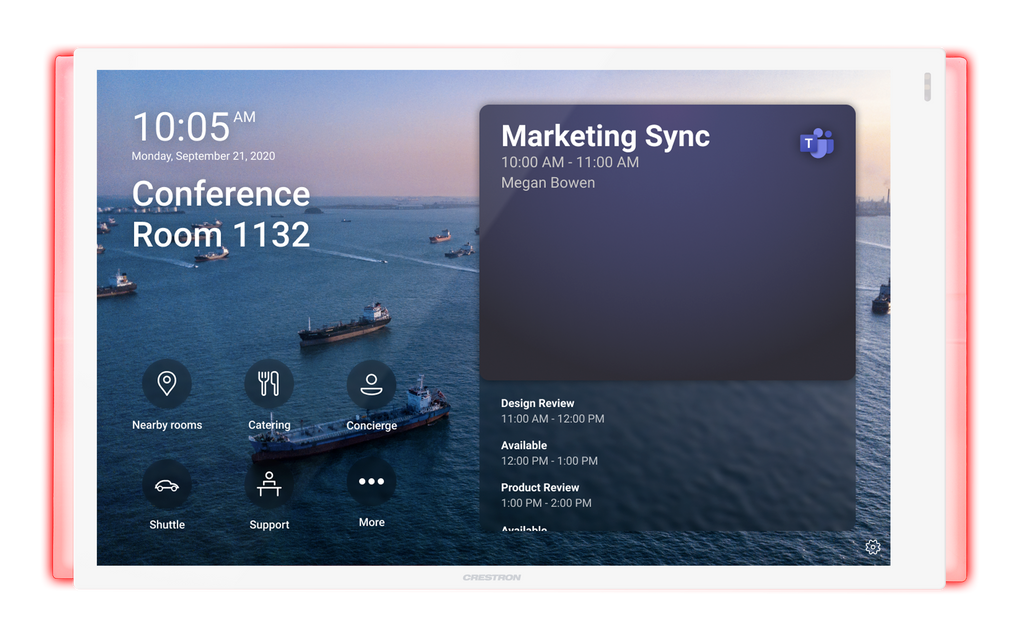

The Crestron TSS-1070-T-W-S-LB KIT is a complete enterprise-grade room scheduling solution designed to run the Microsoft Teams® Panels application. Featuring a sleek 10.1-inch wall mount touch screen in a white smooth finish, this system provides real-time room availability, streamlined scheduling, and intuitive interaction directly outside meeting spaces.
Engineered for modern workplaces, this solution integrates seamlessly with Microsoft Teams, enabling users to view schedules, reserve rooms instantly, and manage bookings efficiently. The included TSW-1070-LB light bar delivers a clear 180-degree visual indicator of room status, improving visibility and reducing scheduling conflicts.
With PoE+ connectivity, Wi-Fi capability, and robust enterprise security protocols, deployment is fast and scalable without requiring a dedicated control system or custom programming. Cloud-based management and monitoring further simplify IT operations, making it ideal for corporate offices, campuses, and shared workspaces.
| Category | Specification |
|---|---|
| Display Size | 10.1-inch (257 mm) diagonal |
| Display Type | TFT active matrix color LCD |
| Resolution | 1920 x 1200 (WUXGA) |
| Aspect Ratio | 16:10 |
| Brightness | 400 nits |
| Contrast Ratio | 1000:1 |
| Touch Capability | Projected capacitive, 5-point multitouch |
| Included Accessories | TSW-1070-LB-W-S room availability light bar |
| Scheduling Platform | Native Microsoft Teams® Panels support |
| Additional Scheduling Support | Crestron Fusion, Microsoft Exchange, Office 365, Google Calendar, 25Live, Ad Astra |
| Languages Supported | Multiple languages including English, Spanish, French, German, Japanese, Chinese, and more |
| Ethernet | 10/100 Mbps, auto switching, TCP/IP, DHCP, IPv4/IPv6 |
| Wireless Connectivity | Wi-Fi 802.11a/b/g/n/ac (2.4 GHz & 5 GHz) |
| Bluetooth | Integrated proximity beacon |
| USB Ports | 2 x USB 2.0 Type-A |
| Security Features | 802.1X authentication, TLS, SSL, HTTPS, SSH, Active Directory integration |
| Power Requirements | PoE+ (IEEE 802.3at Type 2) |
| Power Consumption | 15 W to 30 W depending on configuration |
| Audio | Built-in speakers for alerts and feedback |
| Mounting Options | Wall mount, surface mount, lectern mount compatible |
| Operating Temperature | 0° to 40°C (32° to 104°F) |
| Humidity | 10% to 90% non-condensing |
| Dimensions (H x W x D) | 5.87" x 10.18" x 2.28" |
| Weight | 1.61 lb (730 g) |
| Construction | Plastic housing with edge-to-edge glass |
| Compliance | FCC Part 15 Class B, CE, IC |
