Description

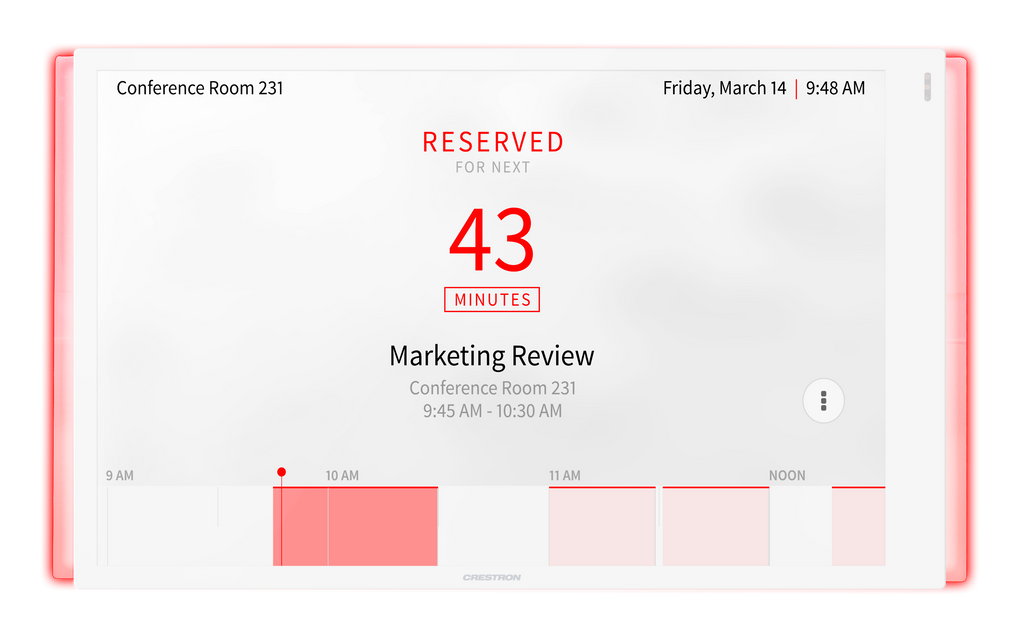

The Crestron TSS-1070-W-S-LB KIT is a complete enterprise-grade room scheduling solution designed to streamline meeting space management. Featuring a sleek 10.1-inch wall-mounted touch screen in a white smooth finish, this system integrates seamlessly with leading scheduling platforms including Microsoft Exchange, Office 365, Google Calendar, and Crestron Fusion.

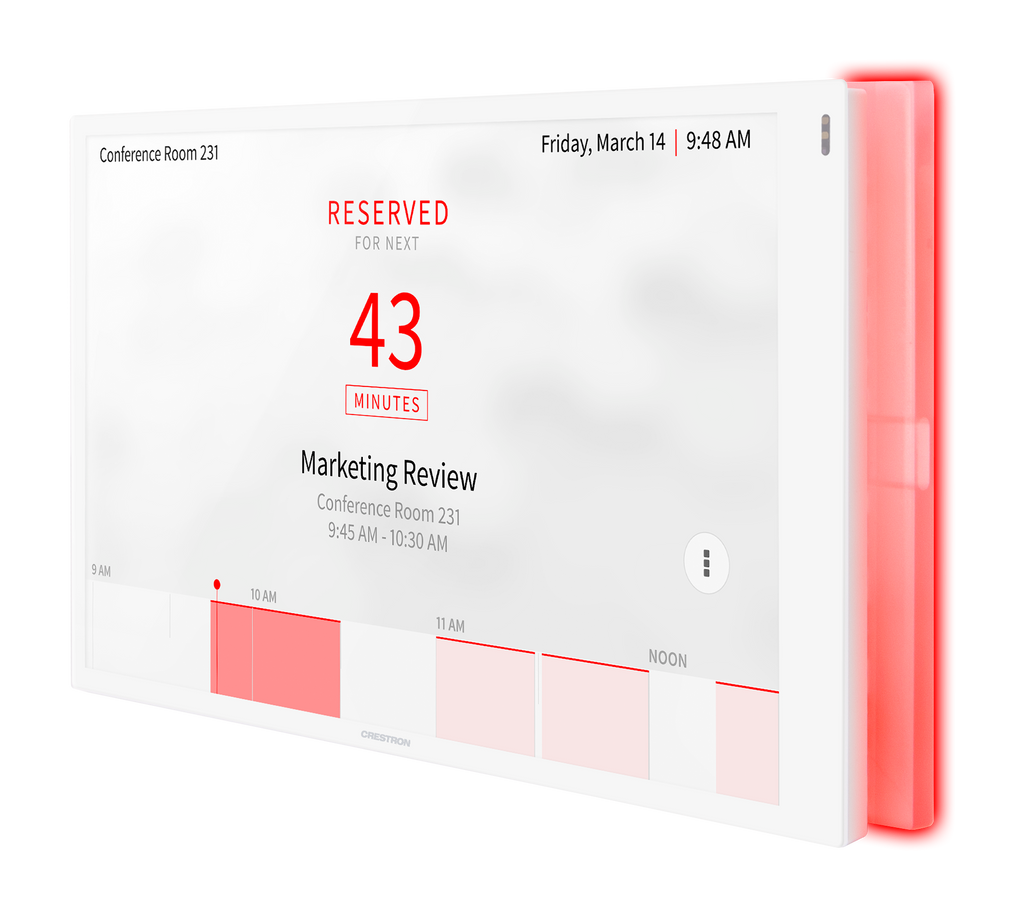

This all-in-one kit includes a TSW-1070-LB series room availability light bar, providing clear 180° visual status indication for room occupancy. With intuitive web-based setup and cloud-based management, deployment is fast and requires no control system or programming.
Engineered for reliability and scalability, the TSS-1070 supports both wired and wireless connectivity, enterprise-level security protocols, and centralized management via XiO Cloud. Its responsive capacitive touchscreen, proximity sensor, and customizable interface deliver a modern, user-friendly scheduling experience ideal for corporate, education, and government environments.
| Category | Specification |
|---|---|
| Display Size | 10.1 in. (257 mm) diagonal |
| Display Type | TFT active matrix color LCD |
| Resolution | 1920 x 1200 (WUXGA) |
| Brightness | 400 nits |
| Contrast Ratio | 1000:1 |
| Touch Technology | Projected capacitive, 5-point multitouch |
| Aspect Ratio | 16:10 |
| Color Depth | 24-bit, 16.7M colors |
| Viewing Angle | ±80° horizontal, ±80° vertical |
| Included Accessories | TSW-1070-LB-W-S room availability light bar |
| Scheduling Platform Support | Crestron Fusion, Microsoft Exchange, Office 365, Google Calendar, G Suite, CollegeNET 25Live, Ad Astra |
| Third-Party App Support | Supported via firmware updates |
| Languages Supported | Multi-language including English, Spanish, French, German, Japanese, Chinese, and more |
| Ethernet | 100 Mbps, auto switching, TCP/IP, DHCP, SSL, TLS, 802.1X, IPv4/IPv6 |
| Wireless Connectivity | Wi-Fi 802.11a/b/g/n/ac (2.4 GHz & 5 GHz) |
| Bluetooth | Integrated Bluetooth beacon |
| USB Ports | 2 x USB 2.0 Type-A |
| Audio | Built-in speakers for alerts and feedback |
| Power | PoE+ (IEEE 802.3at Type 2 compliant) |
| Power Consumption | 15W–30W depending on configuration |
| Mounting Options | Wall mount over standard electrical boxes (US/EU/UK), optional accessories available |
| Operating Temperature | 5°C to 40°C (41°F to 104°F) |
| Humidity | 10% to 90% RH (non-condensing) |
| Construction | Plastic housing with edge-to-edge glass |
| Dimensions (H x W x D) | 5.87" x 10.18" x 2.28" |
| Weight | 1.61 lb (730 g) |
| Security Features | TLS, HTTPS, 802.1X, Active Directory authentication |
| Management | XiO Cloud compatible for remote provisioning and monitoring |
