Description

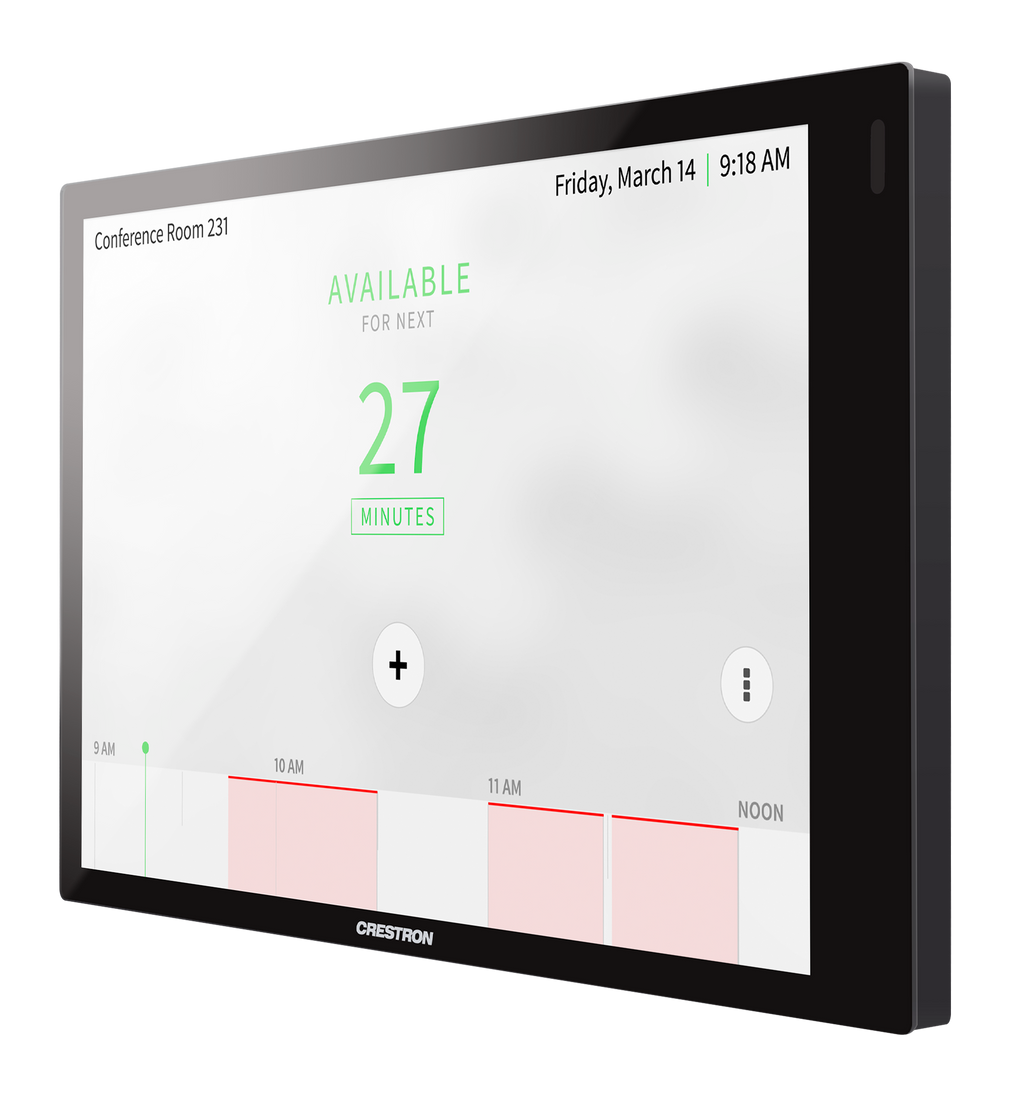

The Crestron TSS-770-B-S-LB KIT is a purpose-built, enterprise-grade 7-inch room scheduling touch screen designed to streamline meeting space management across corporate, education, and collaborative environments. Installed conveniently outside conference rooms, it provides real-time room availability, scheduling details, and intuitive booking functionality through a clean, modern interface.

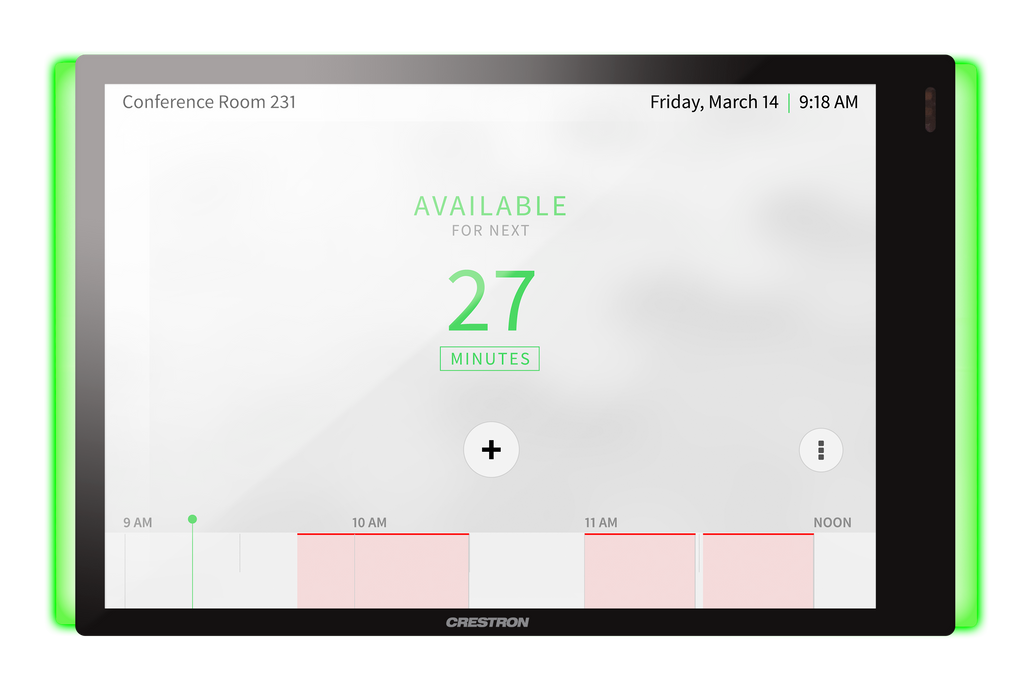

This all-in-one solution includes a TSW-770-LB series light bar, delivering clear 180-degree visual status indicators that display room availability at a glance. Designed for seamless integration, the touch screen supports a wide range of scheduling platforms and deploys quickly using simple web-based configuration with cloud-based management. No programming or dedicated control system is required, making it highly scalable for enterprise rollouts.
With robust enterprise security, PoE-powered connectivity, and flexible mounting options, the TSS-770 ensures reliable 24/7 operation while reducing deployment complexity and cost. Its responsive capacitive display, built-in proximity sensor, and customizable interface deliver a modern and efficient scheduling experience for any workspace.
| Specification | Details |
|---|---|
| Display Size | 7-inch (178 mm) diagonal |
| Resolution | 1280 x 800 (WXGA) |
| Display Type | TFT active matrix color LCD with LED backlight |
| Touch Technology | Projected capacitive, 5-point multitouch |
| Brightness | 350 nits |
| Aspect Ratio | 16:10 |
| Included Accessories | TSW-770-LB series room availability light bar |
| Light Bar Function | 180° visibility, green (available) / red (occupied) status indication |

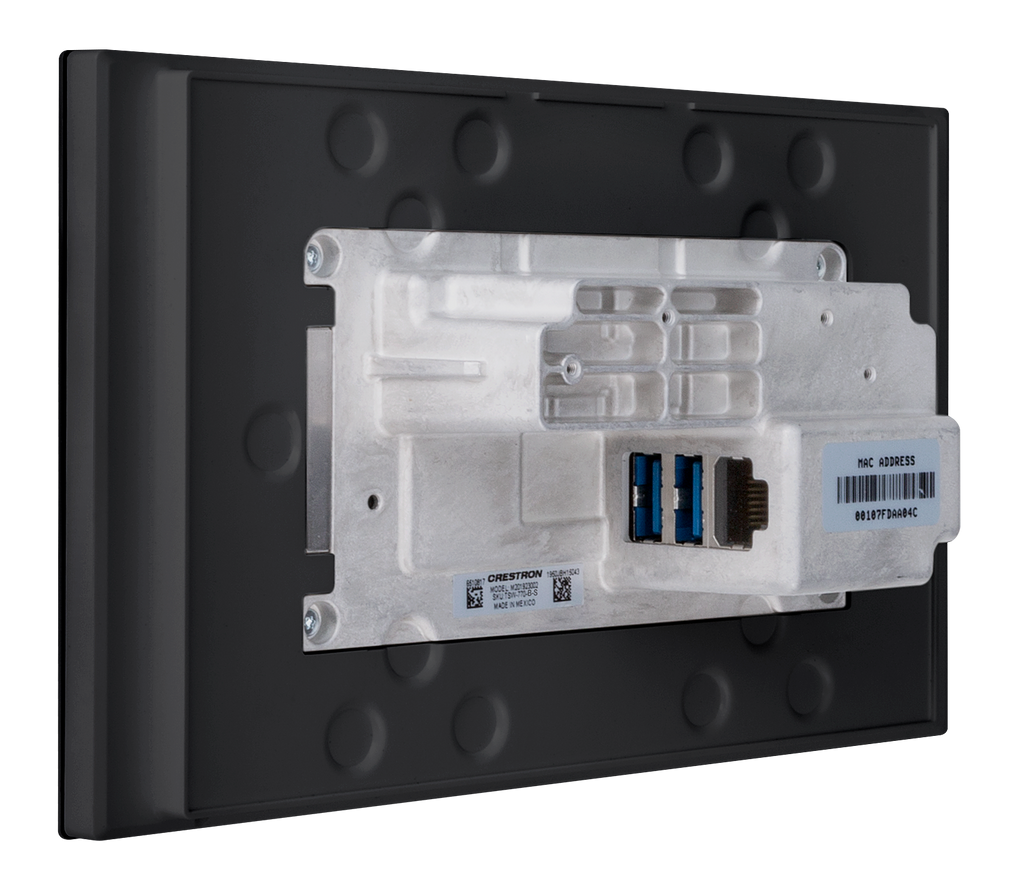

| Connectivity (Wired) | Ethernet 10/100 Mbps, PoE/PoE+ (IEEE 802.3at) |
| Connectivity (Wireless) | Wi-Fi 802.11 a/b/g/n/ac (2.4 GHz and 5 GHz) |
| Bluetooth | Integrated proximity detection beacon |
| USB Ports | Dual USB 2.0 host ports for accessories |
| Audio | Built-in speakers for alerts and feedback |
| Power | Power over Ethernet (PoE/PoE+) |
| Security Features | 802.1X authentication, TLS, HTTPS, Active Directory integration |
| Mounting Options | Wall mount over standard electrical boxes; additional mounting kits available |
| Dimensions | 7.30" W x 4.17" H x 2.26" D |
| Weight | Approx. 14.11 oz (400 g) |
| Operating Temperature | 41° to 104°F (5° to 40°C) |
| Management | Cloud-based provisioning and monitoring via XiO Cloud |
| Installation | No programming required; web-based setup |
| Finish | Black smooth |
