Description

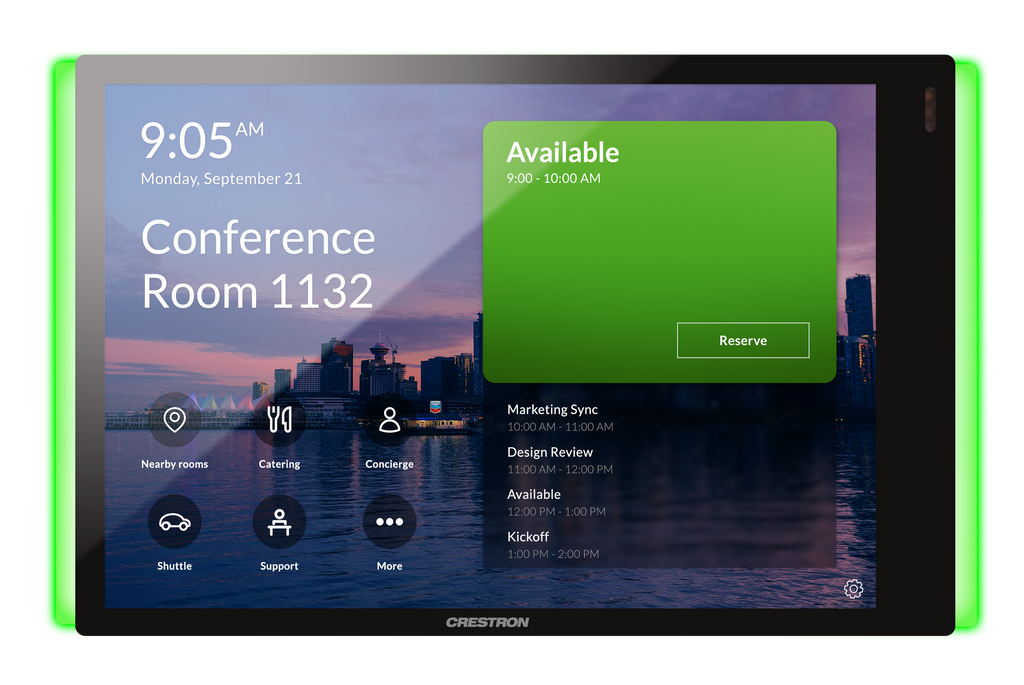

The Crestron TSS-770-T-B-S-LB KIT is a purpose-built 7-inch room scheduling touch screen designed for seamless integration with Microsoft Teams Panels. Engineered for modern workplaces, conference rooms, and educational environments, this solution delivers a streamlined and intuitive scheduling experience directly outside meeting spaces.
With its sleek black smooth finish and edge-to-edge glass display, the unit provides a professional, high-end appearance while offering reliable, enterprise-grade performance. The included TSW-770-LB light bar enhances visibility with a clear 180-degree room availability indicator, displaying status at a glance to improve space utilization and reduce scheduling conflicts.
The system requires no custom programming or control system, enabling fast deployment through web-based configuration and cloud-based management. Built-in PoE support simplifies installation by delivering power and connectivity through a single Ethernet cable, while optional Wi-Fi connectivity provides flexible deployment options.
Designed for 24/7 operation, the TSS-770 features enterprise-level security, automatic updates, and compatibility with centralized management platforms, making it an ideal choice for scalable, IT-friendly room scheduling across any organization.
| Specification | Details |
|---|---|
| Display Size | 7-inch (178 mm) |
| Display Type | TFT Active Matrix LCD |
| Resolution | 1280 x 800 (WXGA) |
| Aspect Ratio | 16:10 |
| Brightness | 350 nits |
| Contrast Ratio | 850:1 |
| Touch Technology | Projected capacitive, 5-point multitouch |
| Software Compatibility | Microsoft Teams Panels |
| Connectivity | Ethernet (PoE/PoE+), Wi-Fi (802.11a/b/g/n/ac) |
| Network Protocols | TCP/IP, DHCP, SSL, TLS, HTTPS, SNMP, IPv4/IPv6 |
| Security Features | 802.1X authentication, Active Directory integration |
| USB Ports | 2 x USB 2.0 (for accessories) |
| Bluetooth | Built-in proximity detection beacon |
| Audio | Built-in speakers for alerts and feedback |
| Power | PoE (IEEE 802.3af/at compliant) |
| Mounting Options | Wall mount over standard electrical boxes; additional mounting kits available |
| Dimensions | 4.17" H x 7.30" W x 2.26" D |
| Weight | 14.11 oz (400 g) |
| Operating Temperature | 41° to 104°F (5° to 40°C) |
| Included Accessories | TSW-770-LB light bar (room availability indicator) |
| Finish | Black smooth |
| Deployment | Web-based setup and cloud-managed |
| Management | Compatible with cloud-based device management platforms |
| Use Case | Room scheduling, meeting space management |
