Description

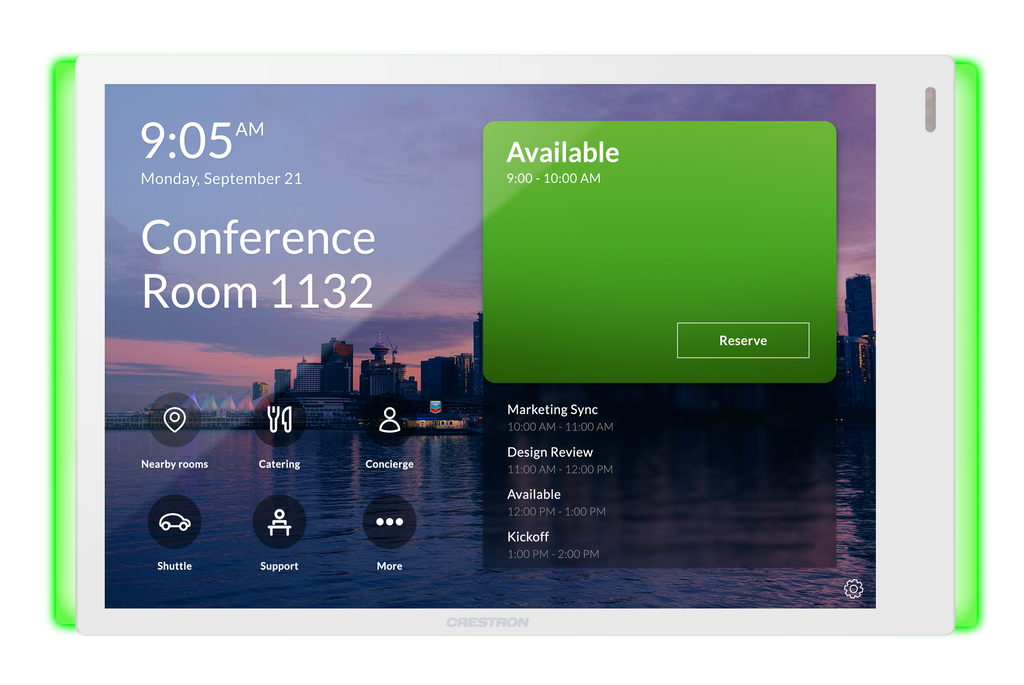

The Crestron TSS-770 Room Scheduling Touch Screen delivers a modern, enterprise-grade solution for managing meeting spaces with seamless Microsoft Teams® Panels integration. Designed for reliability and simplicity, this 7-inch wall-mounted touch screen provides real-time room availability, scheduling visibility, and on-the-spot booking capabilities for efficient workspace utilization.
This complete kit includes a TSW-770-LB series light bar, offering clear 180° visual status indication with customizable color feedback to instantly communicate room availability. With native Microsoft Teams integration, users can easily schedule, reserve, and manage meeting spaces directly from their Teams environment.
Engineered for professional deployments, the TSS-770 features PoE-powered connectivity, Wi-Fi support, enterprise-level security protocols, and cloud-based provisioning via XiO Cloud. Its sleek white smooth finish complements modern office environments, while flexible mounting options ensure easy installation across various surfaces.
Ideal for corporate offices, conference centers, and educational institutions, the TSS-770 delivers a scalable, secure, and intuitive room scheduling solution without the need for additional control systems or programming.
| Specification Category | Details |
|---|---|
| Display Size | 7-inch (178 mm) TFT LCD |
| Resolution | 1280 x 800 WXGA |
| Touch Technology | Projected capacitive, 5-point multitouch |
| Brightness | 350 nits |
| Aspect Ratio | 16:10 |
| Color Depth | 24-bit (16.7M colors) |
| Viewing Angle | ±80° horizontal and vertical |
| Operating System Compatibility | Microsoft Teams® Panels |
| Connectivity (Wired) | Ethernet 100 Mbps, PoE/PoE+ (IEEE 802.3at/af) |
| Connectivity (Wireless) | Wi-Fi 802.11 a/b/g/n/ac (2.4 & 5 GHz) |
| Security Features | 802.1X authentication, TLS, HTTPS, Active Directory integration |
| USB Ports | 2 x USB 2.0 Type-A (for accessories) |
| Included Accessory | TSW-770-LB-W-S light bar (room availability indicator) |
| Light Bar Functionality | 180° visibility, customizable color status (e.g., green/red) |
| Bluetooth | Built-in proximity detection beacon |
| Audio | Built-in speakers for alerts and feedback |
| Power | Power over Ethernet (PoE/PoE+) |
| Mounting Options | Wall mount (US, UK, EU electrical boxes), optional surface and glass mounting kits |
| Dimensions (H x W x D) | 4.17 in x 7.30 in x 2.26 in |
| Weight | 14.11 oz (400 g) |
| Operating Temperature | 41° to 104°F (5° to 40°C) |
| Finish | White smooth |
| Management | XiO Cloud® remote provisioning and monitoring |
| Deployment Type | Enterprise room scheduling (no programming required) |
