Description

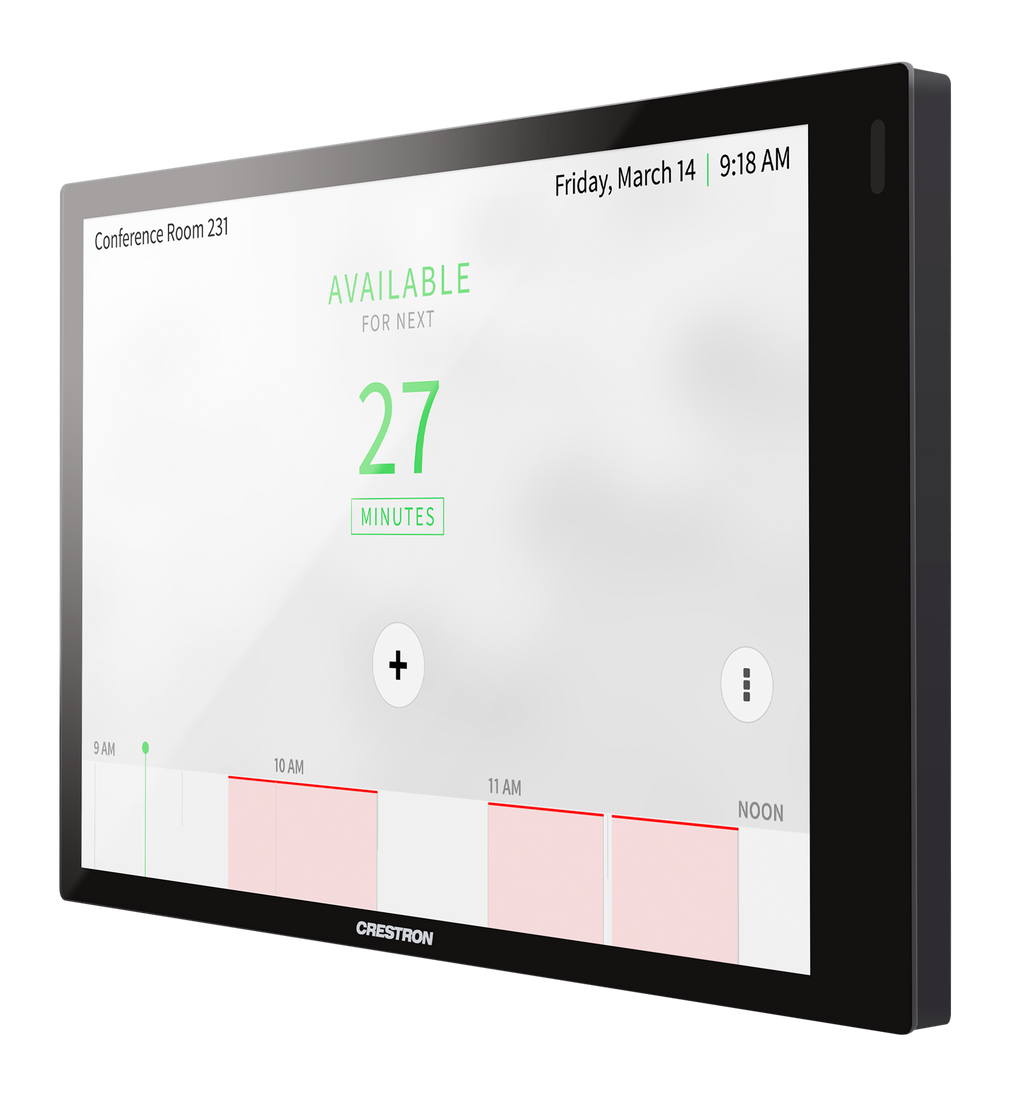

The Crestron TSS-770-W-S-LB is a purpose-built 7-inch room scheduling touch screen designed to streamline meeting space management across enterprise environments. Engineered for reliability and continuous operation, this wall-mounted solution delivers a modern, intuitive interface for viewing room availability, booking spaces, and managing schedules in real time.

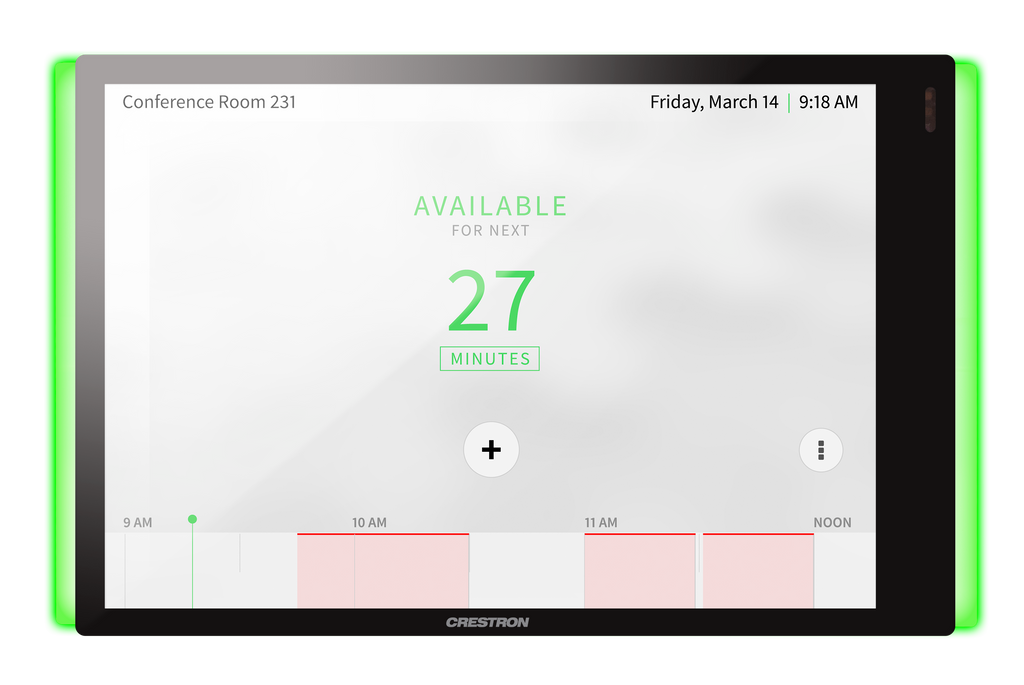

This all-in-one kit includes a TSW-770-LB light bar, providing clear 180° visual room status indicators to improve space utilization and eliminate scheduling conflicts. With seamless integration into leading scheduling platforms such as Microsoft Exchange, Office 365, Google Calendar, and Crestron Fusion, the device enables effortless deployment without requiring a control system or programming.
Featuring Power over Ethernet (PoE+) for simplified installation, enterprise-grade security protocols, and cloud-based management via XiO Cloud, the TSS-770 ensures scalable, secure, and efficient room scheduling across organizations. Its sleek white smooth finish and edge-to-edge glass design complement modern corporate and educational environments while delivering consistent performance and usability.
| Specification Category | Details |
|---|---|
| Display Size | 7-inch (178 mm) diagonal |
| Display Type | TFT active matrix color LCD |
| Resolution | 1280 x 800 (WXGA) |
| Aspect Ratio | 16:10 |
| Brightness | 350 nits |
| Contrast Ratio | 850:1 |
| Touch Technology | Projected capacitive, 5-point multitouch |
| Viewing Angle | ±80° horizontal, ±80° vertical |
| Color Depth | 24-bit (16.7 million colors) |
| Included Accessory | TSW-770-LB room availability light bar |
| Scheduling Compatibility | Crestron Fusion, Microsoft Exchange, Office 365, Google Calendar, G Suite, CollegeNET 25Live, Ad Astra |
| Third-Party App Support | Supported via firmware updates |
| Ethernet | 10/100 Mbps, PoE+ (IEEE 802.3at) |
| Wireless Connectivity | Wi-Fi 802.11 a/b/g/n/ac (2.4 GHz & 5 GHz) |
| Bluetooth | Integrated beacon for proximity detection |
| USB Ports | (2) USB 2.0 Type-A host ports |
| Security Protocols | 802.1X, TLS, SSL, SSH, SFTP, Active Directory authentication |
| Network Protocols | TCP/IP, UDP/IP, DHCP, SNMP, IPv4/IPv6 |
| Audio | Built-in speakers for alerts and feedback |
| Power Requirements | PoE / PoE+ powered device |
| Operating Temperature | 41° to 104°F (5° to 40°C) |
| Humidity | 10% to 90% RH (non-condensing) |
| Mounting Options | 2/3 gang electrical box, wall, lectern, rack (accessories optional) |
| Construction | Plastic housing with edge-to-edge glass, white smooth finish |
| Dimensions (H x W x D) | 4.17" x 7.30" x 2.26" |
| Weight | 14.11 oz (400 g) |
| Compliance | CE, FCC Part 15 Class B, IC |
| Management | XiO Cloud remote provisioning and monitoring |
| Special Features | Auto brightness, proximity sensor, customizable UI, cloud app deployment |
