Description

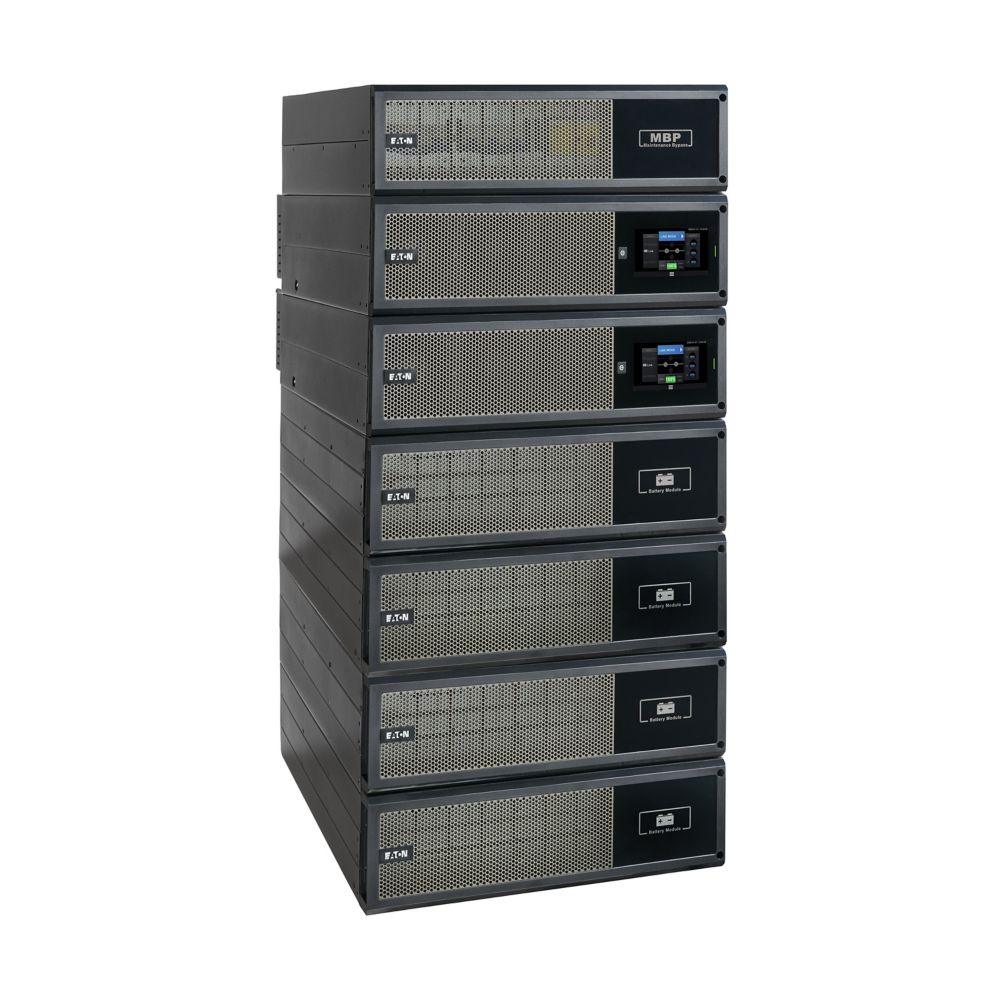

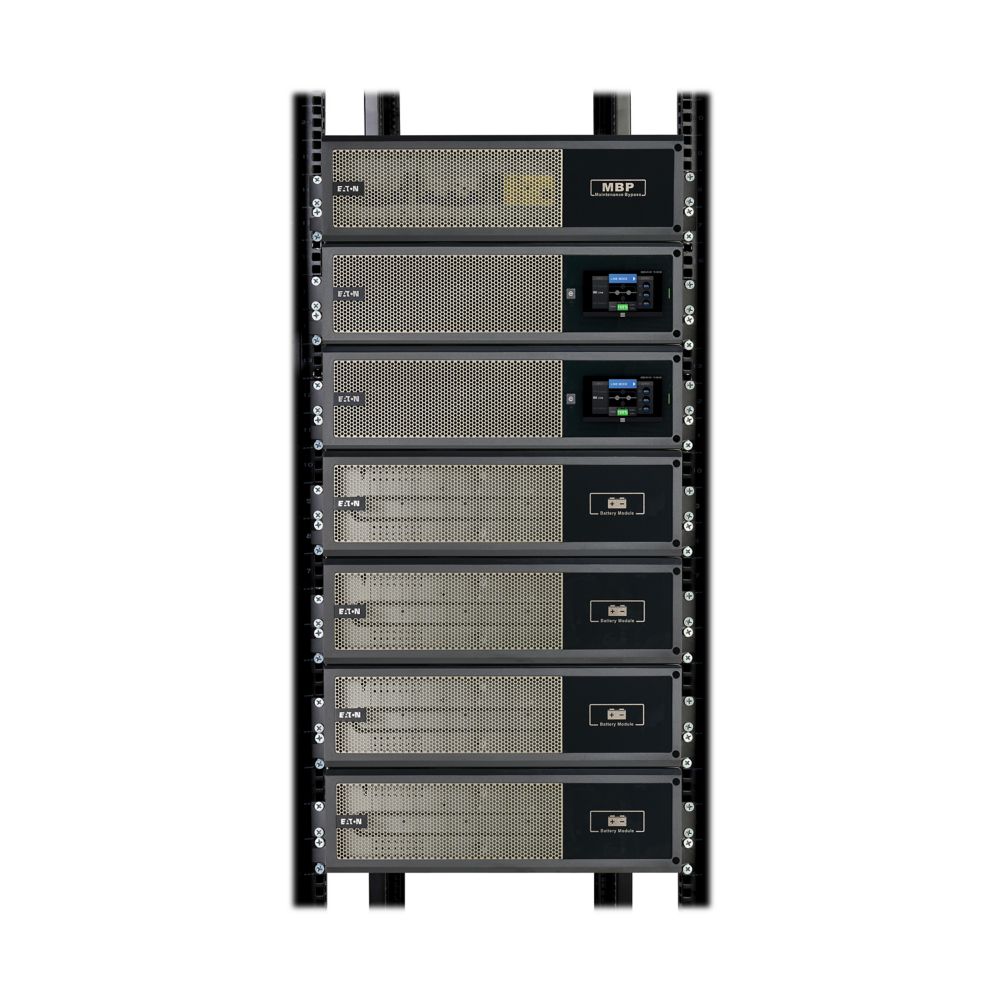

The Eaton 93PX 20kVA three-phase UPS delivers high-efficiency, scalable power protection for mission-critical environments including data centers, healthcare systems, and industrial operations. Designed with N+1 redundancy capability, this system can scale up to 40kVA to ensure maximum uptime and fault tolerance.

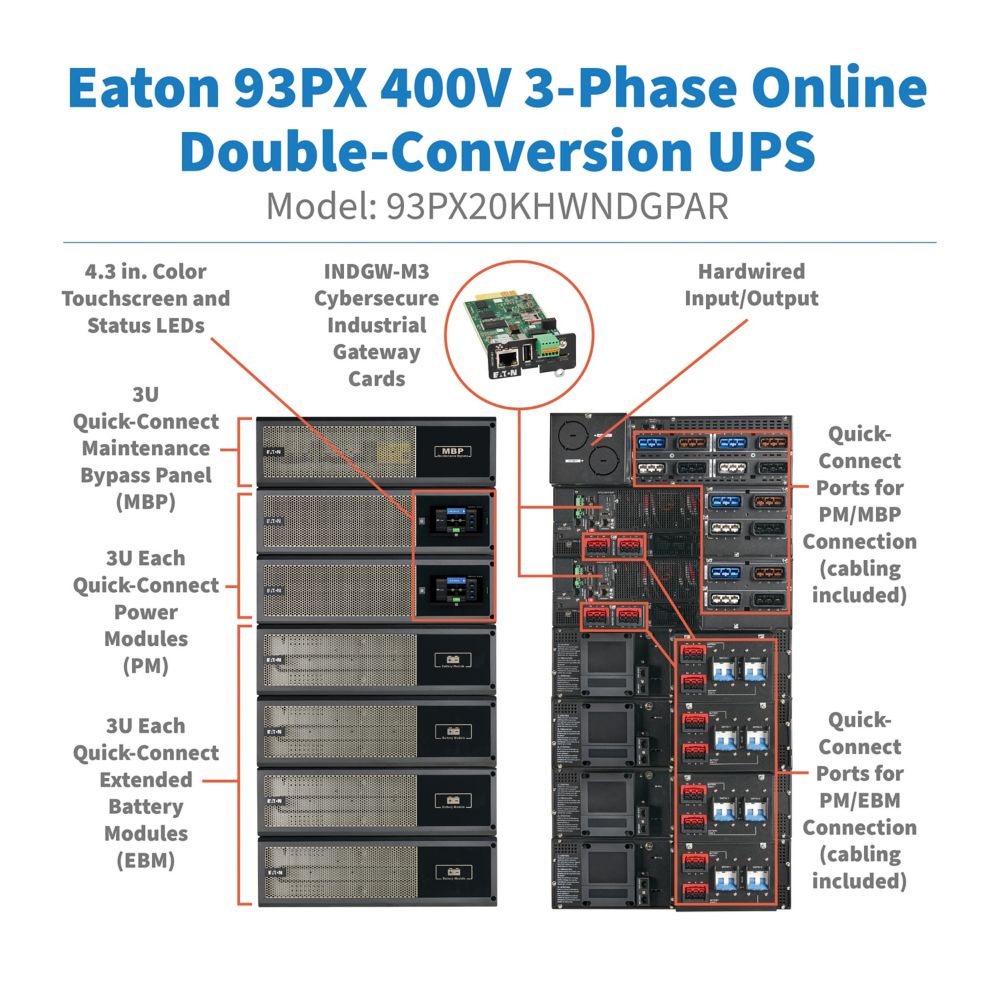

Featuring advanced double-conversion topology, the 93PX provides continuous, clean power with unity power factor output for optimal equipment performance. Integrated cybersecure industrial gateway cards enable 24/7 remote monitoring and control, while the included parallel maintenance bypass panel ensures seamless serviceability without downtime.
Engineered for efficiency and flexibility, the system achieves up to 98.6% efficiency in ECO mode, reducing energy costs and heat output. Its modular, quick-connect architecture simplifies deployment and maintenance, while extended battery modules provide longer runtime to support critical loads during outages.
| Specification | Details |
|---|---|
| Brand | Eaton |
| Product Series | 93PX |
| Form Factor | Rackmount (4-post, 19-inch) |
| UPS Topology | Online Double Conversion |
| Output Capacity | 20,000 VA / 20,000 W |
| Scalable Capacity | Up to 40,000 VA / 40,000 W (N+1 Parallel) |
| Input Voltage | 230/400 VAC 3-Phase Wye |
| Output Voltage | 230/400 VAC 3-Phase Wye |
| Input Frequency | 50/60 Hz |
| Input Power Factor | 0.9 |
| Output Power Factor | 1.0 |
| Output Waveform | Pure Sine Wave (AC and Battery Mode) |
| Output Voltage Regulation | ±1% |
| Output Current | 30.3A |
| Efficiency | Up to 98.6% (ECO Mode) |
| Transfer Time (ECO Mode) | <10 ms |
| Input Connection | Hardwired |
| Phase | Three-Phase |
| DC Voltage | ±240 V |
| Total Harmonic Distortion (THDi) | <3% |
| Display | 4.3-inch Color Touchscreen LCD |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -15°C to 40°C |
| Humidity | 0–95% non-condensing |
| Operating Elevation | Up to 2000 m (derating above 1000 m) |
| Dimensions (H x W x D) | 35.56 in x 17.24 in x 28.1 in |
| Weight | 715.05 lb |
| Certifications | IEC/EN 62040-1, UL 1778 |

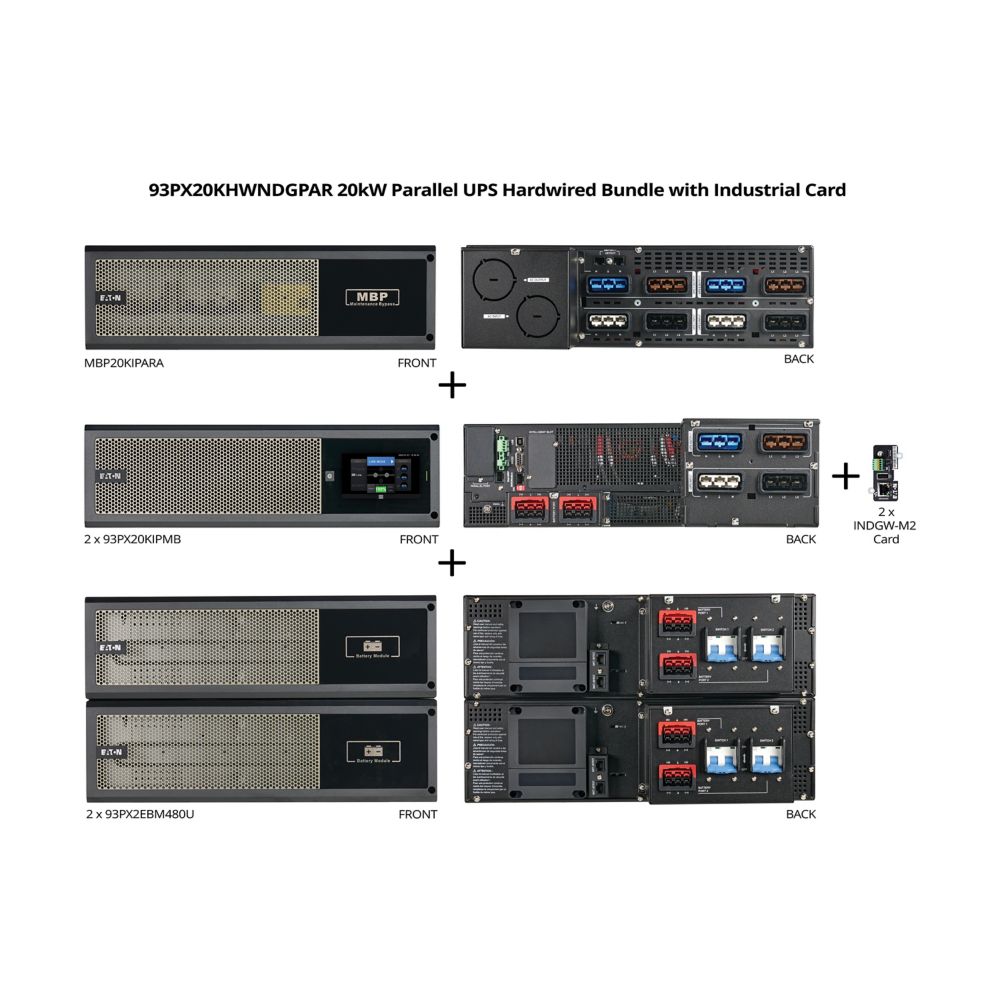

| Included Components | (2) Power Modules, (2) Industrial Gateway Cards, (2) Extended Battery Modules, Parallel Maintenance Bypass Panel, Rack Hardware, Cabling, Documentation |
| Key Features | N+1 redundancy, scalable architecture, cybersecure remote management, high efficiency ECO mode, extended runtime capability |
