Description

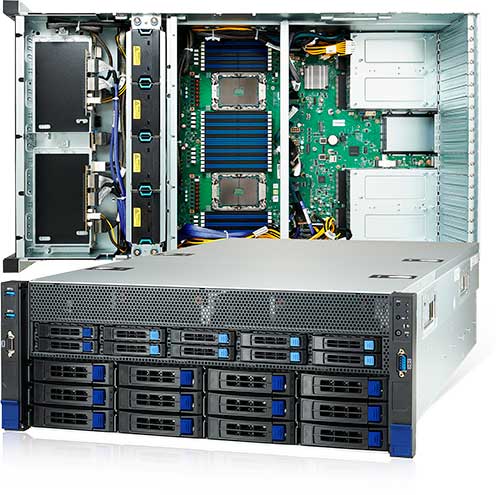

The TYAN Thunder HX FT83A-B7129 (B7129F83AV14E8HR-N-HE) is a high-performance 4U dual-socket GPU-optimized server built for demanding AI, machine learning, HPC, and parallel compute workloads. Designed on the Intel Whitley platform, this system supports dual 3rd Gen Intel® Xeon® Scalable processors, massive memory capacity, and up to 10 GPU deployments for maximum GPU-to-GPU bandwidth.
With flexible storage options including hot-swap SAS/SATA bays and NVMe expansion, plus redundant Titanium-rated power supplies, the FT83A-B7129 delivers enterprise-grade scalability, reliability, and throughput for modern data centers and accelerated computing environments.
| Specification | Details |
|---|---|
| Brand | TYAN |
| Series | Thunder HX |
| Model / Platform | FT83A-B7129 |
| SKU | B7129F83AV14E8HR-N-HE |
| Form Factor | 4U Rackmount Server |
| CPU Support | Dual Socket LGA4189 |
| Processor Type | 2 × 3rd Gen Intel® Xeon® Scalable Processors |
| Max CPU TDP | Up to 270W |
| Memory Slots | 32 DIMM Slots (16+16) |
| Memory Type | DDR4 ECC RDIMM / LRDIMM / 3DS |
| Max Memory Capacity | Up to 8TB (LRDIMM 3DS) |
| GPU Support | Up to 10 GPUs |
| PCIe Expansion | Up to 10 × PCIe Gen4 x16 FH (DW) + additional x16 slots |
| Drive Bays (Front) | 12 × 3.5"/2.5" Hot-Swap HDD/SSD |
| Additional Storage | 2 × 2.5" Hot-Swap + 8 × NVMe |
| RAID Support | RAID 0/1/5/10 (Intel RSTe) |
| Networking | 1 × Dedicated IPMI GbE Port |
| Management | IPMI 2.0 + iKVM (AST2600 BMC) |
| Power Supply | 3+1 Redundant 6000W Titanium RPSU |
| Cooling | 8 × Hot-Swappable System Fans |
| Operating Temperature | 10°C – 35°C |
