Description

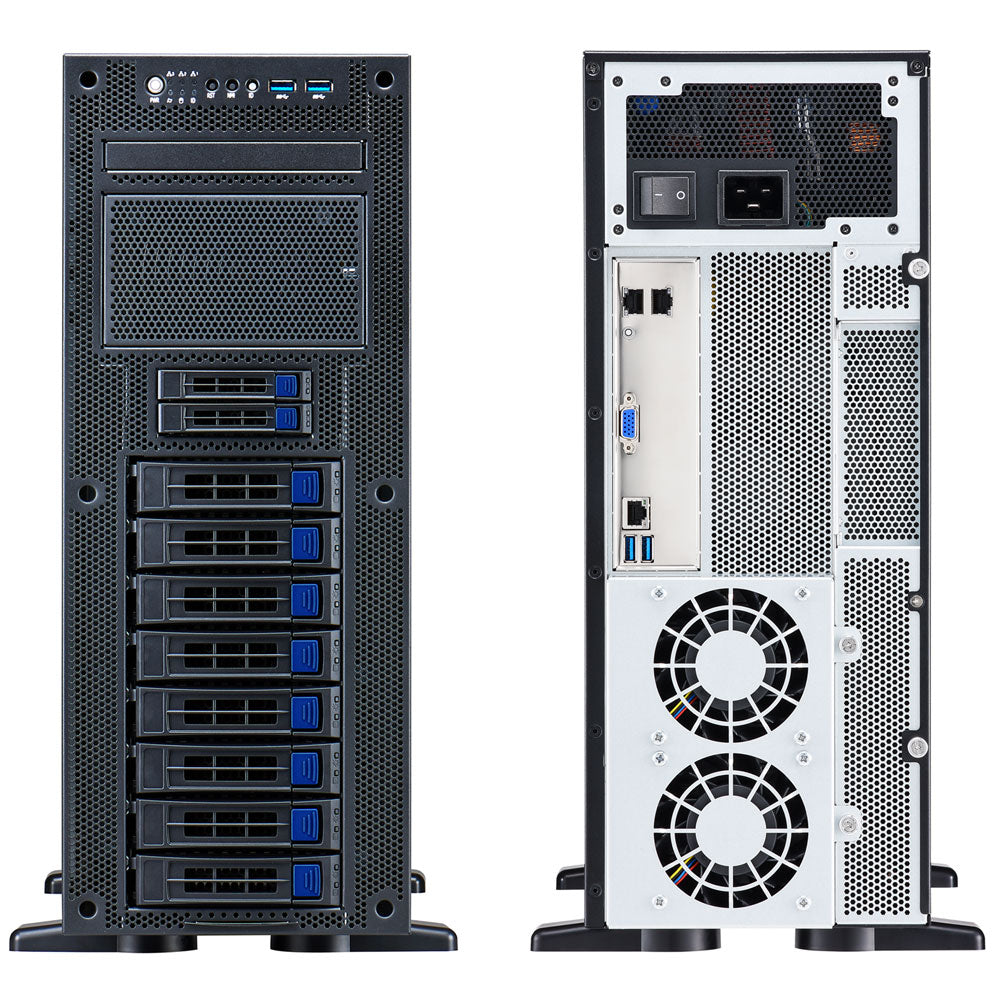

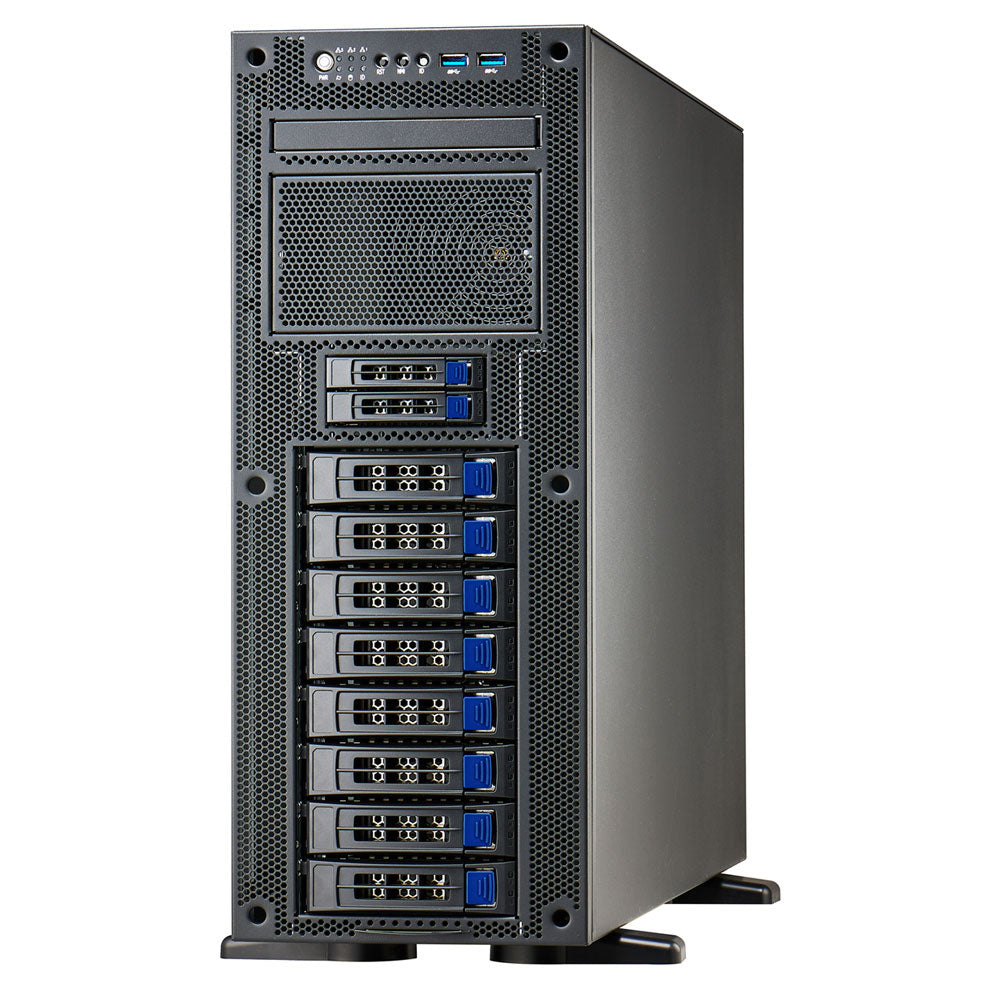

The TYAN Tundert HX FT65T-B7130 (B7130F65TV10H-2T-N) is a high-performance dual-socket pedestal/4U tower GPU server platform built for HPC, AI acceleration, and enterprise compute workloads. Supporting 4th and 5th Gen Intel Xeon Scalable processors, this system delivers exceptional memory capacity with up to 2TB of DDR5, PCIe Gen5 expansion for multiple GPUs, and flexible hot-swap storage options. With integrated 10GbE networking, advanced IPMI remote management, and efficient redundant power configurations, the FT65T-B7130 is engineered for demanding data center and workstation-class deployments.
| Specification | Details |
|---|---|
| Brand | TYAN |
| Platform Series | Tundert HX FT65T-B7130 |
| SKU | B7130F65TV10H-2T-N |
| Form Factor | Pedestal / 4U Tower GPU Server |
| Processor Support | Dual LGA4677, 4th/5th Gen Intel Xeon Scalable |
| Max CPU TDP | Up to 270W |
| Chipset | Intel C741 |
| Memory Slots | (8+8) DDR5 DIMM Slots |
| Max Memory Capacity | Up to 2,048GB DDR5 RDIMM/3DS RDIMM |
| Memory Speed | DDR5 5600 (5th Gen) / DDR5 4800 (4th Gen) |
| Drive Bays | (8) 3.5" Hot-Swap + (2) 2.5" Hot-Swap |
| Storage Interface | SATA 6Gb/s, SAS 12Gb/s Support |
| Expansion Slots | (2) PCIe Gen5 x8 + (3) PCIe Gen5 x16 |
| GPU Support | Up to (2) Double-Wide PCIe 5.0 x16 GPUs |
| Networking | (2) 10GbE + Dedicated IPMI Port |
| Remote Management | Onboard BMC with IPMI 2.0 + iKVM |
| Power Supply Options | 2000W Gold / 1500W Platinum / 1200W Platinum |
| Cooling | (3) Hot-Swap 12038 Fans + (2) Exhaust Fans |
| Dimensions | 650 x 427 x 176 mm |
