Description

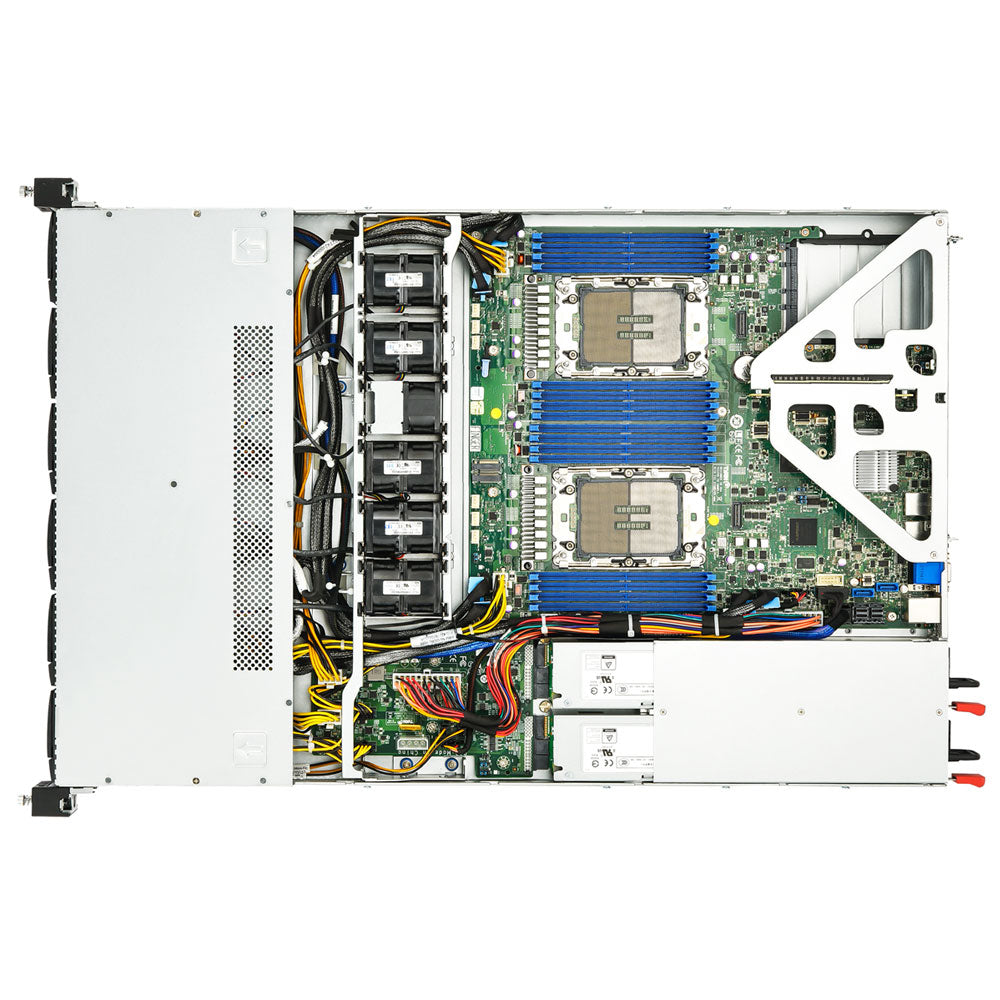

The MiTAC TYAN Thunder CX GC68A-B7136 (B7136G68AV4E8HR) is a high-density 1U dual-socket cloud server designed for mainstream cloud, virtualization, and scale-out workloads. Built on the Intel C741 chipset, it supports 4th and 5th Gen Intel Xeon Scalable processors and DDR5 memory, delivering excellent compute density and memory bandwidth in a compact rack footprint.
This platform supports up to 2TB of DDR5 RDIMM or 3DS RDIMM memory across 16 DIMM slots, making it well-suited for memory-intensive applications. Flexible storage configuration includes hot-swap bays for both SATA and NVMe U.2 drives, enabling fast data access and scalable storage performance.
With PCIe Gen 5 expansion, redundant 80 PLUS Platinum power supplies, and onboard IPMI with iKVM for remote management, the Thunder CX GC68A-B7136 offers reliability, performance, and serviceability for modern data center and cloud environments.
| Specification | Details |
|---|---|
| Server Type | 1U Rackmount Cloud Server |
| Processor Sockets | Dual LGA4677 |
| Supported CPUs | 4th / 5th Gen Intel Xeon Scalable Processors |
| Max CPU TDP | Up to 270W |
| Chipset | Intel C741 |
| Memory Slots | 16 DIMM Slots (8 per CPU) |
| Memory Type | DDR5 RDIMM / DDR5 3DS RDIMM |
| Max Memory Capacity | Up to 2TB DDR5 |
| Memory Speeds | Up to 5600 MT/s (CPU dependent) |
| Drive Bays | 4 × 3.5″ SATA Hot-Swap + 8 × NVMe U.2 Hot-Swap |
| Storage Interface | SATA 6Gb/s, SAS 12Gb/s, NVMe U.2 |
| Expansion Slots | 2 × PCIe Gen 5 x16 (FH/HL) |
| OCP Support | 1 × OCP 3.0 PCIe Gen 5 x16 |
| Networking | 1 × GbE dedicated for IPMI |
| Management | Onboard BMC with IPMI 2.0 and iKVM |
| Power Supply | 1+1 Redundant 850W PSU |
| Power Efficiency | 80 PLUS Platinum |
| Cooling | Redundant system fans |
| Form Factor | 1U Rackmount |
