Description

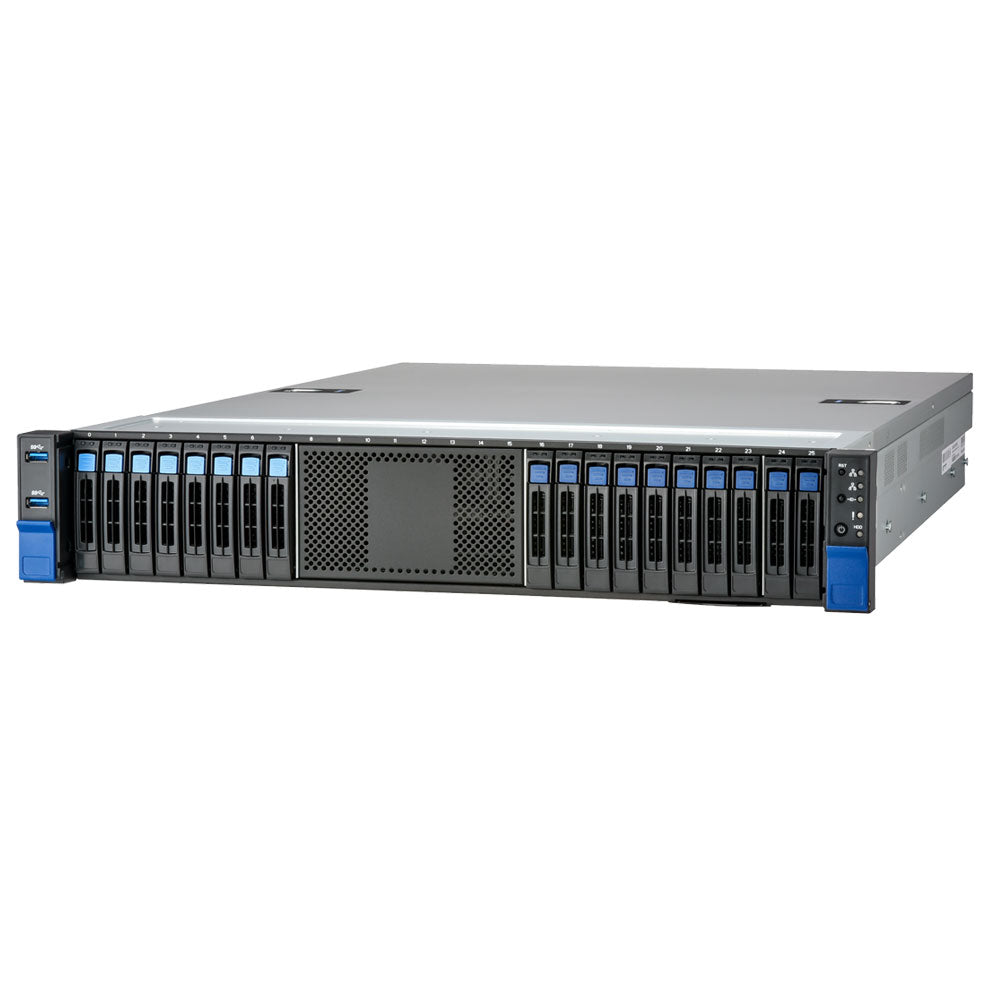

The MiTAC TYAN Thunder SX TS70A-B7136 is a high-performance 2U dual-socket cloud storage server platform built for demanding high-IOPS applications. Designed to support 4th and 5th Gen Intel® Xeon® Scalable Processors, this system delivers exceptional compute density and memory scalability for enterprise and cloud environments.
With support for up to 2TB of DDR5 memory, extensive hot-swap storage flexibility including SATA and NVMe U.2 bays, and PCIe 5.0 expansion, the TS70A-B7136 is ideal for modern data centers requiring speed, reliability, and future-ready architecture. The -2T configuration adds dual 10GbE networking, making it optimized for high-throughput storage and virtualization workloads.
| Feature | Specification |
|---|---|
| Product Type | 2U Rackmount Dual-Socket Cloud Server |
| Model Series | TYAN Thunder SX TS70A-B7136 |
| SKU | B7136T70AV12E8HR-2T |
| Processor Support | Dual LGA4677 sockets |
| Supported CPUs | 4th / 5th Gen Intel® Xeon® Scalable Processors |
| Max CPU TDP | Up to 350W |
| Chipset | Intel® C741 |
| Memory Slots | (8+8) DIMM slots |
| Memory Type | DDR5 RDIMM / 3DS RDIMM |
| Max Memory Capacity | Up to 2,048GB DDR5 |
| Memory Speed Support | DDR5 5600 / 4800 / 4400 MHz |

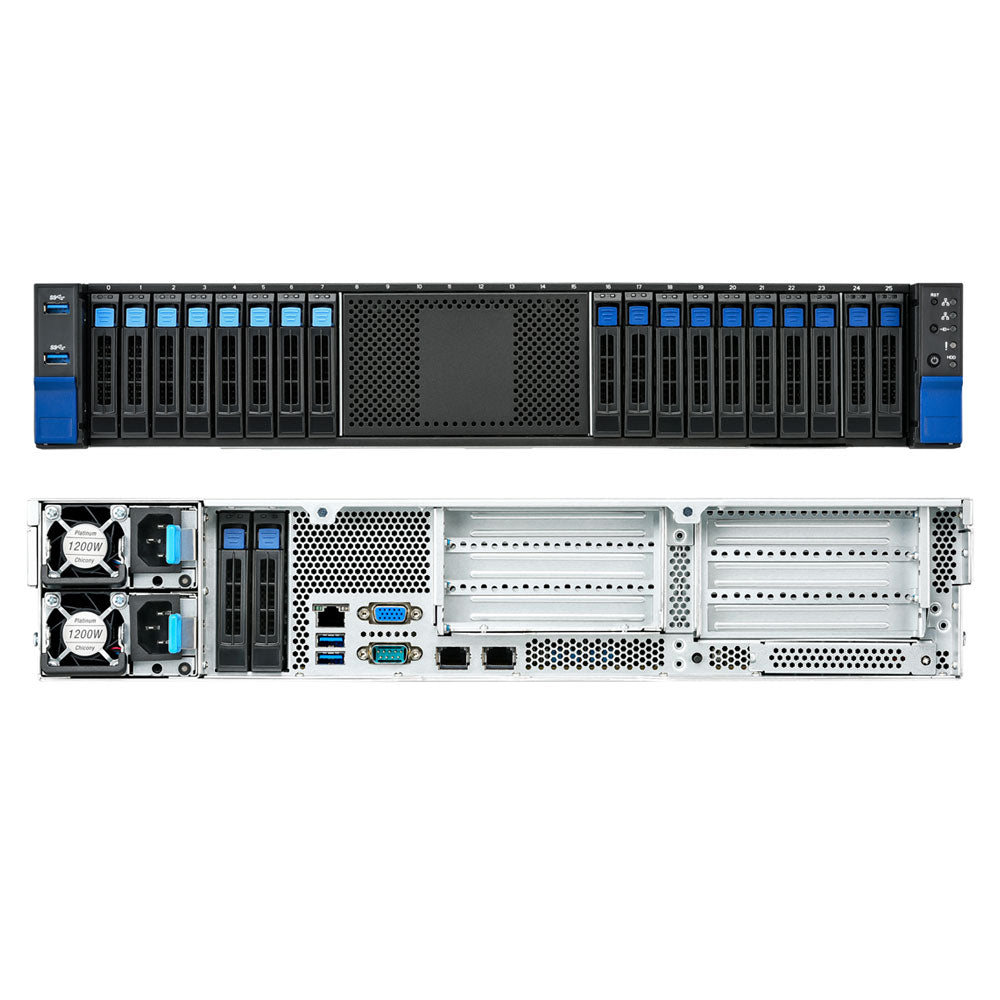

| Drive Bays (Front) | (10) 2.5" SATA 6G + (8) NVMe U.2 hot-swap |
| Drive Bays (Rear) | (2) 2.5" SATA hot-swap |
| Storage Interfaces | SATA 6Gb/s, SAS 12Gb/s, NVMe U.2 |
| RAID Support | RAID 0/1/5/10 (Intel RSTe) |
| Expansion Slots | PCIe 5.0 x16 & x8 + OCP 3.0 slot |
| Networking (2T Variant) | Dual 10GbE + Dedicated IPMI GbE |
| Remote Management | IPMI 2.0 compliant BMC with iKVM |
| Power Supply | (1+1) 1200W CRPS Redundant, 80+ Platinum |
| Cooling | (4) High-performance system fans |
| Form Factor | 2U Rackmount |
| Dimensions | 700 x 438.5 x 87 mm |
| Operating Temperature | 10°C – 35°C |
