Description

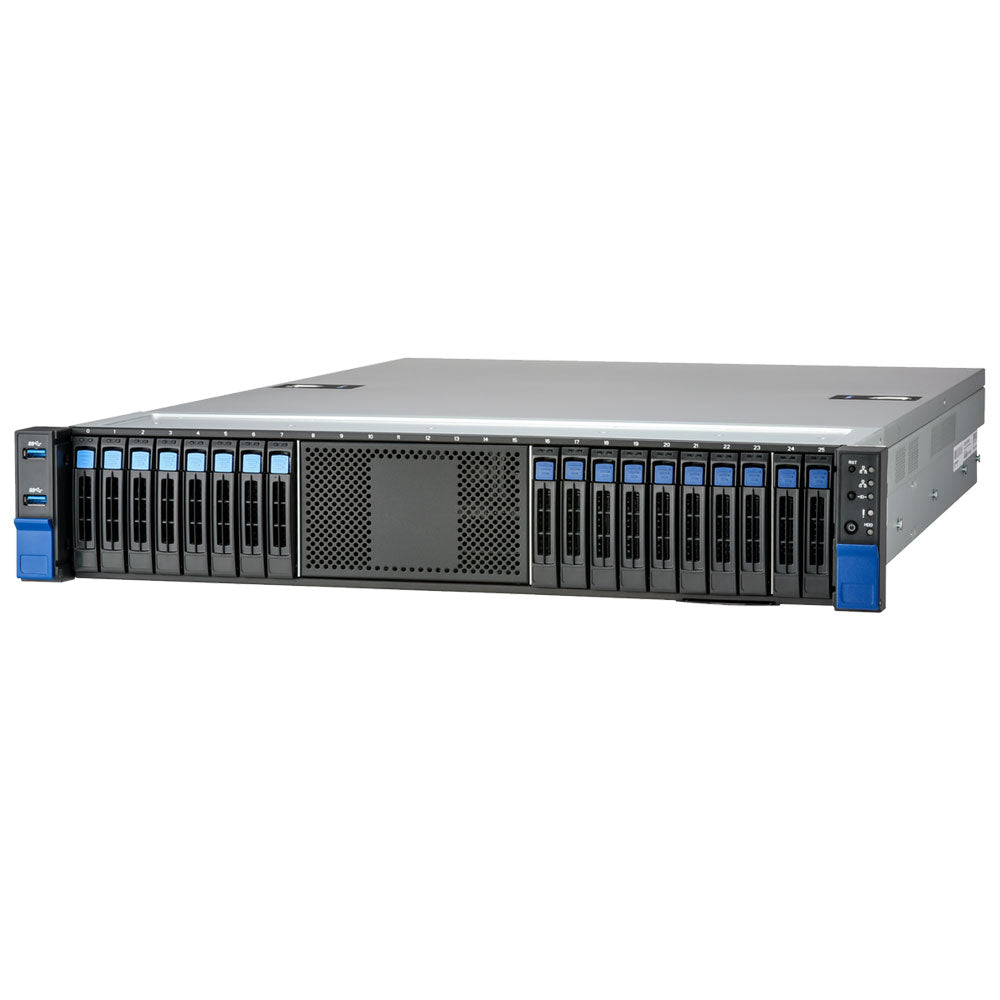

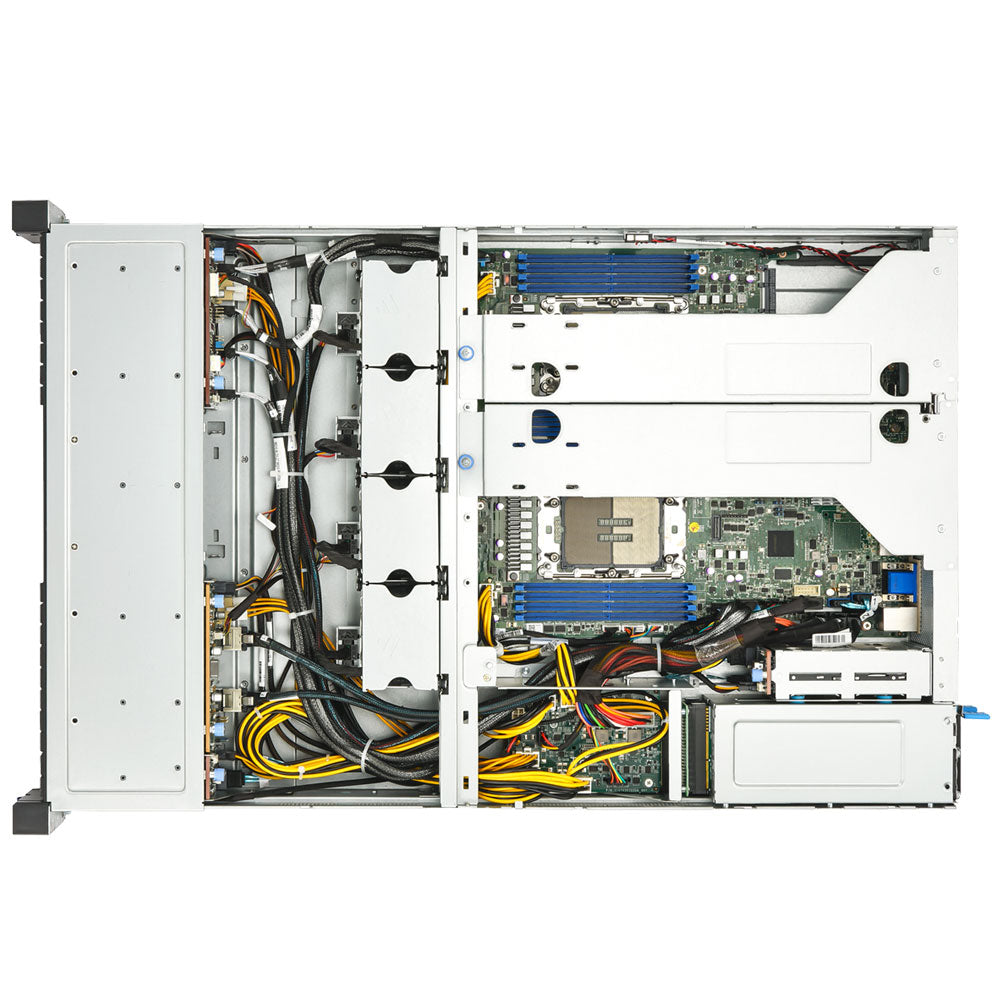

The MiTAC TYAN Thunder SX TS70A-B7136 (B7136T70AV12E8HR) is a high-performance 2U dual-socket cloud server platform engineered for demanding high-IOPs cloud storage and enterprise data center workloads. Built with support for 4th and 5th Gen Intel Xeon Scalable processors, this system delivers exceptional compute density, memory scalability, and next-generation expansion capabilities.
Designed for modern storage-intensive deployments, the TS70A-B7136 supports up to 20 hot-swap drive bays, combining SATA flexibility with ultra-fast NVMe U.2 performance. With PCIe Gen5 expansion, onboard remote management via IPMI/iKVM, and redundant 80+ Platinum power supplies, this platform is optimized for reliability, scalability, and continuous operation in mission-critical environments.
| Feature | Specification |
|---|---|
| Product Model | TYAN Thunder SX TS70A-B7136 |
| SKU | B7136T70AV12E8HR |
| Form Factor | 2U Rackmount Cloud Server |
| Processor Support | Dual Socket LGA4677 |
| Compatible CPUs | 4th / 5th Gen Intel Xeon Scalable Processors |
| Maximum TDP Support | Up to 350W per CPU |
| Chipset | Intel C741 |
| Memory Slots | 16 DIMM Slots (8+8) |
| Memory Type | DDR5 RDIMM / 3DS RDIMM |
| Max Memory Capacity | Up to 2TB DDR5 (2048GB) |

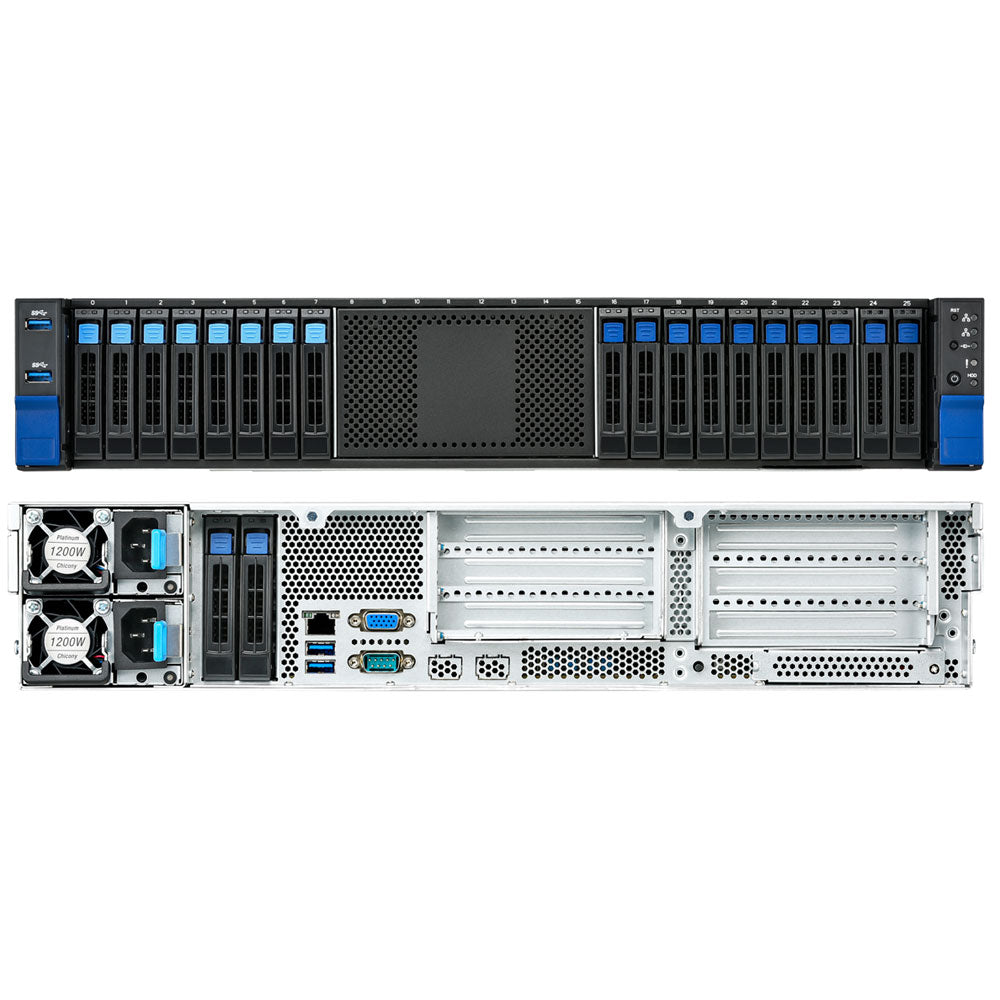

| Drive Bays (Front) | 10× 2.5" SATA + 8× NVMe U.2 Hot-Swap |
| Drive Bays (Rear) | 2× 2.5" SATA Hot-Swap |
| Total Drive Support | Up to 20 Hot-Swap Bays |
| Expansion Slots | 2× PCIe 5.0 x16 + 3× PCIe 5.0 x8 |
| OCP Support | 1× PCIe Gen5 x16 OCP 3.0 Slot |
| Networking | Dedicated IPMI GbE Port |
| Remote Management | BMC with IPMI 2.0 + iKVM |
| Power Supply | 1+1 Redundant 1200W CRPS |
| Efficiency Rating | 80+ Platinum |
| Cooling | 4× High-Performance Fans |
| Ideal Use Case | Cloud Storage, High IOPs Applications, Data Centers |
