Description

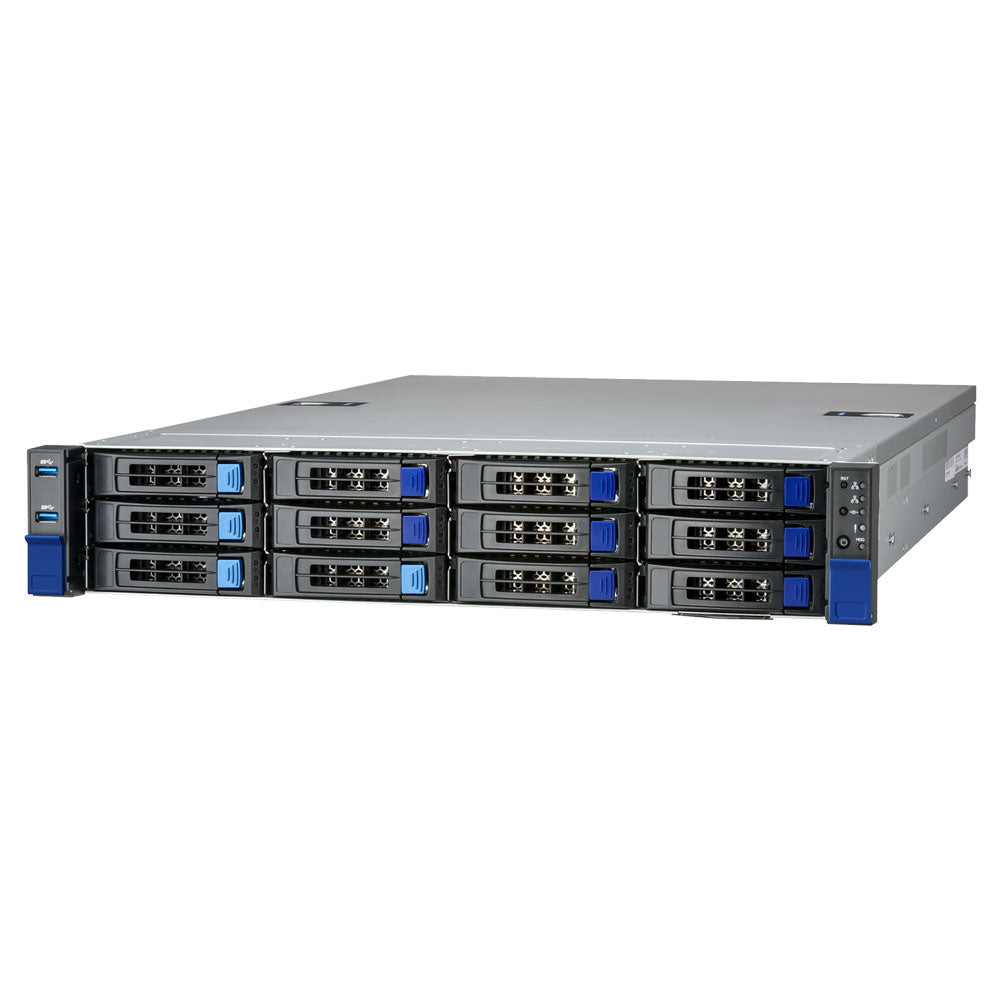

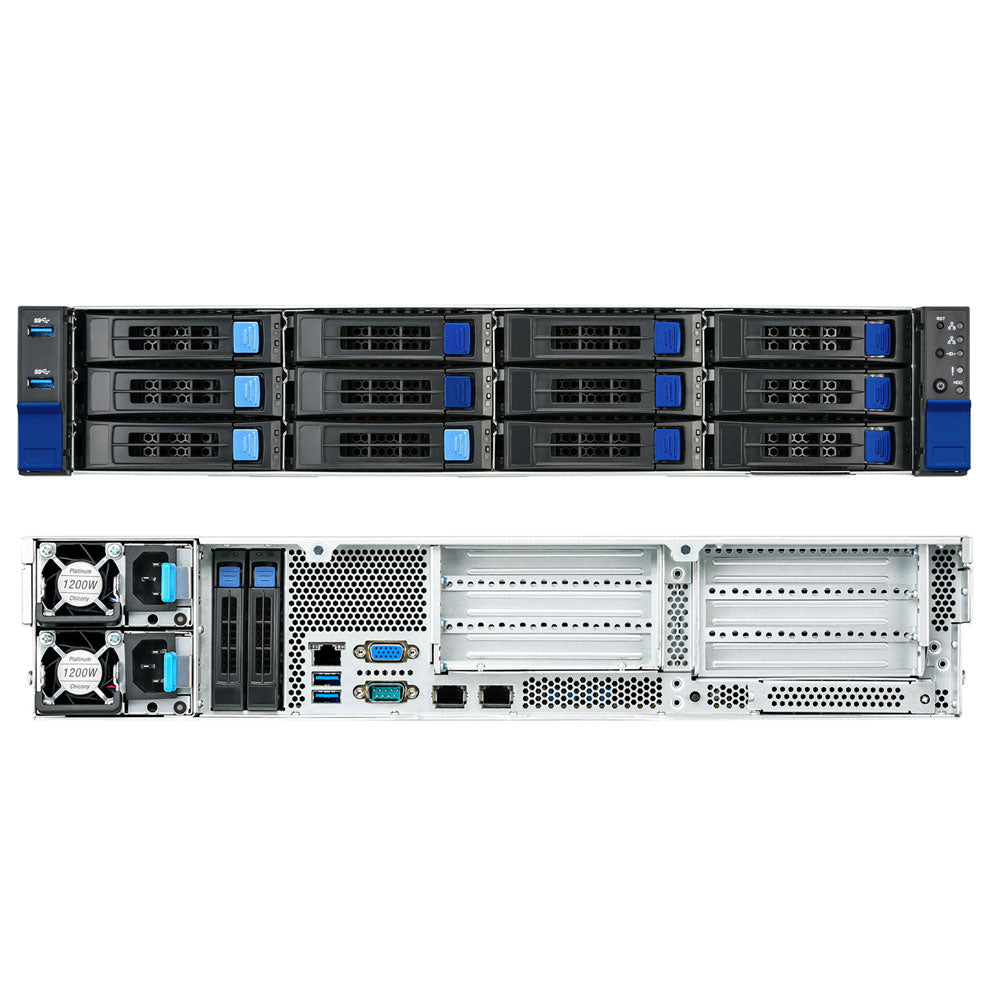

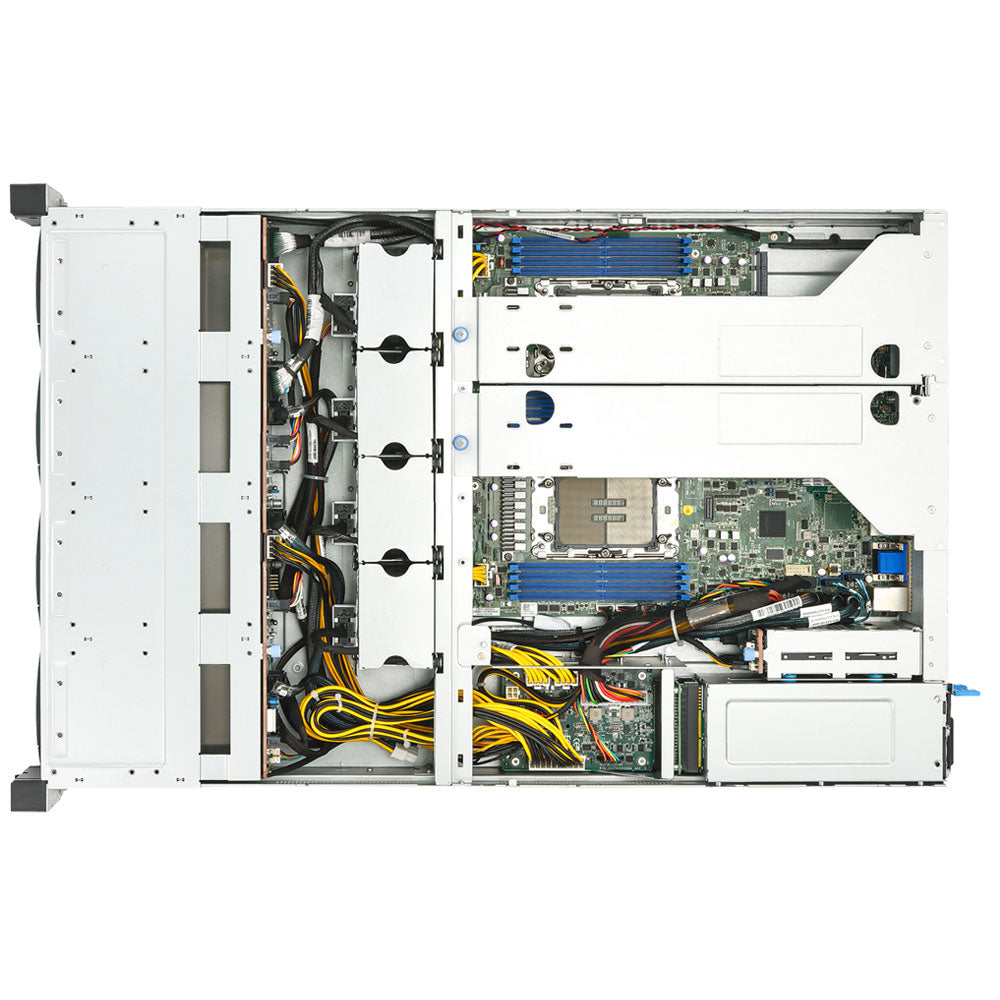

The MiTAC TYAN Thunder SX TS70-B7136 (B7136T70V10E4HR-2T) is a powerful 2U dual-socket cloud server platform designed for cost-effective storage and data-intensive workloads. Built to support 4th and 5th Gen Intel® Xeon® Scalable Processors, this server delivers exceptional compute density, memory scalability, and PCIe Gen5 expansion for modern enterprise and cloud environments.
With support for up to 2TB of DDR5 memory, flexible hot-swap storage bays including optional NVMe U.2, and integrated dual 10GbE connectivity, the TS70-B7136 is an ideal solution for cloud storage, virtualization, and scalable infrastructure deployments.
| Specification Category | Details |
|---|---|
| Product Model | TYAN Thunder SX TS70-B7136 |
| SKU | B7136T70V10E4HR-2T |
| Form Factor | 2U Rackmount Server |
| Processor Support | Dual LGA4677 Socket |
| Compatible CPUs | 4th / 5th Gen Intel® Xeon® Scalable Processors |
| Max Processor TDP | Up to 350W |
| Chipset | Intel C741 |
| Memory Slots | 16 DIMM Slots (8+8) |
| Memory Type | DDR5 RDIMM / 3DS RDIMM |
| Max Memory Capacity | Up to 2,048GB DDR5 |
| Memory Speed Support | DDR5 5600 / 4800 / 4400 MHz |
| Drive Bays (Front) | 12 × 3.5" SATA Hot-Swap |
| NVMe Support | Up to 4 Optional NVMe U.2 Bays |
| Rear Drive Bays | 2 × 2.5" SATA Hot-Swap |
| Expansion Slots | 2 × PCIe 5.0 x16 + 3 × PCIe 5.0 x8 |
| OCP Slot | 1 × PCIe Gen5 x16 OCP 3.0 |
| Networking (SKU -2T) | Dual 10GbE + Dedicated IPMI Port |
| Management | Onboard BMC with IPMI 2.0 + iKVM |
| Power Supply | Redundant 1+1 CRPS 2000W, 80+ Platinum |
| Cooling | 4 × High-Performance System Fans |
| Dimensions (D × W × H) | 700 × 438.5 × 87mm |
| Primary Use Case | Cloud Storage & Enterprise Data Applications |
