Description

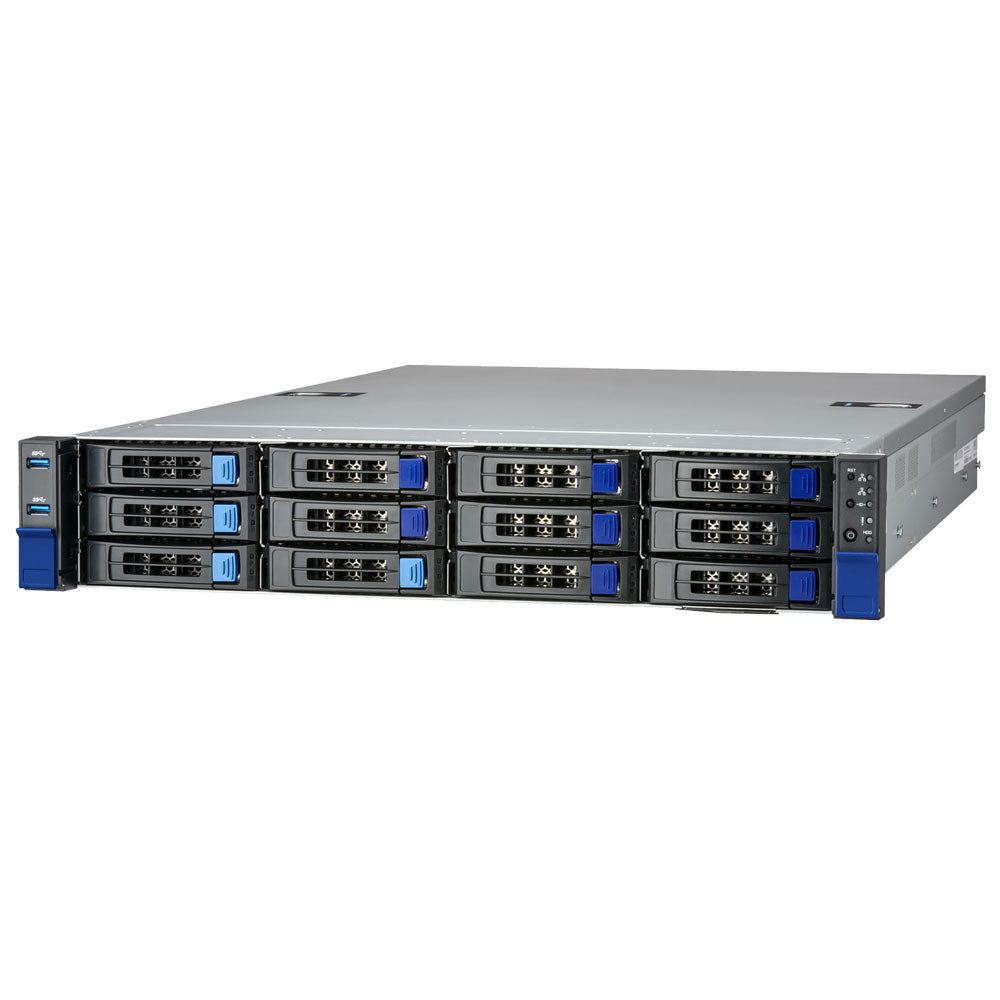

The MiTAC TYAN Thunder SX TS70-B7136 (B7136T70V10E4HR) is a high-density 2U dual-socket cloud server platform engineered for cost-effective storage and scalable enterprise workloads. Built with support for 4th and 5th Gen Intel® Xeon® Scalable Processors, this system delivers exceptional compute capacity alongside flexible storage expansion.
Designed for modern cloud and data center environments, the TS70-B7136 supports up to 2TB of DDR5 memory, multiple PCIe Gen5 expansion slots, and a hybrid storage configuration featuring 12 hot-swap 3.5” SATA bays with optional NVMe U.2 support plus rear 2.5” hot-swap bays. Redundant 80+ Platinum CRPS power supplies and onboard IPMI management ensure reliability, uptime, and streamlined remote administration.
This platform is ideal for organizations deploying cloud storage, virtualization, database hosting, or scalable infrastructure solutions.
| Specification Category | Details |
|---|---|
| Brand | MiTAC TYAN |
| Series / Model | Thunder SX TS70-B7136 |
| SKU | B7136T70V10E4HR |
| Form Factor | 2U Rackmount Server |
| CPU Support | Dual LGA4677 sockets |
| Compatible Processors | 4th / 5th Gen Intel® Xeon® Scalable |
| Max CPU TDP | Up to 350W |
| Chipset | Intel C741 |
| Memory Slots | 16 DIMM slots (8+8) |
| Memory Type | DDR5 RDIMM / 3DS RDIMM |
| Max Memory Capacity | Up to 2,048GB DDR5 |

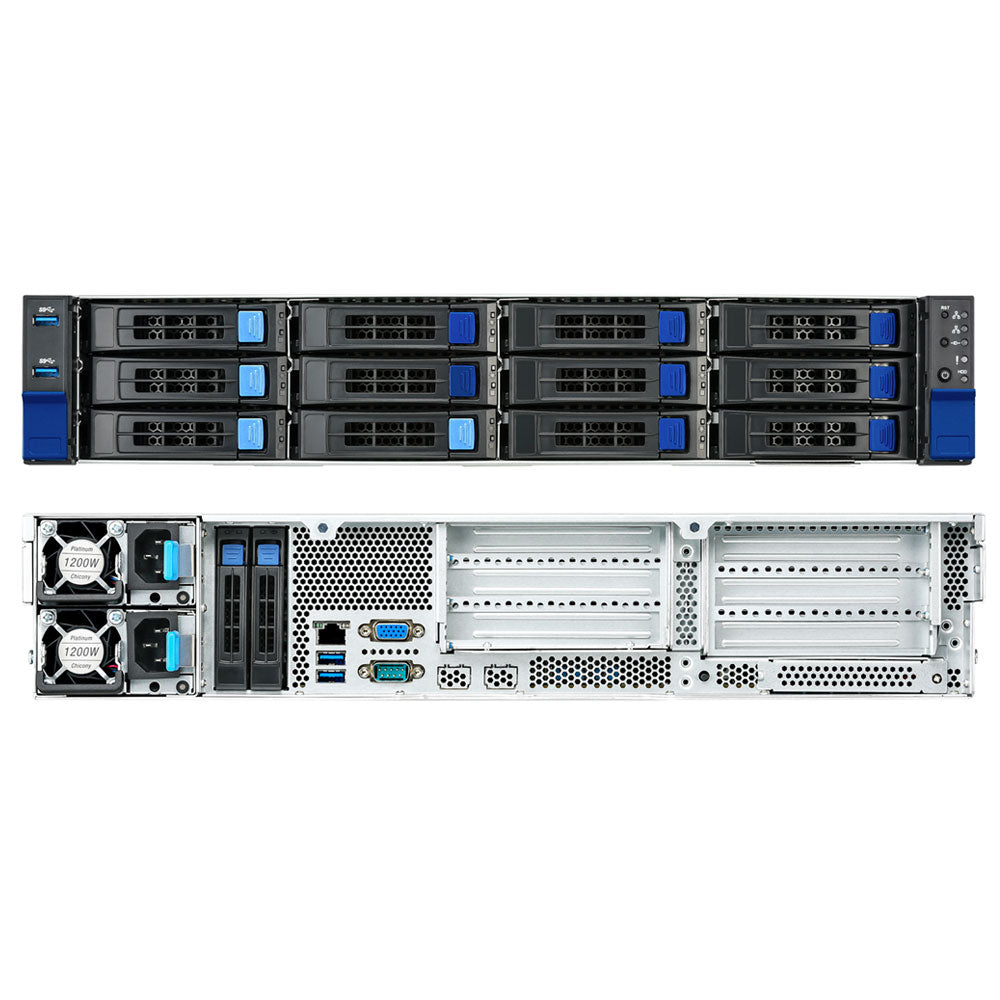

| Drive Bays (Front) | 12 × 3.5” SATA hot-swap (4 optional NVMe U.2) |
| Drive Bays (Rear) | 2 × 2.5” SATA hot-swap |
| Storage Interfaces | SATA 6Gb/s, SAS 12Gb/s, NVMe |
| PCIe Expansion | 2 × PCIe 5.0 x16 + 3 × PCIe 5.0 x8 |
| OCP Slot | PCIe Gen5 x16 OCP 3.0 mezzanine |
| Networking | Dedicated IPMI GbE port |
| Management | Onboard BMC with IPMI 2.0 + iKVM |
| Power Supply | Redundant (1+1) CRPS 80+ Platinum |
| Cooling | 4 × 8cm high-performance fans |
| Dimensions (D × W × H) | 700 × 438.5 × 87 mm |
| Deployment Use Case | Cloud storage, virtualization, enterprise infrastructure |
