Description

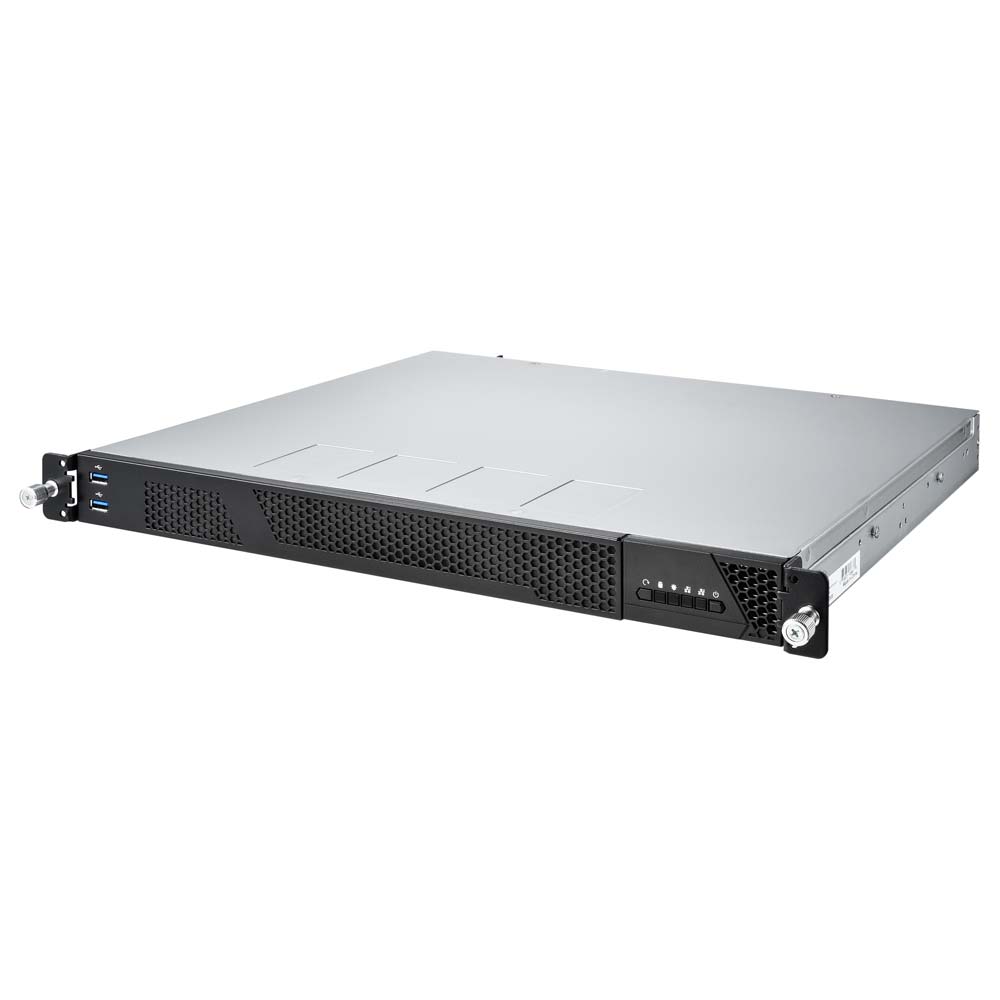

The TYAN Transport CX GX40-B8016 (B8016G40V4) is a cost-effective, high-performance 1U single-socket AMD cloud server platform designed for modern front-end and edge server deployments. Built on the AMD Socket AM5 architecture, it supports either an AMD EPYC 4004 processor or an AMD Ryzen 7000 series processor, delivering powerful compute efficiency in a compact rackmount footprint.
This system includes DDR5 memory support up to 128GB, a PCIe Gen 5 expansion slot, integrated dual GbE networking, and dedicated IPMI remote management with iKVM support via an onboard BMC.
With flexible storage options including SATA SSD/HDD bays and M.2 NVMe support, the GX40-B8016 is ideal for cloud infrastructure, virtualization, web hosting, and scalable enterprise workloads.
| Specification | Details |
|---|---|
| Brand | TYAN (MiTAC Computing Technology) |
| Model / Platform | Transport CX GX40-B8016 |
| SKU | B8016G40V4 |
| Form Factor | 1U Rackmount Server |
| Processor Socket | AMD Socket AM5 |
| Supported CPU | AMD EPYC 4004 / AMD Ryzen 7000 Series |
| Max Processor TDP | Up to 105W |
| Chipset | AMD B650E FCH |
| Memory Slots | 4 × DDR5 DIMM Slots |
| Maximum Memory | Up to 128GB DDR5 ECC UDIMM / Non-ECC |
| Memory Speed | DDR5 4800 MT/s |
| Expansion Slot | 1 × PCIe Gen 5 x16 Slot |
| Storage Bays | Fixed 2.5” SATA SSD + Fixed 3.5” SATA HDD |
| Additional Storage | 2 × M.2 NVMe (PCIe 4.0 Interface) |
| SATA Support | 4 × SATA 6Gb/s Ports |
| RAID Support | AMD RAID Supported |
| Networking | 2 × GbE + 1 × Dedicated IPMI LAN |
| Remote Management | Onboard BMC with IPMI 2.0 + iKVM |
| Power Supply | 300W 80+ Gold PSU |
| Cooling Fans | 3 × System Fans (4028) |
| Dimensions (D × W × H) | 400 × 438.5 × 43.2 mm |
| Operating Temperature | 10°C – 35°C |
| Compliance | RoHS, FCC, CE, BSMI, VCCI |
