Description

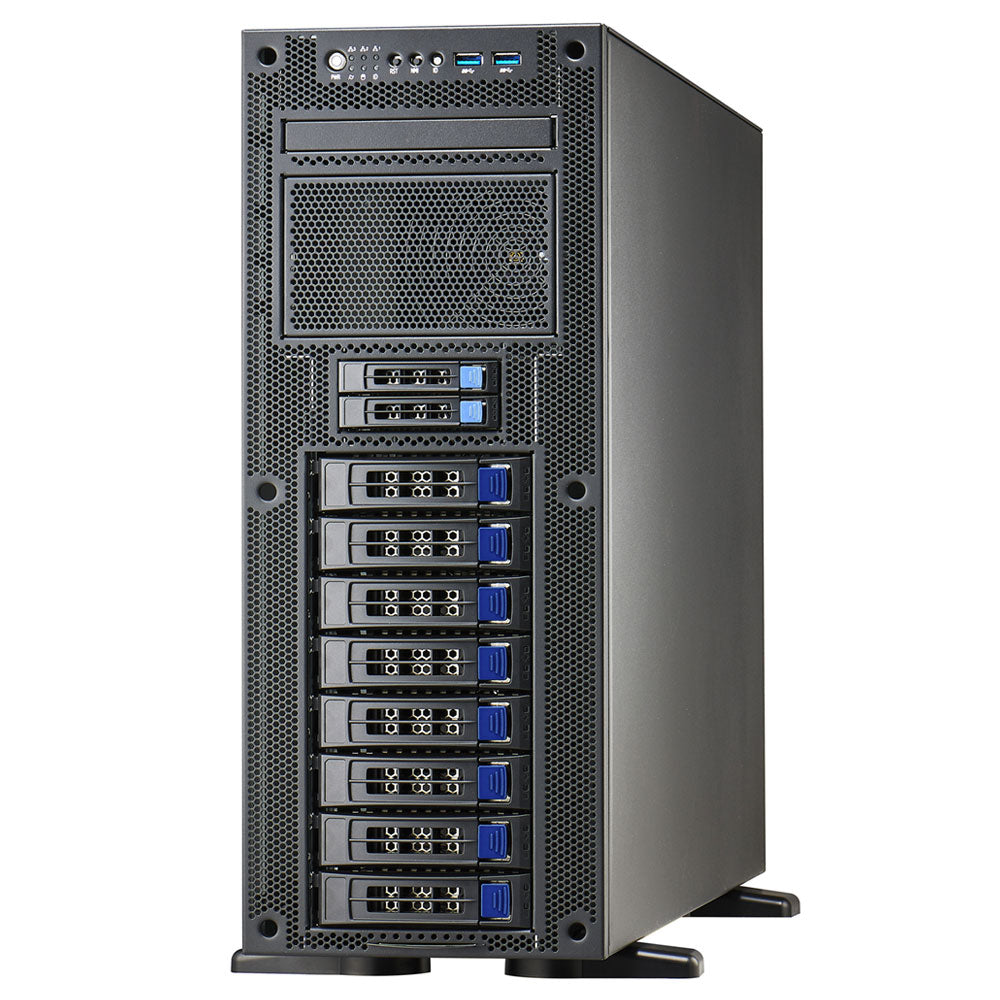

The TYAN Transport HX FT65T-B8050 (B8050F65TV8E2H-2T-N) is a high-performance 4U rackmount or pedestal GPU server platform engineered for demanding workloads such as AI acceleration, HPC, deep learning, and enterprise virtualization.
Built on the AMD Socket SP5 architecture, this system supports 1x AMD EPYC 9004 Series processor and up to 2TB of DDR5 memory across eight DIMM slots.
Designed for large-scale GPU compute, it provides PCIe Gen5 expansion with support for multiple double-wide GPU configurations, along with flexible high-speed storage options including hot-swap SATA and NVMe bays. With integrated remote management via IPMI/iKVM and advanced networking options including dual 10GbE + dual GbE, the FT65T-B8050 is an ideal solution for next-generation data center deployments.
| Specification | Details |
|---|---|
| Brand | TYAN (MiTAC Computing Technology) |
| Product Line | Transport HX |
| Platform Model | FT65T-B8050 |
| SKU | B8050F65TV8E2H-2T-N |
| Form Factor | 4U Rackmount / Pedestal Server |
| CPU Socket | Single Socket AMD SP5 |
| Supported Processor | 1x AMD EPYC 9004 Series (up to 320W TDP) |
| Memory Slots | 8x DDR5 DIMM Slots |
| Max Memory Capacity | Up to 2,048GB DDR5 RDIMM / 3DS RDIMM |
| Memory Speed Support | DDR5 4800MHz (1DPC) / 3600MHz (2DPC) |
| Storage Bays | 8x 3.5" Hot-Swap SATA + 2x 2.5" Hot-Swap NVMe U.2 |
| M.2 Support | 2x M.2 PCIe Gen4 (22110/2280) |
| Expansion Slots | Up to 5x PCIe Gen5 x16 Slots |
| GPU Support | Supports 2x Double-Wide + 2x Single-Wide GPU Cards |
| Networking (2T Variant) | 2x 10GbE + 2x GbE + Dedicated IPMI Port |
| Management | Onboard BMC with IPMI 2.0 + iKVM Support |
| Video Output | 1x VGA (D-Sub) up to 1920×1200 |
| Power Supply Options | 2000W Gold / 1500W Platinum / 1200W Platinum |
| Cooling | 3x Hot-Swap 12038 Fans + 2x Rear Exhaust Fans |
| Dimensions | 650 × 427 × 176 mm (25.5” × 16.8” × 6.9”) |
| Best Use Cases | AI Training, HPC, Deep Learning, GPU Compute Workloads |
