Description

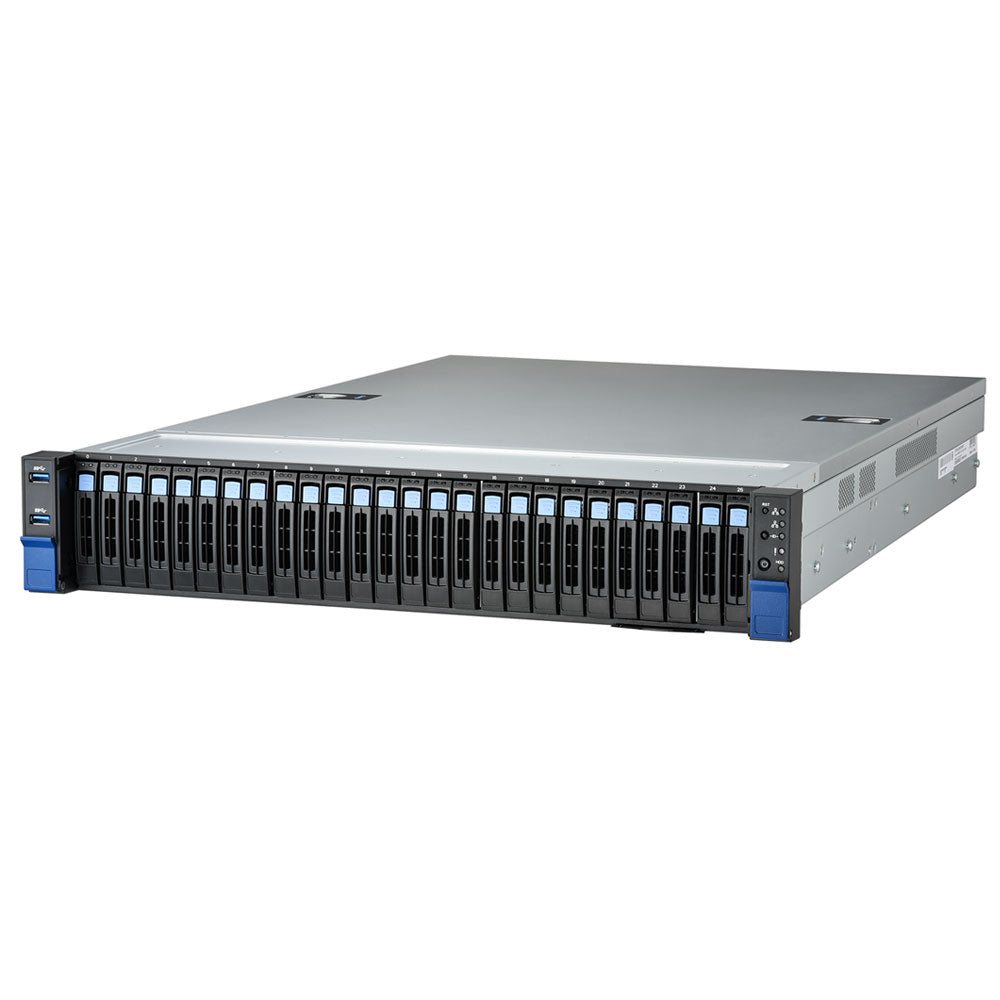

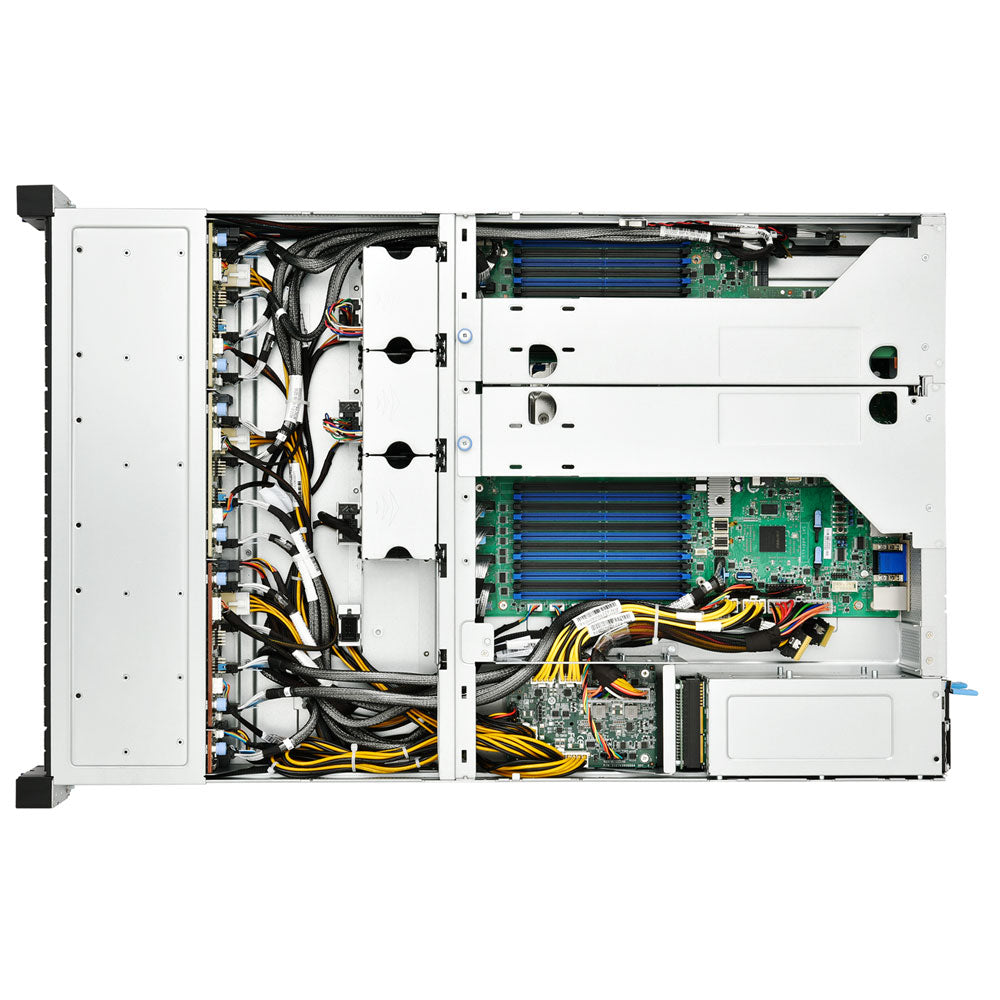

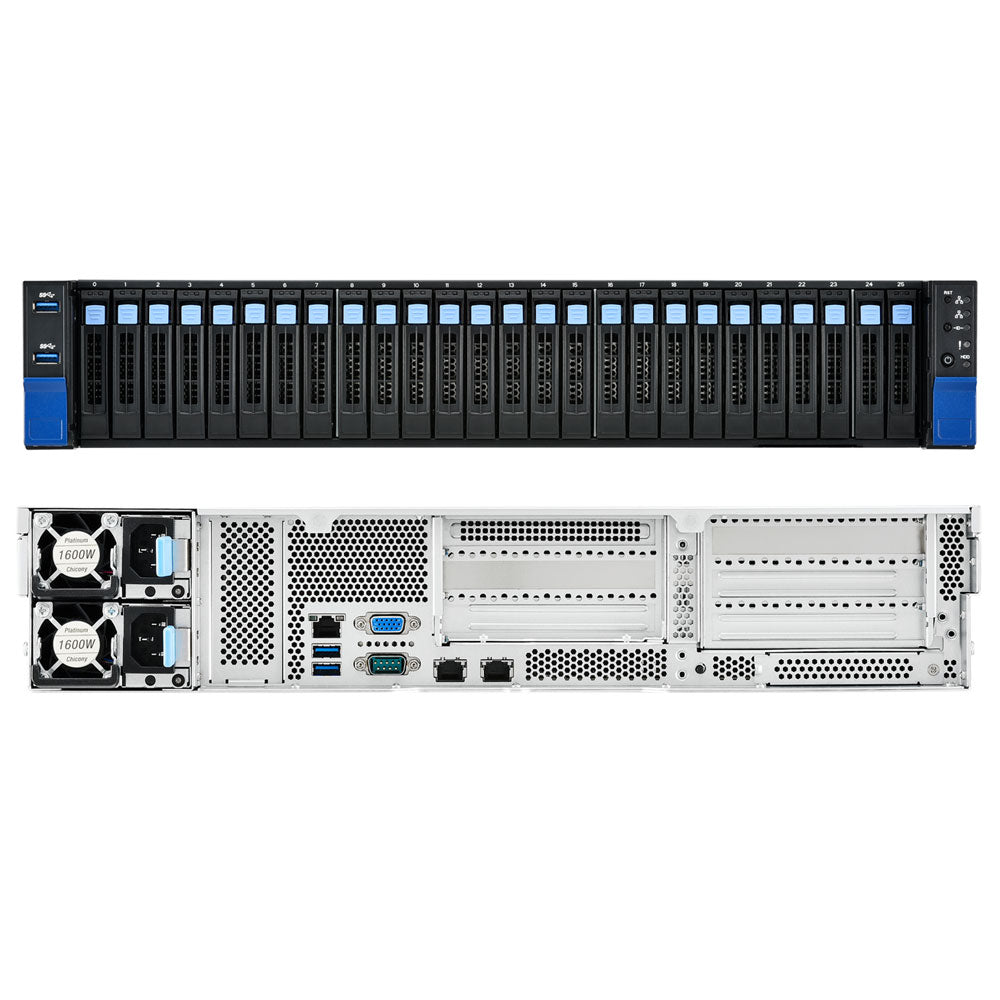

The MiTAC TYAN TS70A-B8056 (B8056T70AE26HR) is a high-density 2U single-socket hybrid storage server purpose-built for warm data storage and modern NVMe performance. Powered by 1x AMD EPYC™ 9004 Series processor on the SP5 platform, this system supports up to 26 hot-swap NVMe U.2 drive bays, making it ideal for enterprise-scale storage, cloud infrastructure, and data-intensive workloads.
Designed for next-generation expansion, it features PCIe Gen5 support, onboard management with IPMI and iKVM, and up to 6TB DDR5 memory capacity through 24 DIMM slots. With redundant 1+1 1600W Platinum CRPS power supplies, the TS70A-B8056 ensures reliability, scalability, and efficiency for mission-critical deployments.
| Specification | Details |
|---|---|
| Brand | MiTAC Computing (TYAN) |
| Product Series | TS70A-B8056 |
| SKU / Model | B8056T70AE26HR |
| Form Factor | 2U Rackmount Storage Server |
| Processor Socket | Single Socket SP5 |
| Supported CPU | 1x AMD EPYC™ 9004 Series Processor |
| Max CPU TDP | Up to 400W (cTDP) |
| Memory Slots | 24x DDR5 DIMM Slots |
| Max Memory Capacity | Up to 6,144GB DDR5 RDIMM / 3DS RDIMM |
| Memory Speed Support | DDR5 4800 / 4400 / 4000 MHz |
| Drive Bays | 26x 2.5" Hot-Swap NVMe U.2 |
| Storage Interface | NVMe U.2 |
| Expansion Slots | 1x PCIe Gen5 x8 + 1x PCIe Gen5 x16 OCP 3.0 |
| Network Ports | Dedicated GbE for IPMI |
| Management | Onboard BMC with IPMI 2.0 + iKVM |
| GPU Output | VGA (D-Sub 15-pin), up to 1920×1200 |
| System Cooling | 3x Hot-Swap 8cm Fans |
| Power Supply | 1+1 Redundant 1600W CRPS (80+ Platinum) |
| Operating Temperature | 10°C – 35°C |
| Compliance | RoHS 6/6, FCC Class A |
