Description

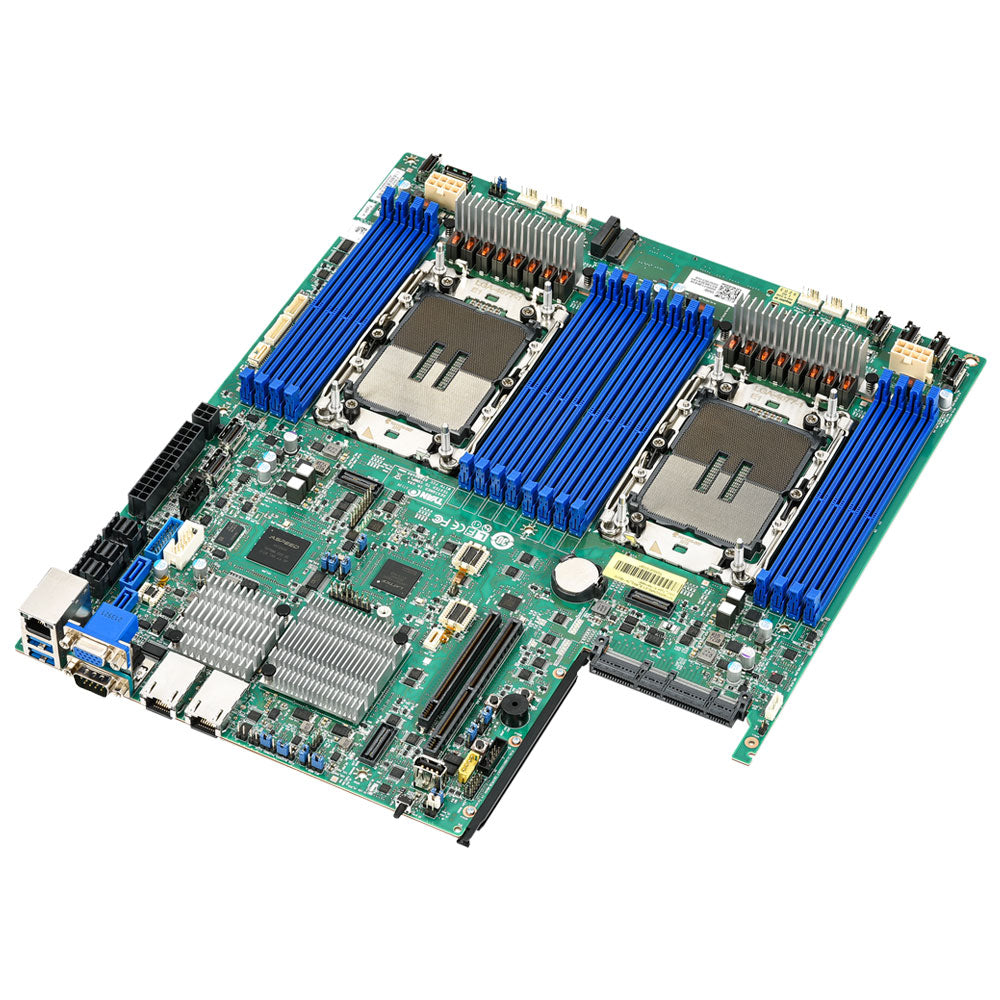

The MiTAC TYAN Tempest CX S7136 (S7136GM2NRE-2T) is a high-performance, rack-optimized dual-socket server motherboard built for 4th Gen Intel Xeon Scalable processors. Designed for modern enterprise workloads, this platform supports up to 16 DDR5 RDIMM slots with ECC for massive memory capacity and bandwidth.
With PCIe Gen5 expansion, integrated dual 10GbE networking, and flexible storage connectivity including 14 SATA ports and dual NVMe M.2 support, the S7136 motherboard is engineered for scalable compute, virtualization, cloud infrastructure, and HPC deployments.
Its proprietary Tempest CX form factor delivers efficient integration into optimized rack server environments, providing reliability, remote management via IPMI, and next-generation performance for demanding data center operations.
| Specification Category | Details |
|---|---|
| Product Type | Server Motherboard (Rack-Optimized) |
| Brand | MiTAC TYAN |
| Series / Model | Tempest CX S7136 |
| SKU | S7136GM2NRE-2T |
| Processor Support | Dual Socket LGA4677 |
| Compatible CPU Family | 4th Gen Intel Xeon Scalable Processors |
| Max CPU TDP | Up to 350W per processor |
| Chipset | Intel C741 |
| Memory Slots | 16 DIMM Slots (8 per CPU) |
| Memory Type | DDR5 RDIMM / LRDIMM ECC |
| Memory Speed | Up to DDR5-4800 MHz |
| Maximum Memory Capacity | Up to 2TB DDR5 |
| Expansion Slots | 1x PCIe Gen5 x28, 1x PCIe Gen5 x24 |
| OCP Support | PCIe Gen5 x16 OCP 3.0 Mezzanine Slot |
| Storage Ports (SATA) | 14x SATA 6Gb/s |
| NVMe Support | 2x M.2 (2280) + 8x MCIO x4 (U.2/NVMe) |
| RAID Support | RAID 0/1/5/10 (Intel RSTe) |
| Networking | 2x 10GbE (10GBase-T) + Dedicated IPMI LAN |
| Management | Onboard Aspeed AST2600 BMC with Remote IPMI |

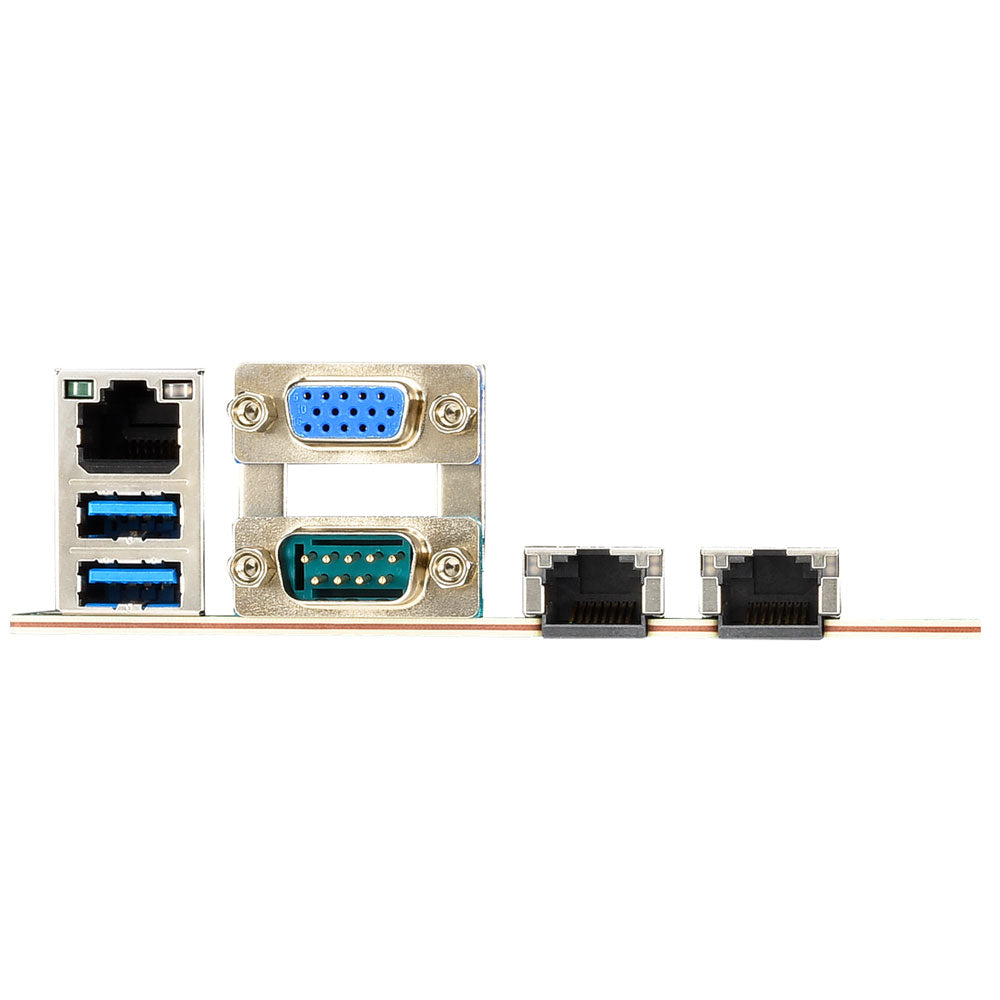

| Rear I/O Ports | USB 3.2 Gen1, VGA, COM Port, LAN Ports |
| Form Factor | Proprietary Tempest CX |
| Board Dimensions | 14.18" x 12.16" (360.2 x 308.8 mm) |
| Operating Temperature | 10°C to 35°C |
| Compliance | RoHS 6/6, FCC Class A, CE Class A |
