Description
The Crestron Flex UC-M70-UA delivers a professional-grade tabletop audio conferencing solution designed for large meeting rooms and open-platform UC environments. Built for clarity, scalability, and ease of deployment, this system enables seamless voice collaboration across enterprise spaces without the need for complex programming or custom configuration.

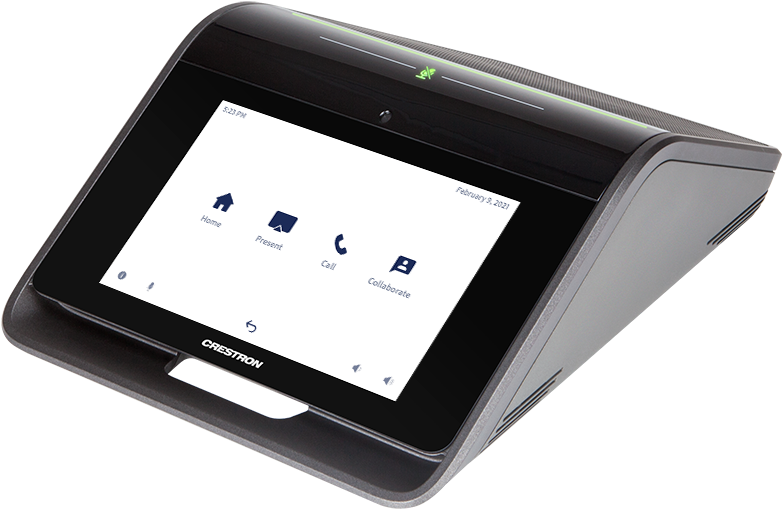

At the core of the system is the Crestron Flex tabletop conferencing device, featuring a 7-inch HD touchscreen for intuitive call control and system navigation. Its integrated 360° quad microphone array and advanced acoustic echo cancellation ensure crystal-clear, full-duplex audio performance for all participants in the room. The included extension microphone pod expands pickup range, making it ideal for larger conference tables and distributed seating layouts.
The UC-M70-UA supports SIP-based VoIP systems, USB connectivity for softphone applications, and Bluetooth pairing for mobile devices, providing flexible communication options across platforms. Enterprise-grade security protocols and compatibility with XiO Cloud management enable IT teams to deploy, monitor, and manage devices at scale with confidence.
Designed for reliability and simplicity, this complete kit includes everything required for fast installation, making it a powerful and efficient solution for modern audio conferencing environments.
| Specification | Details |
|---|---|
| System Type | Tabletop Audio Conference System for Large Rooms |
| Platform Compatibility | Open-platform UC applications, SIP-based VoIP systems |
| Display | 7-inch HD capacitive touchscreen (1280 x 800 resolution) |
| Audio Technology | Full-duplex wideband audio with acoustic echo cancellation and noise reduction |
| Microphone Array | Integrated 360° quad microphone array |
| Microphone Pickup Range | Up to 20 ft (6 m) typical |
| Extension Microphone | Includes one microphone pod with 360° coverage |
| Speaker Output | Full-range speaker with 11W amplifier, up to 95 dB SPL |
| Connectivity | USB 2.0, Bluetooth for mobile pairing, dual Ethernet ports |
| Network & Security | IEEE 802.1X, TLS, SSL, SSH, LDAP, Active Directory authentication |
| Device Management | XiO Cloud provisioning, monitoring, and alerts |
| Power Options | PoE+ (limited use) or external power supply (included) |
| User Interface | Touchscreen controls for call handling and system management |
| Installation | Plug-and-play deployment with no programming required |
| Included Components | Tabletop conferencing device, microphone pod, cables, power supply |
| Dimensions (Device) | 4.11 x 8.92 x 12.74 in |
| Weight | 5.5 lb |
