Description

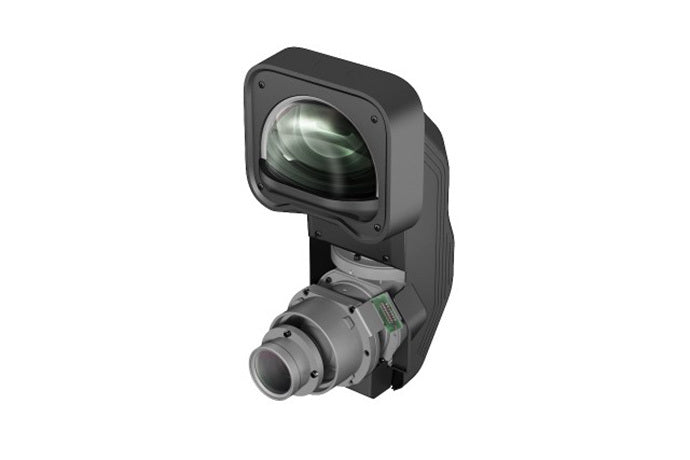

Bring flexibility and powerful performance to your projection setup with the Epson ELPLX01S Ultra Short-Throw Lens. Designed for Epson Pro Series interchangeable lens projectors up to 8,500 lumens, this lens delivers supersized images up to 300 inches even in the tightest spaces. With an exceptional 0.35 throw ratio, wide lens shift, and zero-offset design, it minimizes shadows and obstructions while maximizing display size in space-constrained environments.

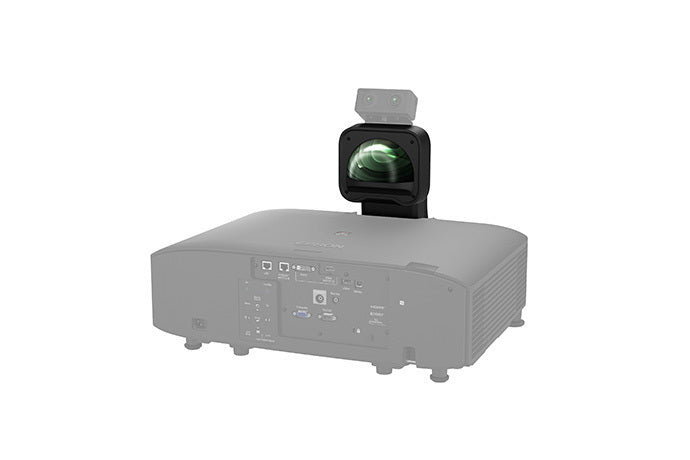

Perfect for rear-projection, low-ceiling, and stealth installations, the ELPLX01S also features a mount point for Epson’s optional ELPEC01 external camera, enabling advanced setup tools such as auto color calibration, screen matching, edge blending, and stacking assist. Compact yet powerful, this lens is built for professional venues, museums, corporate spaces, and creative environments where flexibility is key.
| Specification | Details |
|---|---|
| Model / SKU | ELPLX01S / V12H004X0A |
| Type | Ultra Short-Throw Lens |
| Compatible Projectors | Epson Pro Series (Pro L, Pro G7000, EB-P Series) up to 8,500 lumens |
| Throw Ratio | 0.35 (WUXGA/WXGA) / 0.36 (XGA) |
| Screen Size | 100" – 300" |
| Lens Shift (Powered) | Vertical: +50% to +67% (WUXGA/WXGA) / +50% to +57% (XGA); Horizontal: -10% to +10% |
| Focal Length | 5.8 mm |
| F-Number | 1.9 |
| Connector | 24-Pin |
| Dimensions (W x D x H) | 8.74" x 12.64" x 6.46" |
| Weight | 7.7 lbs |
| Operating Temperature | 32°F to 113°F (0°C to 45°C) |
| Installation Type | Stealth mount option (lens-only protrusion) |
| Camera Mount Support | Compatible with Epson ELPEC01 external camera |
| Eco Features | RoHS compliant, recyclable product, SmartWay® Transport Partner |
