Description

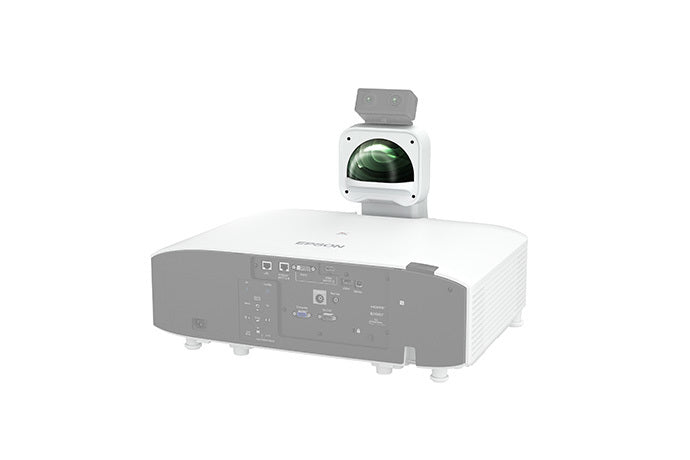

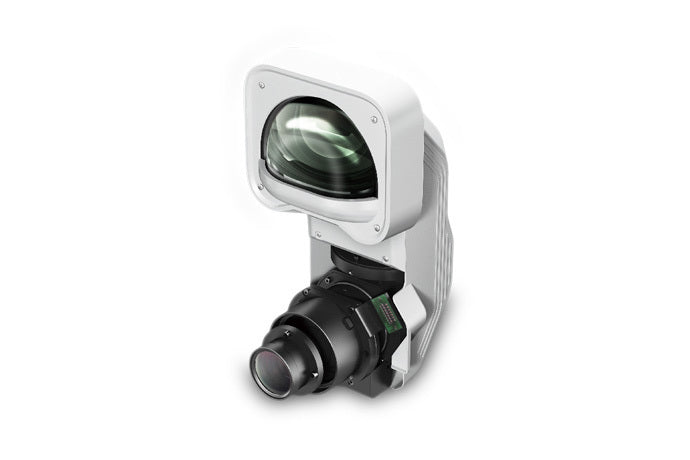

The Epson ELPLX01WS is a flexible ultra short-throw lens designed for Epson Pro Series interchangeable lens projectors up to 8,500 lumens. Featuring a white housing to seamlessly match white projectors, this lens is perfect for discreet ceiling or stealth installations. With a 0.35 throw ratio, wide lens shift, and zero offset design, it enables bright, larger-than-life projections up to 300" in space-constrained environments such as classrooms, auditoriums, museums, and retail spaces.
The ELPLX01WS also integrates with Epson’s optional ELPEC01 external camera to unlock advanced automated tools including auto color calibration, screen matching, tiling assist for edge blends, and stacking assist for multi-projector setups. Designed with versatility, precision, and eco-conscious features, it delivers professional-grade projection in challenging spaces.
| Feature | Specification |
|---|---|
| SKU / Part Number | V12H004Y0A |
| Lens Type | Ultra Short-Throw (White Housing) |
| Compatible Projectors | Epson Pro Series projectors up to 8,500 lumens (Pro L Series, Pro G7000, EB-P Series) |
| Throw Ratio | 0.35 (WUXGA/WXGA) / 0.36 (XGA) |
| Lens Shift (Powered) | Vertical: +50% to +67% (H Center), Horizontal: -10% to +10% (WUXGA/WXGA) / Vertical: +50% to +57%, Horizontal: -8% to +8% (XGA) |
| F-Number | 1.9 |
| Focal Length | 5.8 mm (0.23") |
| Screen Size | 100" – 300" (up to 1000" max listed) |
| Focus/Distortion | Powered |
| Connector | 24-pin |
| Operating Temperature | 32 ˚F to 113 ˚F (0 ˚C to 45 ˚C) |
| Dimensions (W x D x H) | 8.74" x 12.64" x 6.46" |
| Weight | 7.7 lb |
| Optional Features | Mount point for Epson ELPEC01 external camera (enables auto calibration, screen matching, tiling assist, stacking assist) |
| Eco Features | RoHS compliant; recyclable product; Epson is a SmartWay® Transport Partner |
