Description
High-Capacity Hybrid Storage for Enterprise Workloads

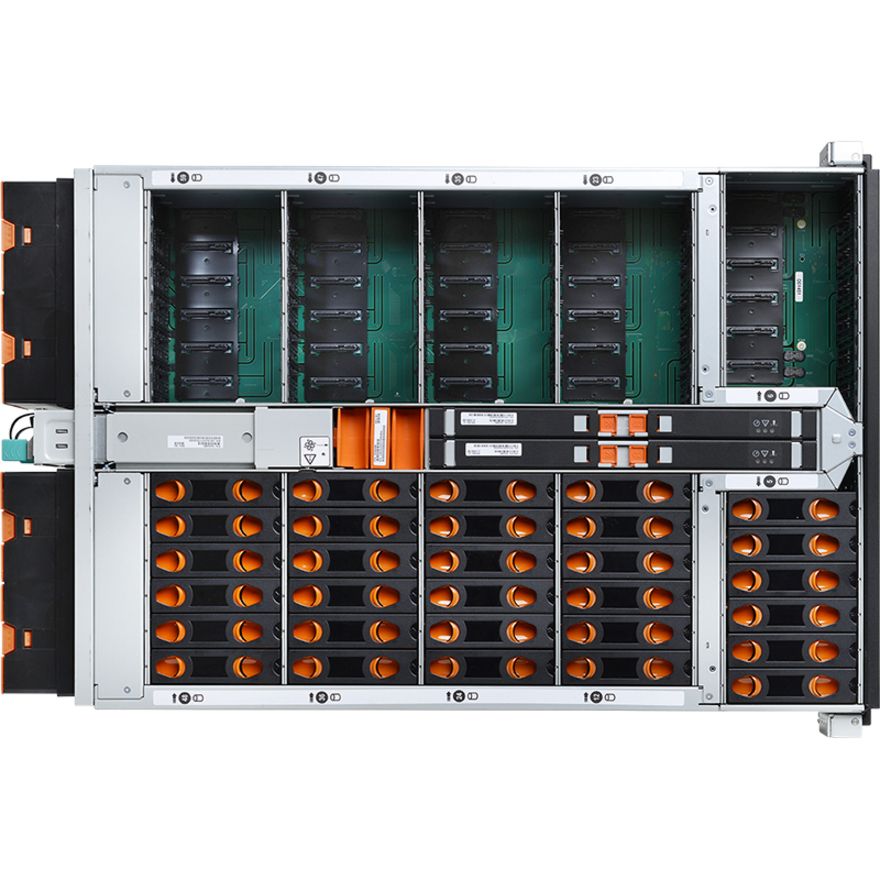

The WD Ultrastar Serv60+8 (Model: 1ES1268) is purpose-built for demanding software-defined storage (SDS) environments. Featuring dual Intel® Xeon® scalable CPUs, support for 60 HDDs and 32 SSDs, and innovative IsoVibe™ and ArcticFlow™ technologies, this 4U rackmount hybrid storage server offers unparalleled performance, reliability, and scalability. Ideal for large enterprises, cloud providers, and integrators, it delivers up to 780TB of supported HDD capacity with enhanced cooling and vibration isolation for consistent uptime.
| Category | Details |
|---|---|
| Brand | WD (Western Digital) |
| Model Number | 1ES1268 |
| Product Line | Ultrastar Serv60+8 |
| Processor | Intel Xeon (Scalable) |
| Total HDD Supported | 60 |
| Installed HDDs | 60 |
| Supported HDD Capacity | 780 TB |
| Installed HDD Capacity | 720 TB |
| SSD Supported | Up to 32 |
| Total Bays | 68 |
| Bay Types | 8 x 2.5", 60 x 2.5"/3.5" |
| Expansion Slots | 6 x PCIe 3.0 x8 |
| Controller | Serial Attached SCSI (SAS) |
| Drive Interface | SATA |
| Ethernet | 10 Gigabit Ethernet |
| USB Ports | 4 (2 x USB 2.0, 2 x USB 3.0) |
| Video Output | VGA |
| Network Port | RJ-45 |
| Remote Management | IPMI 2.0 |
| Power Supply | 2 x 2000W (Redundant) |
| Form Factor | Rack-mountable, 4U |
| Dimensions (HxWxD) | 6.9" x 17.6" x 43.3" |
| Weight | Approx. 210 lbs |
| Condition | New and Factory Fresh |
| Warranty | 5-Year Limited Warranty |
| Shipping Weight | 1 lb (likely placeholder value) |
