Description

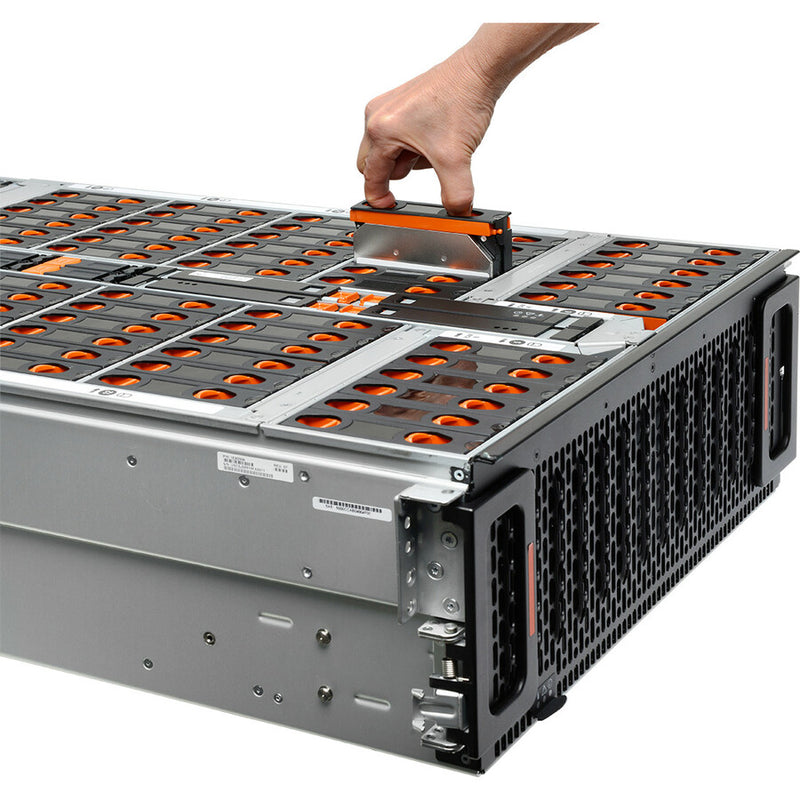

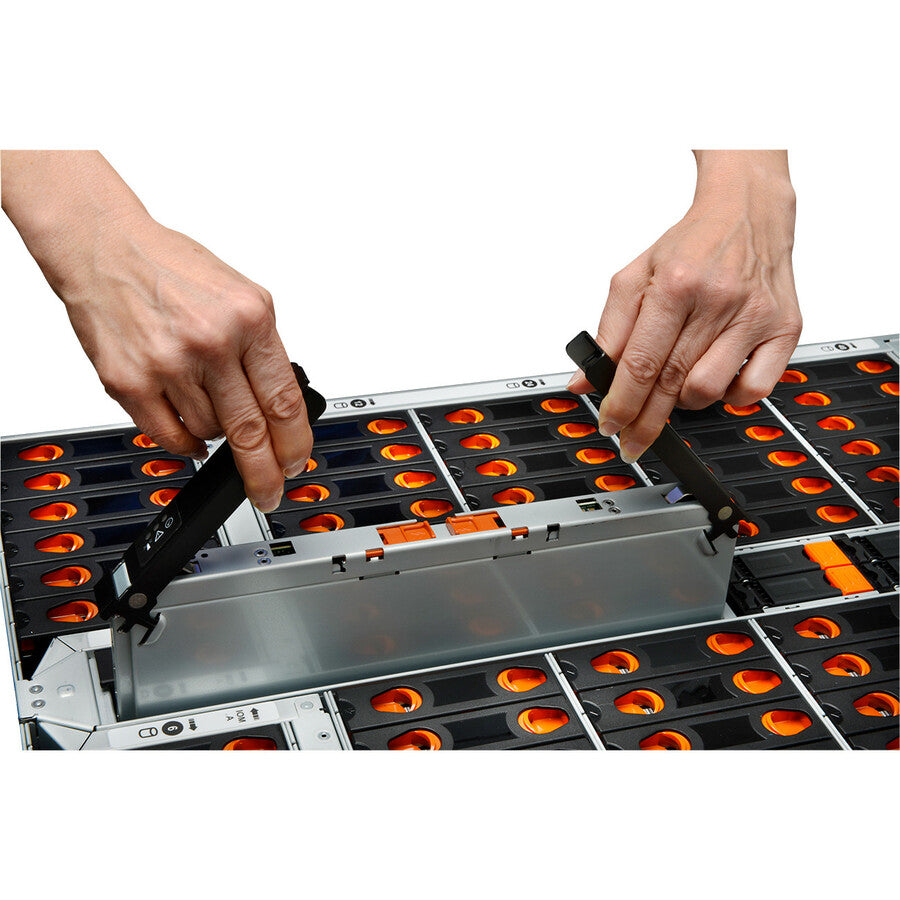

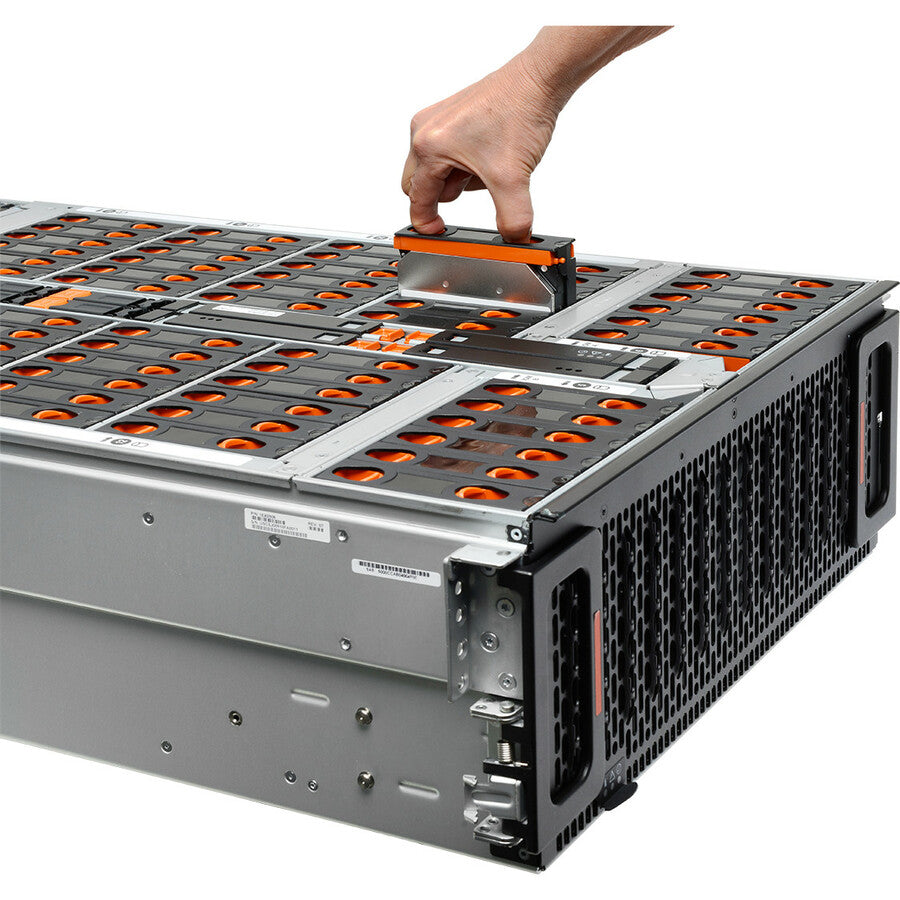

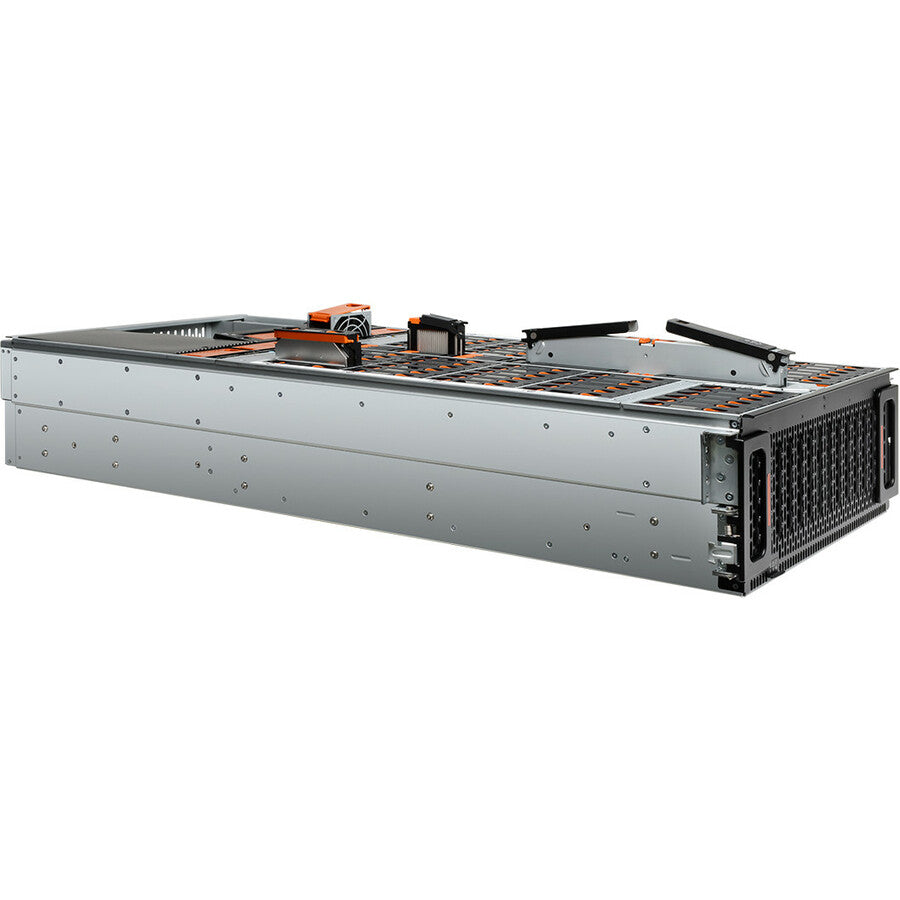

Built for high-density and high-performance storage, the WD Ultrastar Serv60+8 Hybrid Storage Server is engineered to meet the needs of demanding Software-Defined Storage (SDS) environments. Equipped with dual Intel® Xeon® processors and supporting up to 780TB of HDD capacity and 32 SSDs, this hybrid storage platform is ideal for enterprise, OEM, and cloud applications. It features 68 bays, 6 PCIe 3.0 x8 slots, 10GbE networking, and advanced reliability features like IsoVibe and ArcticFlow cooling. With robust SAS support, IPMI 2.0, and redundant power, this 4U rack-mountable solution delivers flexibility, scalability, and performance for large-scale data needs.
| Category | Details |
|---|---|
| Manufacturer | Western Digital Corporation |
| Brand Name | WD |
| Product Line | Ultrastar Serv60+8 |
| Model/Part Number | 1ES1261 |
| Product Type | Hybrid Storage Server |
| Processor | Intel® Xeon® (Dual CPUs Supported) |
| Hard Drives Supported | 60 x 3.5"/2.5" HDD |
| Hard Drives Installed | 60 HDDs |
| Max HDD Capacity | 780 TB Supported / 720 TB Installed |
| SSD Support | Up to 32 SSDs |

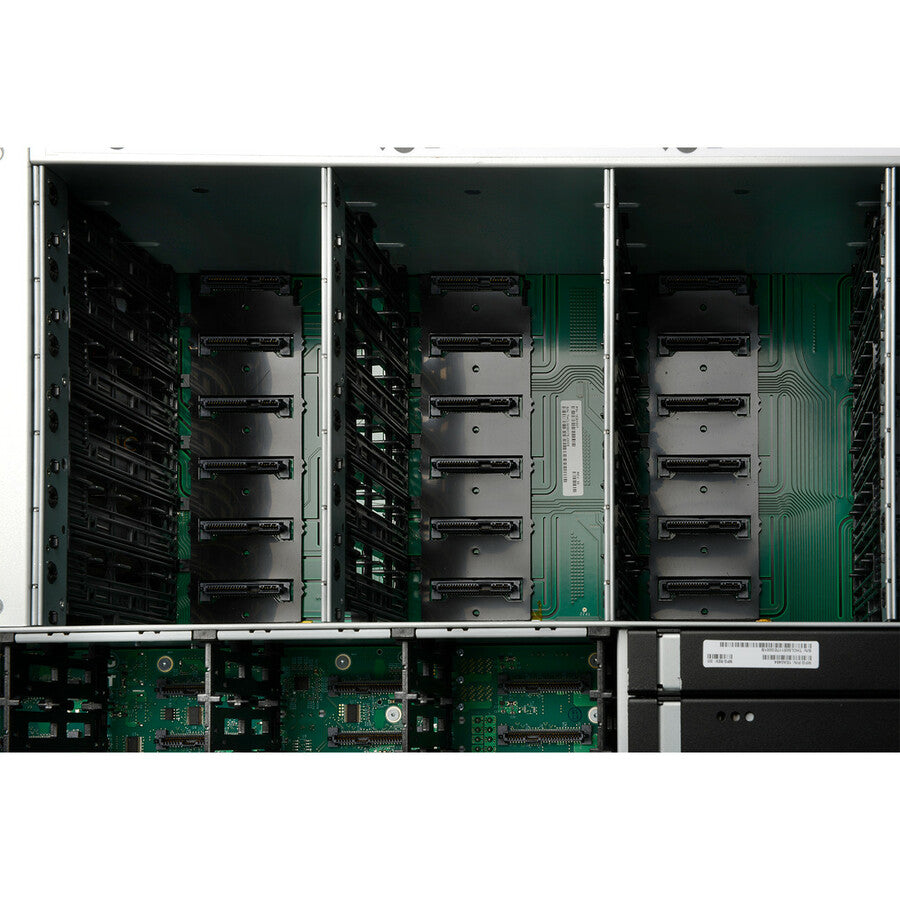

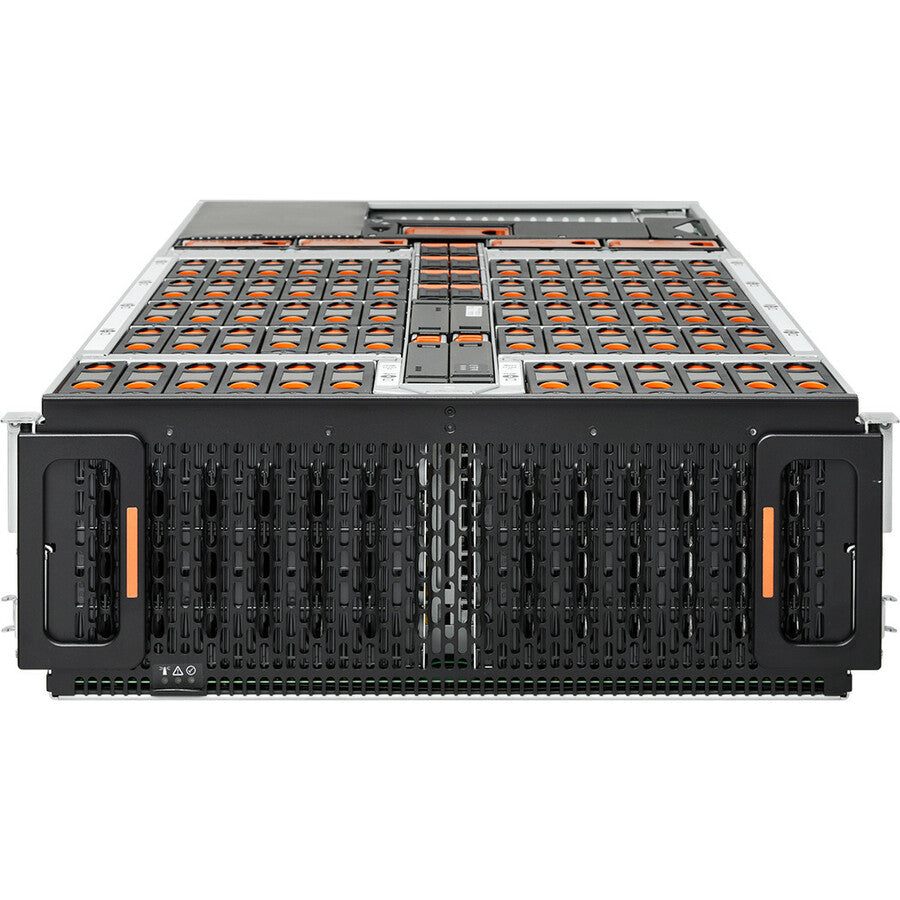

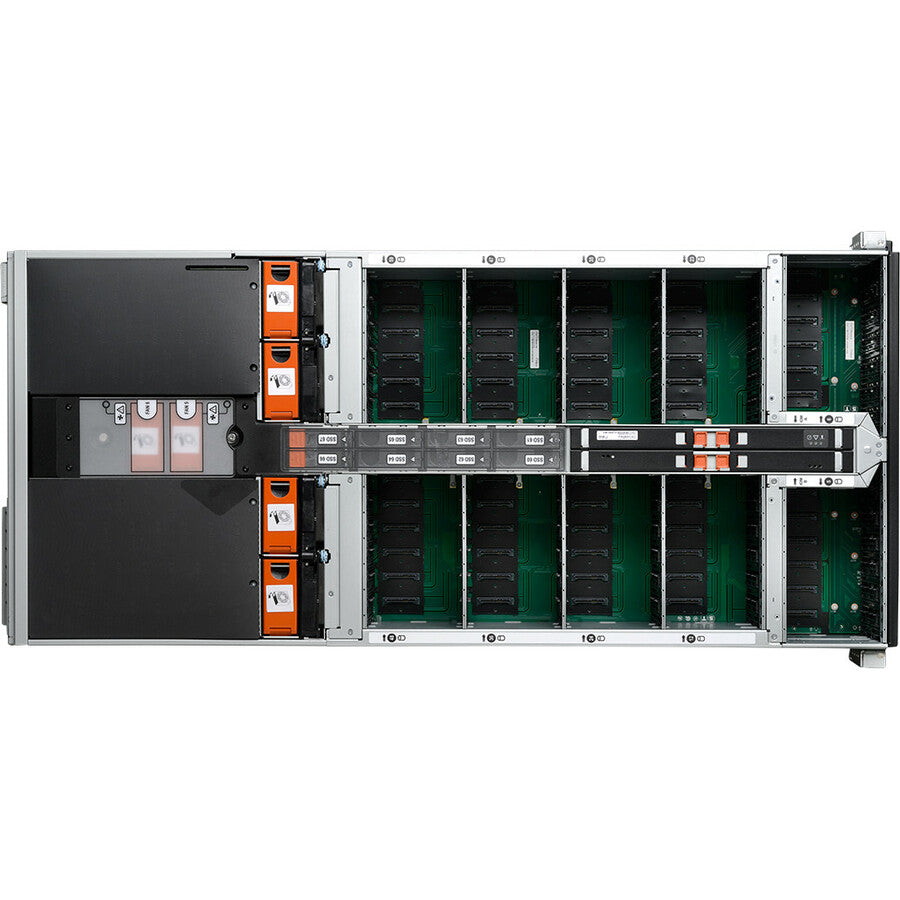

| Total Bays | 68 Bays (8 x 2.5", 60 x 2.5"/3.5") |
| Drive Interface | SAS (Serial Attached SCSI) |
| Expansion Slots | 6 x PCIe 3.0 x8 |
| Ethernet Ports | 10 x 10 Gigabit Ethernet |
| USB Ports | 2 x USB 2.0, 2 x USB 3.0 |
| VGA Port | Yes |
| Network Port | RJ-45 |
| Management | IPMI 2.0 |

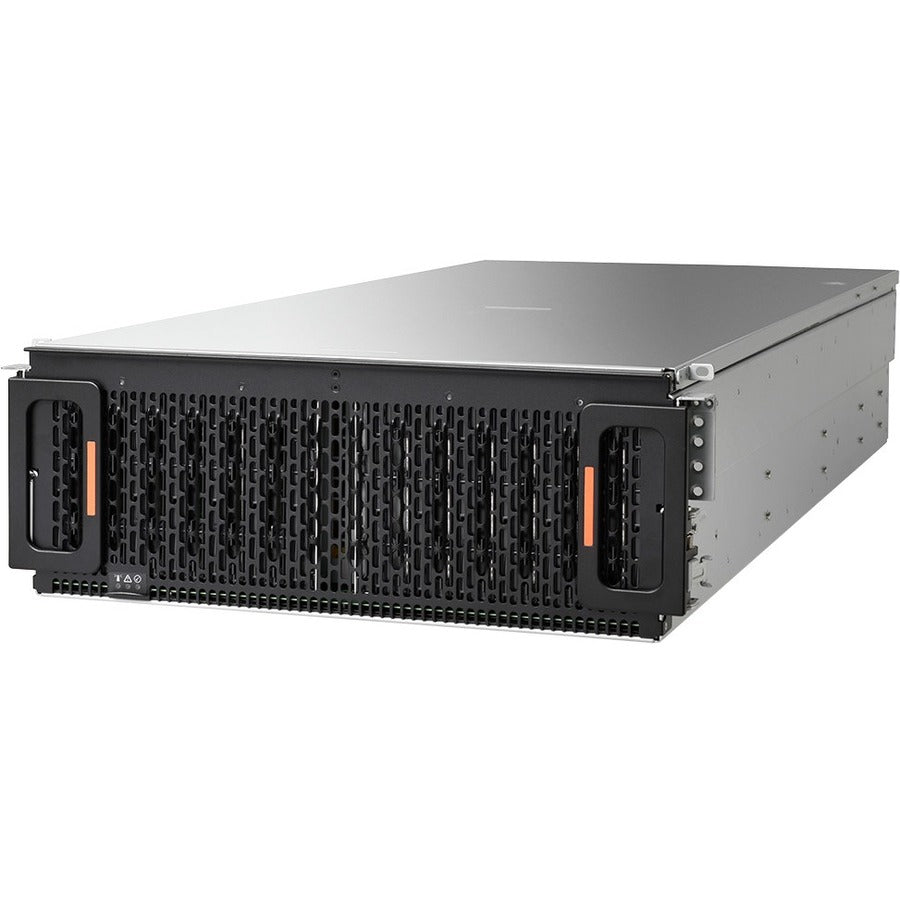

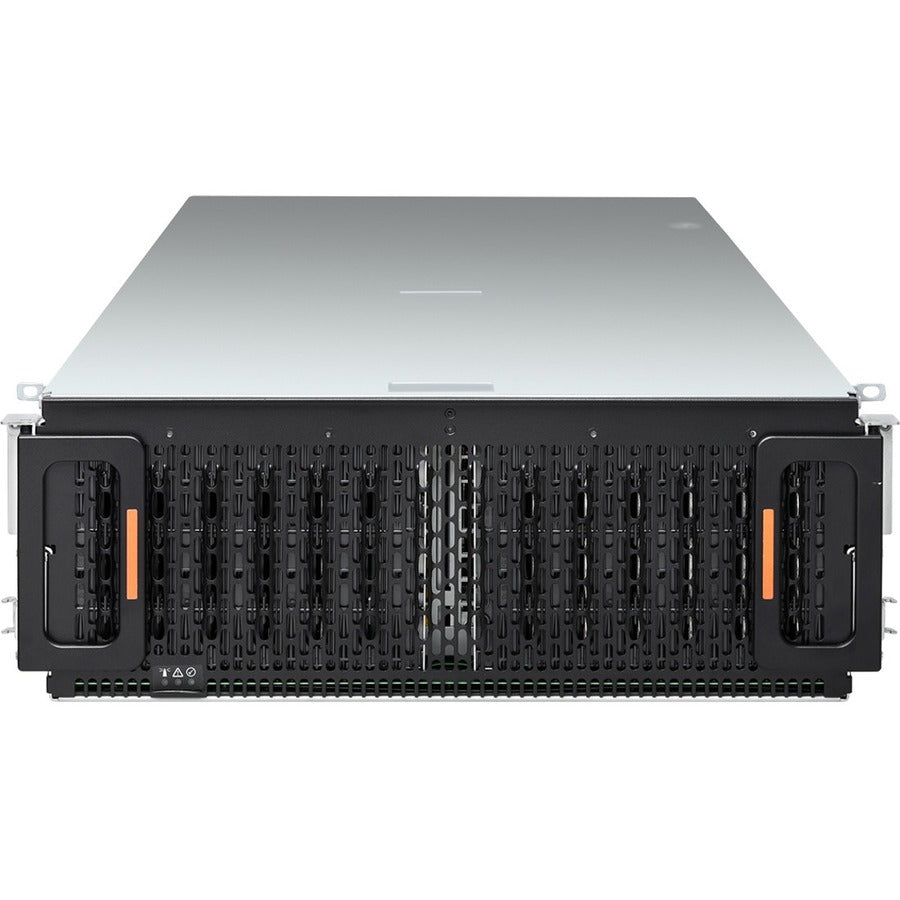

| Form Factor | 4U Rack-mountable |
| Dimensions (H x W x D) | 6.9" x 17.6" x 43.3" |
| Weight | Approx. 210 lbs |
| Power Supply | 2 x 2000W Redundant |
| Condition | New and Factory Fresh |
| Warranty | 5-Year Limited |
| Shipping Weight | 1 lb (listed) |
