Description
High-Density Hybrid Storage for Modern Data Centers

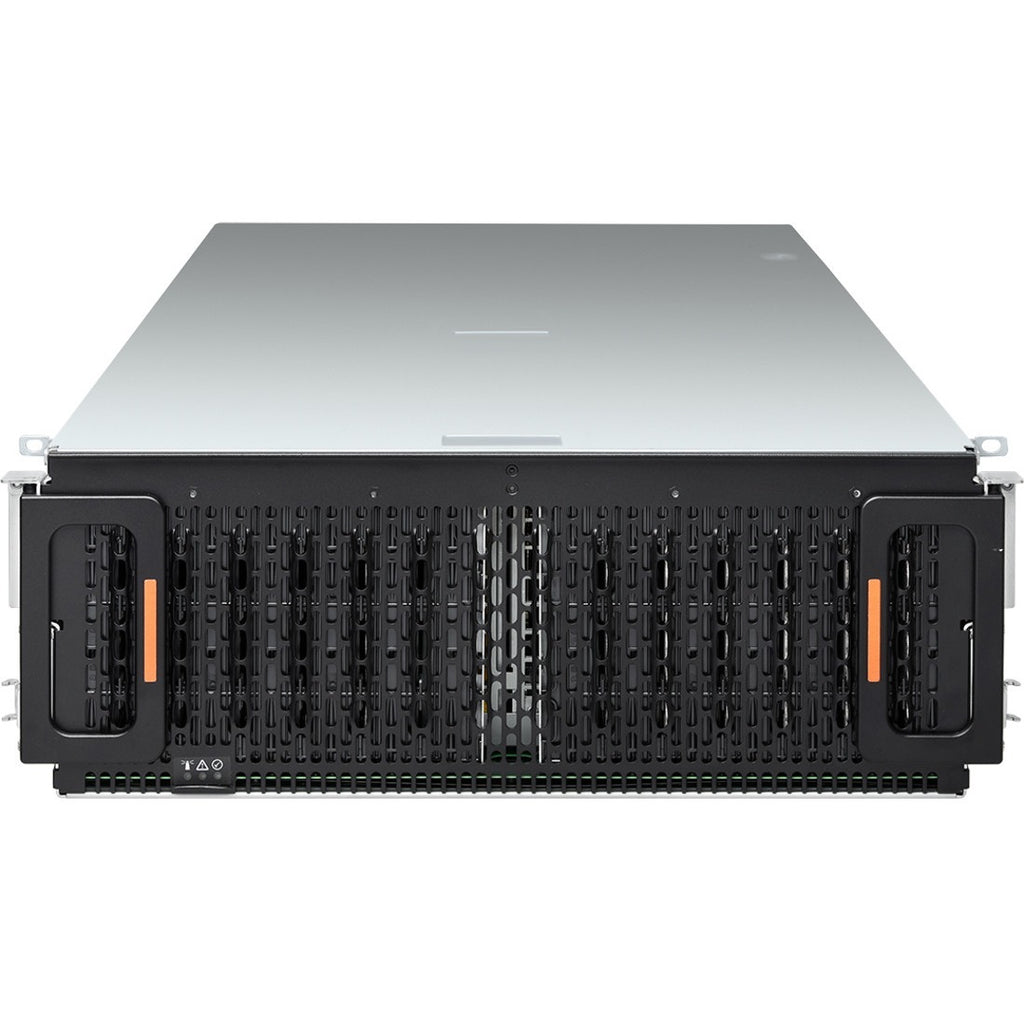

The WD Ultrastar Serv60+8 Hybrid Storage Server (1ES1256) delivers exceptional performance and scalability for software-defined storage (SDS) environments. Powered by Intel® Xeon® processors and engineered with innovations like IsoVibe™ and ArcticFlow™, this 4U rackmount system supports up to 60 hard drives and 32 solid-state drives, offering a maximum supported capacity of 780TB for demanding enterprise workloads.
Designed for cloud service providers, integrators, and OEMs, the Serv60+8 seamlessly blends compute and storage in one dense platform, reducing TCO while ensuring optimal performance and reliability.
Key Features:
-
Up to 780TB raw HDD capacity in a 4U enclosure
-
60 x 3.5"/2.5" bays + 8 x 2.5" bays
-
Support for 32 SSDs for hybrid acceleration
-
Dual Xeon® CPUs with 6 total expansion slots
-
10GbE connectivity, 4 USB ports, VGA, RJ-45
-
Redundant 2000W power supply for high availability
-
IPMI 2.0 for remote management
| Category | Details |
|---|---|
| Brand | WD |
| Product Line | Ultrastar Serv60+8 |
| Model | 1ES1256 |
| Processor | Intel® Xeon® |
| Drive Bays | 68 total (60 x 2.5"/3.5", 8 x 2.5") |
| Installed HDDs | 60 |
| Installed HDD Capacity | 720 TB |
| Max Supported HDD Capacity | 780 TB |
| SSD Supported | 32 |
| SSD Installed | Not Included |
| Ethernet | 10 Gigabit Ethernet |
| Expansion Slots | 6 x PCIe 3.0 x8 |
| USB Ports | 2 x USB 2.0, 2 x USB 3.0 |
| Video | VGA |
| Network Ports | RJ-45 |
| Remote Management | IPMI 2.0 |
| Controller | SAS (Serial Attached SCSI) |
| Power Supply | 2 x 2000W (Redundant) |
| Form Factor | 4U Rackmount |
| Dimensions (HxWxD) | 6.9" x 17.6" x 43.3" |
| Weight | Approx. 210 lbs |
| Warranty | 5-Year Limited |
| Condition | New and Factory Fresh |
| Shipping Weight | 1 lb (as listed; likely placeholder) |
