The Shure ULXD4D Dual-Channel Digital Wireless Receiver delivers enterprise-grade wireless audio performance for demanding professional environments. Designed for large venues, corporate AV installations, and mission-critical sound reinforcement, this rackmount receiver provides two independent digital channels with exceptional RF stability and pristine audio clarity.
Operating within the H50 frequency band (534–598 MHz), the ULXD4D features a wide 64 MHz tuning range and supports scalable deployments of up to 60 channels. Advanced Digital Predictive Switching Diversity ensures uninterrupted signal integrity, while AES-256 encryption secures transmissions for confidential applications.
With built-in Dante networking, dual Ethernet ports, and RF cascade connectivity, the ULXD4D integrates seamlessly into modern networked audio infrastructures. Its intuitive interface, real-time monitoring, and flexible gain control make system setup and management efficient, even in complex multi-channel environments.
| Specification | Details |
|---|---|
| Wireless Technology | Digital UHF |
| Frequency Band | H50: 534 to 598 MHz |
| Tuning Range | 64 MHz |
| Number of Channels | 2 Independent Channels |
| Receiver Type | 19" Rackmount (1U) |
| Max Operating Range | Up to 100 m (328.1 ft) |
| RF Channel Frequencies | 2560 |
| Max Transmitters per Band | Up to 60 |
| Diversity | Digital Predictive Switching Diversity |
| Latency | < 2.9 ms |
| Encryption | AES-256 |

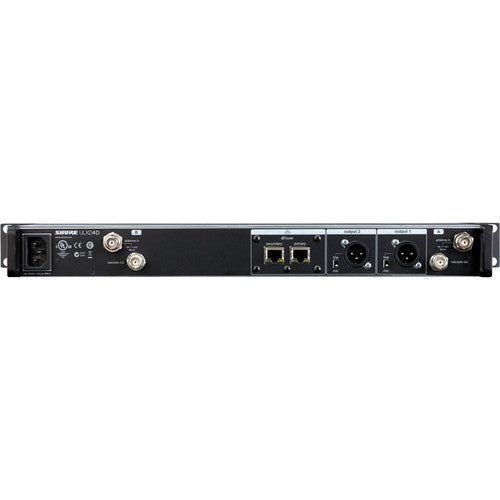

| Audio Outputs | 2 x XLR (Balanced) |
| Network Connectivity | 2 x RJ45 (Dante, DHCP, Manual IP) |
| RF Cascade Ports | 2 x RF Cascade for antenna distribution |
| Gain Range | -18 to +42 dB (1 dB steps) |
| Frequency Response | 30 Hz to 20 kHz ±1 dB |
| Display | Backlit LCD |
| Antennas | 2 x External BNC 1/2 Wave (Removable) |
| Power Requirements | 100–240 VAC, 50/60 Hz |
| Housing | Steel |
| Weight | 7.4 lb (3.4 kg) |
| Operating Features | Audio summing, automatic frequency scanning, IR sync, internal limiter |
| Included Accessories | Rackmount hardware, antennas, BNC cables, Ethernet cable, power cord |
| Transmitters Included | No transmitters included |
| Microphone Included | No microphone included |
