Description
The Shure ULXD4Q Quad-Channel Digital Wireless Receiver delivers professional-grade wireless audio performance for demanding live sound, broadcast, and AV installations. Designed for scalability and reliability, this 1RU rackmount receiver integrates four independent digital channels into a single unit, enabling efficient deployment in large venues, conference environments, and mission-critical applications.
Operating within the X52 frequency band (902–928 MHz), the ULXD4Q offers dependable RF performance in spectrum-congested environments while maintaining exceptional audio clarity with 24-bit/48 kHz digital transmission. Digital Predictive Switching Diversity ensures stable signal integrity by proactively avoiding interference and dropouts.
With dual Ethernet ports supporting Dante digital audio networking, the ULXD4Q enables seamless integration into modern AV infrastructures. Audio summing functionality allows the receiver to operate as a 4-channel mixer, while AES-256 encryption ensures secure wireless transmission. Expandable system capabilities support up to 12 channels in standard mode, making it ideal for scalable installations.

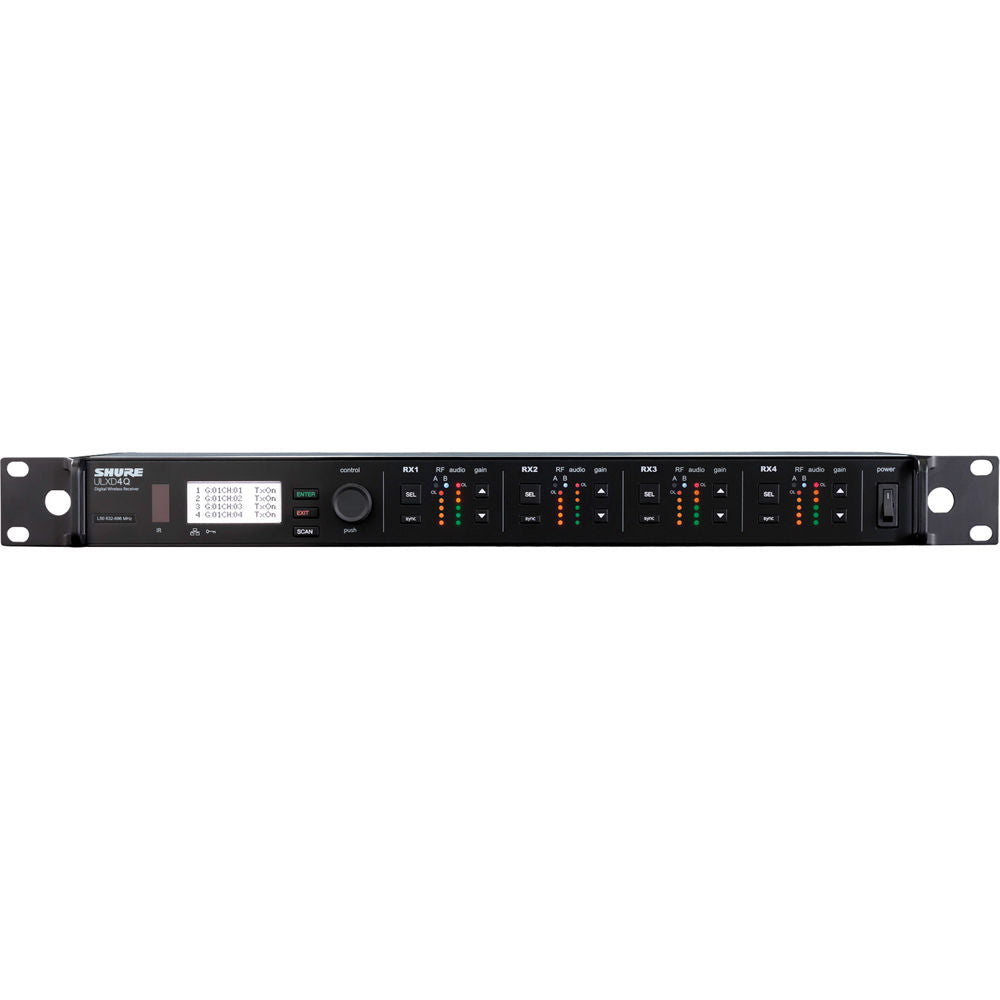

Engineered for precision control and ease of use, the ULXD4Q features a backlit LCD, intuitive front-panel controls, and network-based monitoring via Shure software platforms. Its rugged steel construction and flexible connectivity options make it a reliable foundation for enterprise-level wireless audio systems.
| Specification | Details |
|---|---|
| Wireless Technology | Digital UHF |
| RF Frequency Band | X52: 902 to 928 MHz |
| RF Channel Frequencies | 1040 |
| Number of Audio Channels | 4 Independent Channels |
| Max Transmitters per Band | Up to 12 |
| Operating Range | Up to 328.1 ft (100 m) |
| Latency | < 2.9 ms |
| Encryption | AES-256 Secure Encryption |
| Diversity | Digital Predictive Switching Diversity |
| Receiver Type | 1 RU Rackmount (19") |

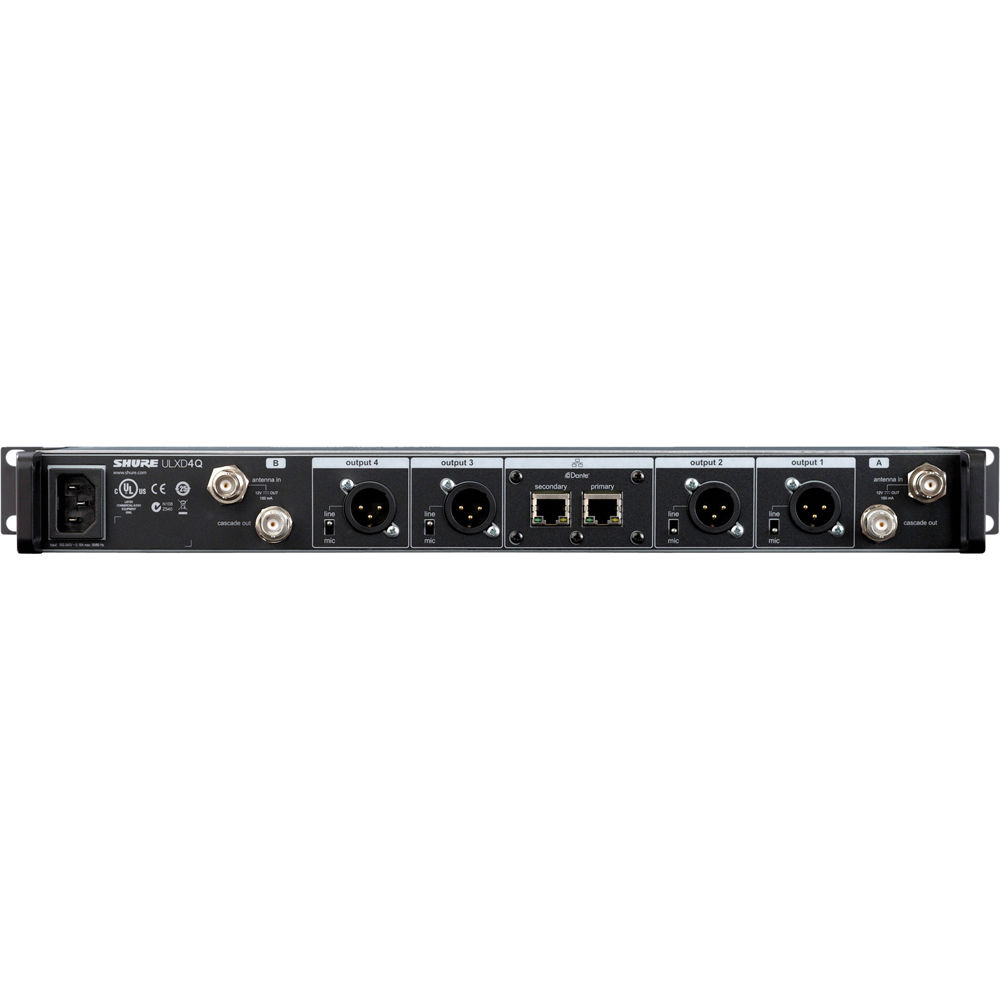

| Audio Outputs | 4 x XLR 3-Pin Balanced Outputs |
| Network Connectivity | 2 x RJ45 (Dante, DHCP, Manual IP) |
| RF Cascade Ports | 2 Ports for Antenna Distribution |
| Gain Range | -18 to +42 dB (1 dB Steps) |
| Frequency Response | 30 Hz to 20 kHz ±1 dB (mic dependent) |
| Display | Backlit LCD |
| Antenna | 2 x Removable BNC External (Rear-Mount) |
| Power Requirements | 100 to 240 VAC, 50/60 Hz |
| Power Consumption | 0.32 A |
| Construction | Durable Steel Housing |
| Dimensions | 19 x 10.8 x 1.7" (482 x 274 x 44 mm) |
| Weight | 7.6 lb (3.4 kg) |
| Included Transmitters | Not Included |
| Microphone Included | No Microphone Included |
| Charging Case Included | Not Included |
