Description

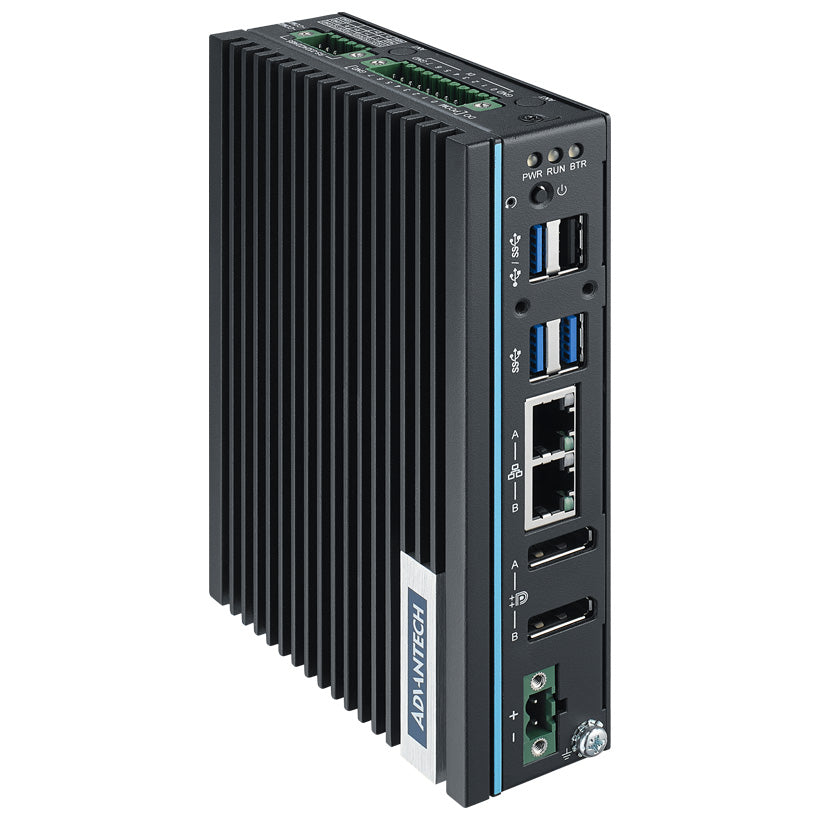

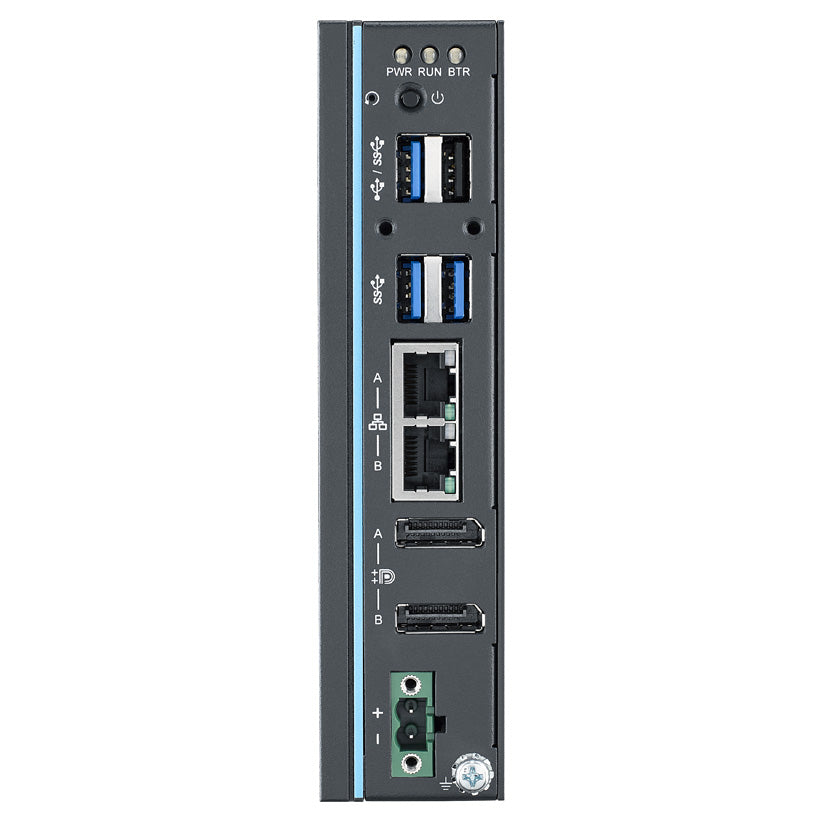

The Advantech UNO-137 V2 is a rugged, compact DIN-rail industrial controller designed for control cabinet and edge automation environments. Powered by an Intel® Atom® x6413E/x6425RE processor with built-in DDR4 memory, it delivers reliable industrial computing performance in a small footprint.

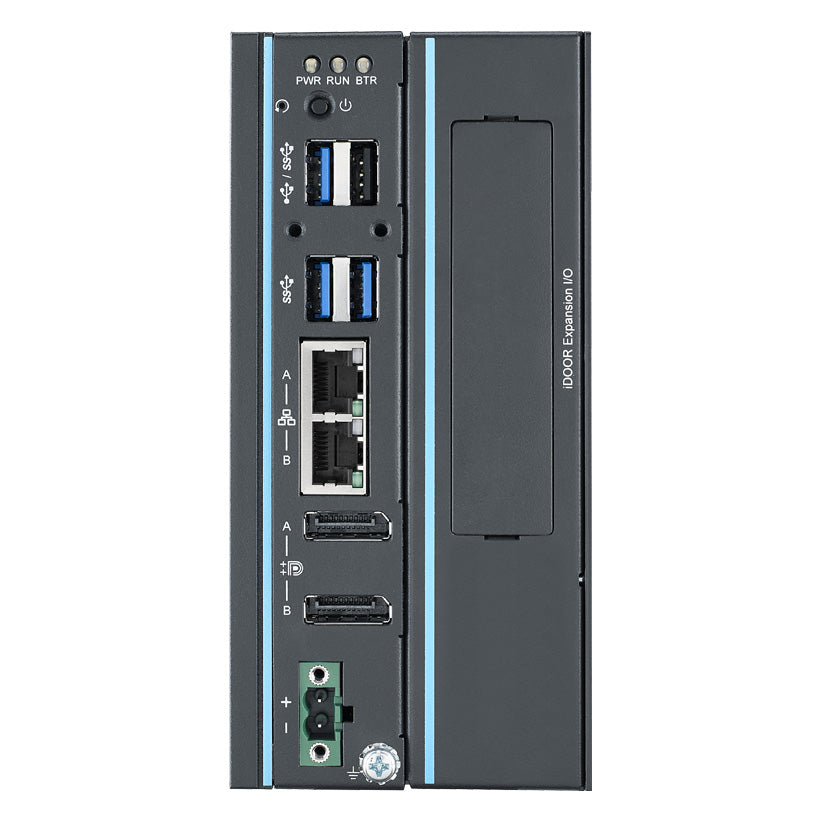

Built for harsh conditions, the UNO-137 V2 supports wide operating temperatures, wide-range DC input power, and extensive I/O connectivity including dual 2.5GbE LAN, isolated serial ports, isolated DI/O channels, and dual DisplayPort outputs. Its modular expansion capability with optional iDoor technology makes it ideal for industrial automation, machine control, and smart factory deployments.
| Specification | Details |
|---|---|
| Brand | Advantech |
| Model | UNO-137 V2 |
| SKU | UNO-137V2-BTO-TRI |
| Product Type | Compact DIN-Rail Industrial Controller IPC |
| Processor | Intel® Atom® x6413E (1.5 GHz) / Optional x6425RE (1.9 GHz) |
| Memory | Built-in 8 GB DDR4 (Expandable up to 32 GB) |
| Ethernet Ports | 2 × 10/100/1000/2500 Mbps LAN (RJ45) |
| Serial Ports | 2 × RS-232/422/485 (Isolated Terminal Block) |
| USB Ports | 2 × USB 3.2 Gen2, 1 × USB 3.2 Gen1, 1 × USB 2.0 |
| Digital I/O | 8 × Isolated DI, 8 × DO (500 mA/channel max.) |
| Display Output | 2 × DisplayPort 1.2 (Up to 4K @ 60Hz) |
| Storage Support | Dual Storage: M.2 M-Key + mSATA |
| Expansion Slots | Full-size mPCIe, Nano SIM Slot, Optional iDoor Extension |
| Security | Onboard TPM 2.0 Hardware Security |
| Power Input | Wide Range 10–36 VDC |
| Power Consumption | 21W Typical / 44W Max |
| Operating Temperature | -40°C to +70°C (with airflow support) |
| Enclosure | Rugged Aluminum Housing |
| Mounting | DIN-Rail |
| Dimensions (W × D × H) | 35 × 105 × 150 mm |
| Weight | Approx. 0.8 kg |
| Compliance | IEC 61010-1 Industrial Safety |
