Description

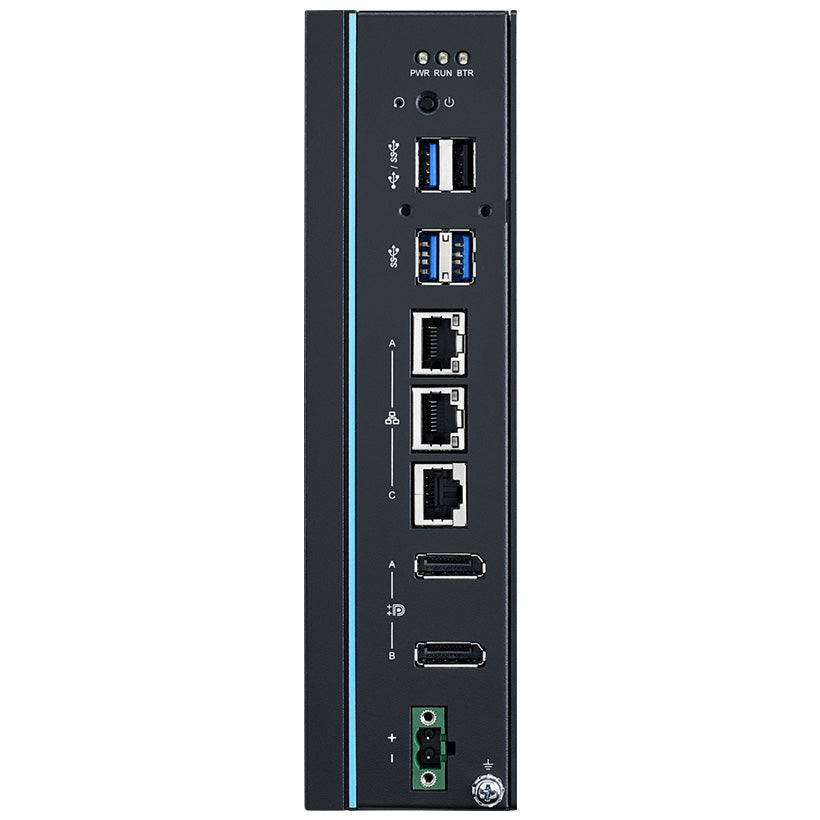

The Advantech UNO-148 V2 (UNO-148-I7-BTO-TRI) is a rugged, fanless DIN-rail edge controller designed for demanding industrial automation and IoT applications. Powered by a 13th Gen Intel® Core™ i7 processor with DDR5 memory support, it delivers high-performance computing in a compact, industrial-grade aluminum enclosure.

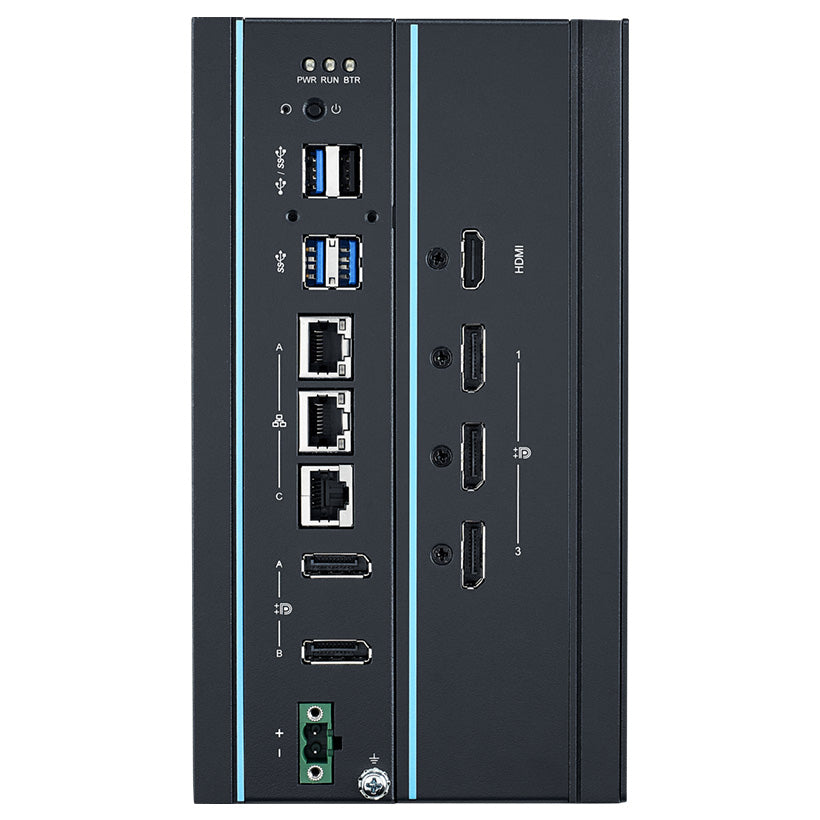

This controller features rich industrial I/O, including isolated serial ports, multiple LAN connections (up to 2.5GbE), digital input/output channels with high-voltage isolation, and dual 4K DisplayPort outputs. With expansion options such as dual NVMe SSD slots, Wi-Fi module support, TPM 2.0 security, and optional iDoor modular extensions, the UNO-148 V2 is built for scalable, secure edge deployments in smart factories, transportation, and energy systems.
| Specification Category | Details |
|---|---|
| Brand | Advantech |
| Model | UNO-148 V2 |
| SKU | UNO-148-I7-BTO-TRI |
| Product Type | Fanless DIN-Rail Edge Controller |
| Processor | 13th Gen Intel® Core™ i7-1365UE (10 cores, up to 4.9 GHz) |
| Memory | 8GB DDR5 (Expandable up to 64GB, 2 slots) |
| Storage Support | 2 × M.2 M-Key 2280 NVMe SSD (RAID supported) |
| Expansion Slots | 1 × Full-size mPCIe, 1 × M.2 E-Key (Wi-Fi), Nano SIM slot |
| Ethernet Ports | 3 × LAN (1× GbE + 2× 2.5GbE) |
| Serial Ports | 4 × RS-232/422/485 (isolated, terminal block) |
| USB Ports | 2 × USB 3.2 Gen2, 1 × USB 3.2 Gen1, 1 × USB 2.0 |
| Digital I/O | 8 × DI + 8 × DO (2500 VDC isolation) |
| Display Output | 2 × DisplayPort 1.4 (up to 4K @ 60Hz) |
| Security | Onboard TPM 2.0 |
| Mounting | DIN-Rail |
| Enclosure | Aluminum Housing |
| Power Input | 10–36 VDC |
| Power Consumption | 41W typical / 63W max |
| Operating Temperature | -20°C to 60°C (15W TDP with airflow) |
| Ingress Protection | IP20 |
| Dimensions (W × D × H) | 53 × 140 × 200 mm |
| Weight | 1.8 kg |
| OS Support | Windows 10 LTSC, Windows 11, AdvLinux (Ubuntu 22.04) |
| Compliance | CE, FCC, UL61010-2-201, IEC 61010-2 |
