Description

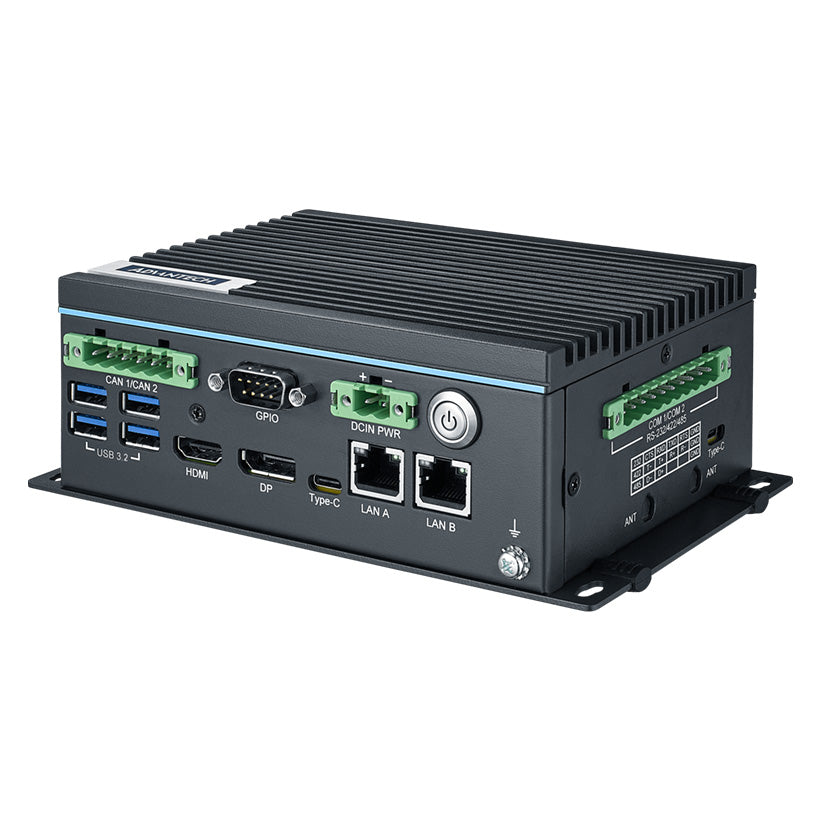

The Advantech UNO-238 V2 (UNO-238C7-BTO-6-13) is a compact, high-performance industrial IoT edge computer designed for demanding automation, control, and edge analytics environments. Powered by an Intel Core i7-1265UE processor, this system delivers exceptional multi-core performance while maintaining reliability in industrial conditions.

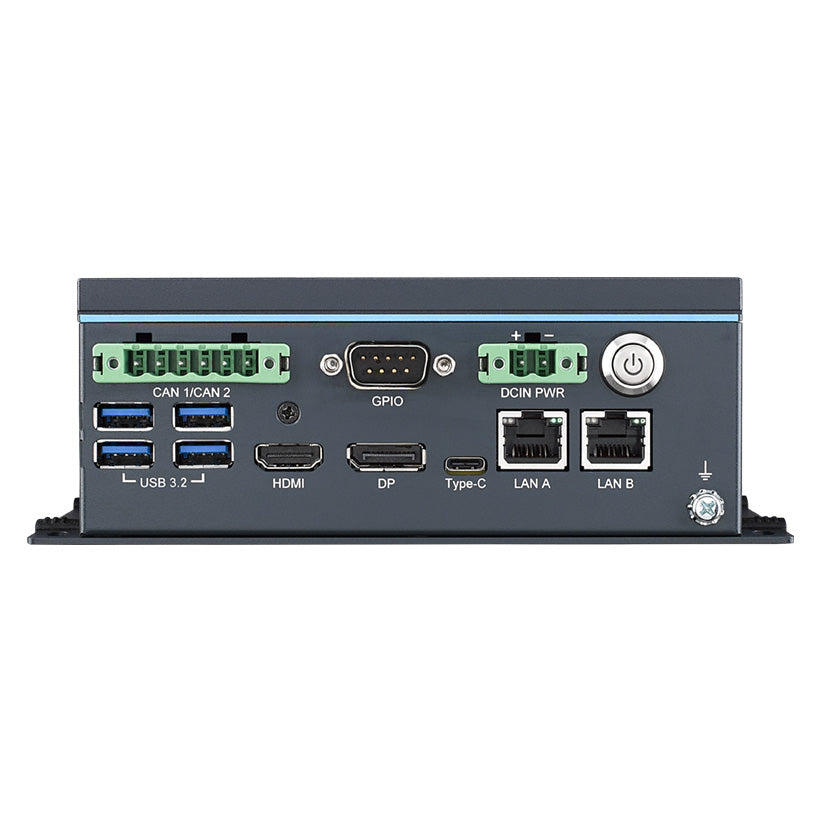

Engineered with a fanless aluminum enclosure, the UNO-238 V2 supports dual CANBus, multiple serial interfaces, high-speed USB connectivity including USB Type-C, and dual LAN ports for flexible networking. Its modular M.2 expansion design enables support for NVMe storage, wireless, and LTE modules, making it ideal for smart factory, transportation, and energy applications.
This build-to-order configuration allows system customization while maintaining compatibility with Windows and Linux industrial operating systems, ensuring long-term deployment stability.
| Specification | Details |
|---|---|
| Product Series | Advantech UNO-238 V2 |
| Processor | Intel Core i7-1265UE |
| Max Turbo Frequency | Up to 4.7 GHz |
| CPU Cores | 10 Cores |
| System Type | Industrial IoT Edge Computer |
| Memory Support | Dual-channel DDR5-4800, up to 64 GB |
| Storage Support | M.2 M-Key 2280 (NVMe Gen 4), M.2 B-Key |
| Ethernet Ports | 2 × RJ-45 (Gigabit / 2.5GbE) |
| Serial Ports | 2 × RS-232 / 422 / 485 |
| CANBus | 2 × CAN 2.0 |
| USB Ports | 4 × USB 3.2, 2 × USB Type-C |
| Display Outputs | HDMI 2.0, DisplayPort 1.4a |
| GPIO | 8 × Digital Input (Default) |
| Expansion Slots | M.2 E-Key, B-Key, M-Key |
| TPM | TPM 2.0 |
| Power Input | 12–24 VDC |
| Power Consumption | 30–60 W |
| Mounting Options | Wall, Stand, DIN-Rail (Optional) |
| Enclosure | Fanless Aluminum Housing |
| Operating Temperature | 0°C to 50°C (standard) |
| Operating System Support | Windows 10 LTSC, Windows 11 LTSC, Linux |
| Form Factor | Compact Industrial |
| SKU | UNO-238C7-BTO-6-13 |
